Antenna QuShell HD for Rajant Cardinal + PoE Converter

P/n: ARAG1VHD

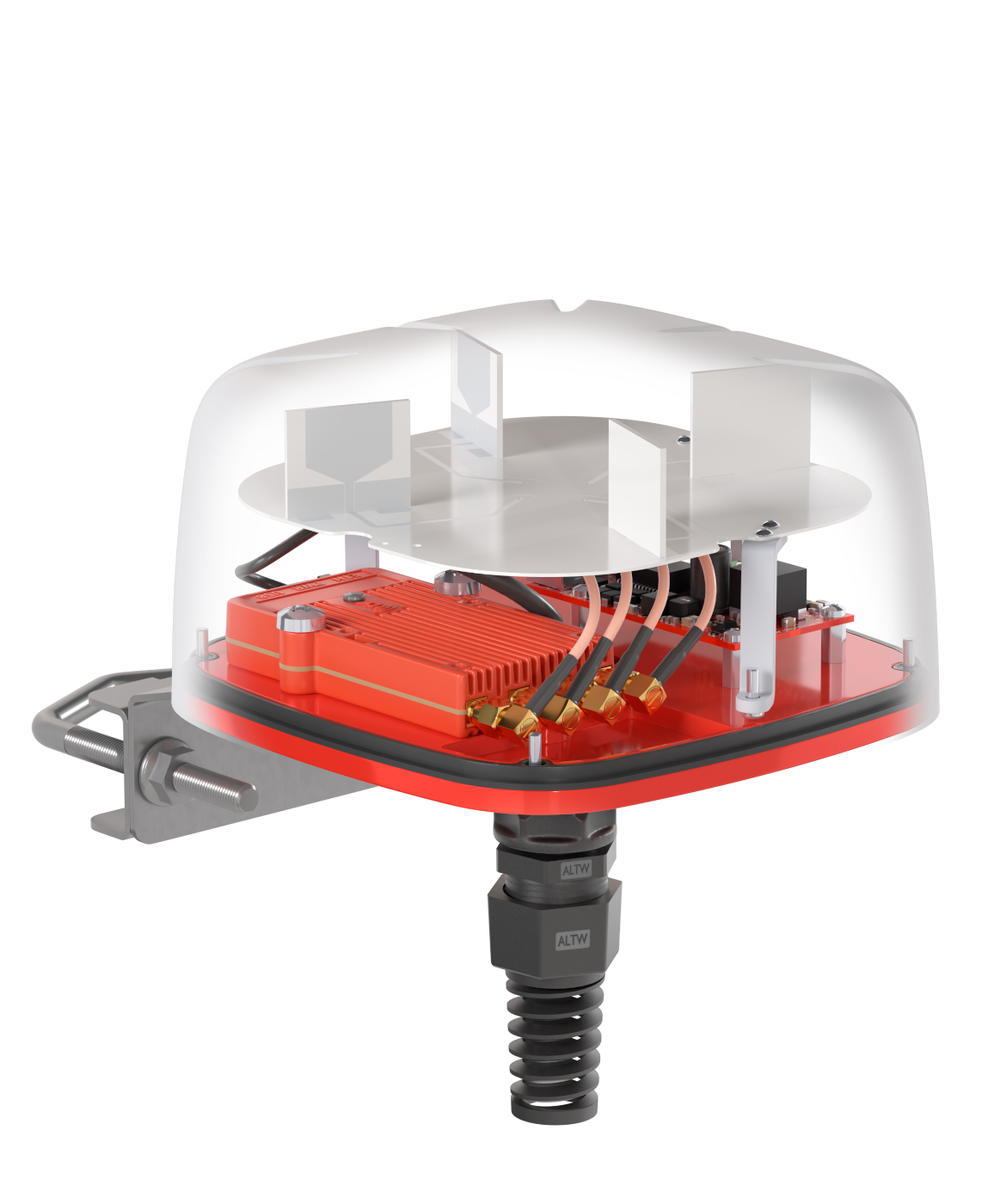

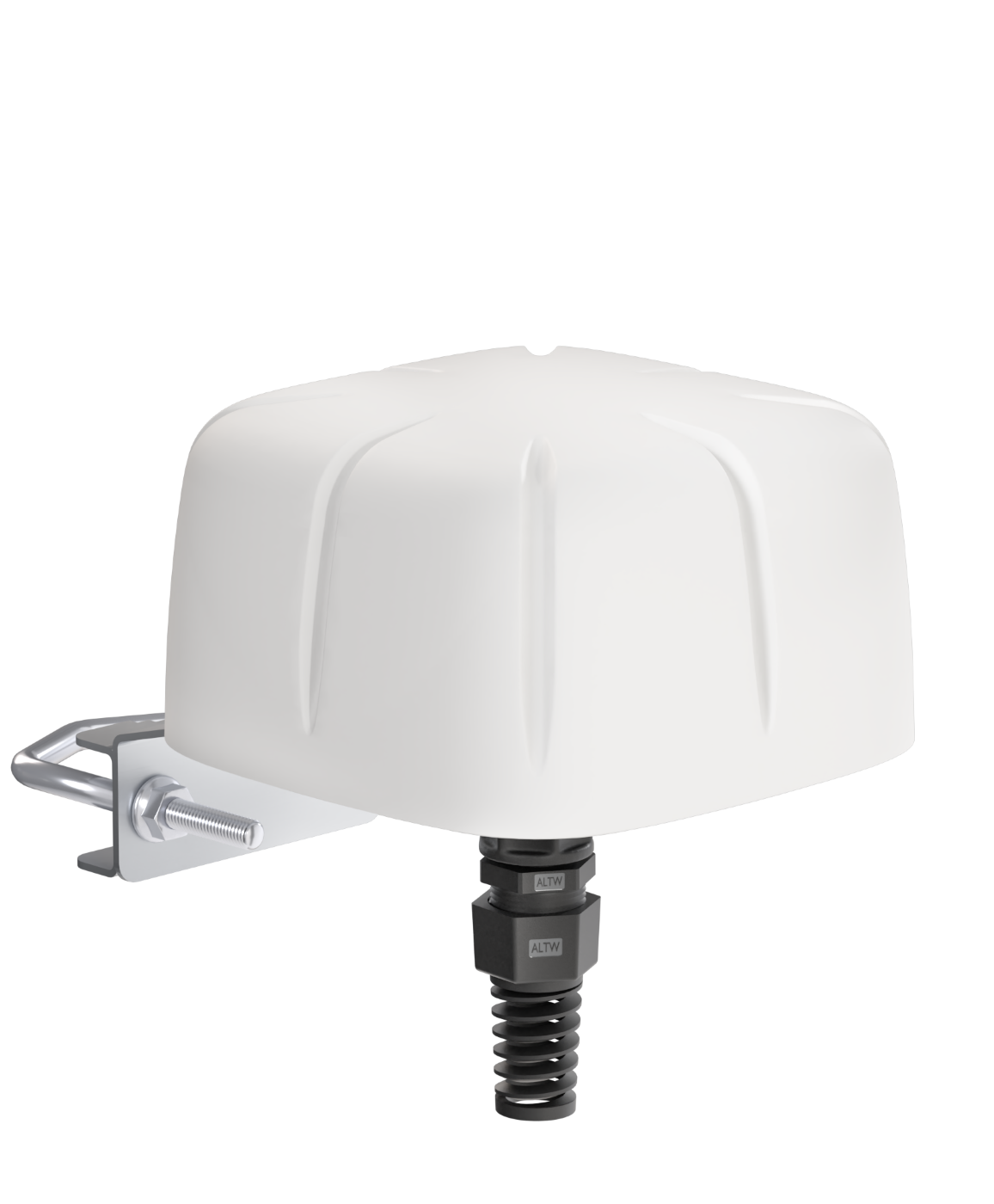

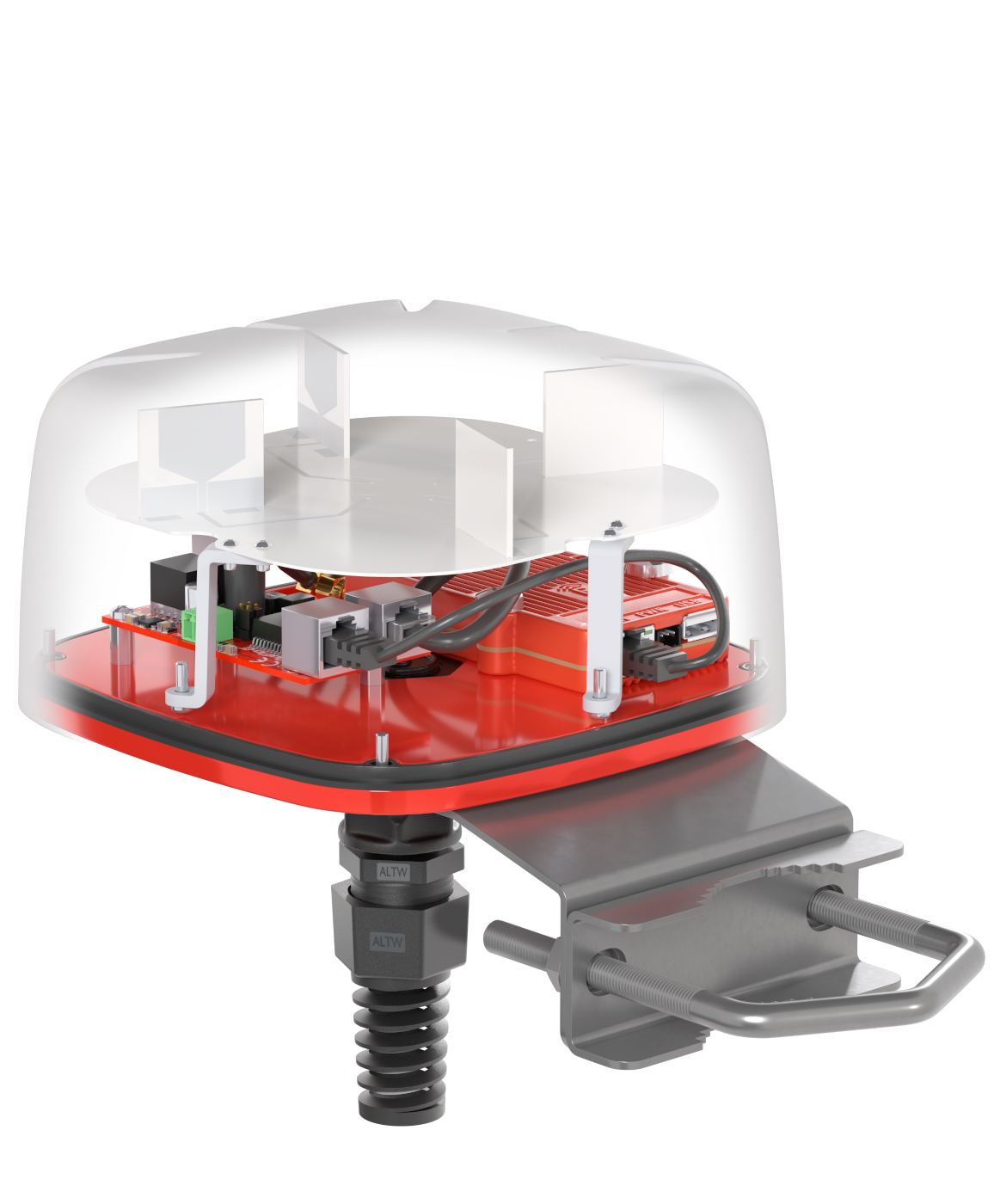

INTEGRATED MULTI-BAND WI-FI OMNI ANTENNA + ACTIVE TO PASSIVE POE CONVERTER + PLACE TO INSTALL RAJANT CARDINAL (ALL-IN-ONE)

The QuShell for Rajant Cardinal is a high-gain mobility antenna designed for reliable connectivity across 2.4GHz and 5GHz frequencies, enhancing range, speed, and capacity. It features a built-in RJ45 Ethernet port for easy network integration. Encased in a rugged, IP67-rated enclosure, it withstands harsh outdoor conditions. The anodized aluminum antenna base helps in heat dissipation, while the ABS cover ensures optimal signal performance. Ideal for mobile and industrial environments such as buses, mining, or agriculture.

The set contains a Active to Passive PoE converter, allowing you to power your device with Ethernet cable, while using Active PoE power source and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.




Why QuShell HD for Rajant Cardinal + PoE Converter

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Anodized aluminium for heat dissipation

Made in Europe

QuShell HD for Rajant Cardinal + PoE Converter

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

5 - 7.2 GHz

Gain

2.4 - 2.5 GHz: 2dBi

5 - 7.2 GHz: 5dBi

VSWR

< 2.50

Beamwidth

360°/25°

Polarization

Vertical

Impedance

50 Ω

Max Input Power

50W

DC Ground

Yes

Connector type

4x SMA

PLOTS

PRODUCT DETAILS

WiFi - V VSWR

WiFi - V VSWR of QuShell HD for Rajant Cardinal + PoE Converter

WiFi - V GAIN

WiFi - V GAIN of QuShell HD for Rajant Cardinal + PoE Converter
Wi-Fi V From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuShell HD for Rajant Cardinal + PoE ConverterQuShell HD for Rajant Cardinal + PoE Converter
QuShell HD for Rajant Cardinal + PoE ConverterQuShell HD for Rajant Cardinal + PoE Converter

WHAT'S IN THE BOX?

PRODUCT DETAILS

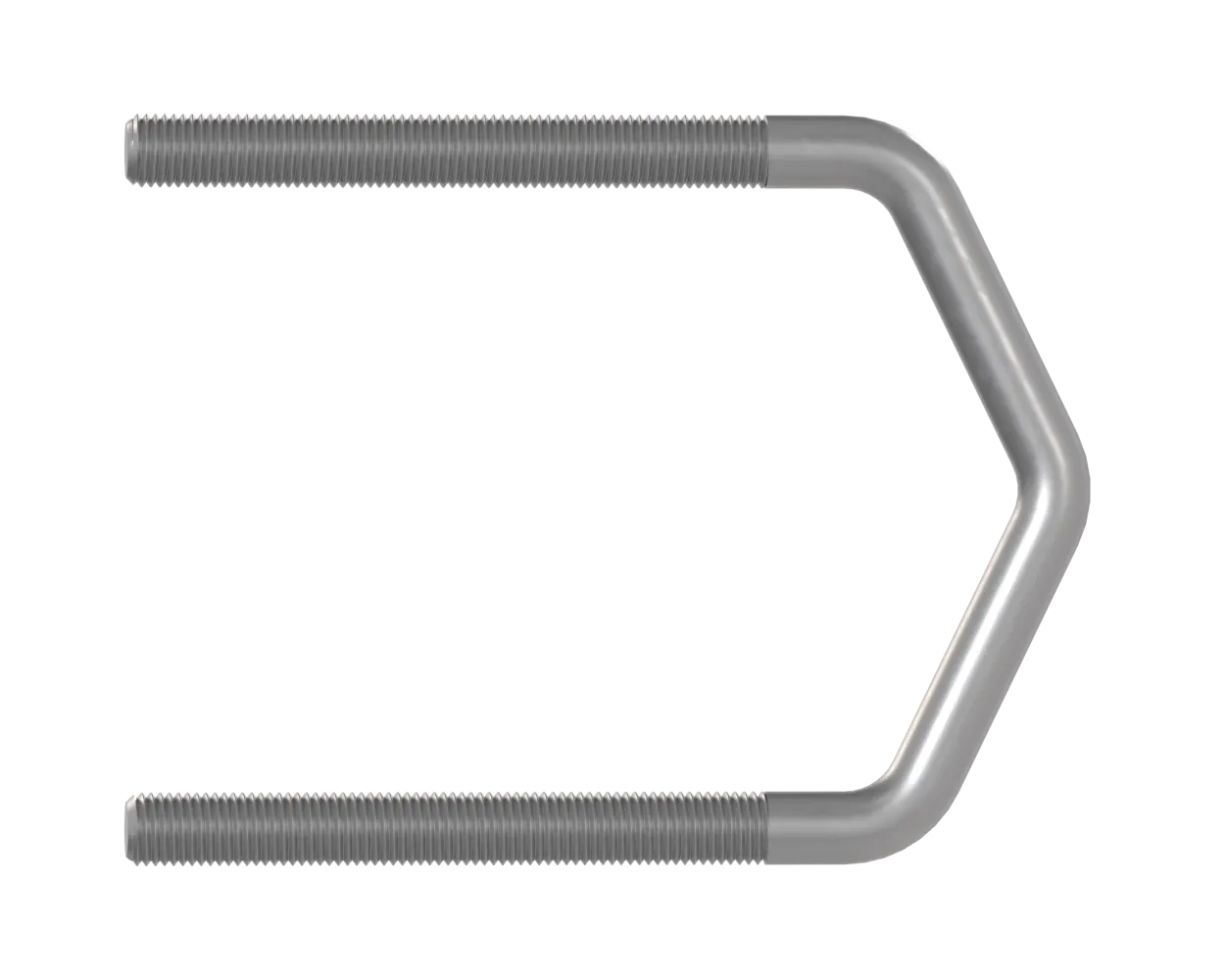

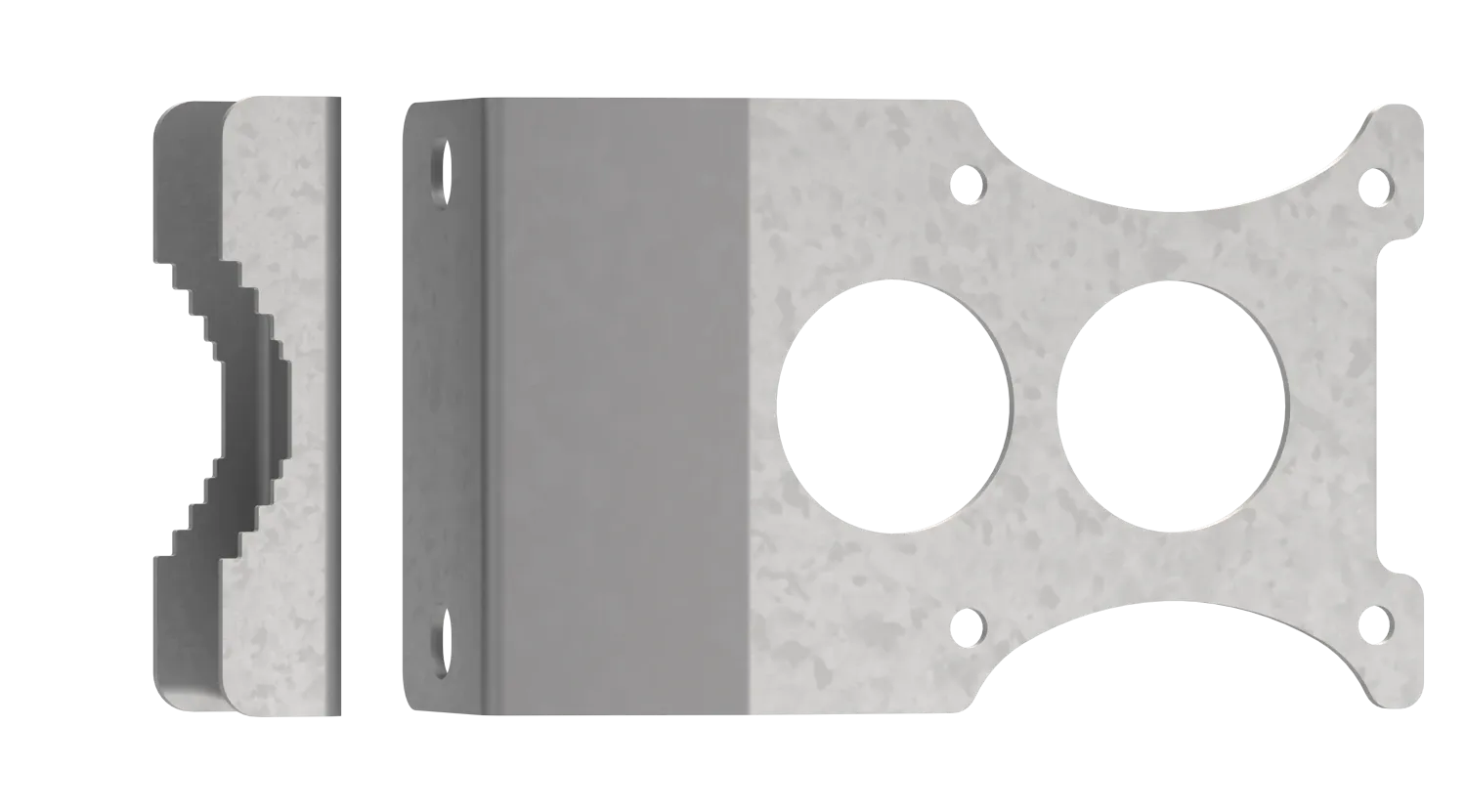

IN THE BOX

QuShell HD for Rajant Cardinal

Parts of QuShell HD for Rajant Cardinal + PoE Converter
1 x
Parts of QuShell HD for Rajant Cardinal + PoE Converter
1 x
Parts of QuShell HD for Rajant Cardinal + PoE Converter
1 x
Parts of QuShell HD for Rajant Cardinal + PoE Converter
1 x QuRJ45
Parts of QuShell HD for Rajant Cardinal + PoE Converter
4 x M6 x 10
Parts of QuShell HD for Rajant Cardinal + PoE Converter
4 x
Parts of QuShell HD for Rajant Cardinal + PoE Converter
2 x
Parts of QuShell HD for Rajant Cardinal + PoE Converter
4 x 3,1 x 12

Download

Datasheet QuShell HD for Rajant Cardinal + PoE Converter
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuShell HD for Rajant Cardinal + PoE Converter
Use case QuShell HD for Rajant Cardinal + PoE Converter
Use case QuShell HD for Rajant Cardinal + PoE Converter
