1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

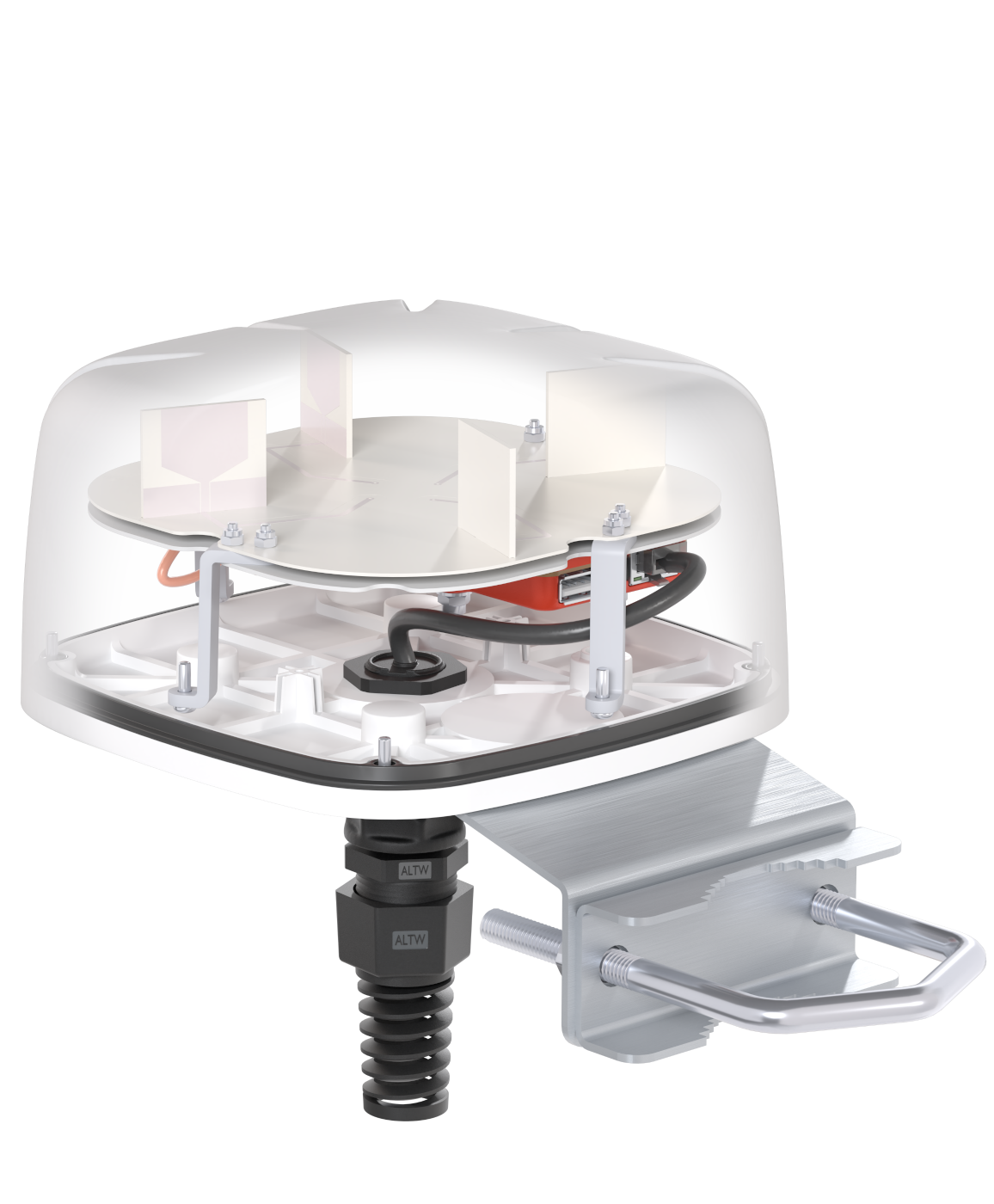

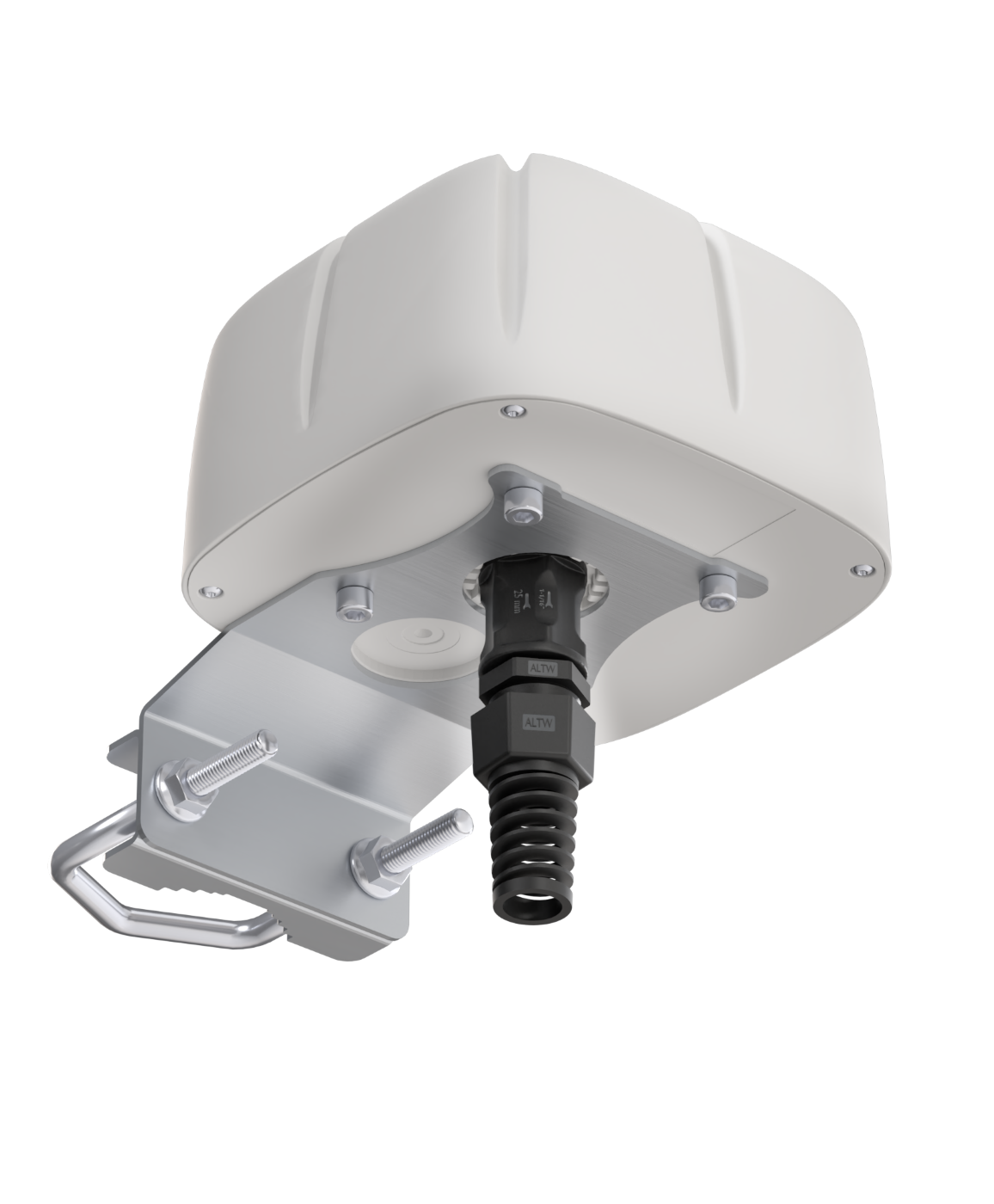

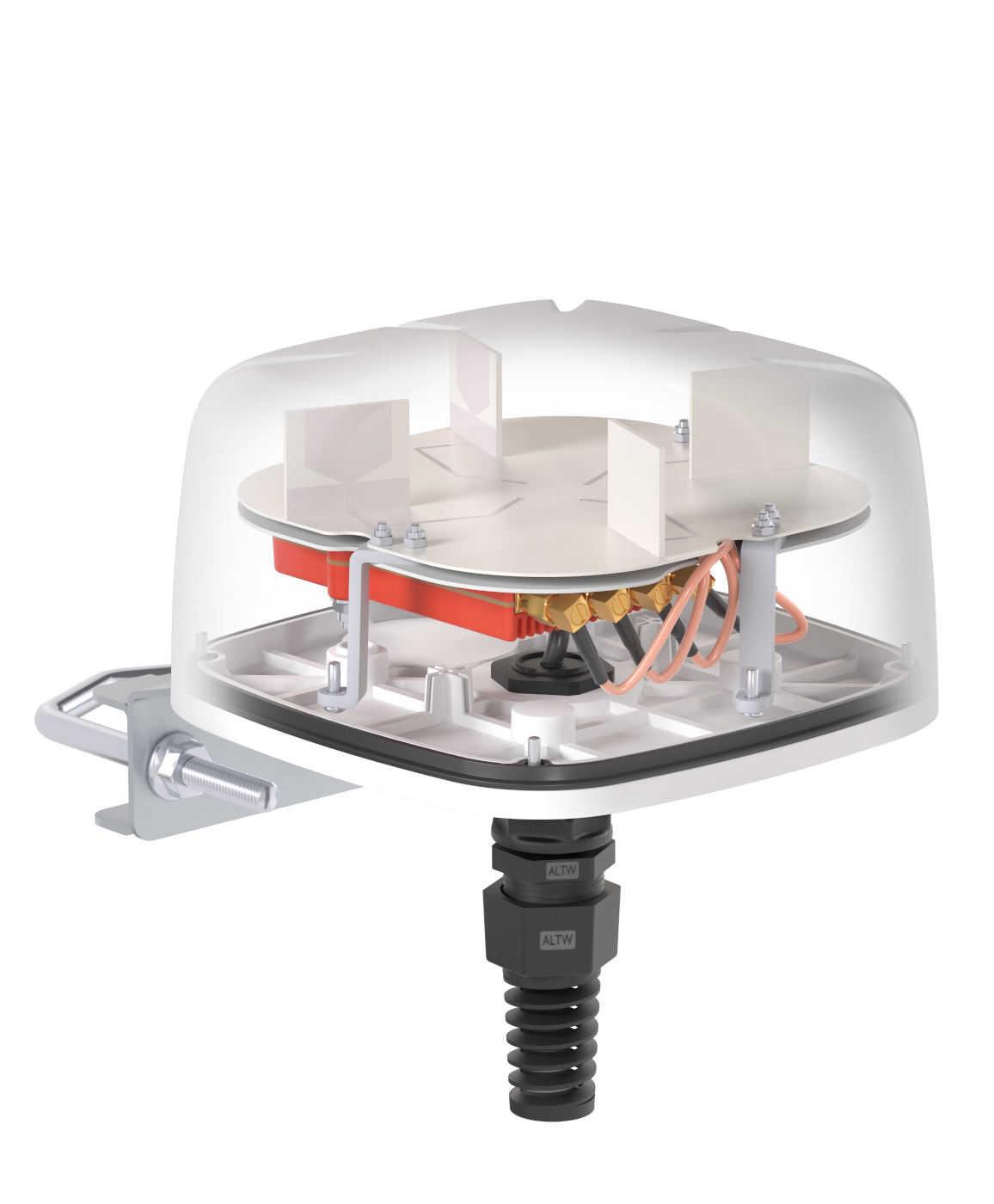

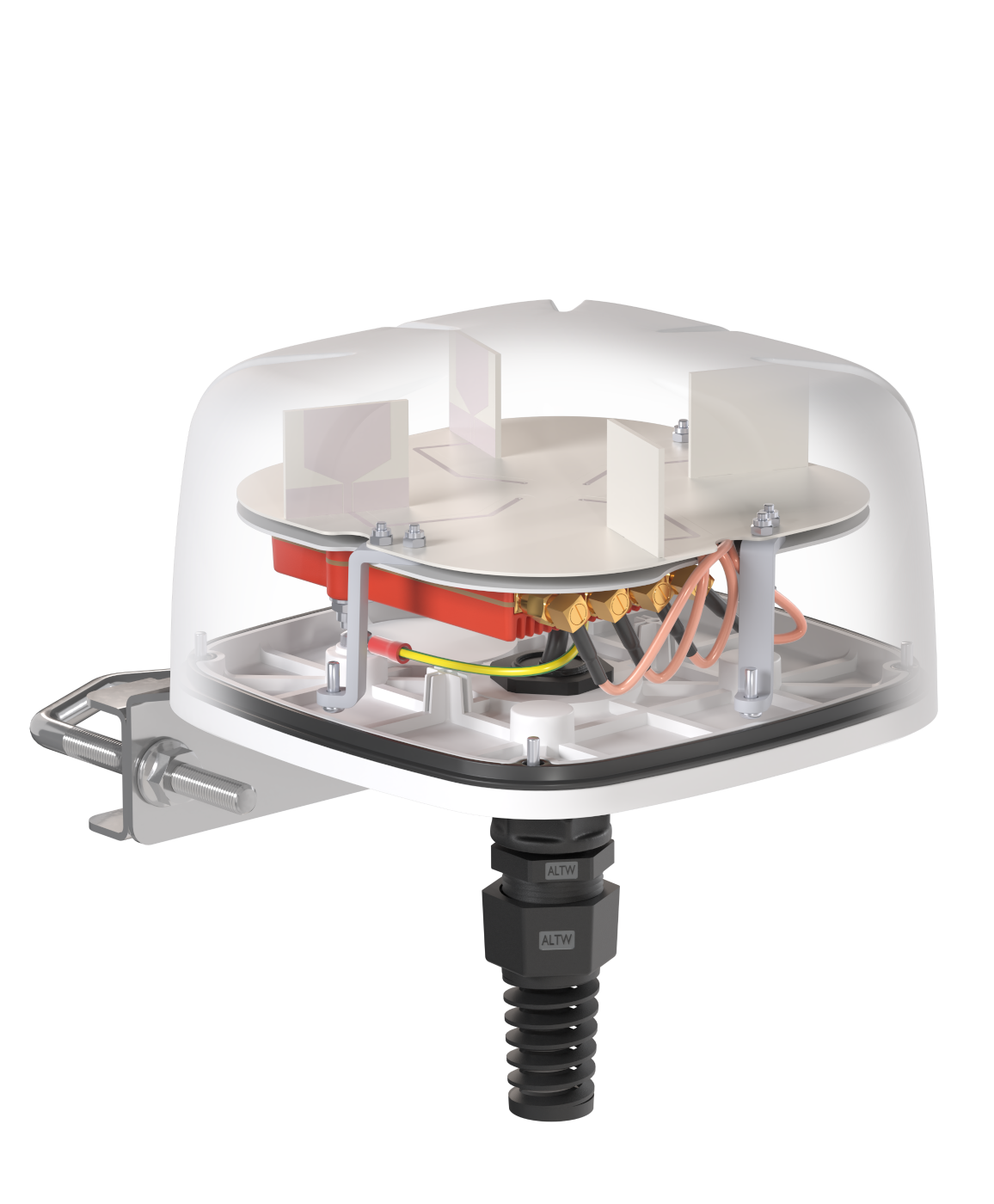

Antenna QuShell for Rajant Cardinal

P/n: -

QuShell for Rajant Cardinal is a high performance mobility antenna providing performance connectivity across diverse frequencies and applications for 4x4 MIMO WiFi 6e.

The QuShell for Rajant Cardinal is a high-performance mobility antenna engineered to deliver superior connectivity across all Wi-Fi frequencies, making it ideal for a wide range of demanding applications. Its cutting-edge design ensures reliable and robust communication, whether deployed in mobility solutions like buses, taxis, and delivery vehicles or in heavy industrial environments such as mining, construction, and agriculture, where ruggedness and reliability are paramount.

Housed in a durable IP67-rated ABS enclosure, the QuShell protects the Carinal against the most challenging outdoor conditions. The IP67 rating signifies that the enclosure is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.

Inside the enclosure, high-gain 5dBi Wi-Fi antennas with MIMO 4x4 capability provide exceptional connectivity, delivering increased range, speed, and capacity for high-bandwidth applications. The built-in RJ45 Ethernet port enables seamless integration with network infrastructure.

With its robust construction and advanced wireless performance, the QuShell for Rajant Cardinal is designed to meet the connectivity needs of both modern mobility systems and heavy-duty industrial operations, offering unparalleled reliability in every setting.
