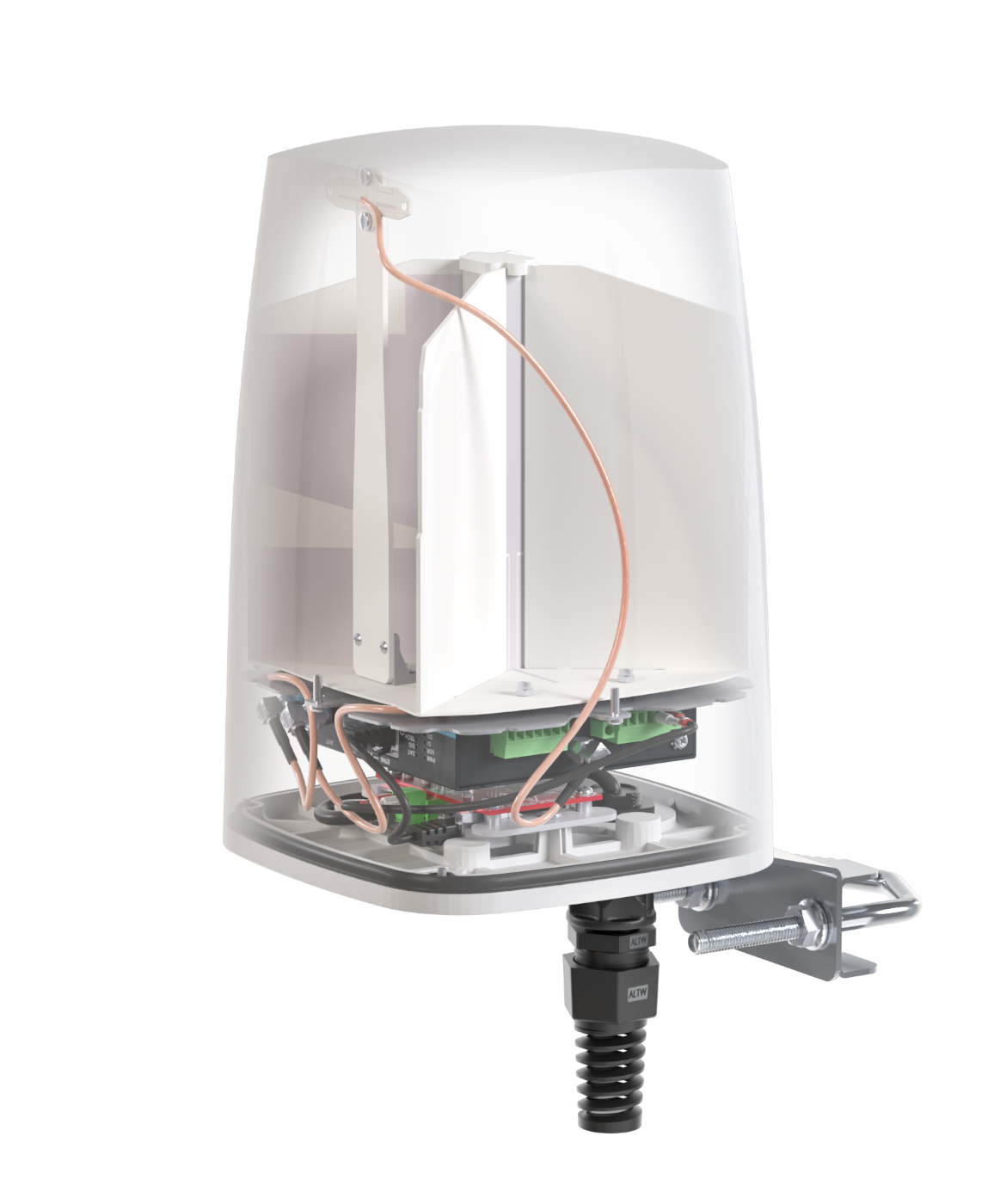

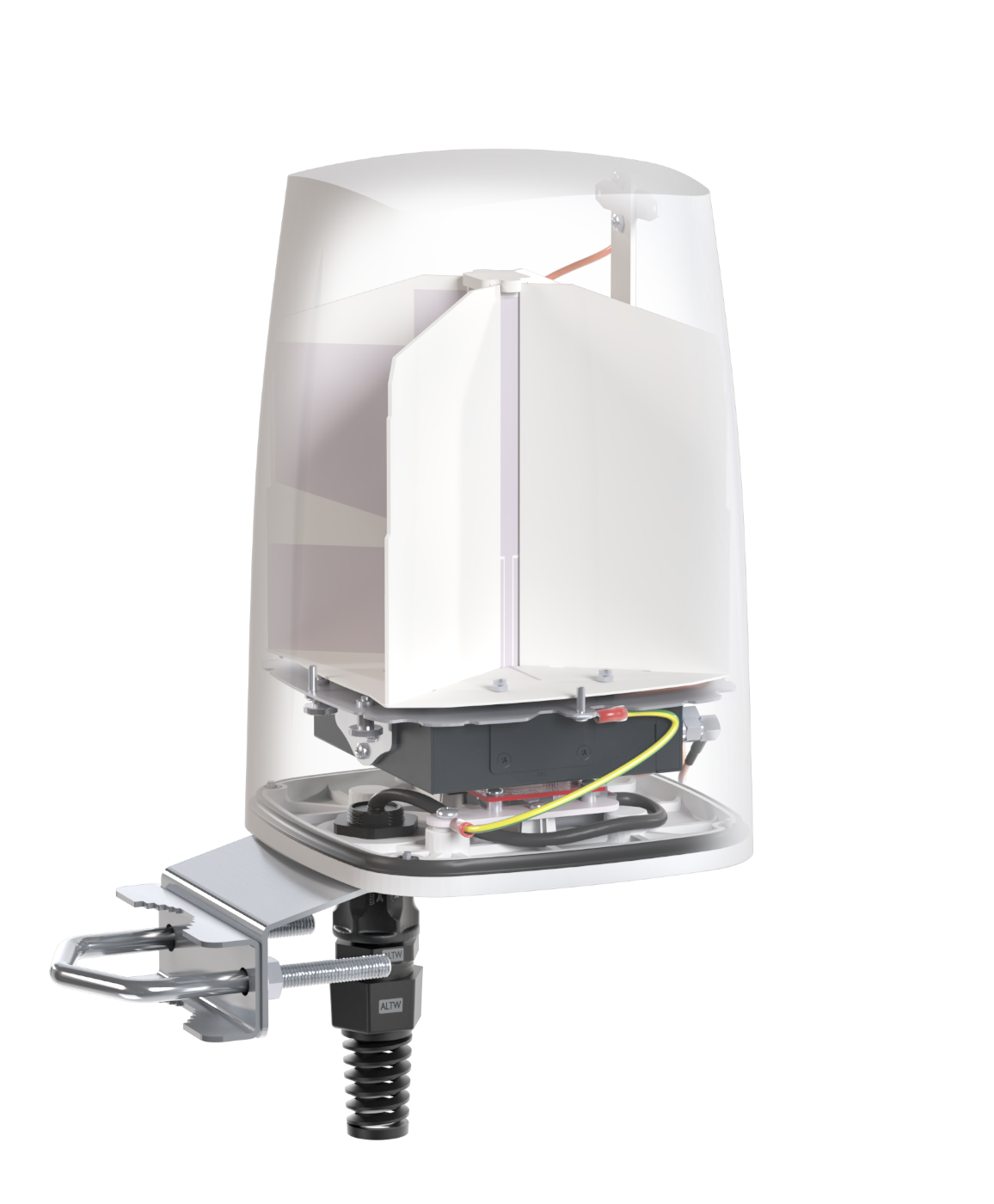

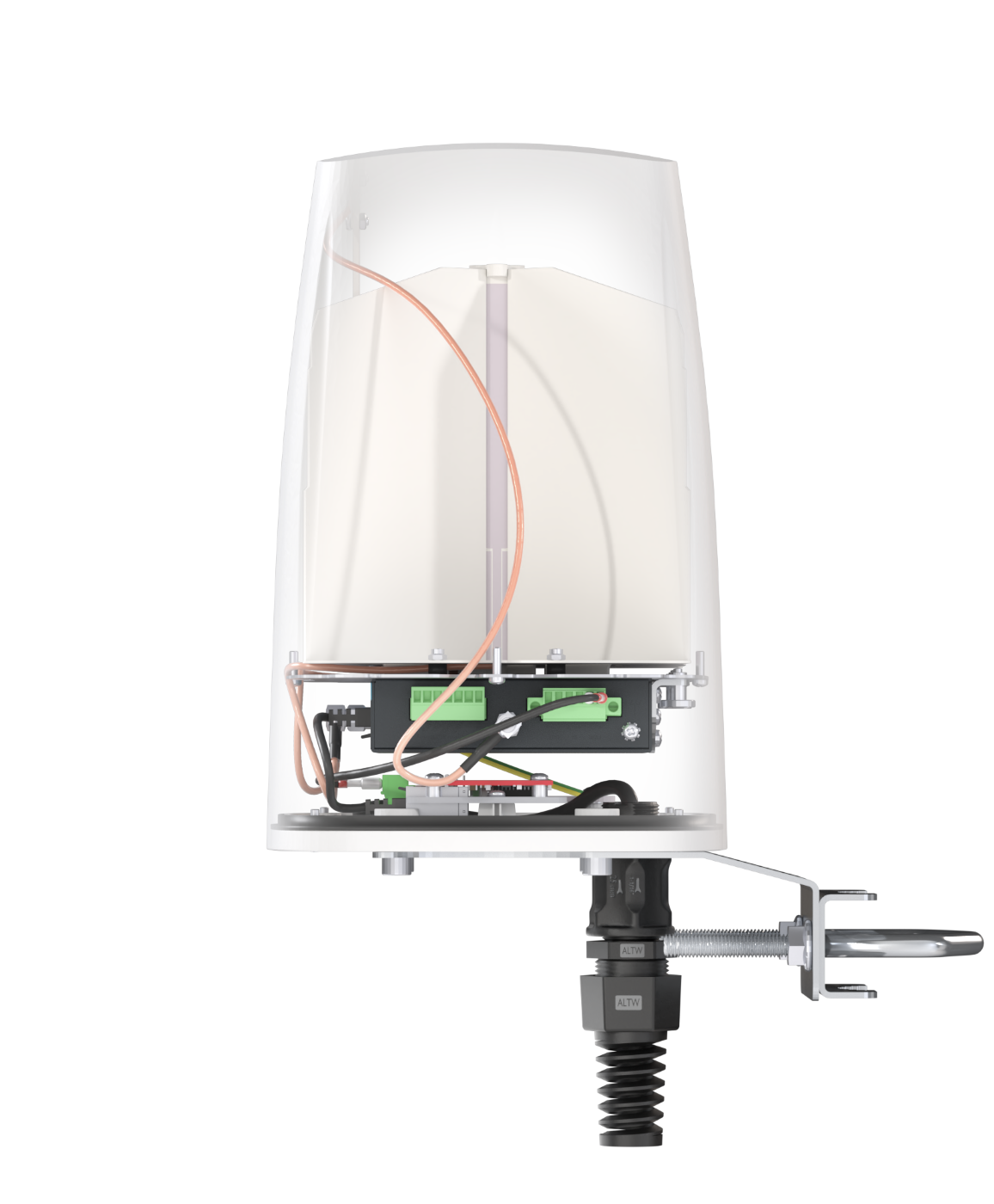

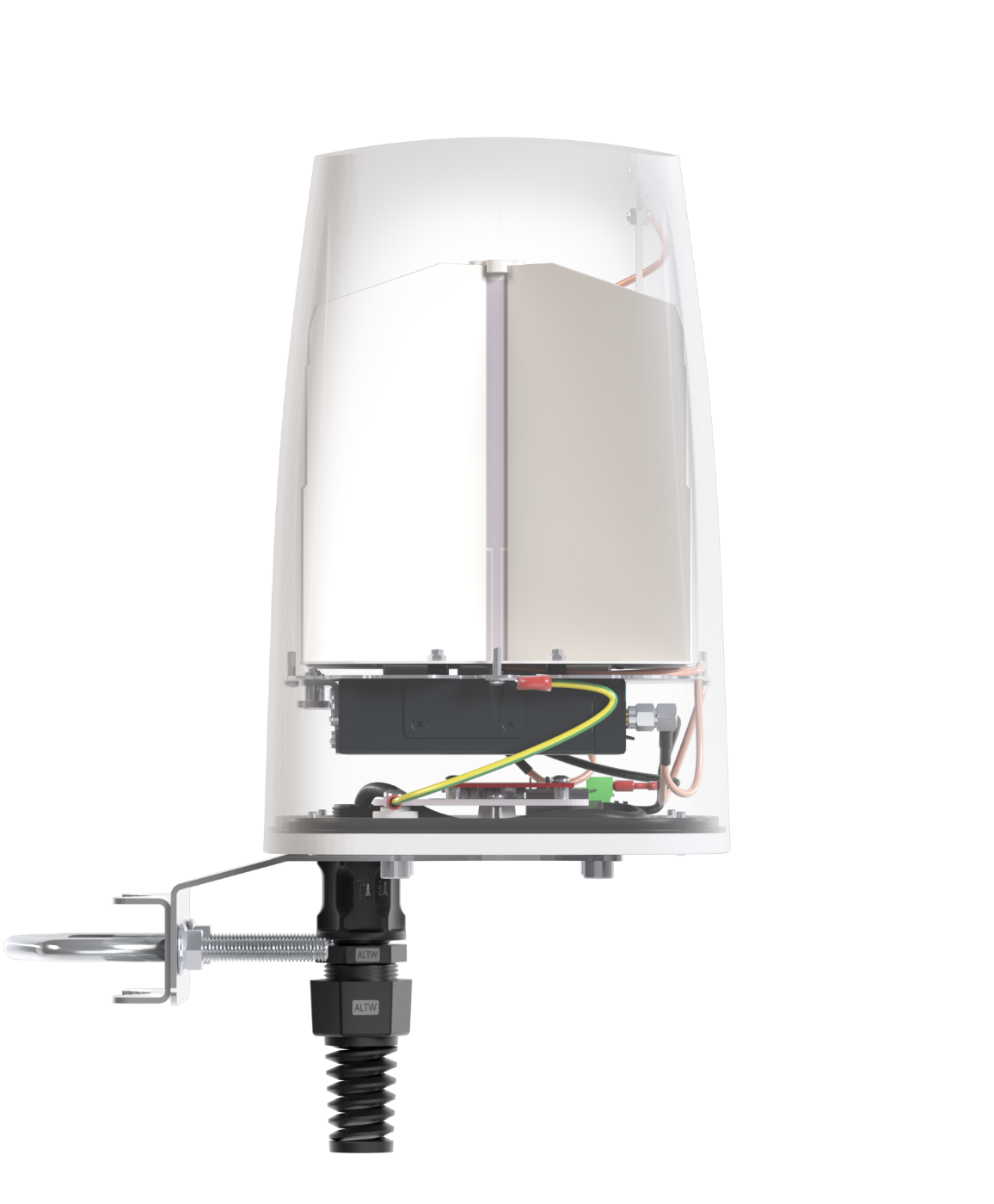

Antenna QuSpot for Advantech ICR-20xx & ICR-24xx

P/n: A2024S

Integrated multi-band LTE omni antenna + WiFi omni antenna + Passive PoE Splitter + place to install Advantech ICR-20xx or ICR-24xx (All-in-one)

QuSpot omnidirectional LTE antenna for Advantech ICR-20xx & ICR-24xx routers is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use ICR-20xx or ICR-24xx with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuSpot for Advantech ICR-20xx & ICR-24xx

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

QuSpot for Advantech ICR-20xx & ICR-24xx

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.71 - 2.7 GHz

3.3 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 6.0 GHz : 4.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Advantech ICR-20xx & ICR-24xx

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for Advantech ICR-20xx & ICR-24xx

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Advantech ICR-20xx & ICR-24xx

Gain for LTE antenna

Gain for LTE antenna of QuSpot for Advantech ICR-20xx & ICR-24xx
LTE from 650MHz to 950MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Advantech ICR-20xx & ICR-24xxQuSpot for Advantech ICR-20xx & ICR-24xx
QuSpot for Advantech ICR-20xx & ICR-24xxQuSpot for Advantech ICR-20xx & ICR-24xx

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot for RUT240

Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
1x With mounting for Advantech ICR-20xx & ICR-24xx
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
1x 8mm wrench
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
x4 3,1 x 12
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
4x M6 x 10
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
4x
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
1x
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
2x M8
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
1x
Parts of QuSpot for Advantech ICR-20xx & ICR-24xx
1x QuRJ45
