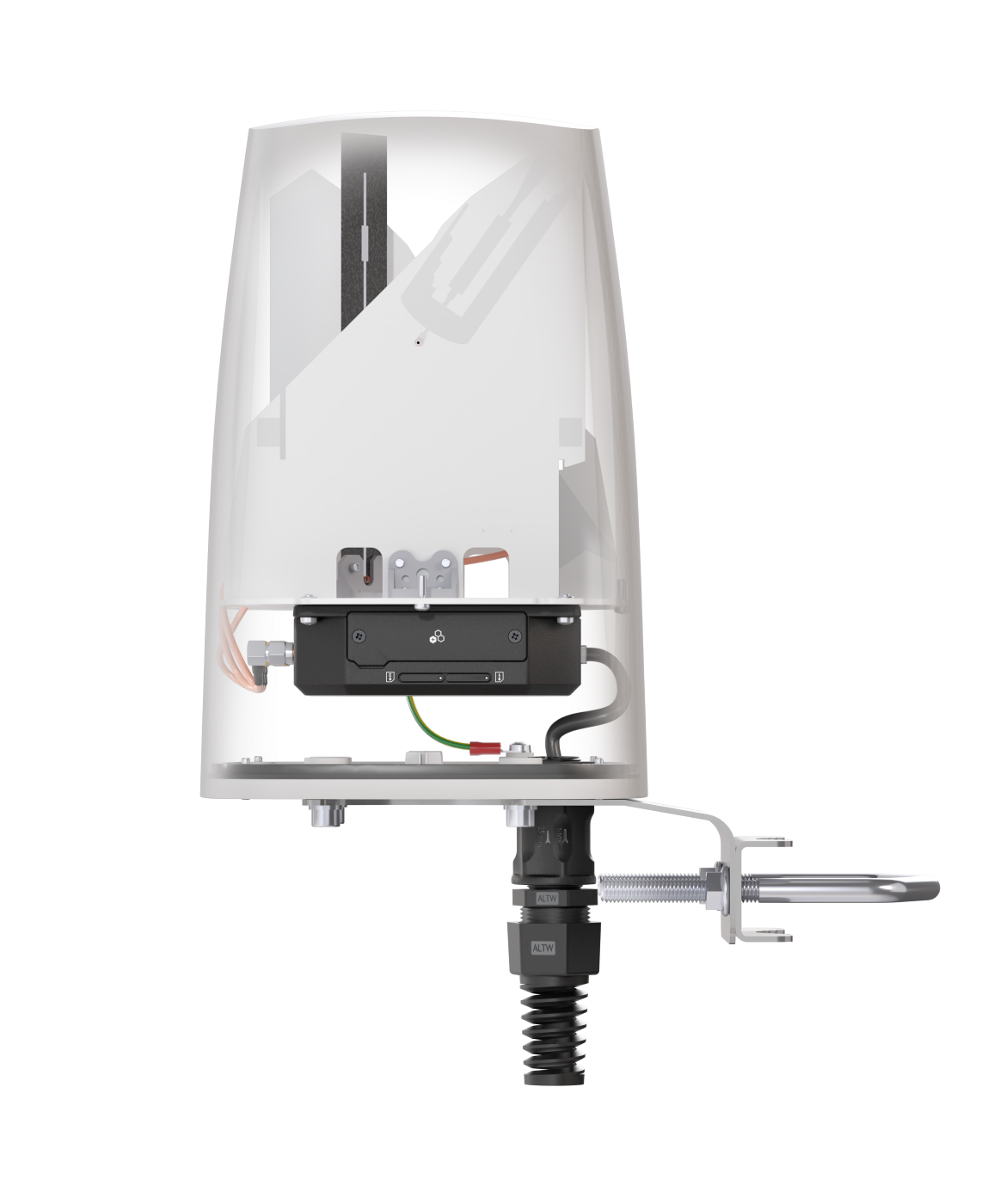

Antenna QuSpot for Ericsson (Cradlepoint) S400

P/n: AE400S

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL ERICSSON (CRADLEPOINT) S400 (ALL-IN-ONE)

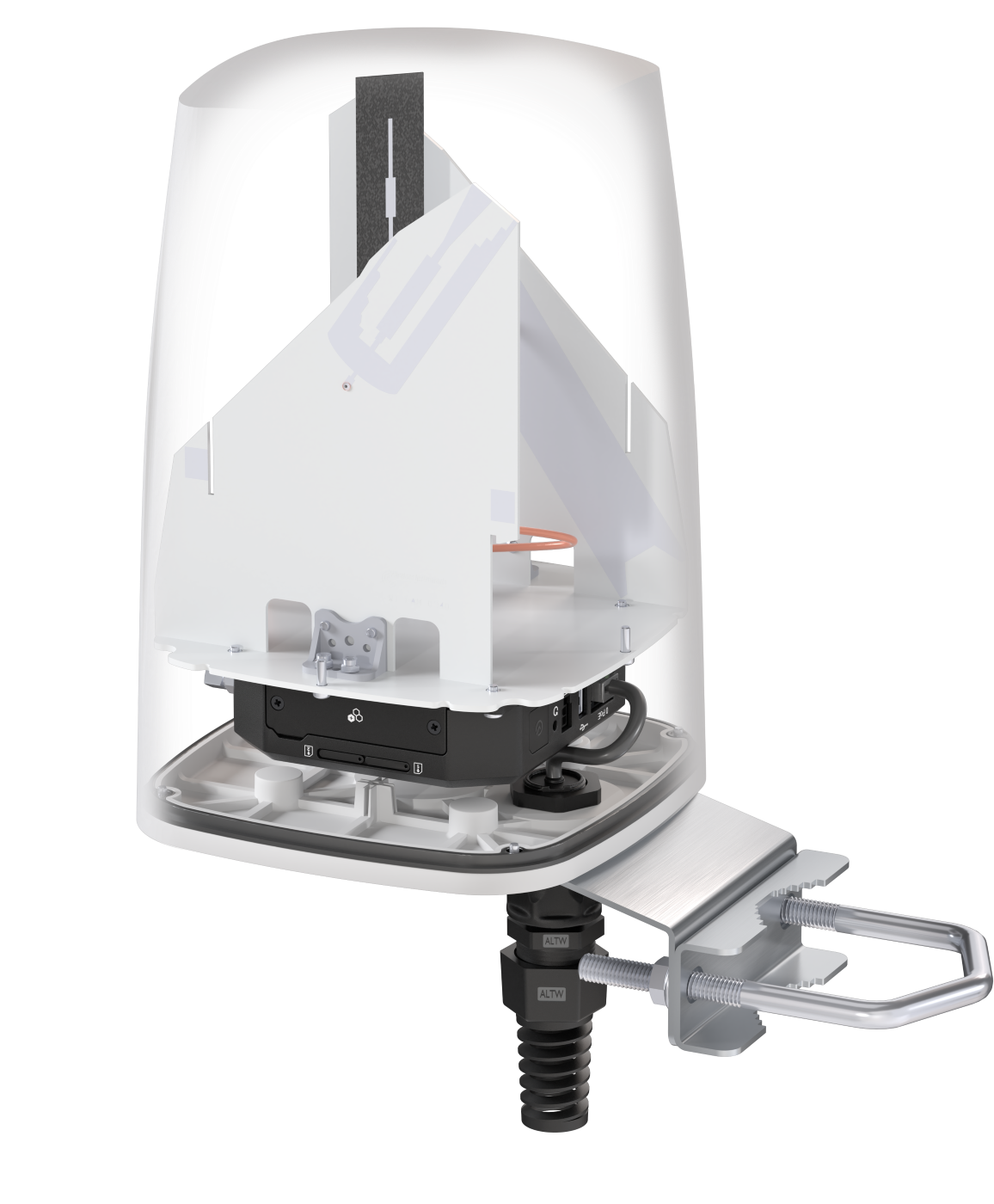

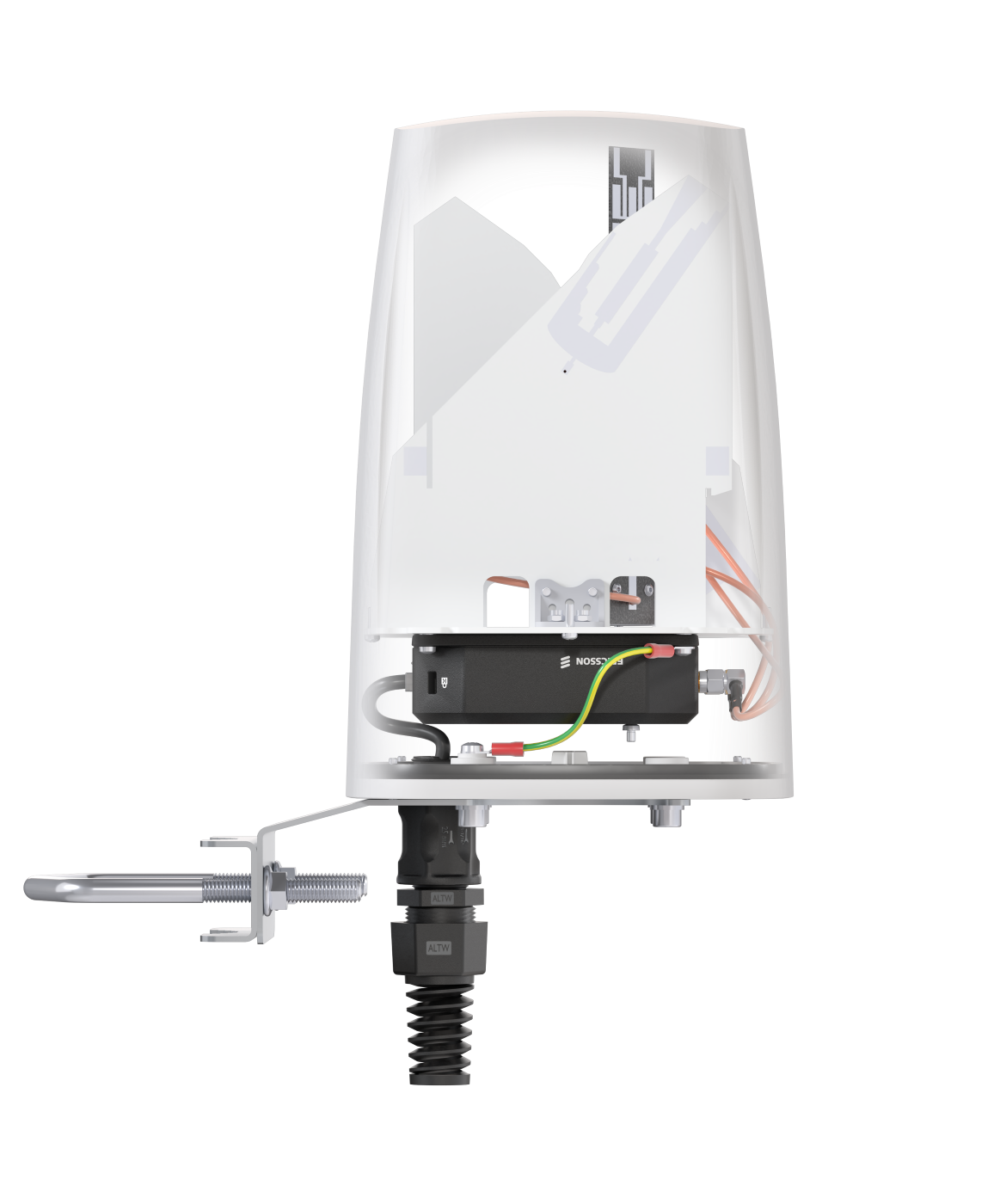

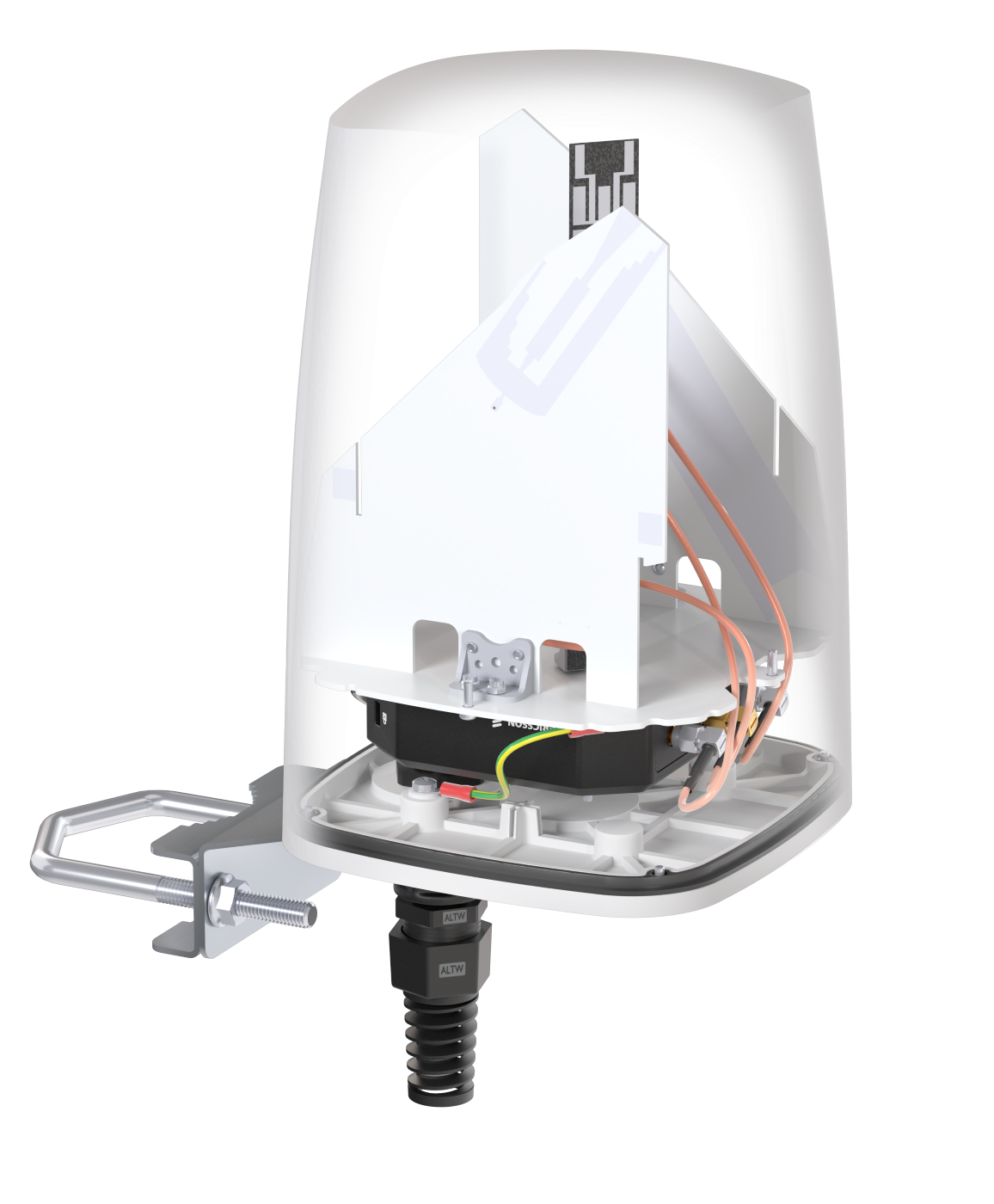

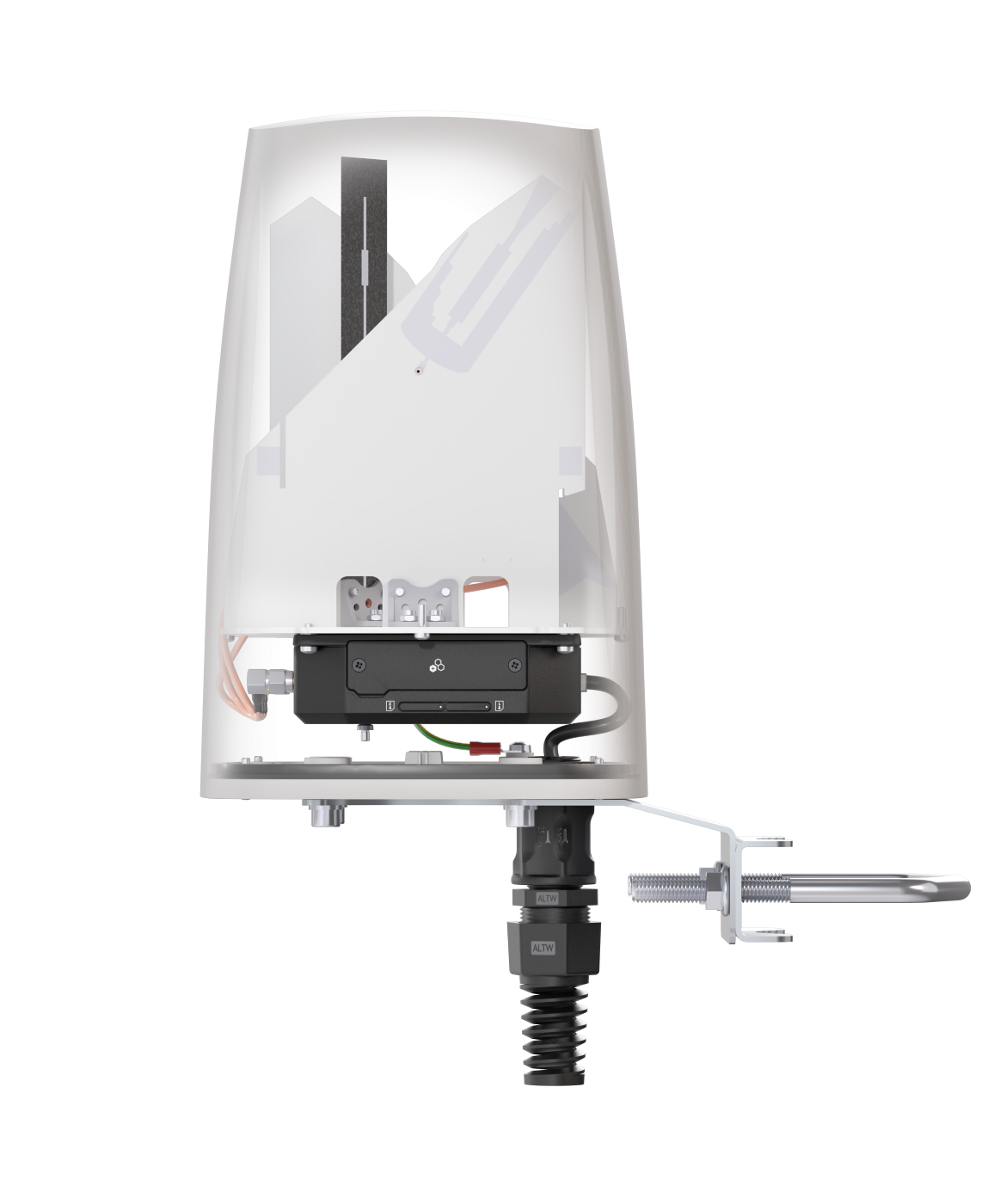

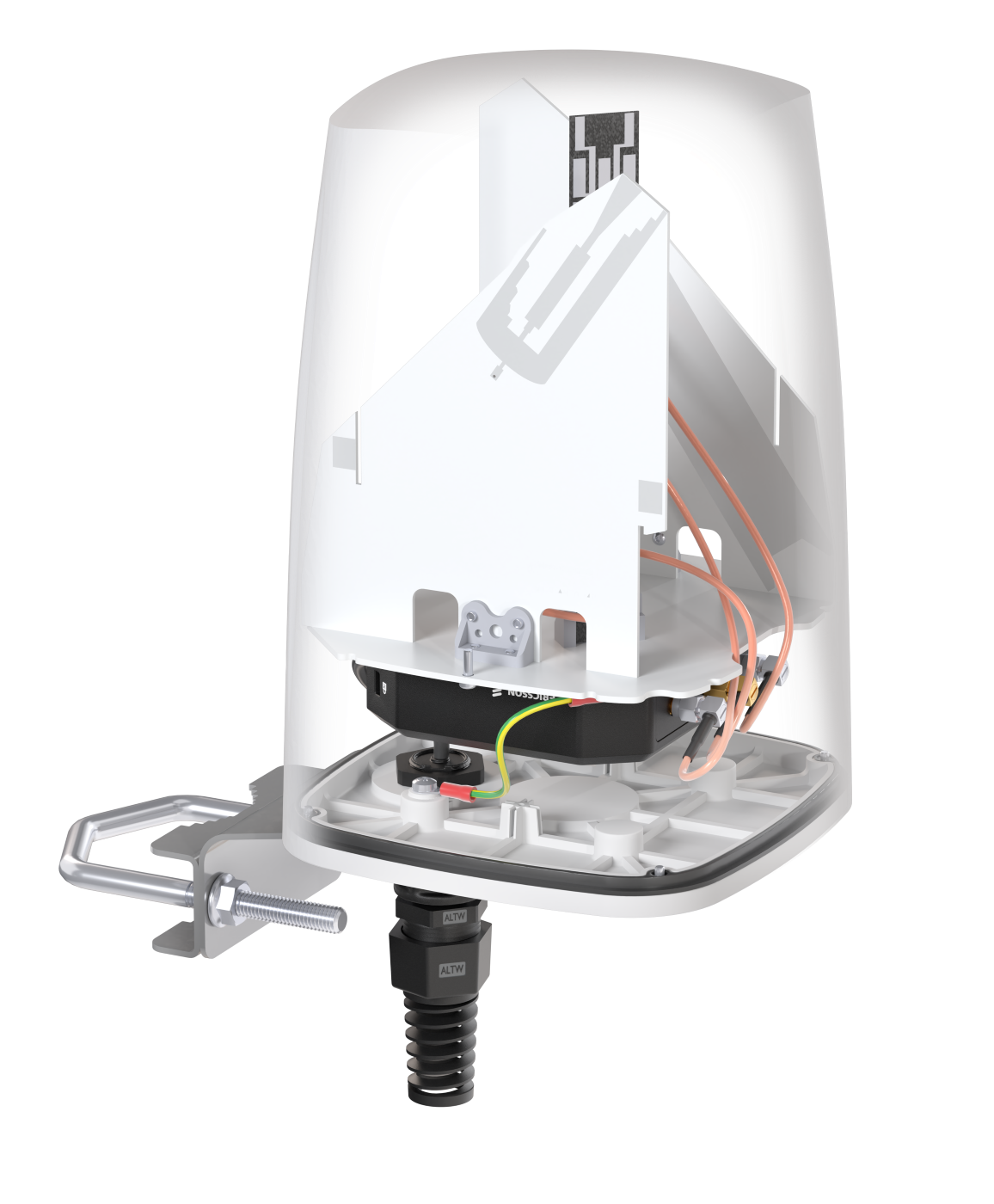

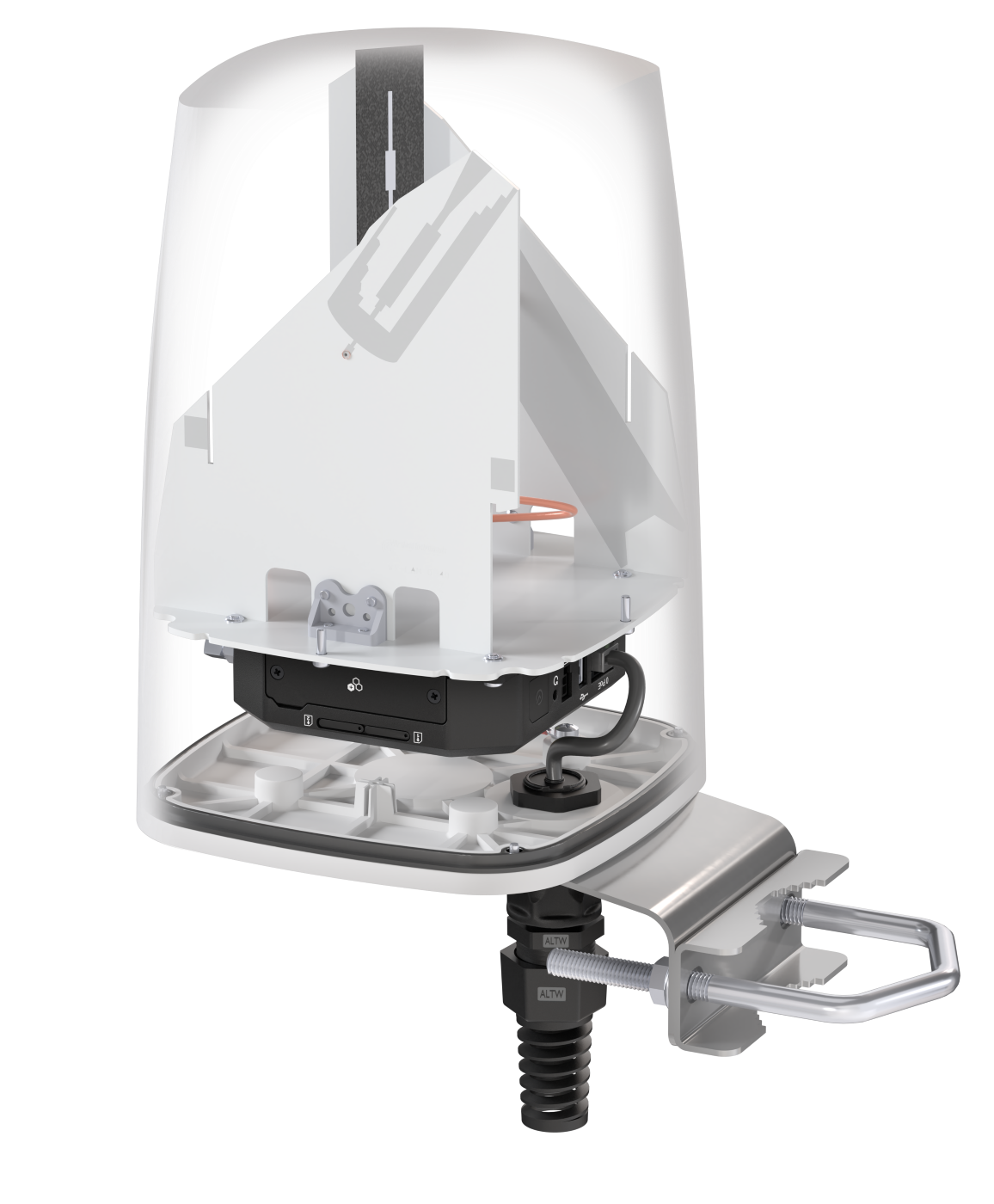

QuSpot for Ericsson (Cradlepoint) S400 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi-Fi antennas with S400 into a single IP68 (IP67) enclosure. Such integration allows implementation of new outdoor 5G solutions.

QuSpot for Ericsson (Cradlepoint) S400 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Why QuSpot for Ericsson (Cradlepoint) S400

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

802.3AF ACTIVE POE SUPPORT

Made in Europe

QuSpot for Ericsson (Cradlepoint) S400

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Wi-Fi antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Ericsson (Cradlepoint) S400

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Ericsson (Cradlepoint) S400

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Ericsson (Cradlepoint) S400

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Ericsson (Cradlepoint) S400
5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
5G/LTE from 4.5GHz to 5.5GHz
Elevation
Azimuth
Wi-Fi 2.4 GHz and 5 GHz
Elevation
Azimuth
