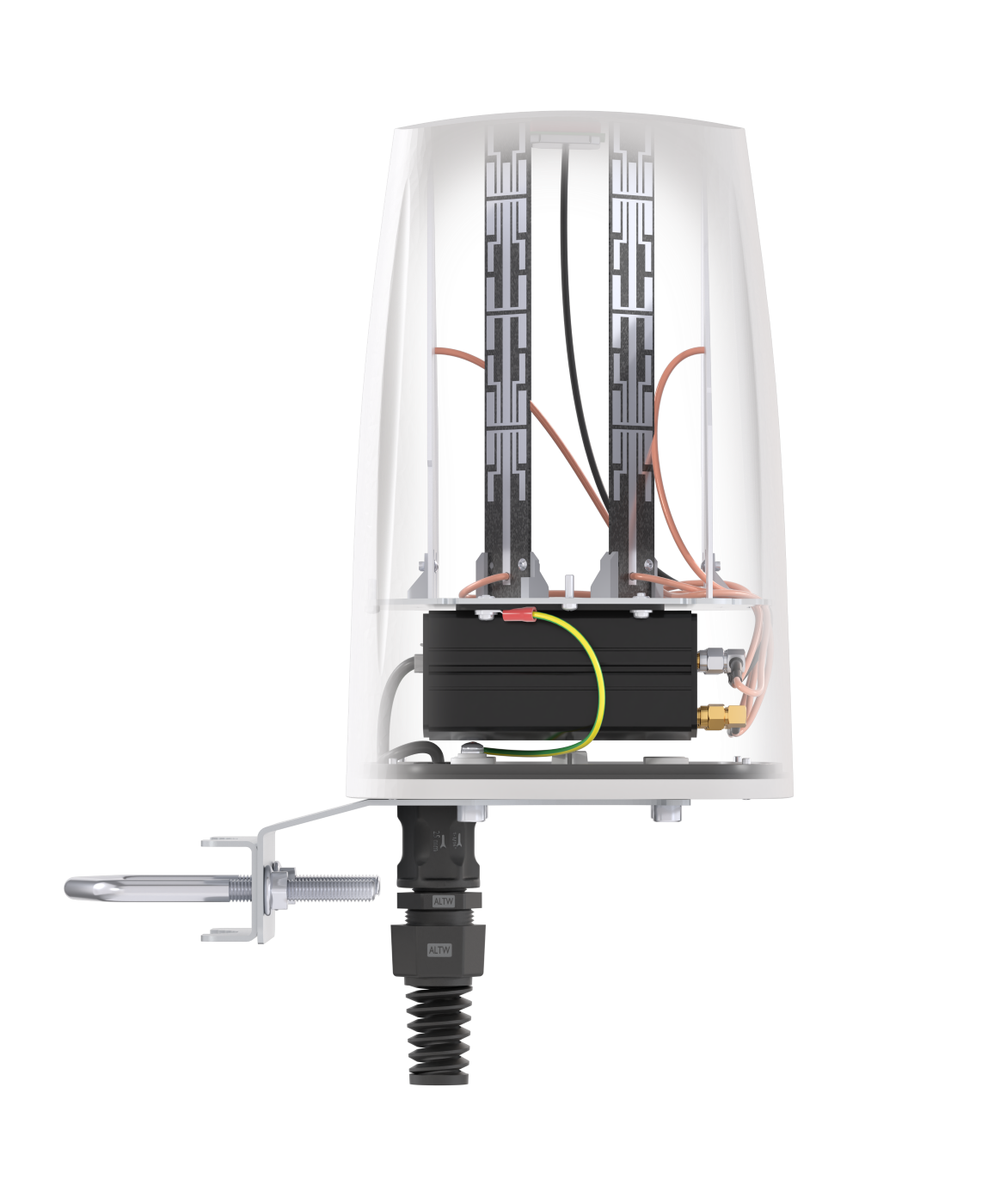

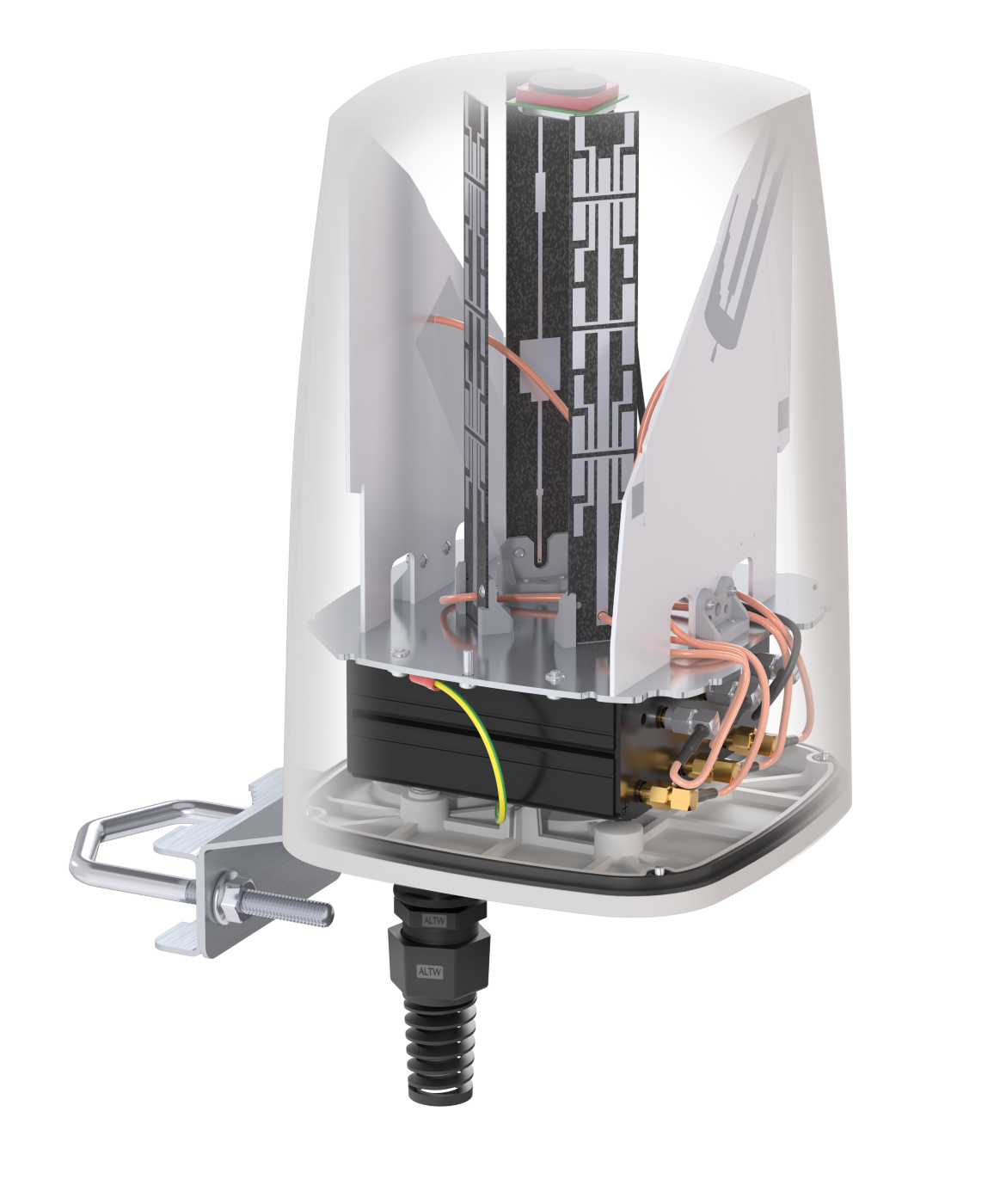

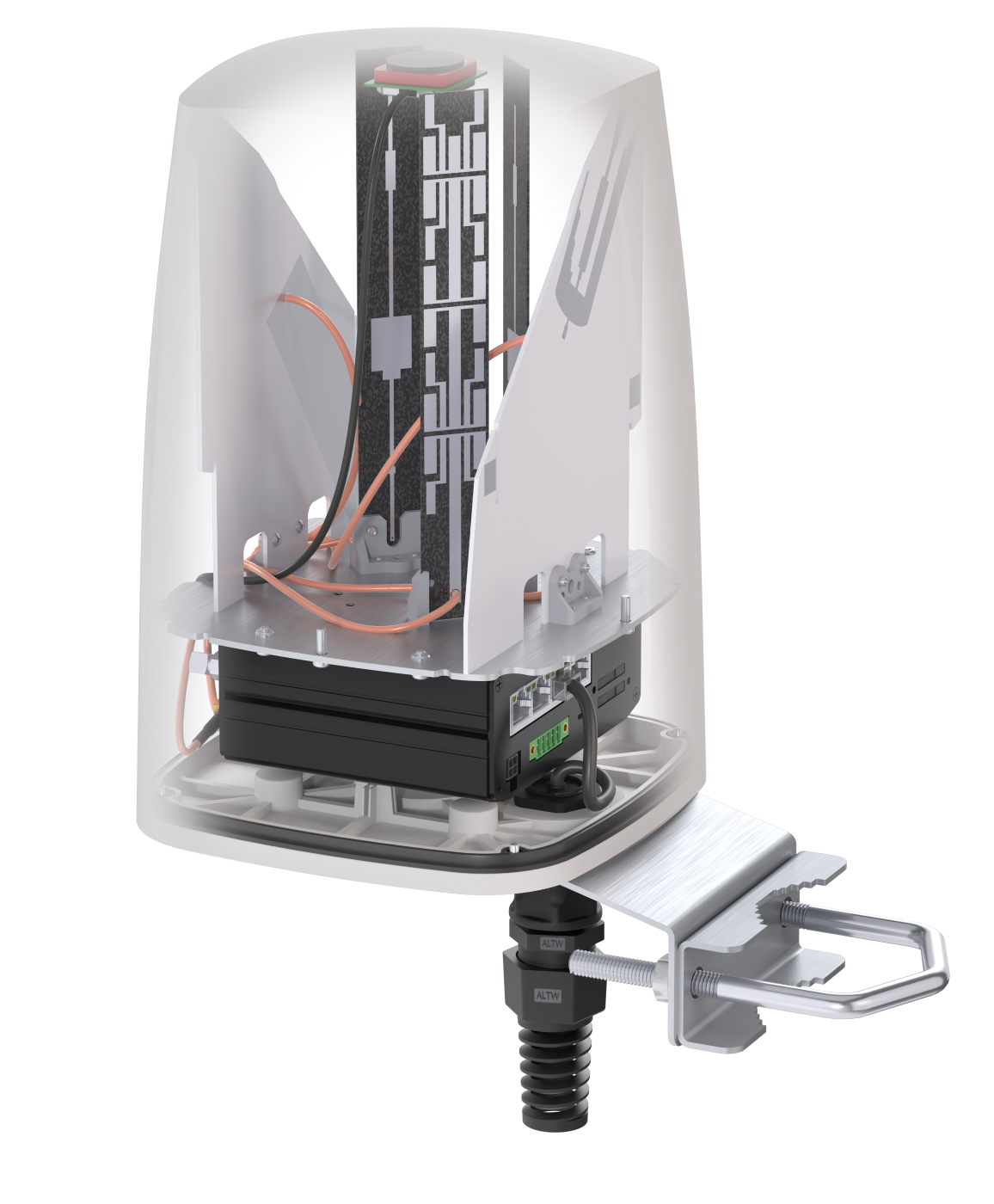

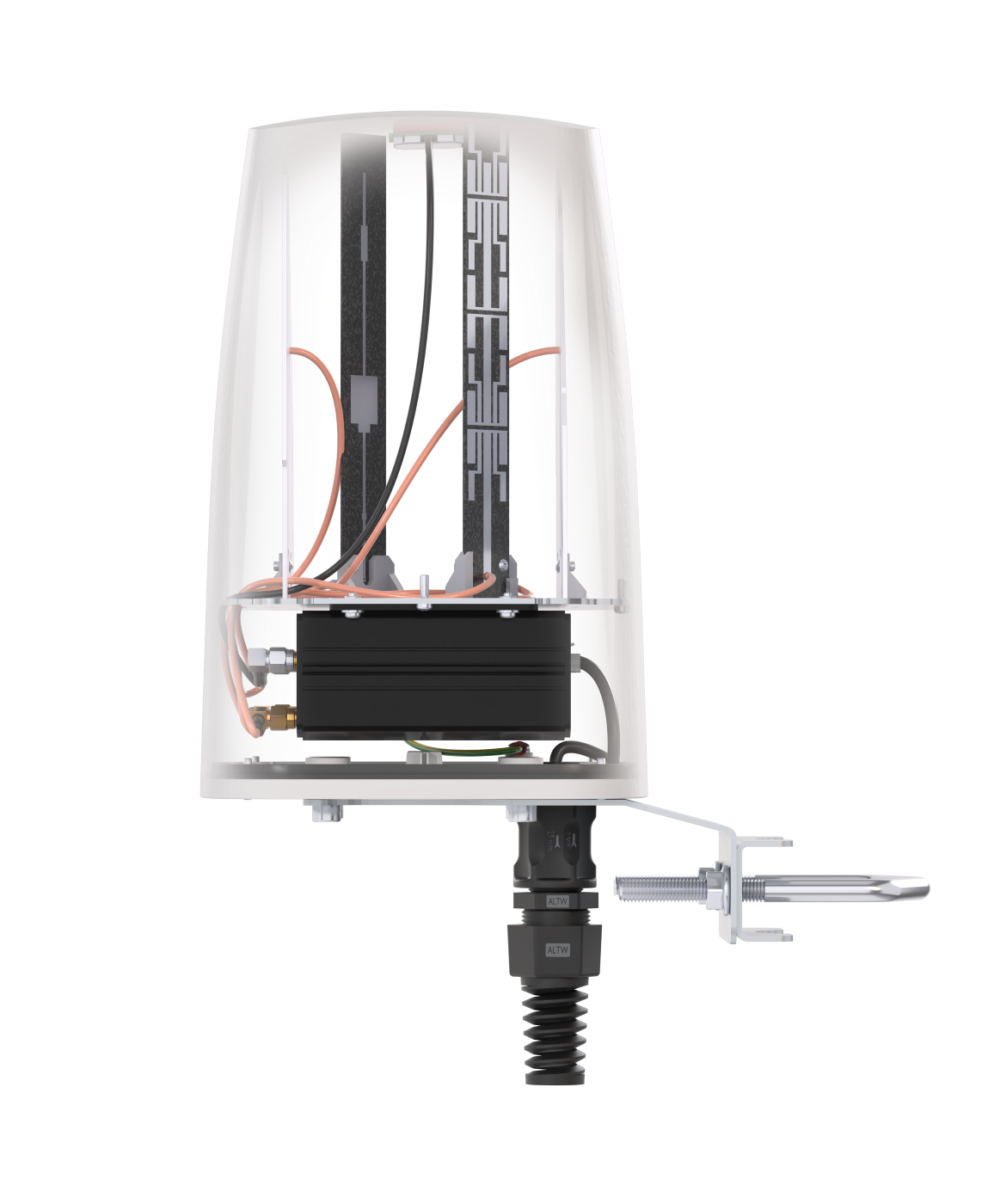

Antenna QuSpot for Queclink WR220

P/n: AQWR220S

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + BLUETOOTH ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL QUECLINK WR220 (ALL-IN-ONE)

QuSpot for Queclink WR220 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G, Wi-Fi, Bluetooth and GPS antennas with WR220 into a single IP68 enclosure. Such integration allows implementation of new outdoor solutions.

QuSpot for Queclink WR220 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Wi-Fi 6E support!

Why QuSpot for Queclink WR220

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

QuSpot for Queclink WR220

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Wi-Fi and Bluetooth antenna specification

GPS Active antenna specification

Mechanical specification

Frequency bands

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Queclink WR220

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Queclink WR220

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Queclink WR220

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Queclink WR220
5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
5G/LTE from 4.5GHz to 5.5GHz
Elevation
Azimuth
Wi-Fi 2.4 GHz and 5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Queclink WR220QuSpot for Queclink WR220
QuSpot for Queclink WR220QuSpot for Queclink WR220

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for Queclink WR220

Parts of QuSpot for Queclink WR220
1x
Parts of QuSpot for Queclink WR220
1x 8mm wrench
Parts of QuSpot for Queclink WR220
x4 3,1 x 12
Parts of QuSpot for Queclink WR220
4x M6 x 10
Parts of QuSpot for Queclink WR220
4x
Parts of QuSpot for Queclink WR220
1x
Parts of QuSpot for Queclink WR220
2x M8
Parts of QuSpot for Queclink WR220
1x
Parts of QuSpot for Queclink WR220
1x QuRJ45

Download

FREQUENTLY ASKED QUESTIONS
Datasheet QuSpot for Queclink WR220
Download
IP67 Certificate
Download
IP68 Certificate
Download
IK08 Certificate
Download
IP68 Certificate with QuPS2/4 & QuSIM
Download
