Antenna QuSpot for for Robustel R5010

P/n: AR5010S

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + PLACE TO INSTALL ROBUSTEL R5010 (ALL-IN-ONE)

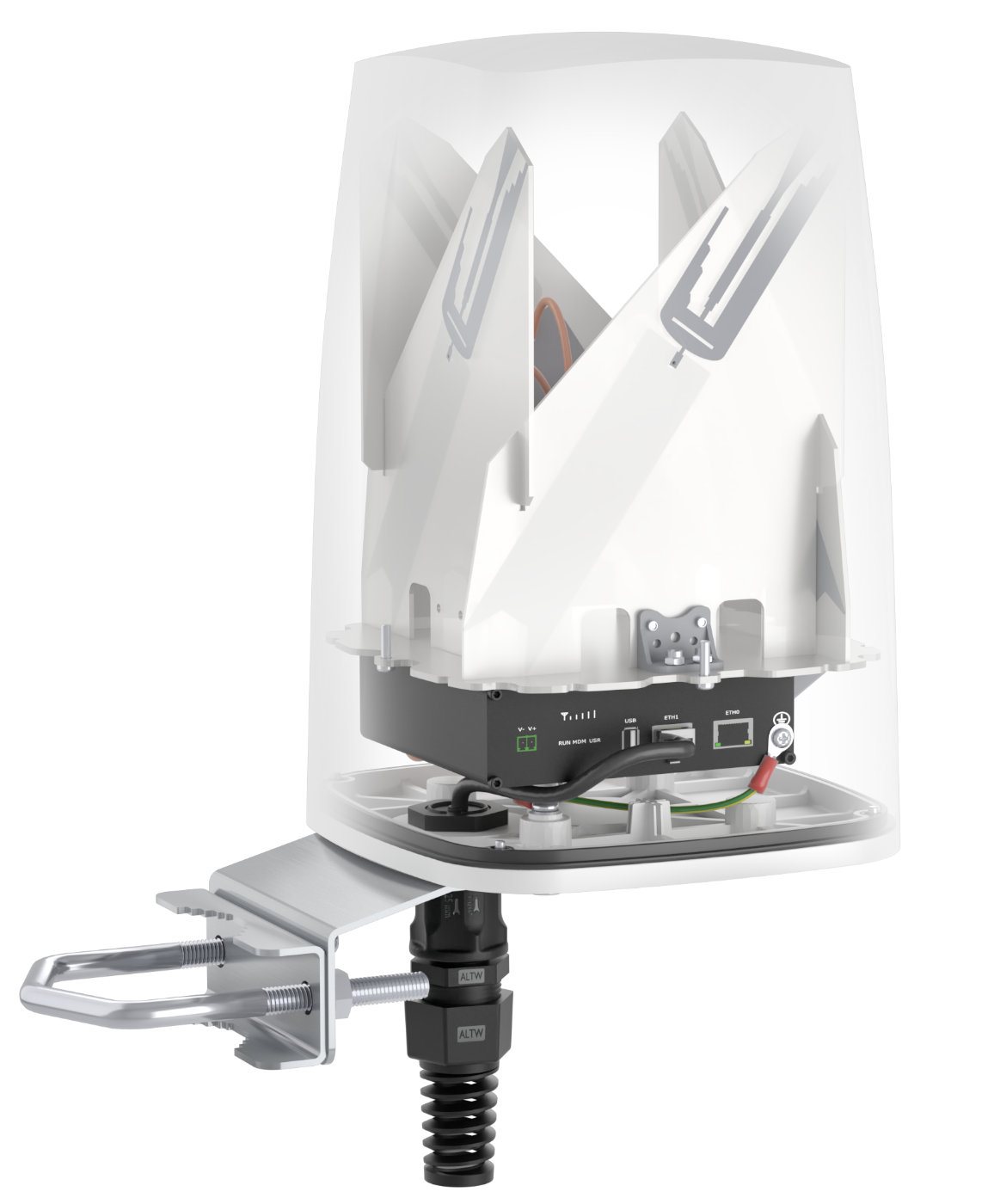

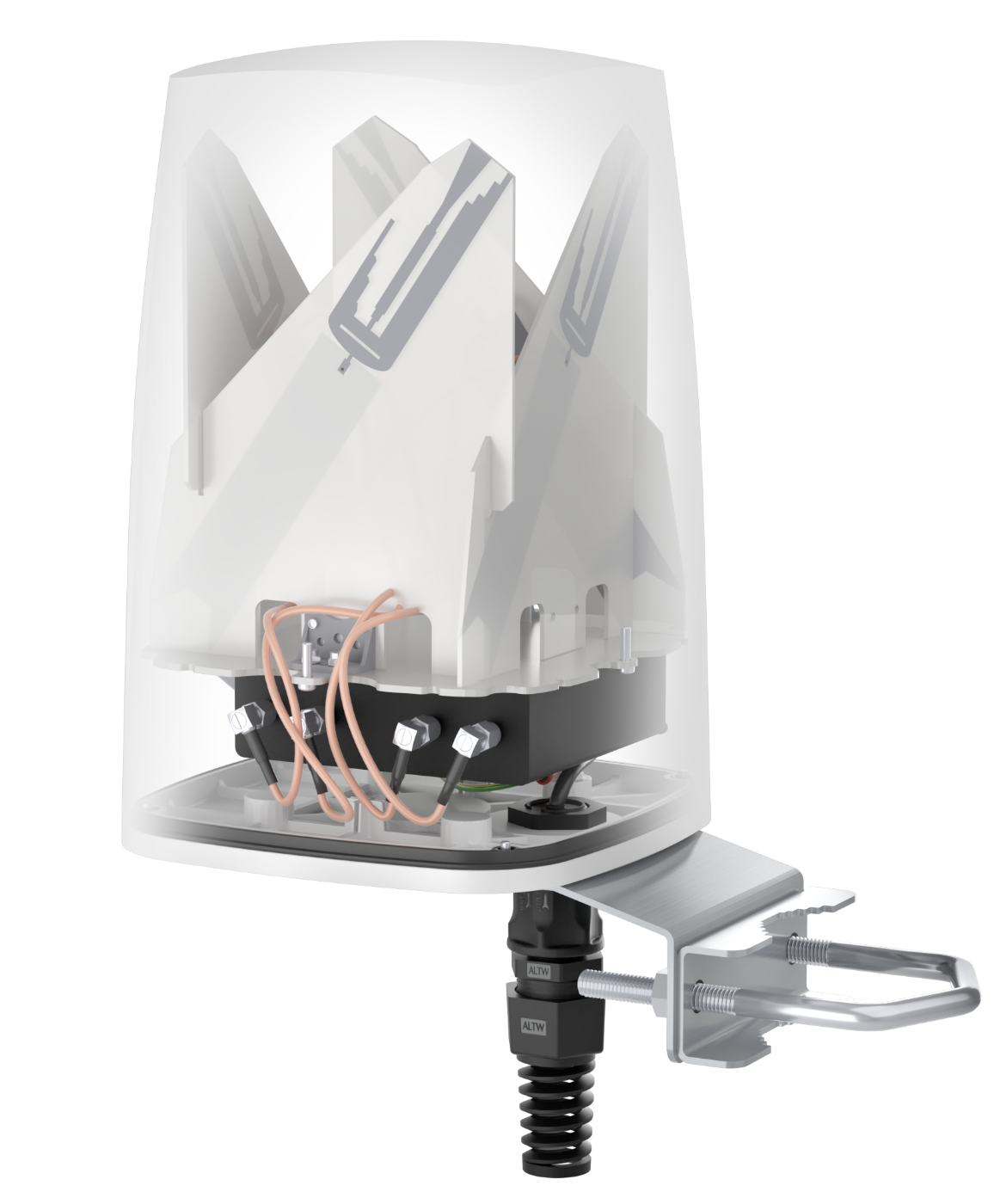

QuSpot for Robustel R5010 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with R5010 into a single IP67 enclosure. Such integration allows implementation of new outdoor R5010 solutions.

QuSpot for R5010 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Why QuSpot for for Robustel R5010

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

QuSpot for for Robustel R5010

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Mechanical specification

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5 dBi

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for for Robustel R5010

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for for Robustel R5010
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.6GHz to 5.5GHz
Elevation
Azimuth
