1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

QuSpot for Semtech XR60 + Active PoE Splitter

Antenna QuSpot for Semtech XR60 + Active PoE Splitter

P/n: -

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ACTIVE ANTENNA + ACTIVE POE SPLITTER + PLACE TO INSTALL SEMTECH XR60 (ALL-IN-ONE)

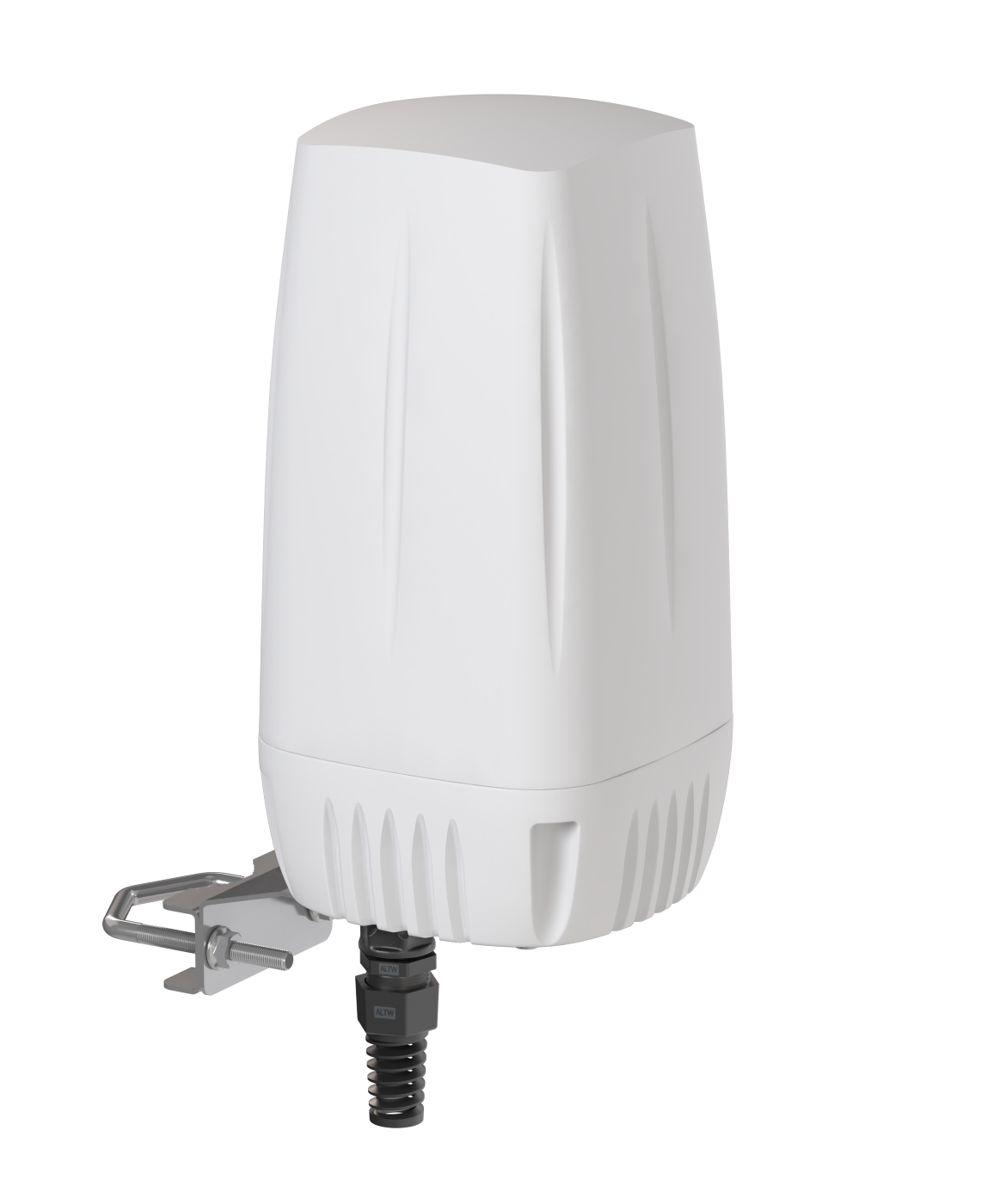

QuSpot antenna for Semtech XR60 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G and omni Wi-Fi 6E antenna. If you use XR60 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Wi-Fi 6E support!

The set contains a Active PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Why QuSpot for Semtech XR60 + Active PoE Splitter

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Galvanized steel, wall or pole mounting bracket

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE SEMTECH XR60

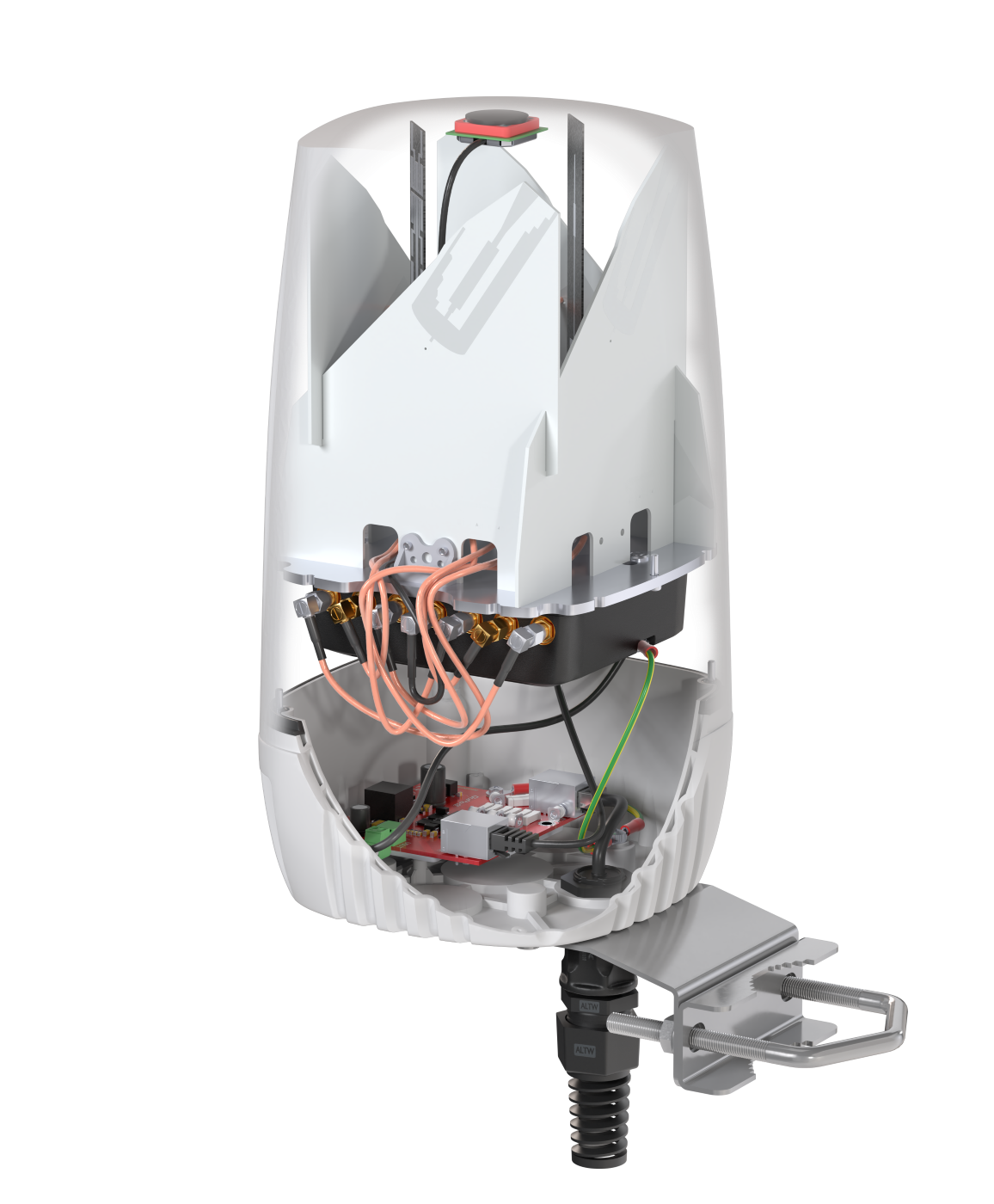

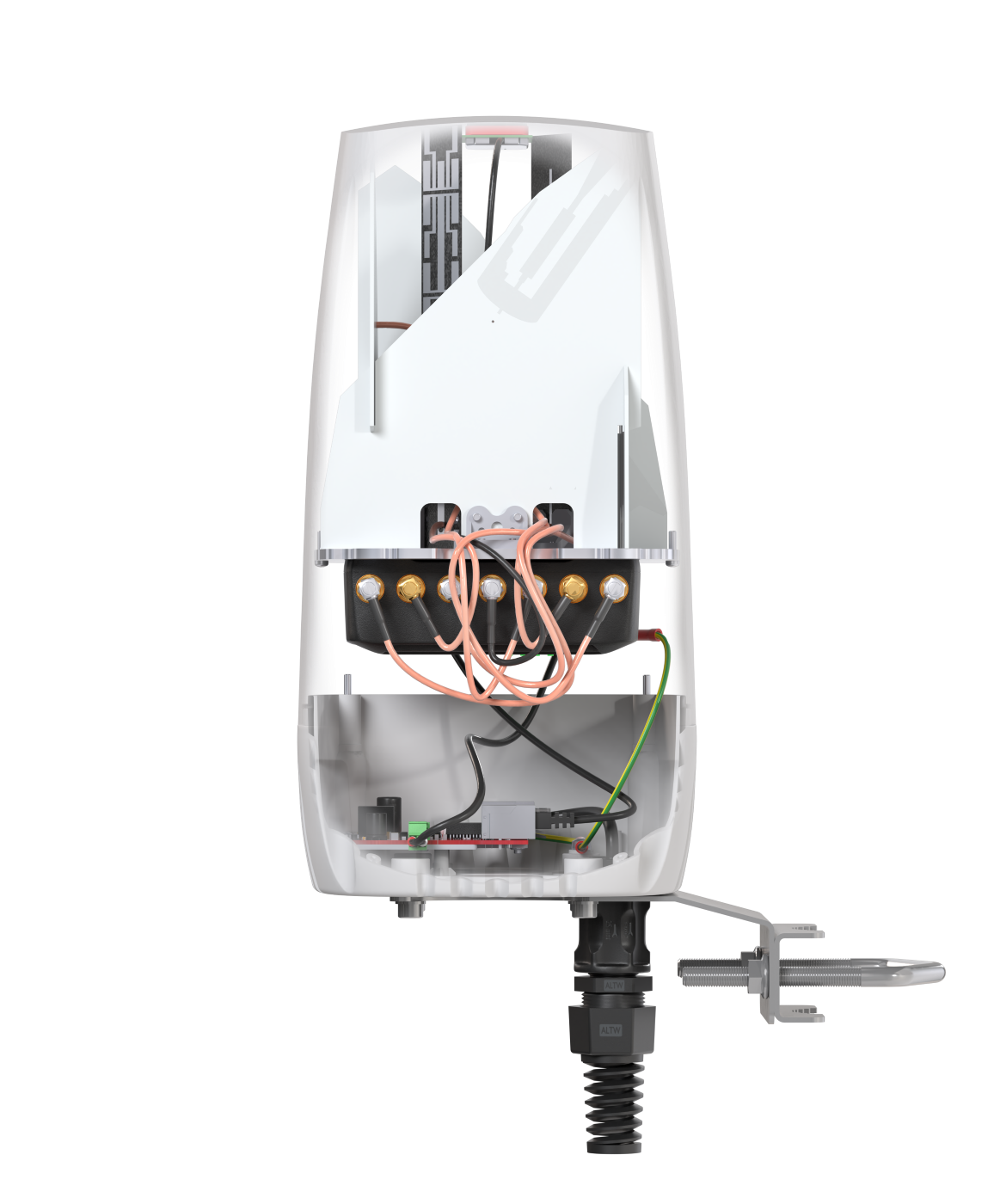

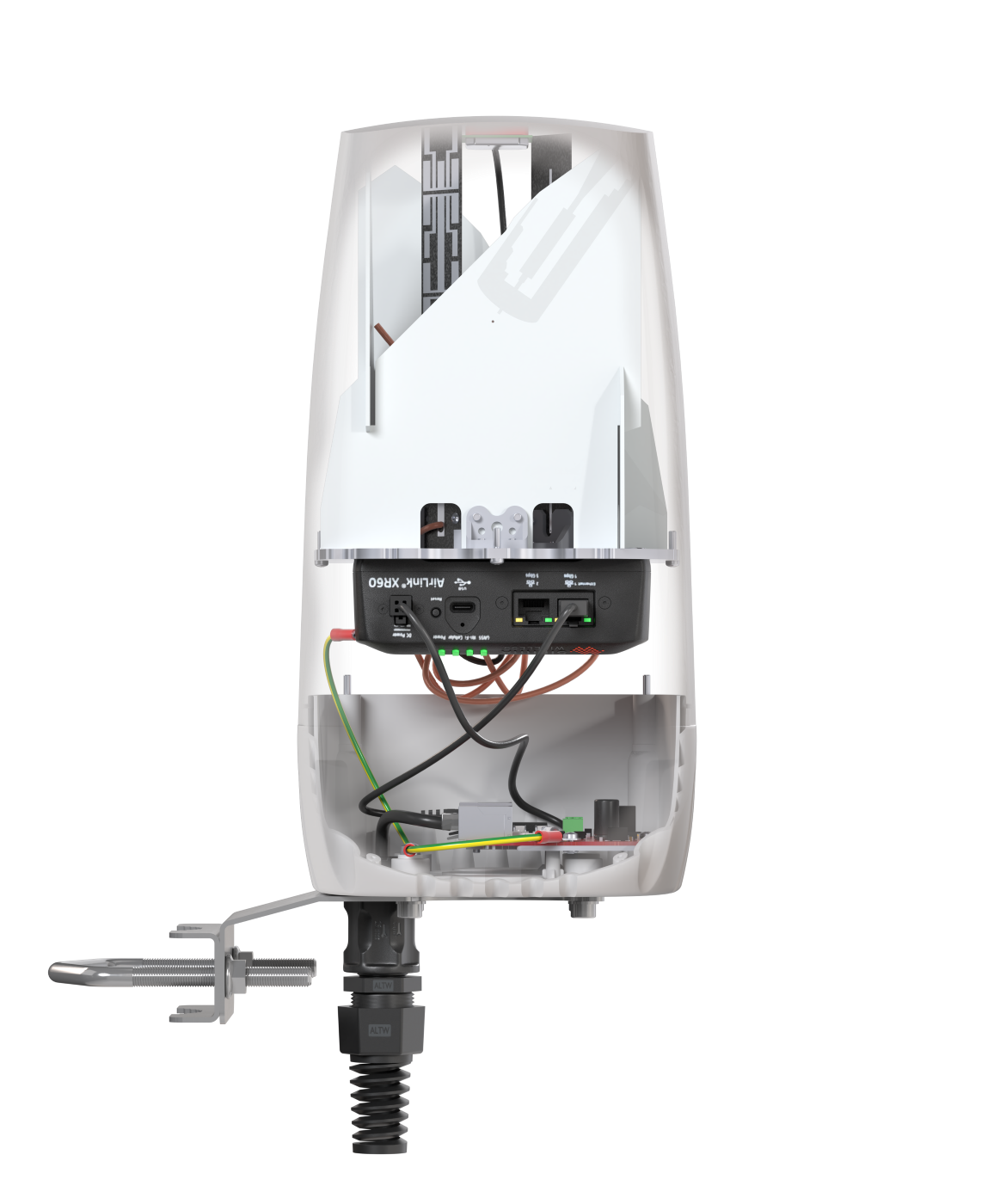

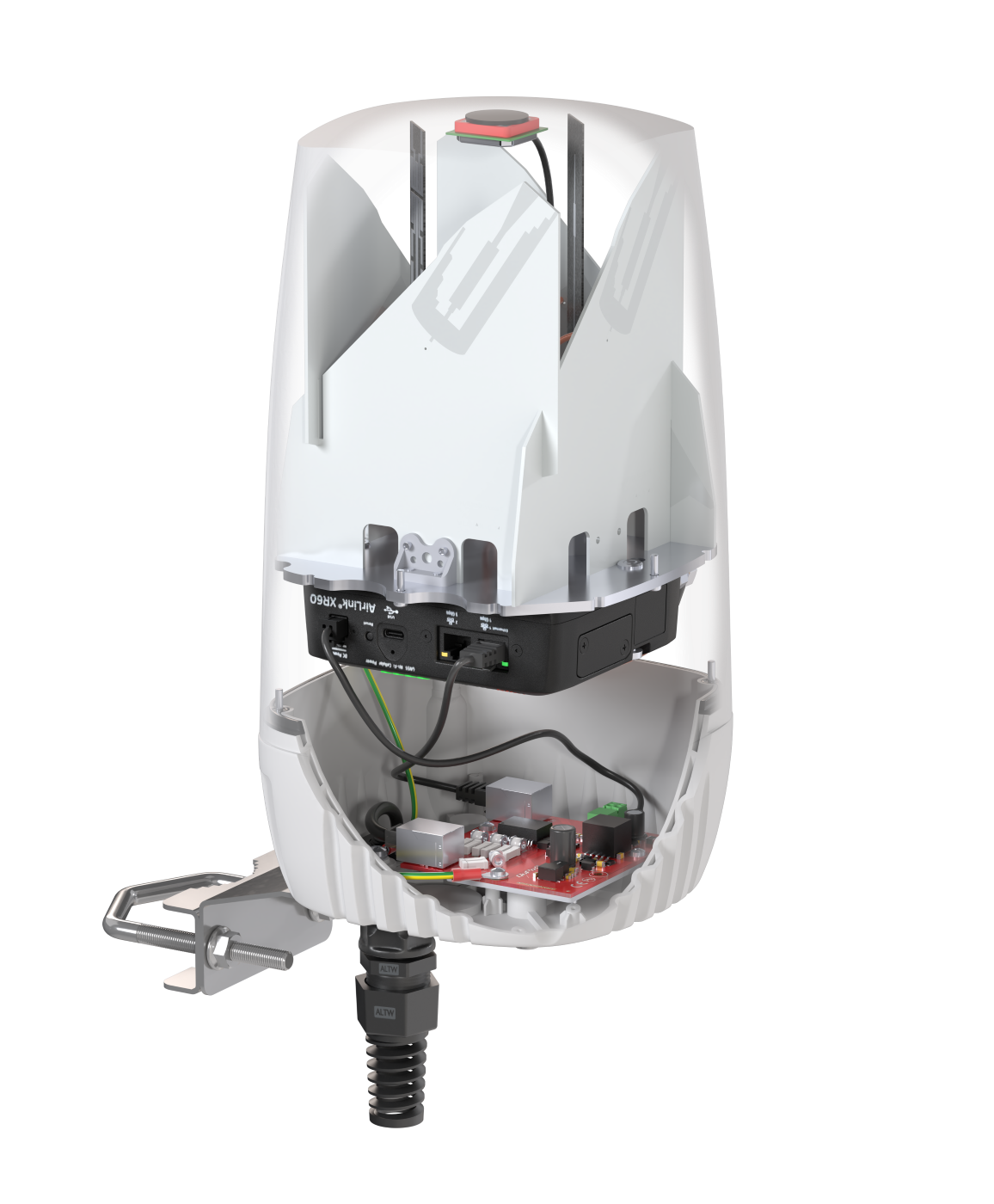

ALL ANTENNAS AND SEMTECH ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

4x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE Gain

WI-FI VSWR

WI-FI Gain

LTE From 617MHz to 960MHz

Elevation

Azimuth

LTE From 1.71GHz to 2.5GHz

Elevation

Azimuth

LTE From 3.3GHz to 4.2GHz

Elevation

Azimuth

LTE From 4.6GHz to 5.5GHz

Elevation

Azimuth

Wi-Fi From 2.4 GHz to 6.5 GHz

Elevation

Azimuth

ANY QUESTIONS?

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot for Semtech XR60 + Active PoE Splitter

1 x

1 x QuRJ45

1 x

1 x 8mm wrench

4 x

4 x M6 x 10

4 x 3,1 x 12

2 x M8

1 x AT-12V-FP - Already installed inside

Designed For

SEMTECH

Download

Datasheet QuSpot for Semtech XR60 + Active PoE Splitter

Download

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

Antenna QuSpot for Semtech XR60 + Active PoE Splitter

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ACTIVE ANTENNA + ACTIVE POE SPLITTER + PLACE TO INSTALL SEMTECH XR60 (ALL-IN-ONE)

Why QuSpot for Semtech XR60 + Active PoE Splitter

SPECIFICATION

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

GPS ACTIVE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS
