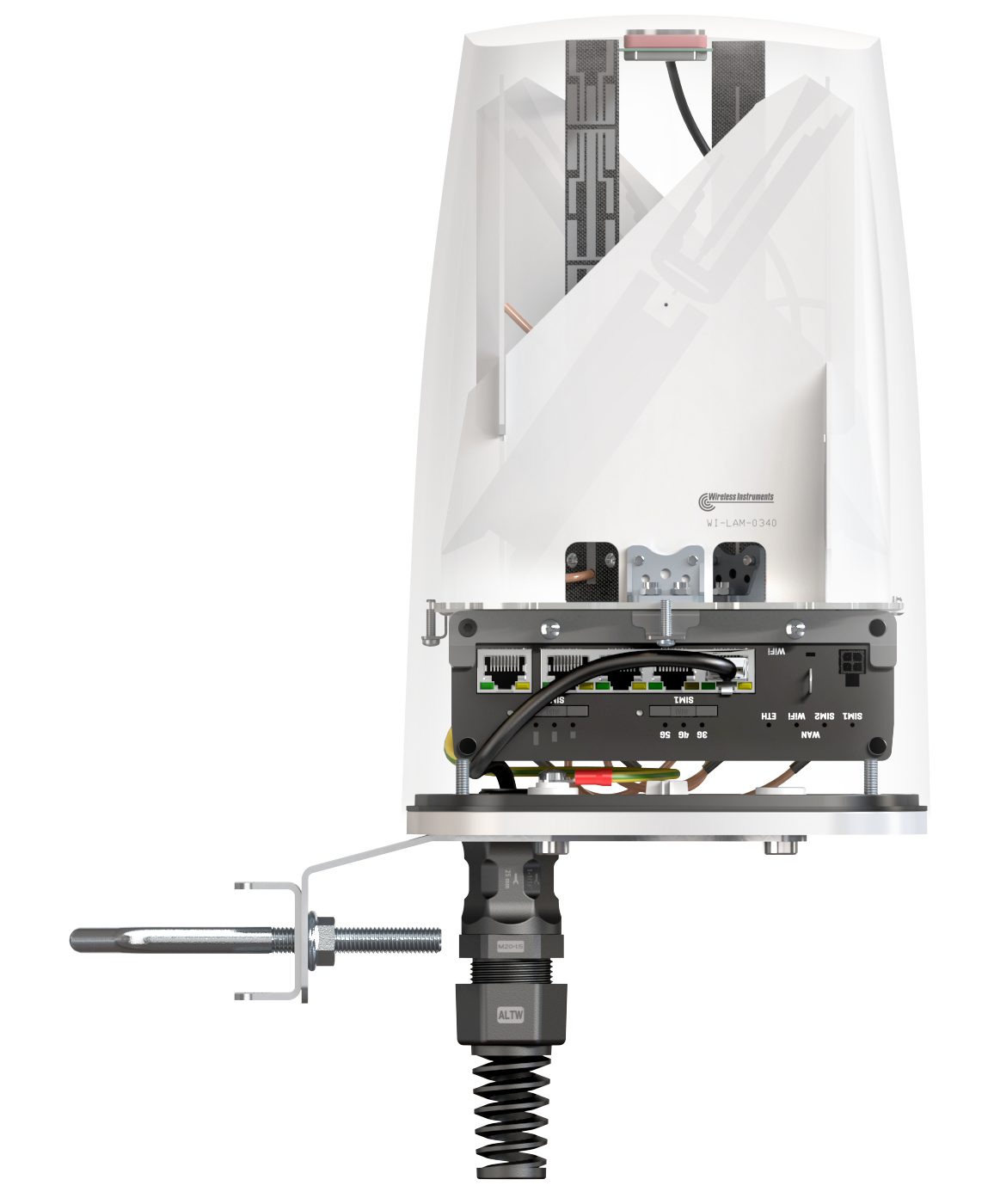

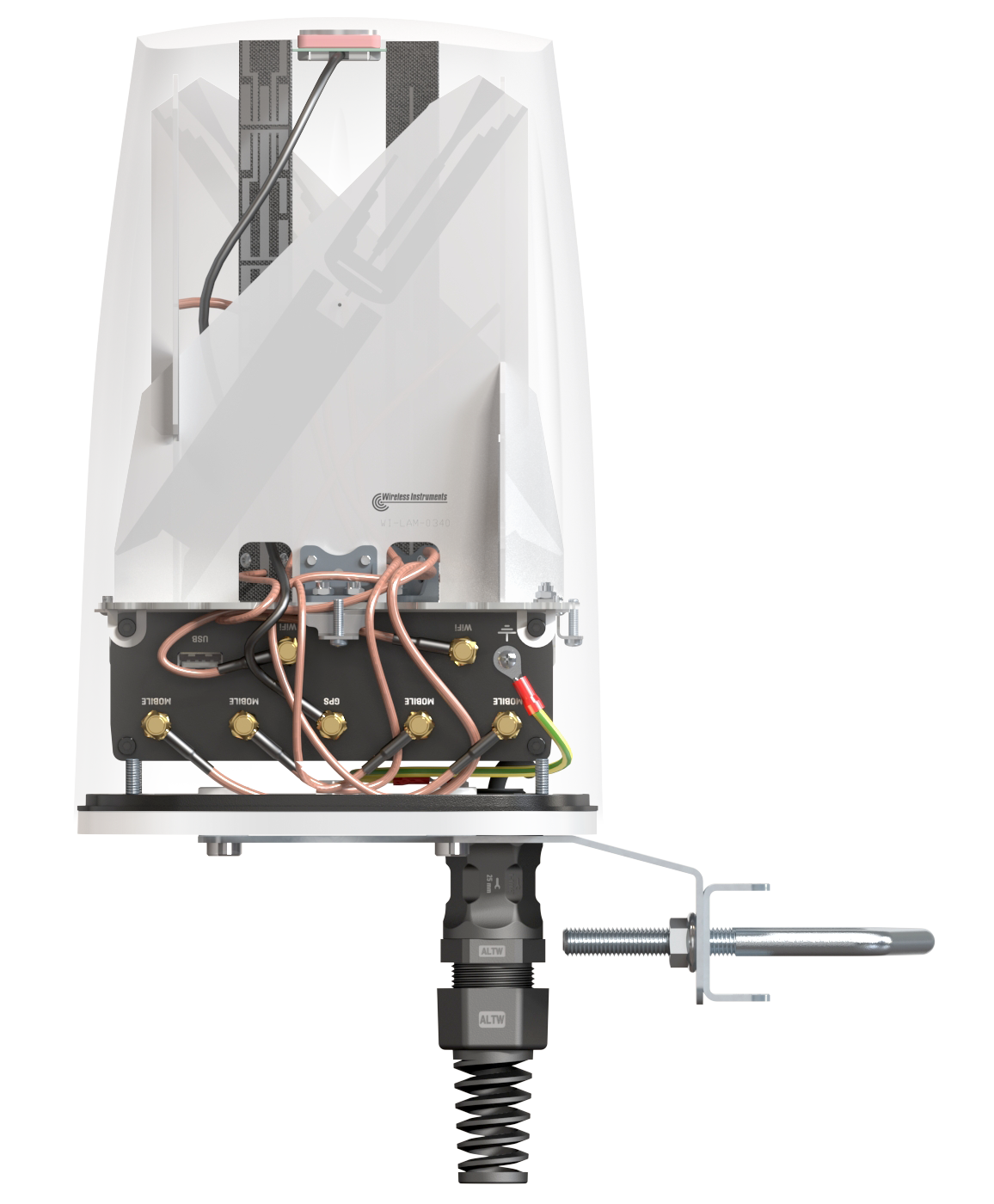

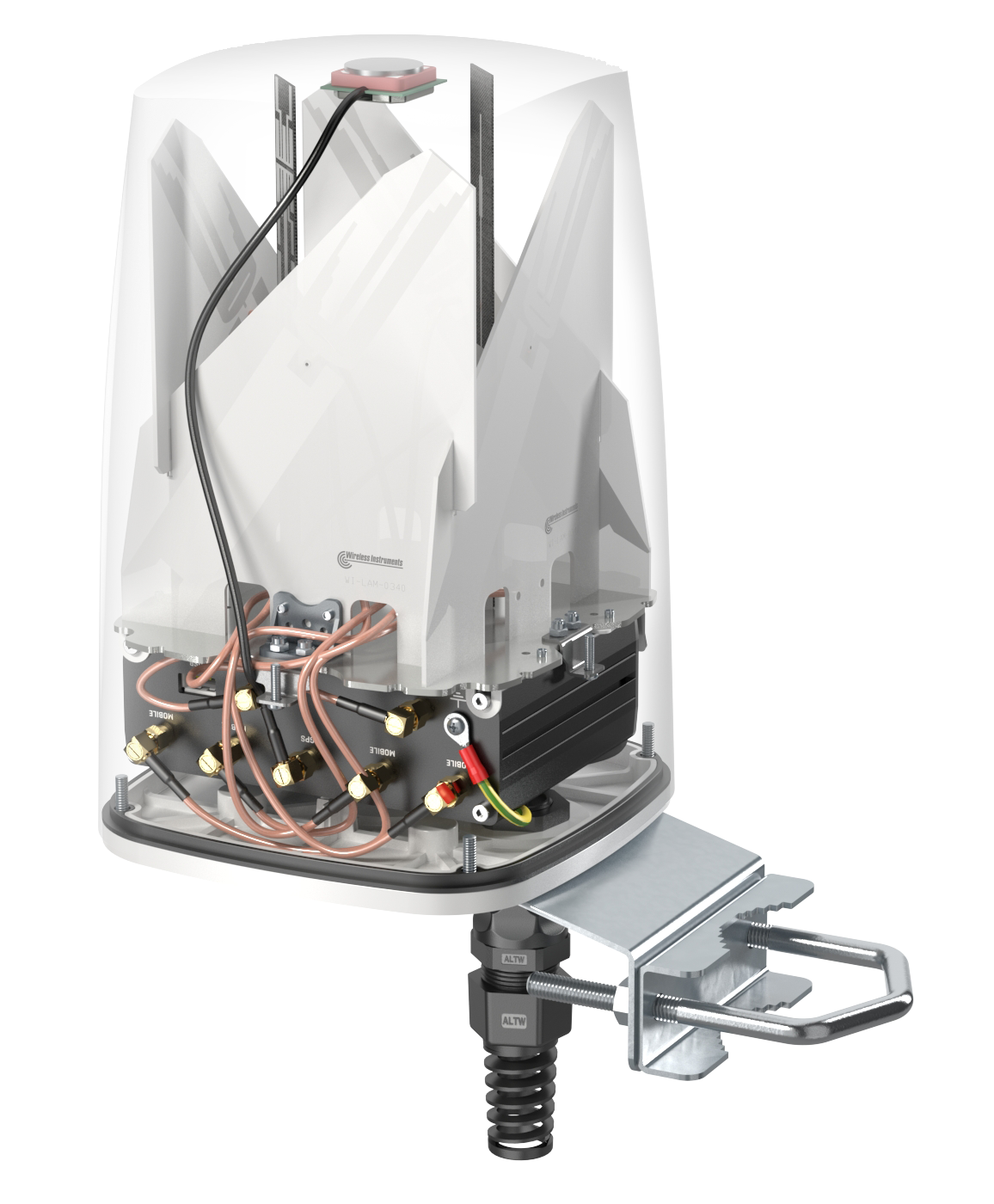

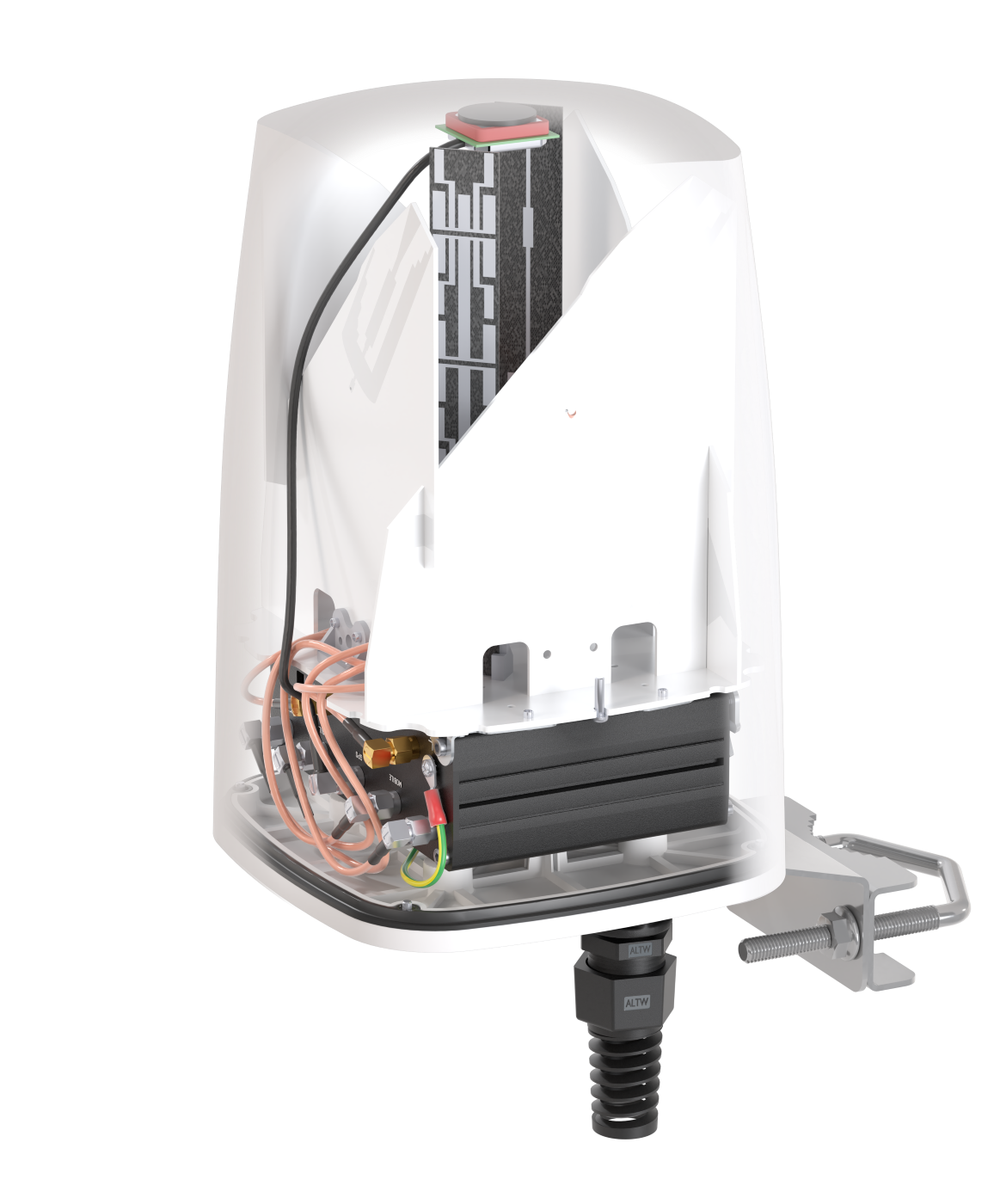

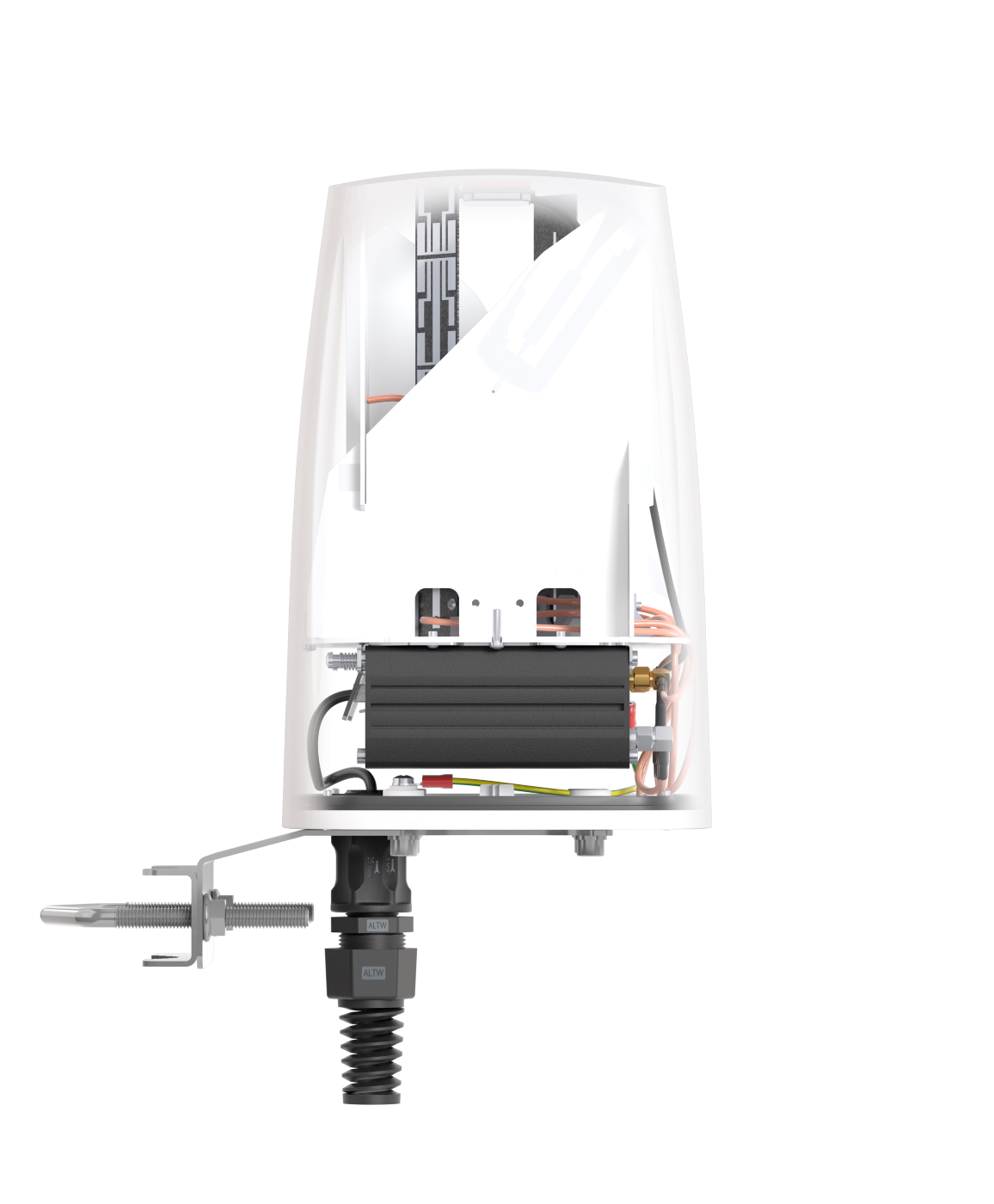

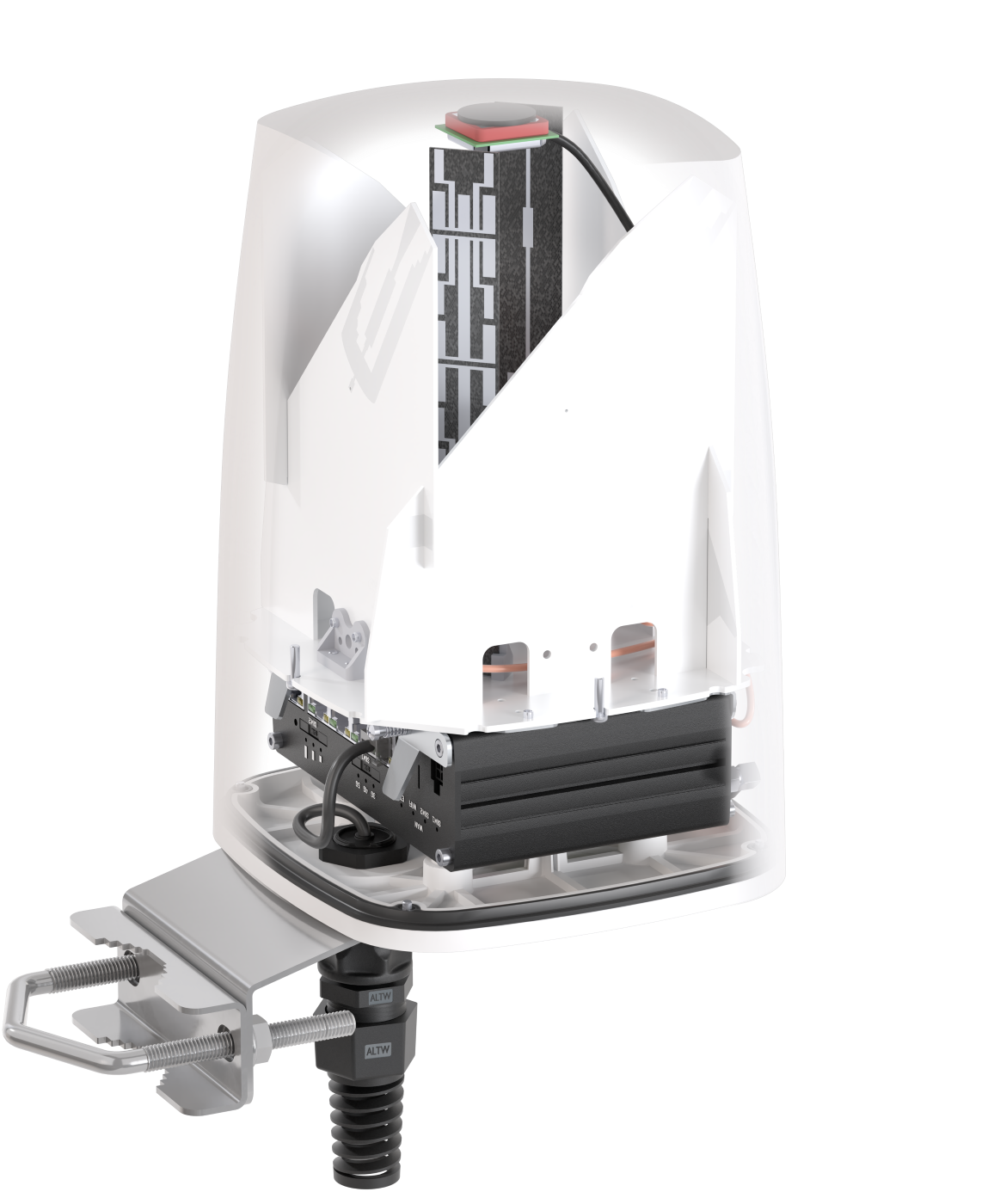

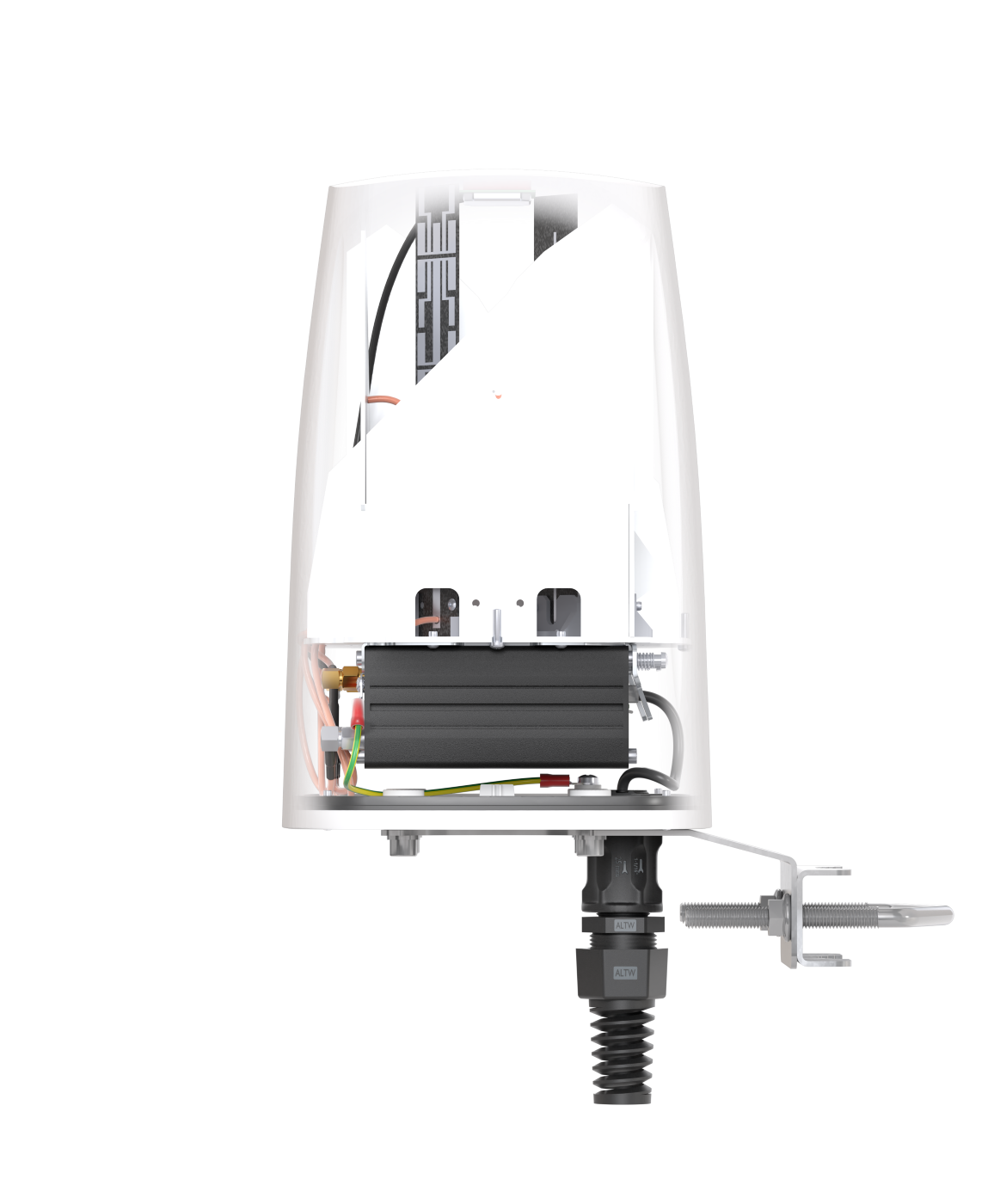

Antenna QuSpot for Teltonika RUTM50

P/n: AM50S

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS PLACE TO INSTALL TELTONIKA RUTM50 (ALL-IN-ONE)

QuSpot for RUTM50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTM50 into a single IP67 enclosure. Such integration allows implementation of new outdoor RUTM50 solutions.

QuSpot for RUTM50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Why QuSpot for Teltonika RUTM50

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuSpot for Teltonika RUTM50

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Wi-Fi antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Teltonika RUTM50

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Teltonika RUTM50

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Teltonika RUTM50

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Teltonika RUTM50
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.6GHz to 5.5GHz
Elevation
Azimuth
Wi-Fi 2.4 GHz and 5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika RUTM50QuSpot for Teltonika RUTM50
QuSpot for Teltonika RUTM50QuSpot for Teltonika RUTM50

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for RUTM50

Parts of QuSpot for Teltonika RUTM50
1x With mounting for Teltonika RUTM50
Parts of QuSpot for Teltonika RUTM50
1x 8mm wrench
Parts of QuSpot for Teltonika RUTM50
x4 3,1 x 12
Parts of QuSpot for Teltonika RUTM50
4x M6 x 10
Parts of QuSpot for Teltonika RUTM50
4x
Parts of QuSpot for Teltonika RUTM50
1x
Parts of QuSpot for Teltonika RUTM50
2x M8
Parts of QuSpot for Teltonika RUTM50
1x
Parts of QuSpot for Teltonika RUTM50
1x QuRJ45
