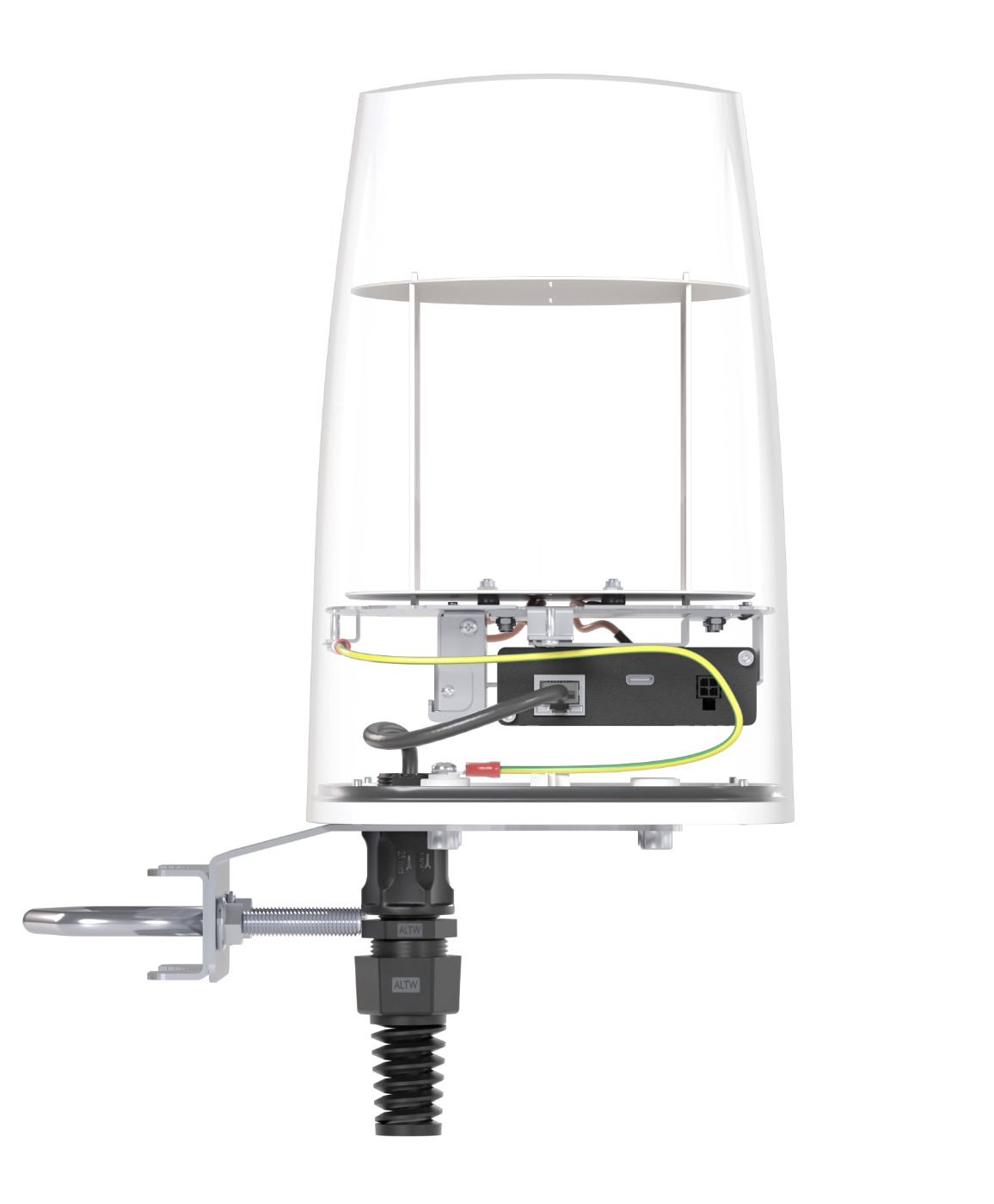

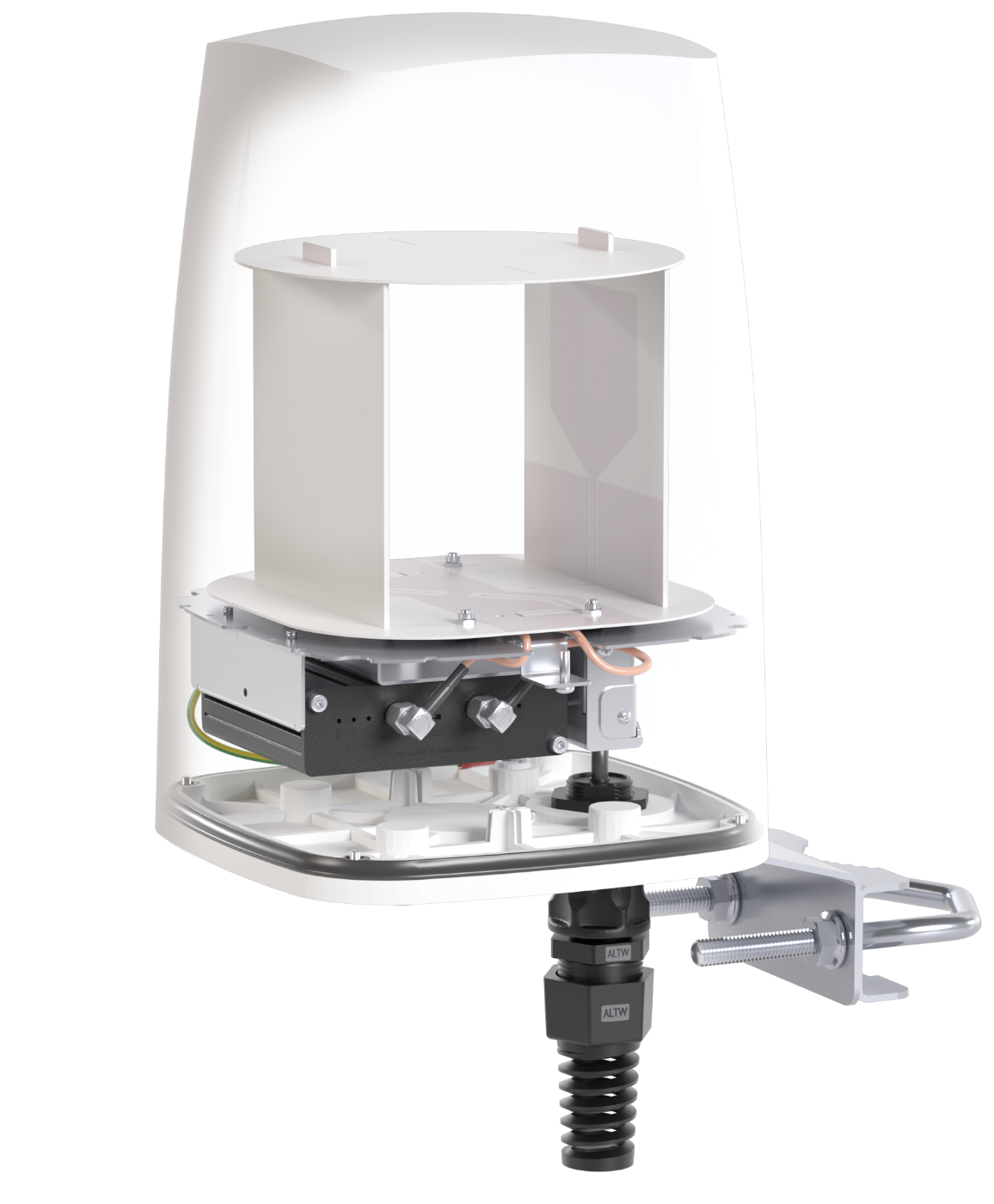

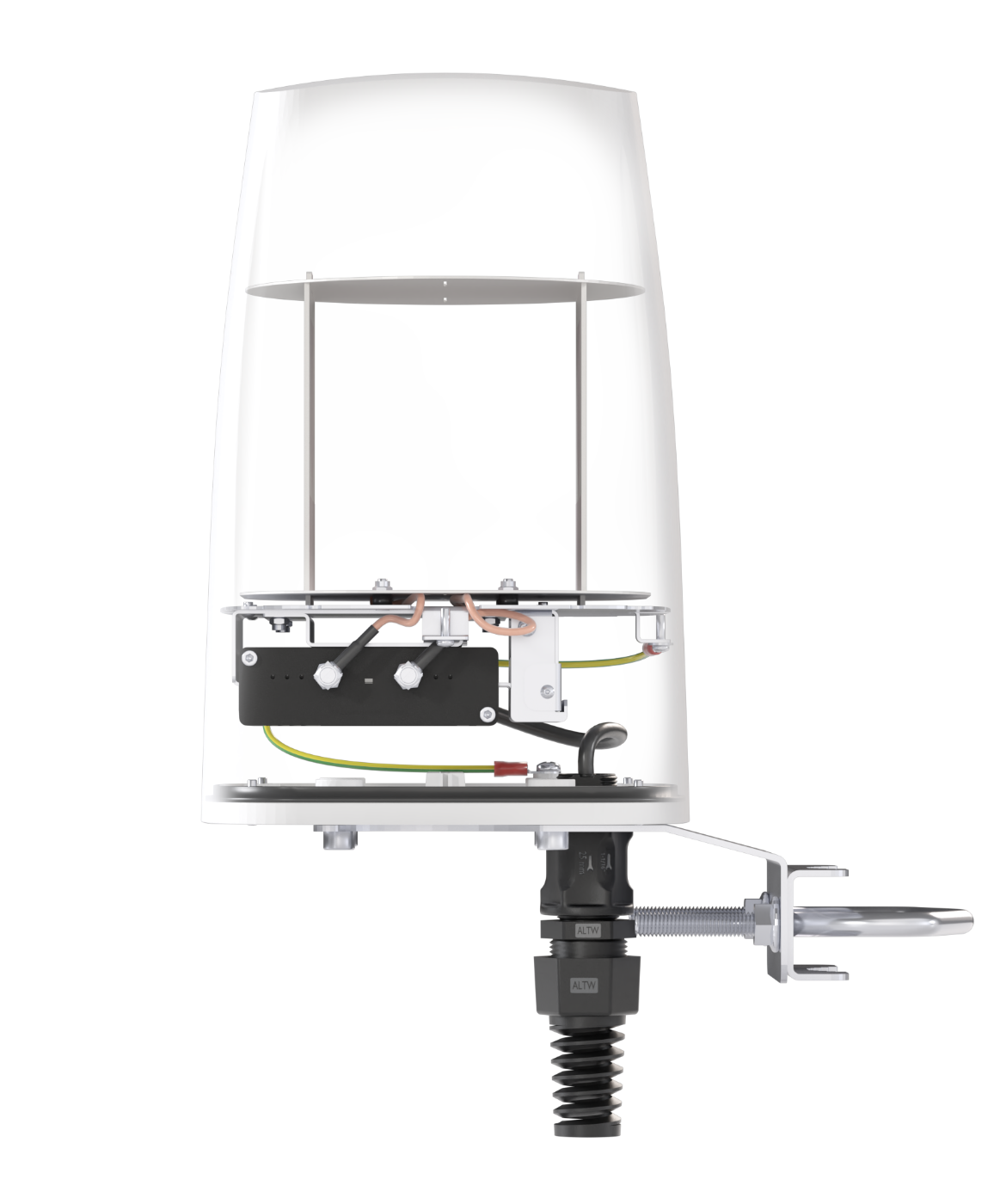

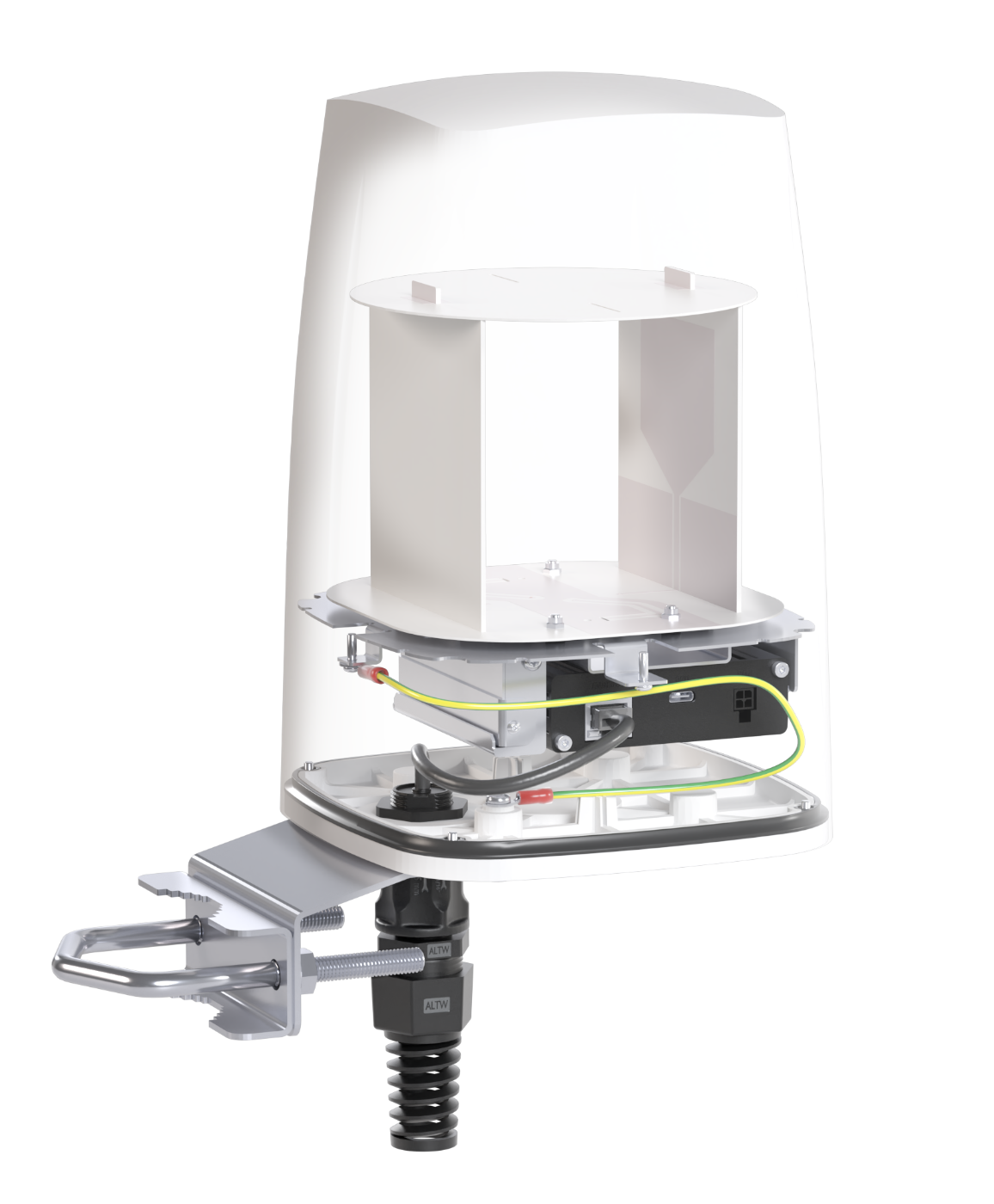

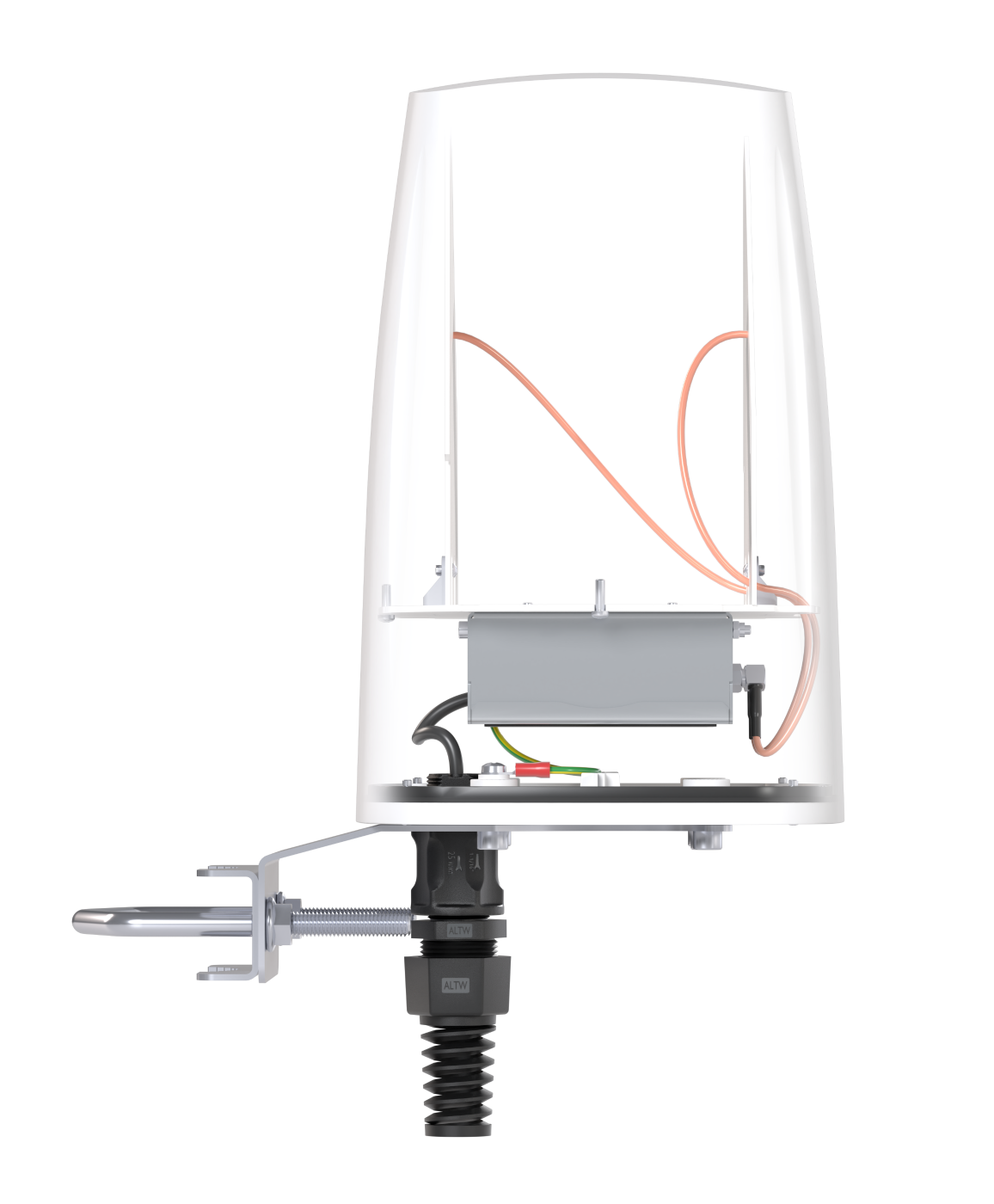

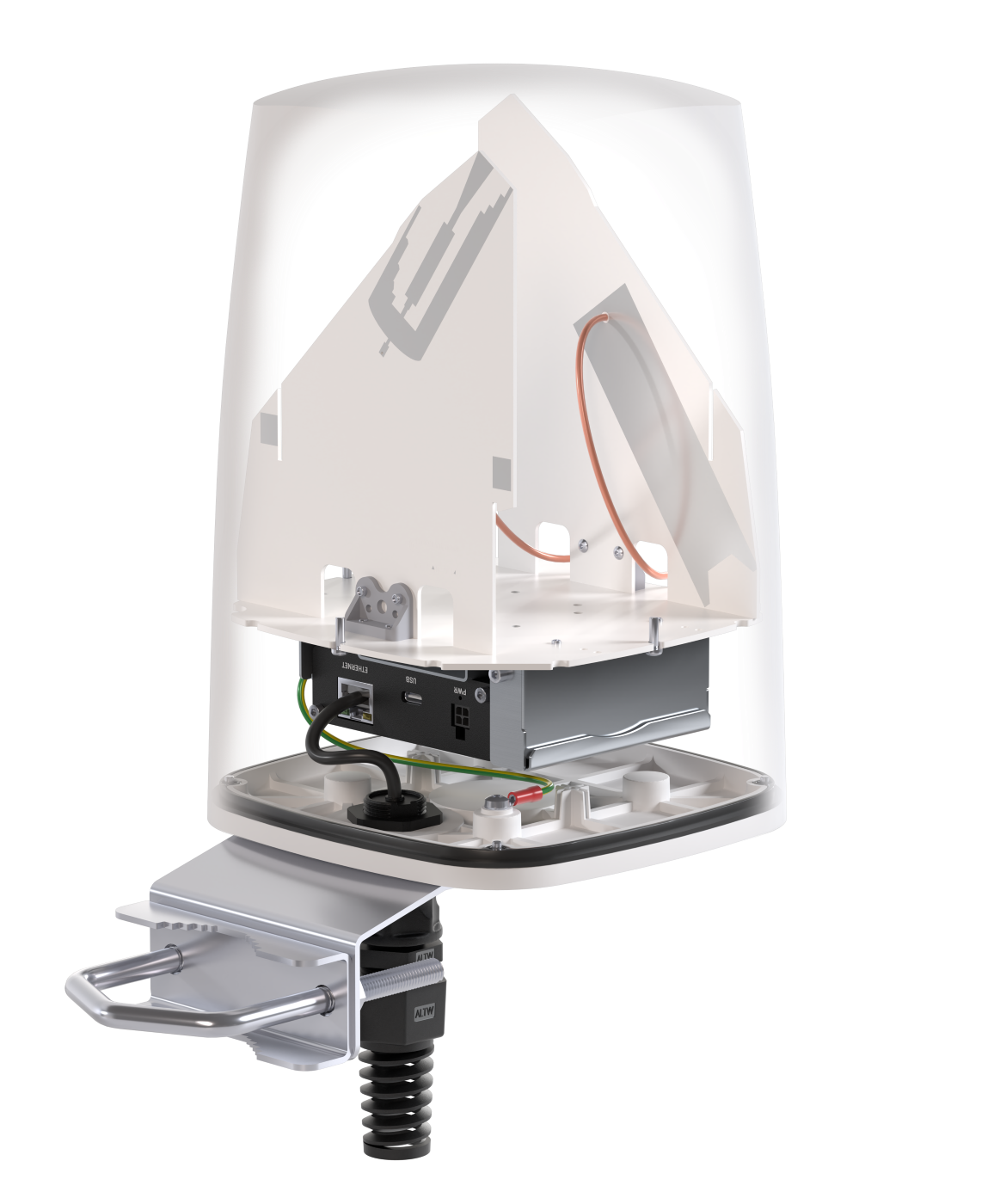

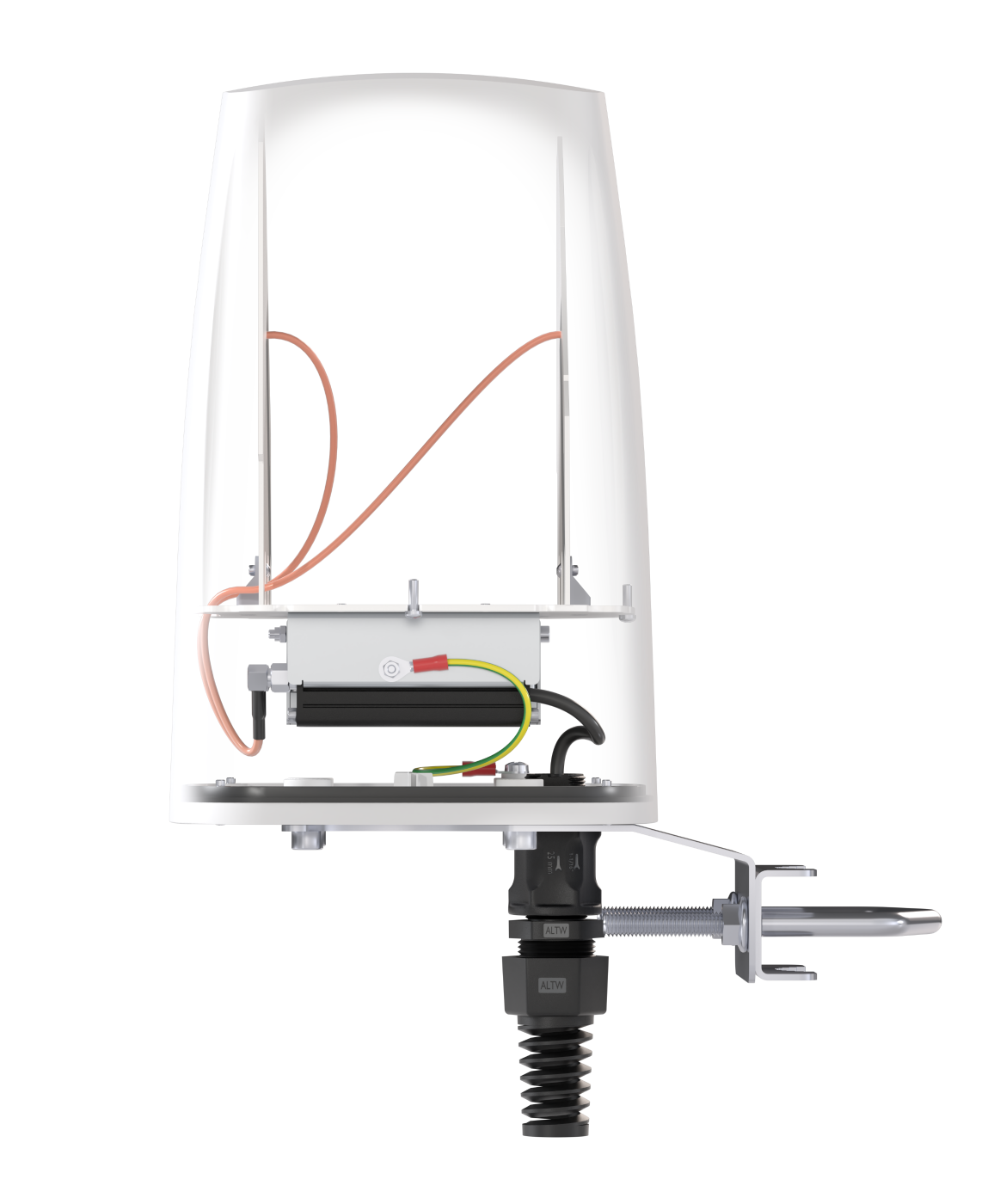

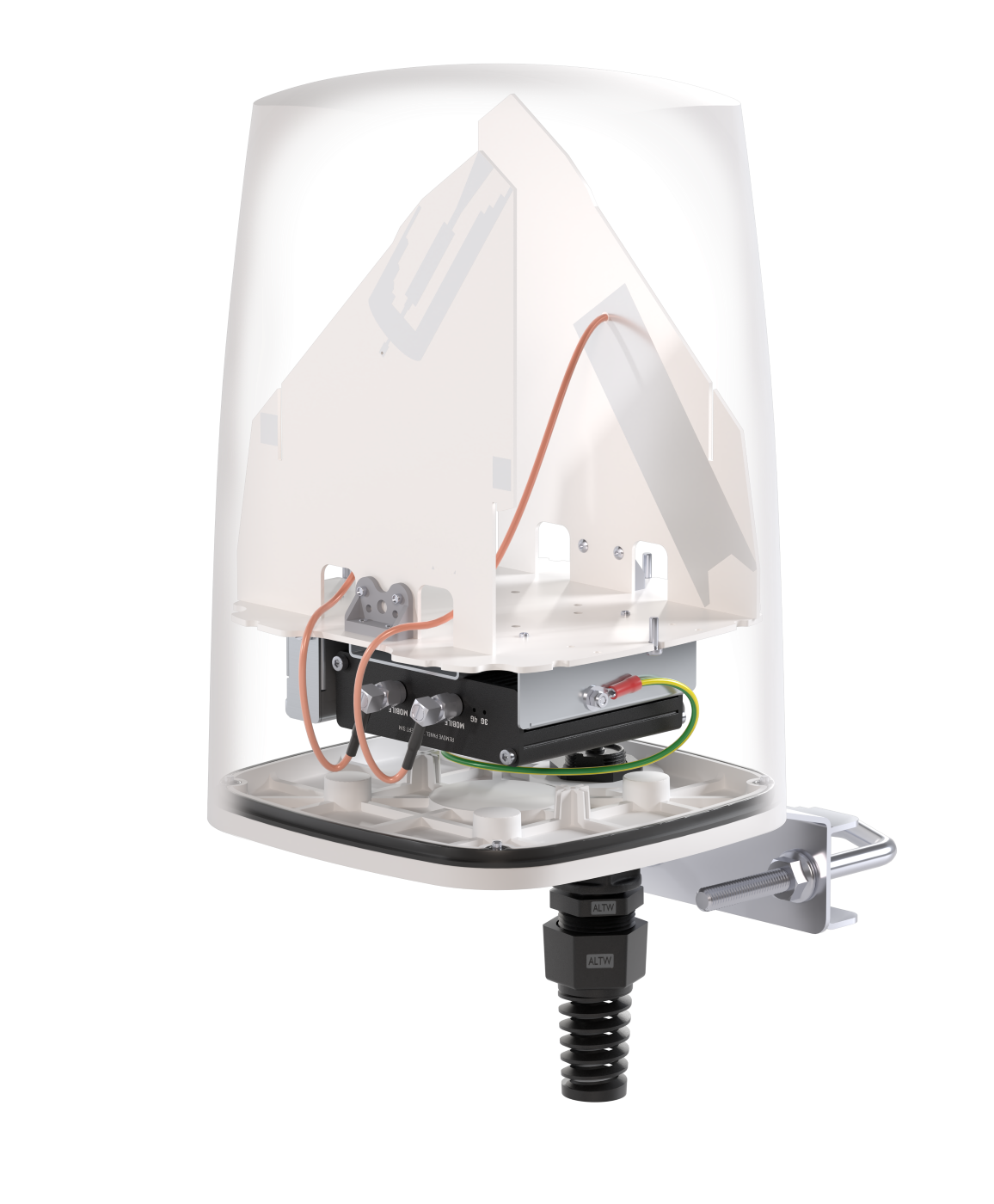

Antenna QuSpot for Teltonika TRB160

P/n: A160S

Integrated outdoor multi band LTE omni antennas + place to install Teltonika TRB160 (All-in-one)

QuSpot omni LTE antenna for Teltonika TRB160 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. If you use TRB160 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Technical specification

Any question?

Contact us

Why QuSpot for Teltonika TRB160

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuSpot for Teltonika TRB160

SPECIFICATION

PRODUCT DETAILS

5G/LTE antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

0.617 - 0.960 GHz

1.6 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.0 GHz

Max. Gain

0.617 - 0.960 GHz : 2 dBi

1.6 - 3.0 GHz : 4 dBi

3.0 - 5.0 GHz : 4 dBi

5.0 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 111, 252, 254, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n106, n252, n254, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Teltonika TRB160

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Teltonika TRB160
5G/LTE From 650MHz to 950MHz
Elevation
Azimuth
5G/LTE From 1710MHz to 2500MHz
Elevation
Azimuth
5G/LTE From 3300MHz to 4000MHz
Elevation
Azimuth
5G/LTE From 4500MHz to 5500MHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika TRB160QuSpot for Teltonika TRB160
QuSpot for Teltonika TRB160QuSpot for Teltonika TRB160

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for TRB160

Parts of QuSpot for Teltonika TRB160
1x Mounting for Teltonika TRB160
Parts of QuSpot for Teltonika TRB160
1x 8mm wrench
Parts of QuSpot for Teltonika TRB160
x4 3,1 x 12
Parts of QuSpot for Teltonika TRB160
4x M6 x 10
Parts of QuSpot for Teltonika TRB160
4x
Parts of QuSpot for Teltonika TRB160
1x
Parts of QuSpot for Teltonika TRB160
2x M8
Parts of QuSpot for Teltonika TRB160
1x
Parts of QuSpot for Teltonika TRB160
1x QuRJ45
