Antenna QuSpot for MikroTik RBM11G | 5G

P/n: AMT115GS

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + PLACE TO INSTALL MIKROTIK RBM11G (ALL-IN-ONE)

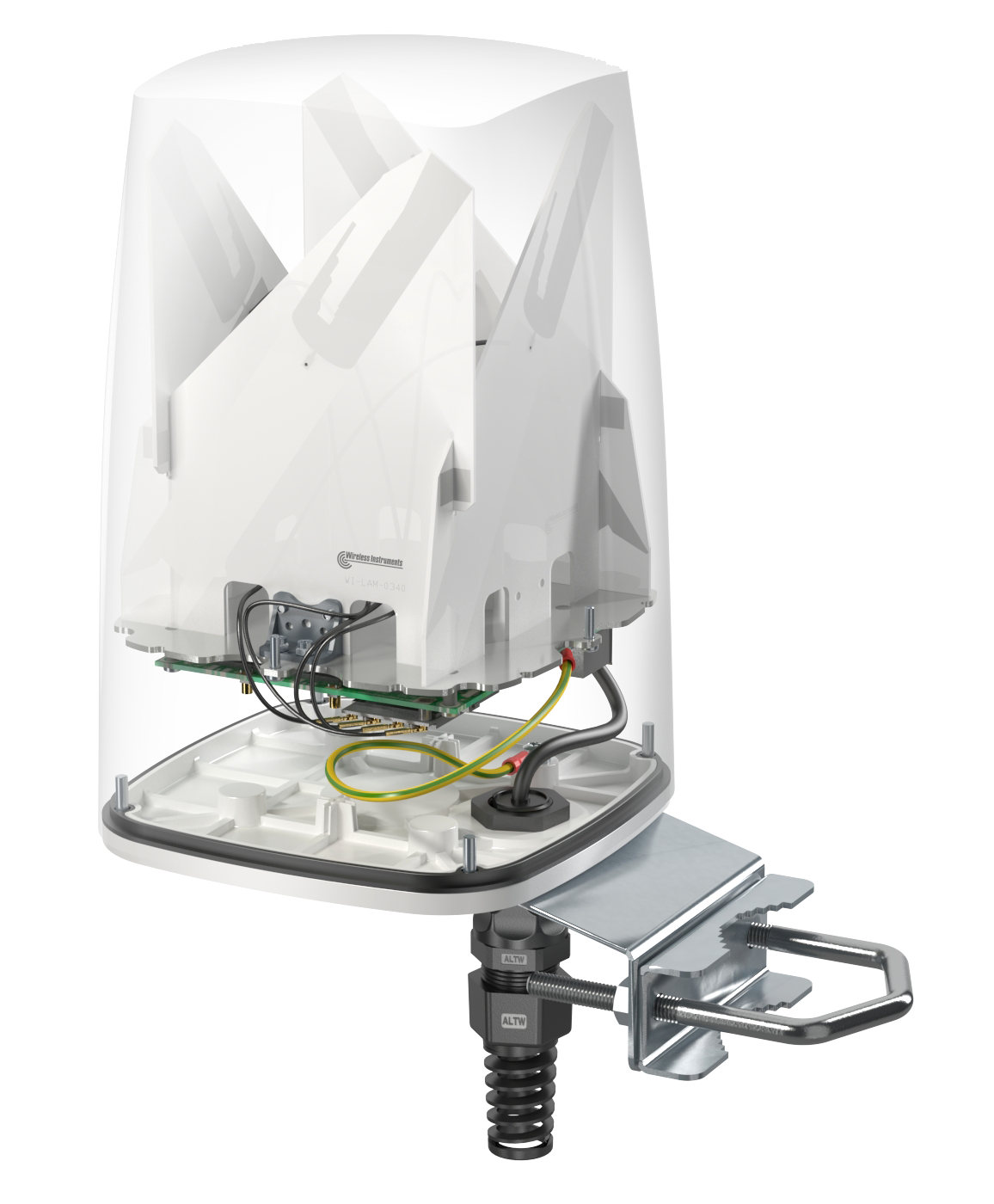

QuSpot is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G/LTE 4x4 MIMO antennas with MikroTik board into a single IP67 enclosure. Such integration allows implementation of new outdoor solutions.

Four ultra wide band 5G/LTE antennas make an universal solution and enable to integrate MikroTik boards in many dfferent combinations, based on RBM11G.

QuSpot for MikroTik is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Why QuSpot for MikroTik RBM11G | 5G

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Compatible with RBM11G.

Passive PoE support

Made in Europe

QuSpot for MikroTik RBM11G | 5G

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for MikroTik RBM11G | 5G

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for MikroTik RBM11G | 5G
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for MikroTik RBM11G | 5G QuSpot for MikroTik RBM11G | 5G
QuSpot for MikroTik RBM11G | 5G QuSpot for MikroTik RBM11G | 5G

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for MikroTik RB series

Parts of QuSpot for MikroTik RBM11G | 5G
1x With mounting for MikroTik board
Parts of QuSpot for MikroTik RBM11G | 5G
1x 8mm wrench
Parts of QuSpot for MikroTik RBM11G | 5G
x4 3,1 x 12
Parts of QuSpot for MikroTik RBM11G | 5G
4x M6 x 10
Parts of QuSpot for MikroTik RBM11G | 5G
4x
Parts of QuSpot for MikroTik RBM11G | 5G
1x
Parts of QuSpot for MikroTik RBM11G | 5G
2x M8
Parts of QuSpot for MikroTik RBM11G | 5G
1x
Parts of QuSpot for MikroTik RBM11G | 5G
1x QuRJ45

Download

FREQUENTLY ASKED QUESTIONS
Datasheet QuSpot for MikroTik RBM11G | 5G
Download
3D MODEL
Download
IP67 Certificate
Download
IP68 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSpot for MikroTik RBM11G | 5G
Use case QuSpot for MikroTik RBM11G | 5G
Use case QuSpot for MikroTik RBM11G | 5G
