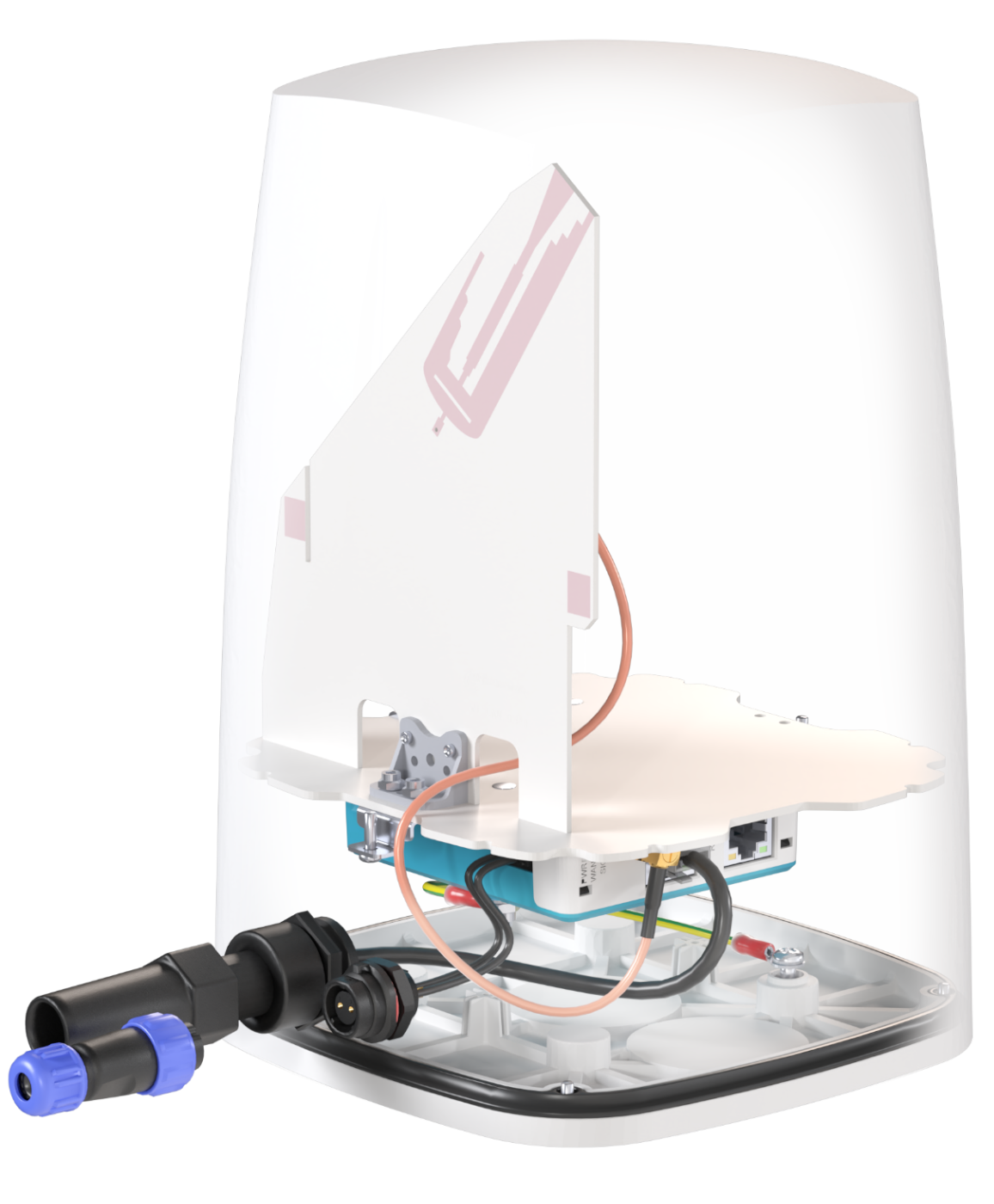

Antenna QuSpot for MIRO-L230

P/n: MIRO

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + PLACE TO INSTALL MIRO-L230 (ALL-IN-ONE)

QuSpot omni LTE antenna for MIRO-L230 is a perfect outdoor device for mobile and fixed installations. When you use MIRO-L230 with a QuSpot antenna, you get an integrated complete solution with embedded gateway and multi band antennas in one enclosure.

The antenna comes with a magnetic mounting system.

Technical specification

Any question?

Contact us

Why QuSpot for MIRO-L230

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

360° beamwidth

4dBi gain

Made in Europe

QuSpot for MIRO-L230

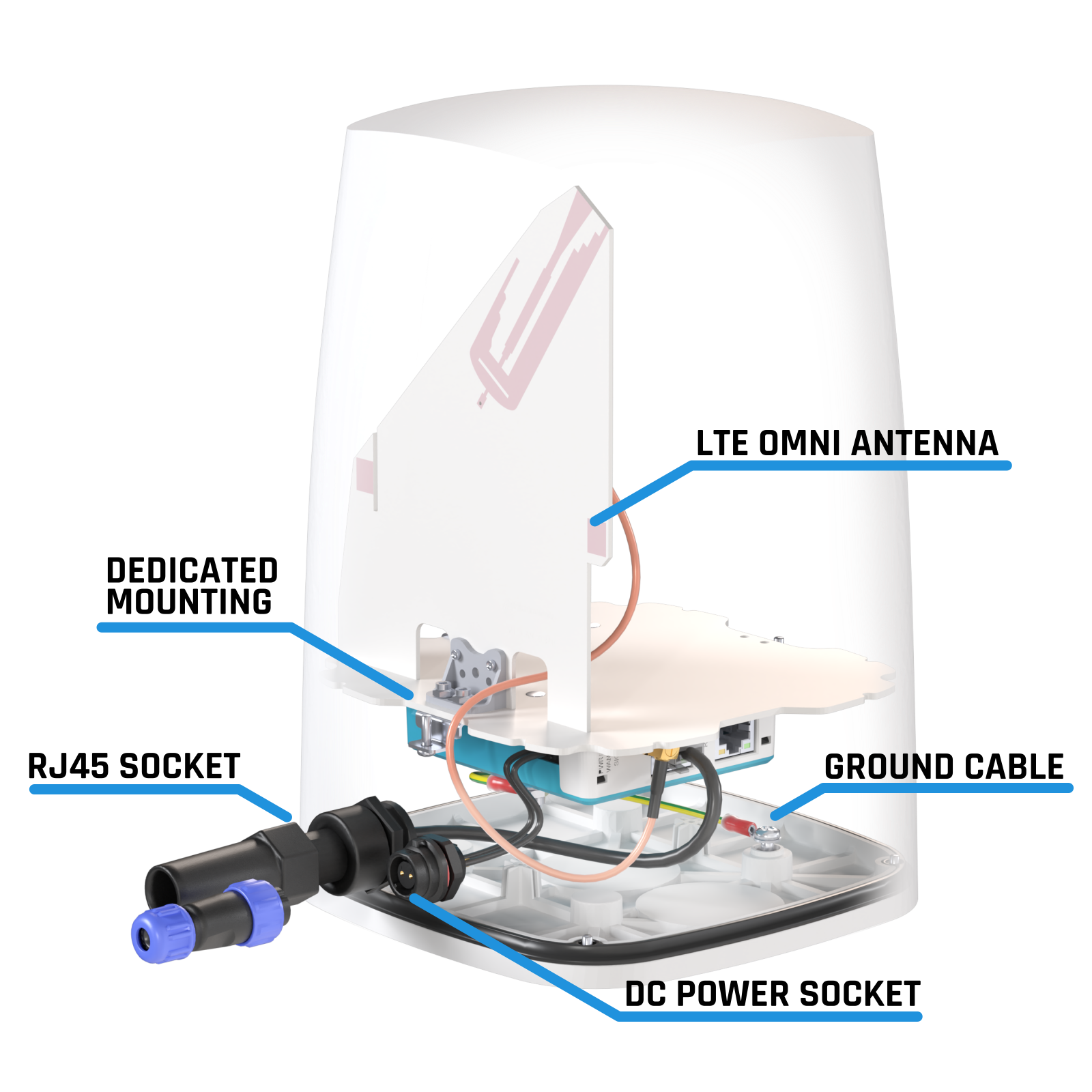

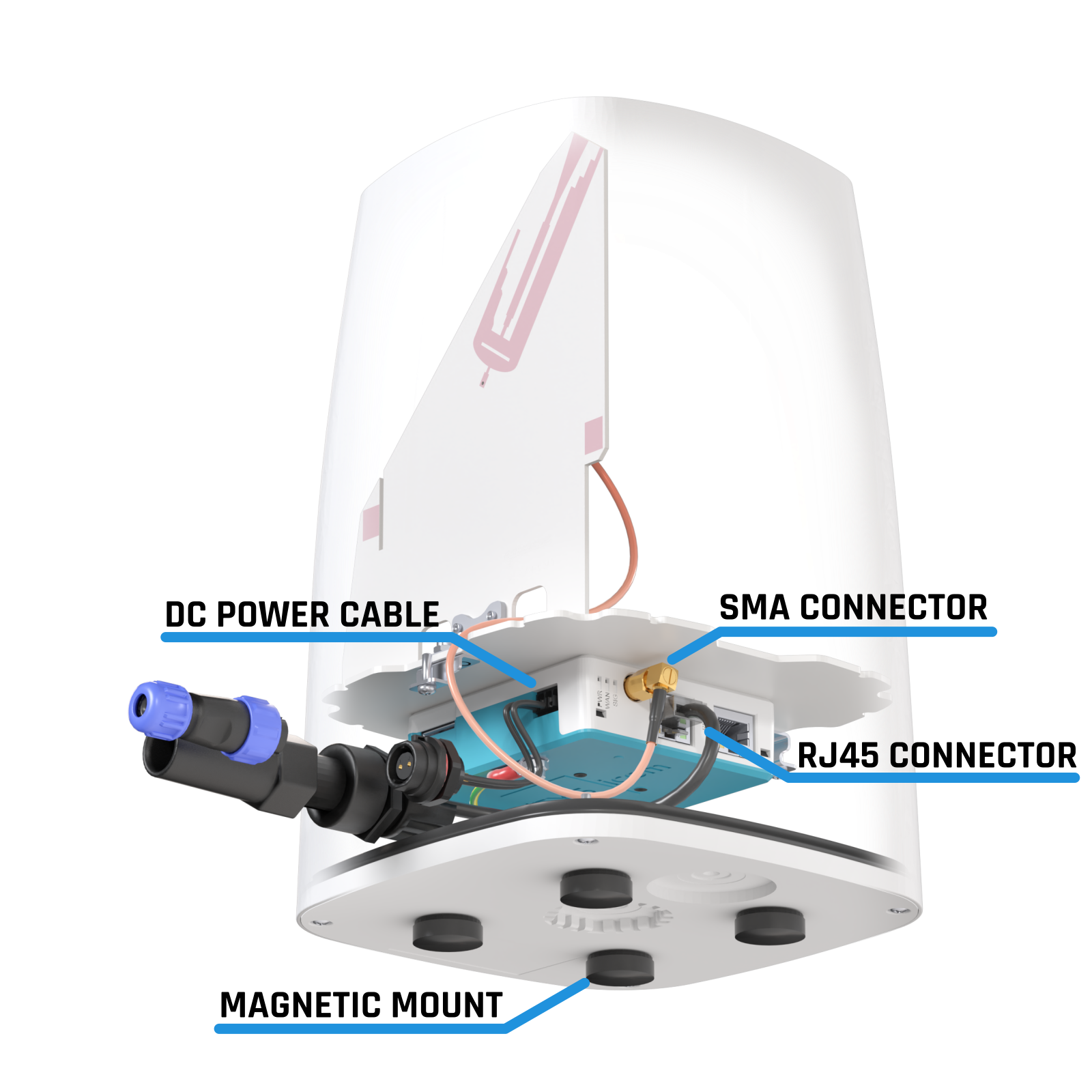

Features

QuSpot for MIRO-L230QuSpot for MIRO-L230
QuSpot for MIRO-L230QuSpot for MIRO-L230

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSpot for MIRO-L230

Gain

Gain of QuSpot for MIRO-L230
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth
