Antenna QuSpot for Teltonika RUTX11 ver. US (Band71)

P/n: AX11SUS

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + BLUETOOTH ANTENNA + PLACE TO INSTALL TELTONIKA RUTX11 (ALL-IN-ONE)

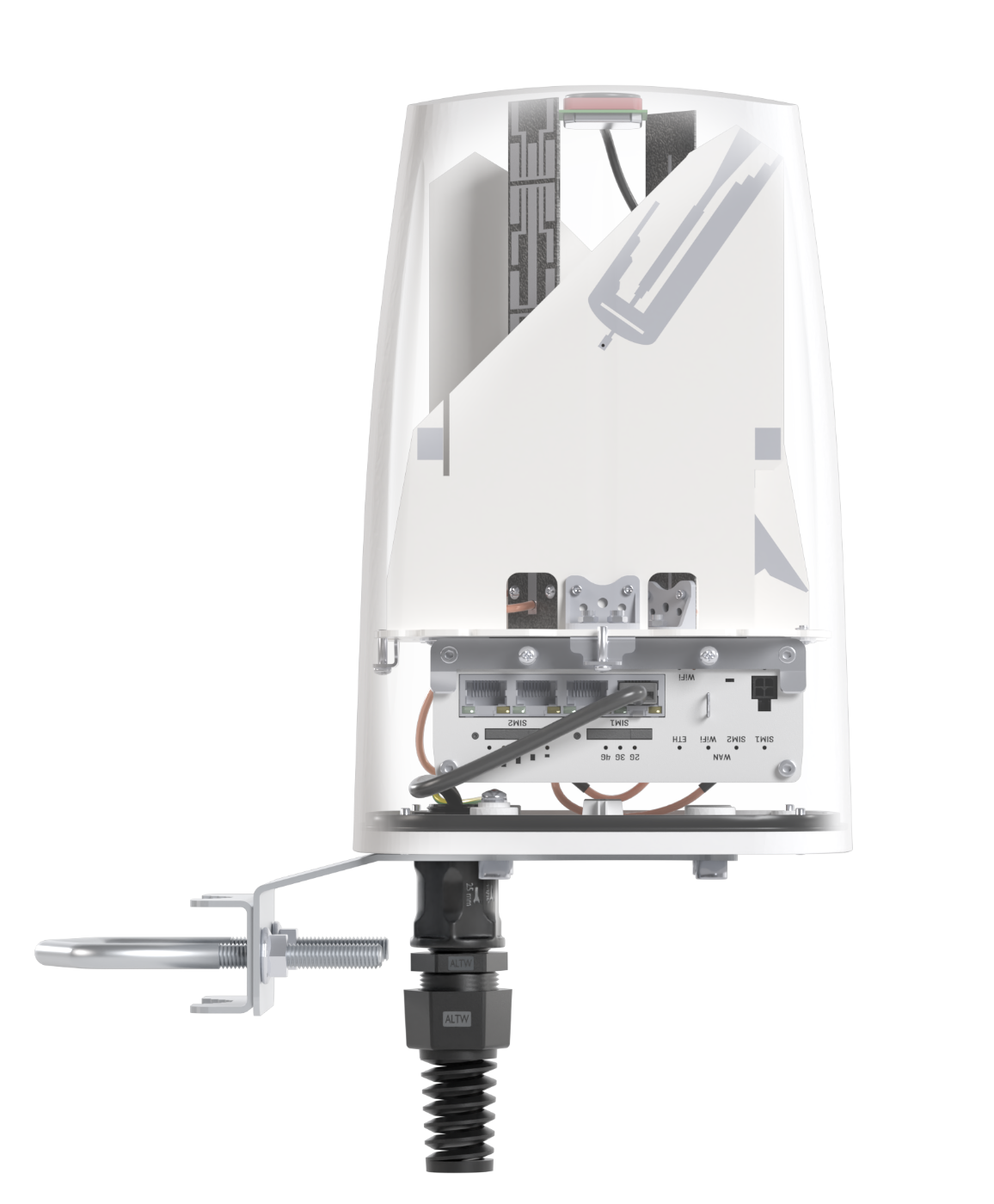

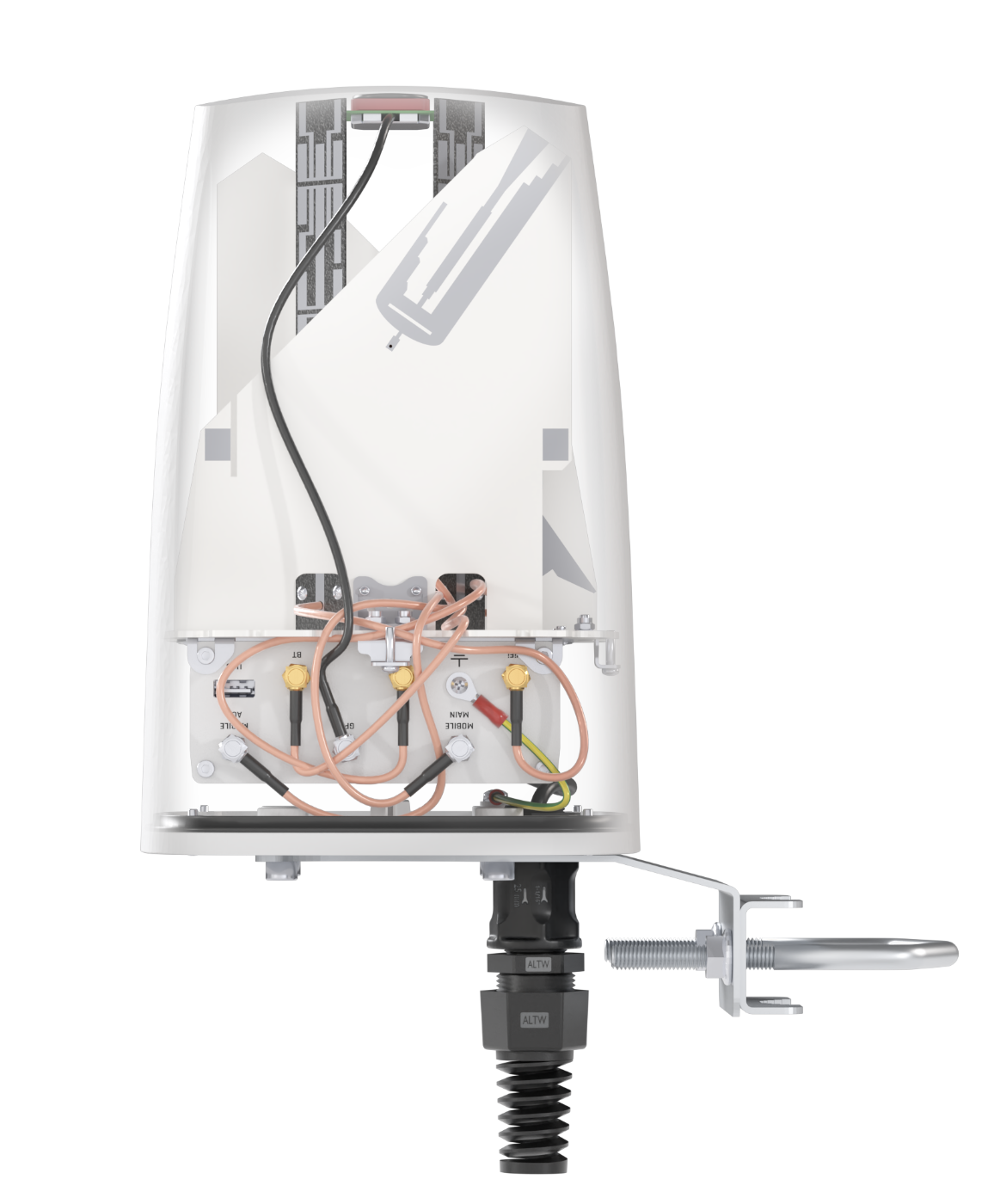

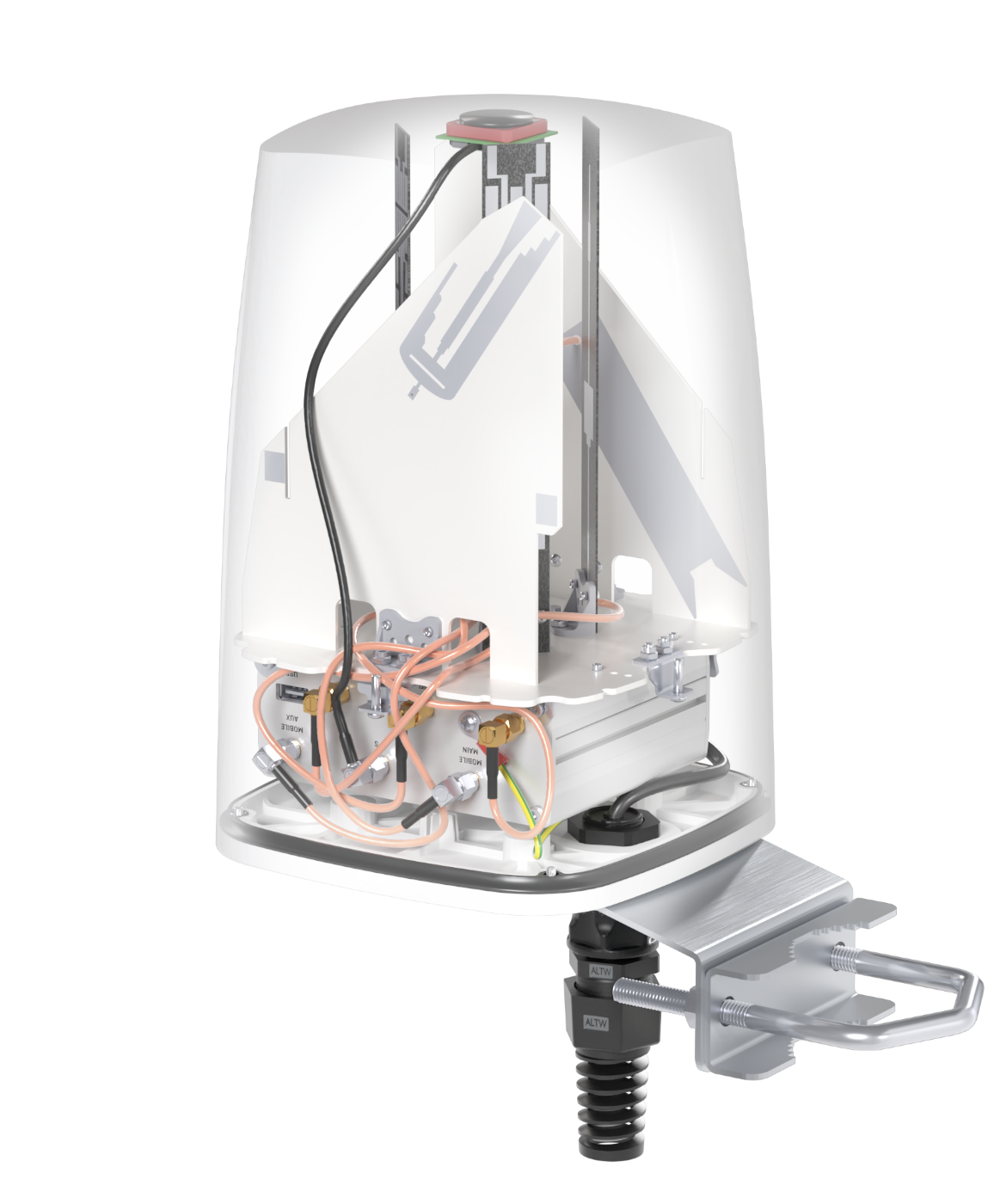

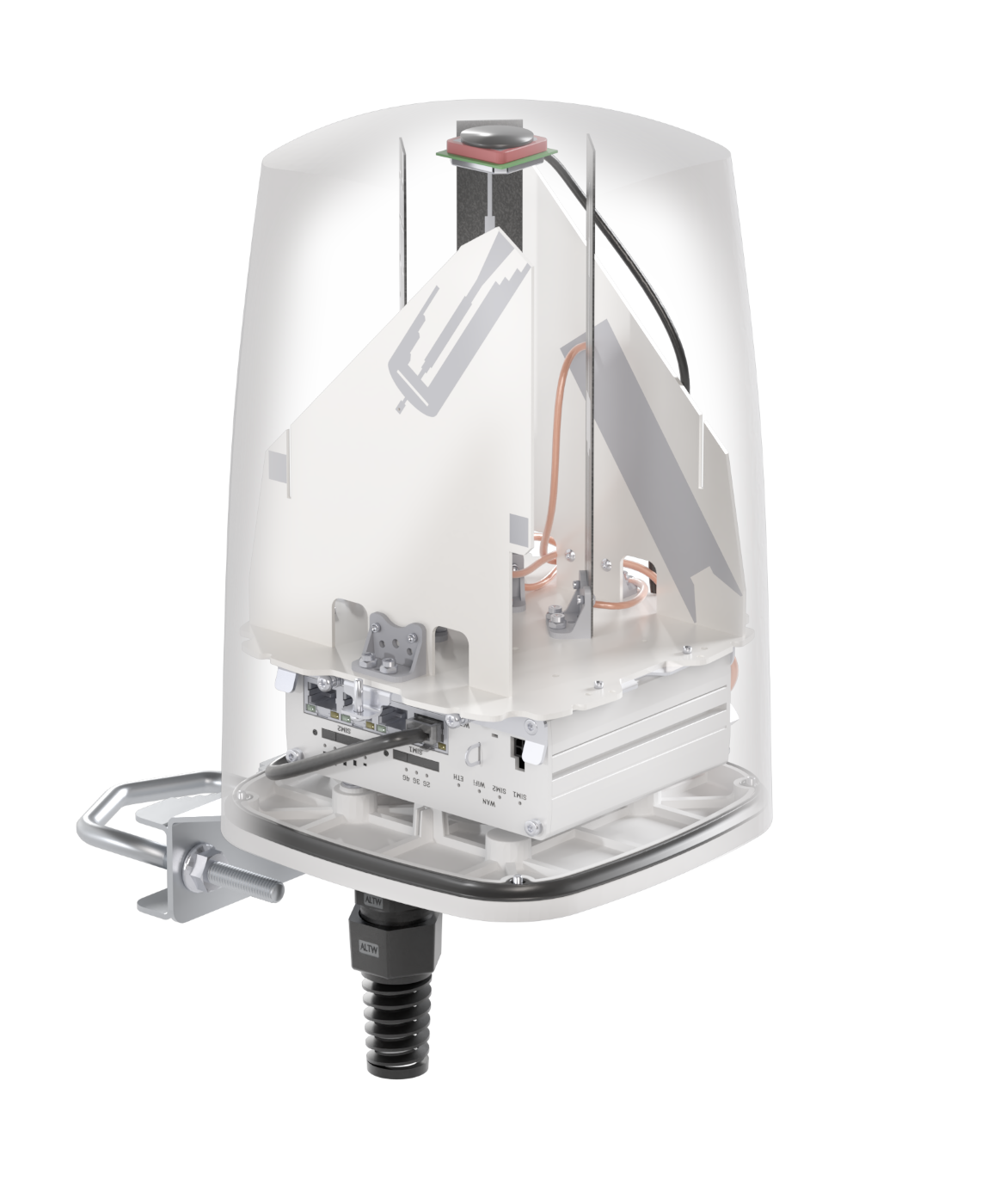

QuSpot for RUTX11 ver. US (Band71) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi Fi antennas with RUTX11 into a single IP67 enclosure.

QuSpot for RUTX11 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

This product is also compatible with RUTM11. If used with RUTM11, the Bluetooth antenna is unused.

Why QuSpot for Teltonika RUTX11 ver. US (Band71)

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuSpot for Teltonika RUTX11 ver. US (Band71)

SPECIFICATION

PRODUCT DETAILS

5G antenna specification

Wi-Fi antenna specification

GPS Active antenna specification

Bluetooth antenna specification

Mechanical specification

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 1067, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, n77, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Teltonika RUTX11 ver. US (Band71)

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Teltonika RUTX11 ver. US (Band71)

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Teltonika RUTX11 ver. US (Band71)

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Teltonika RUTX11 ver. US (Band71)
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
Wi-Fi 2.4 GHz and 5 GHz
Elevation
Azimuth
