1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

Porównaj

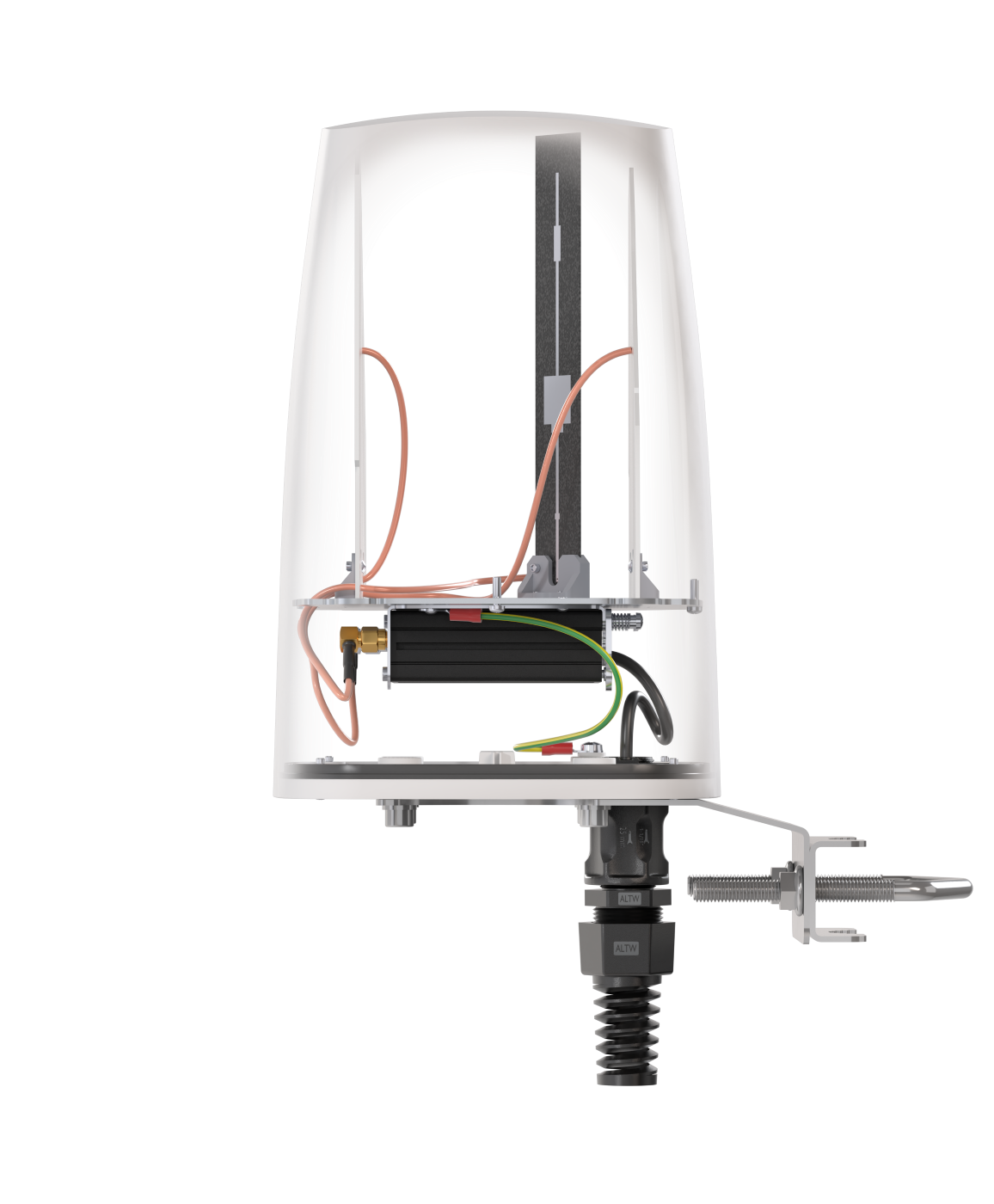

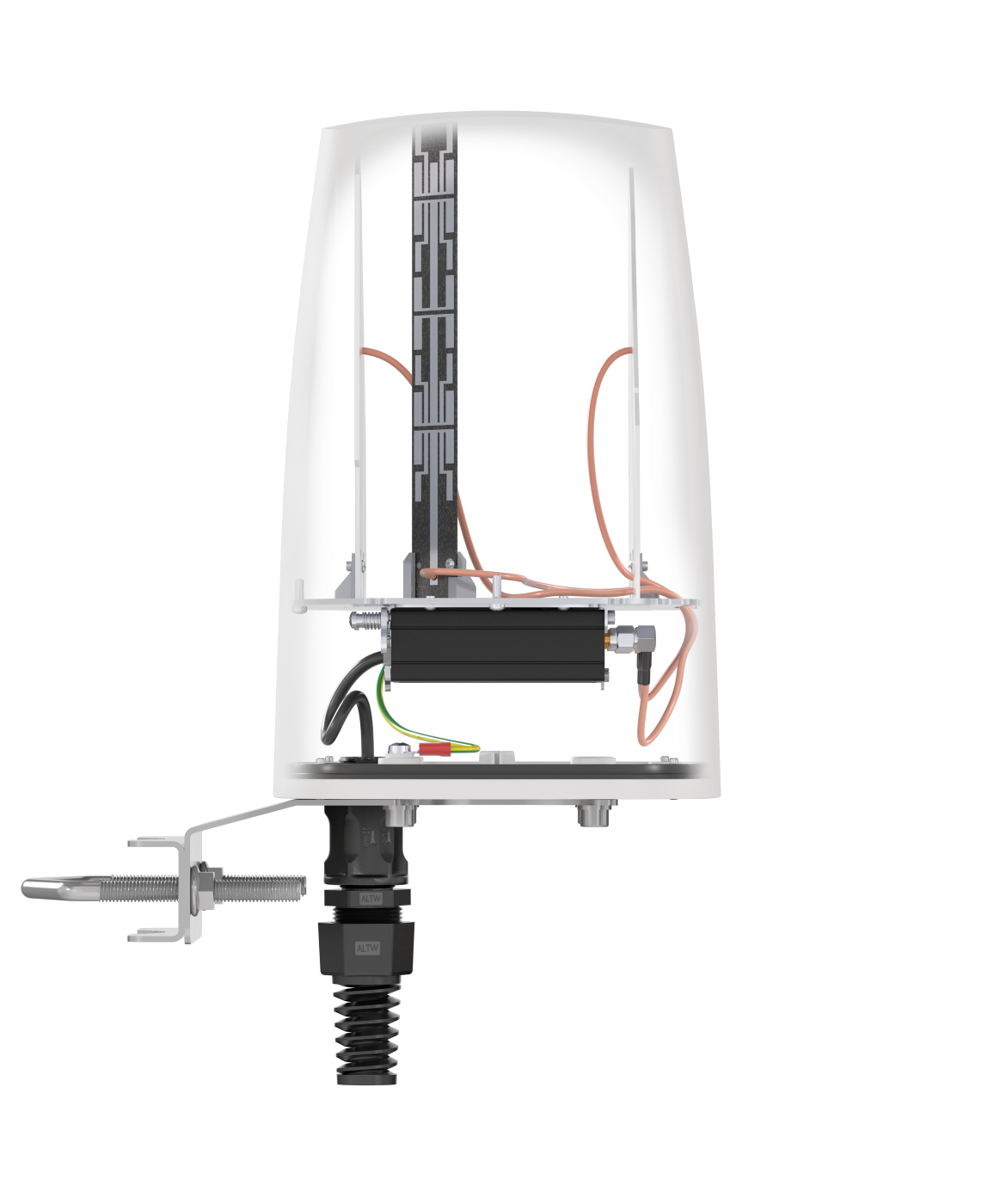

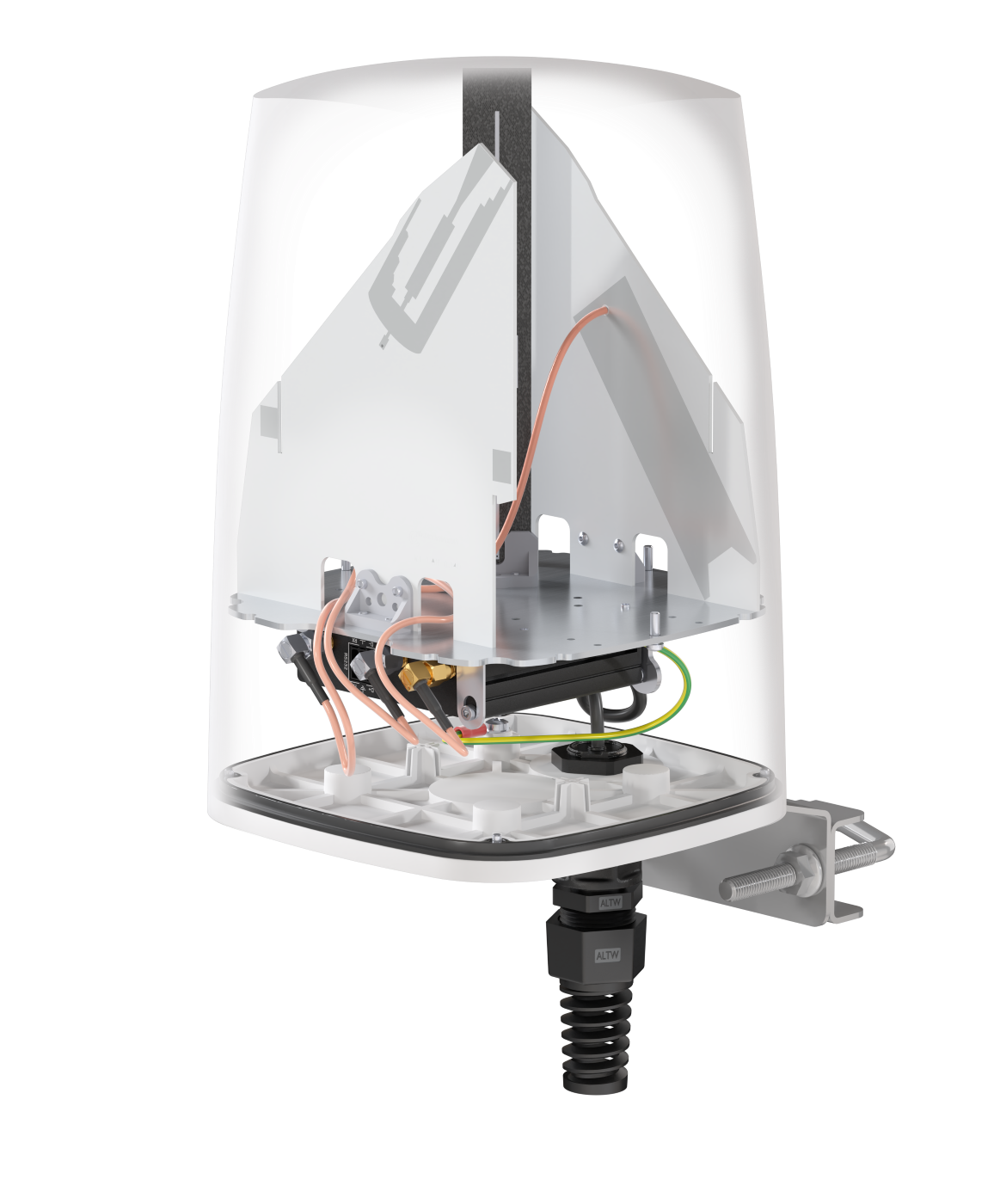

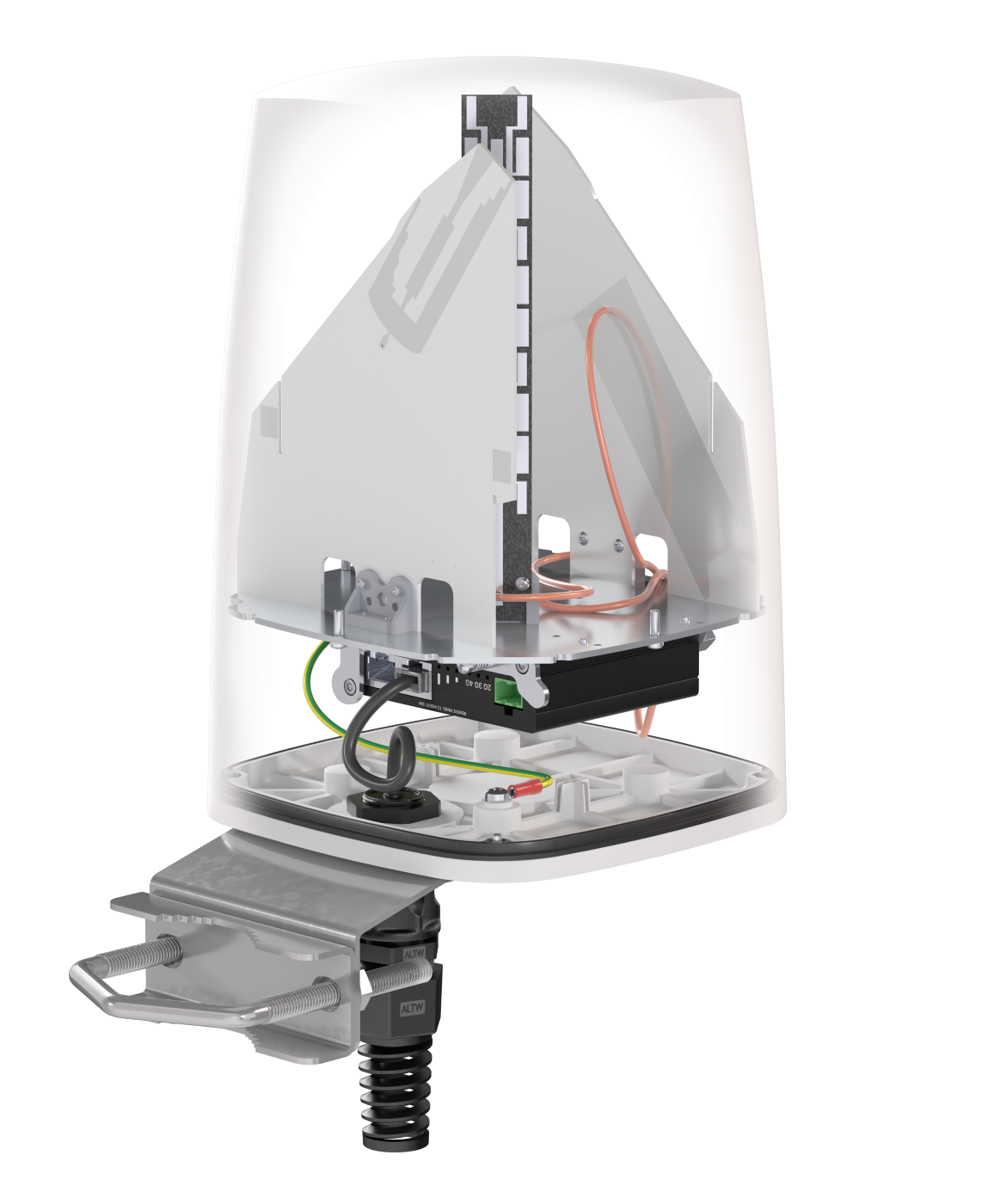

QuSpot for Teltonika RUT202/RUT206/RUT276/RUT286

Antenna QuSpot for Teltonika RUT202/RUT206/RUT276/RUT286

P/n: A206S

INTEGRATED MULTI-BAND 5G/LTE OMNI ANTENNA + WI-FI ANTENNA + PLACE TO INSTALL TELTONIKA RUT202/RUT206/RUT276/RUT286 (ALL-IN-ONE)

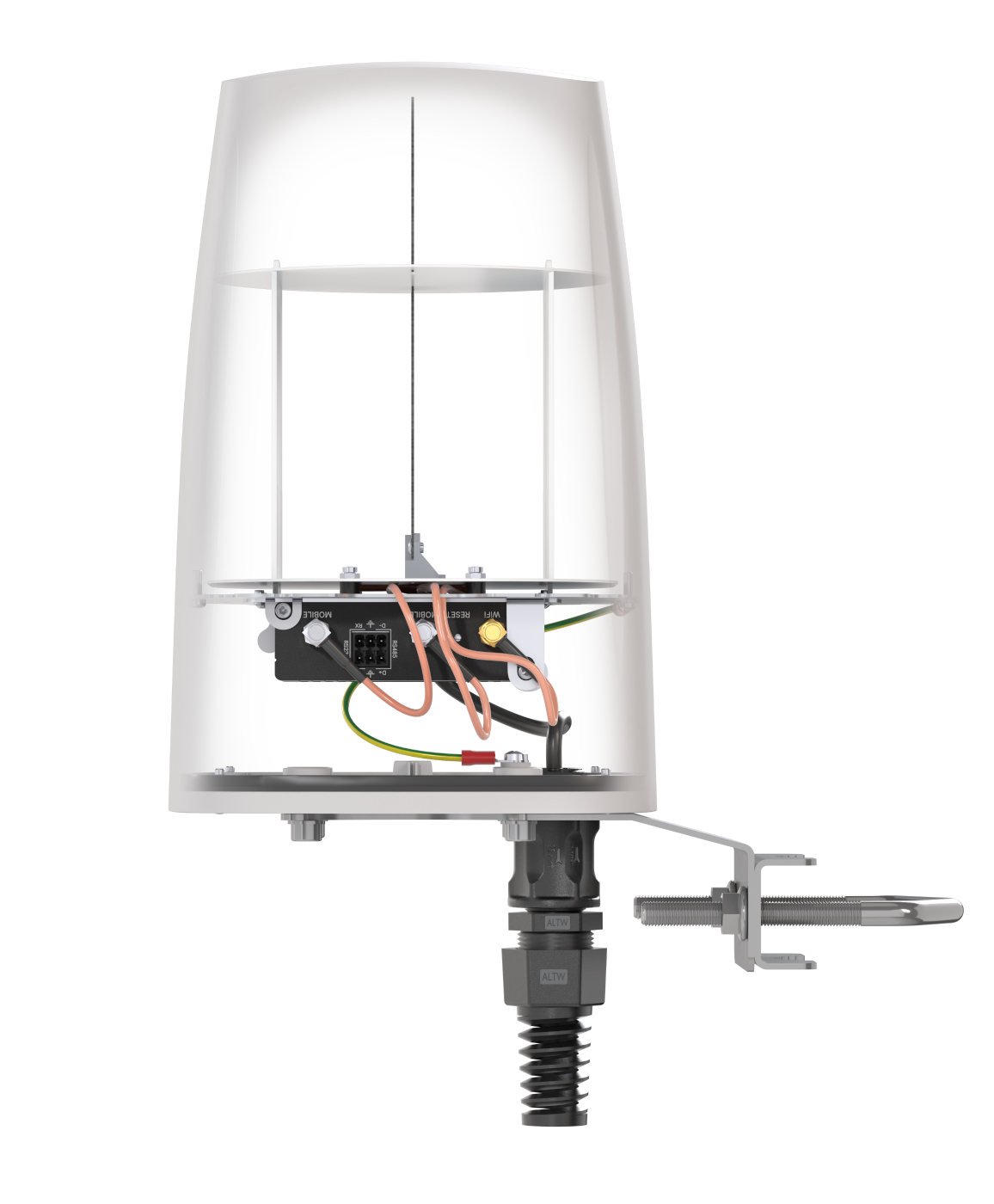

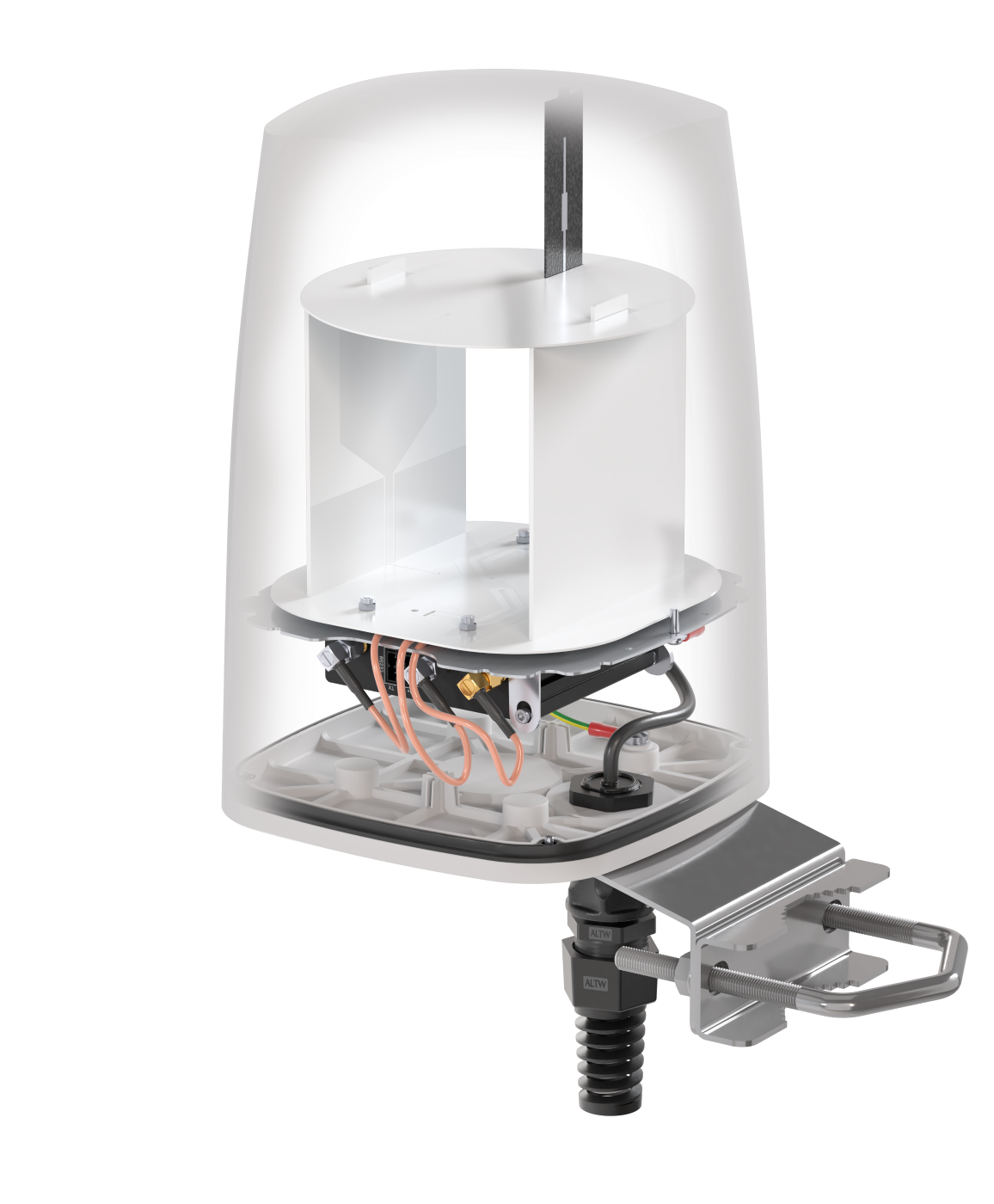

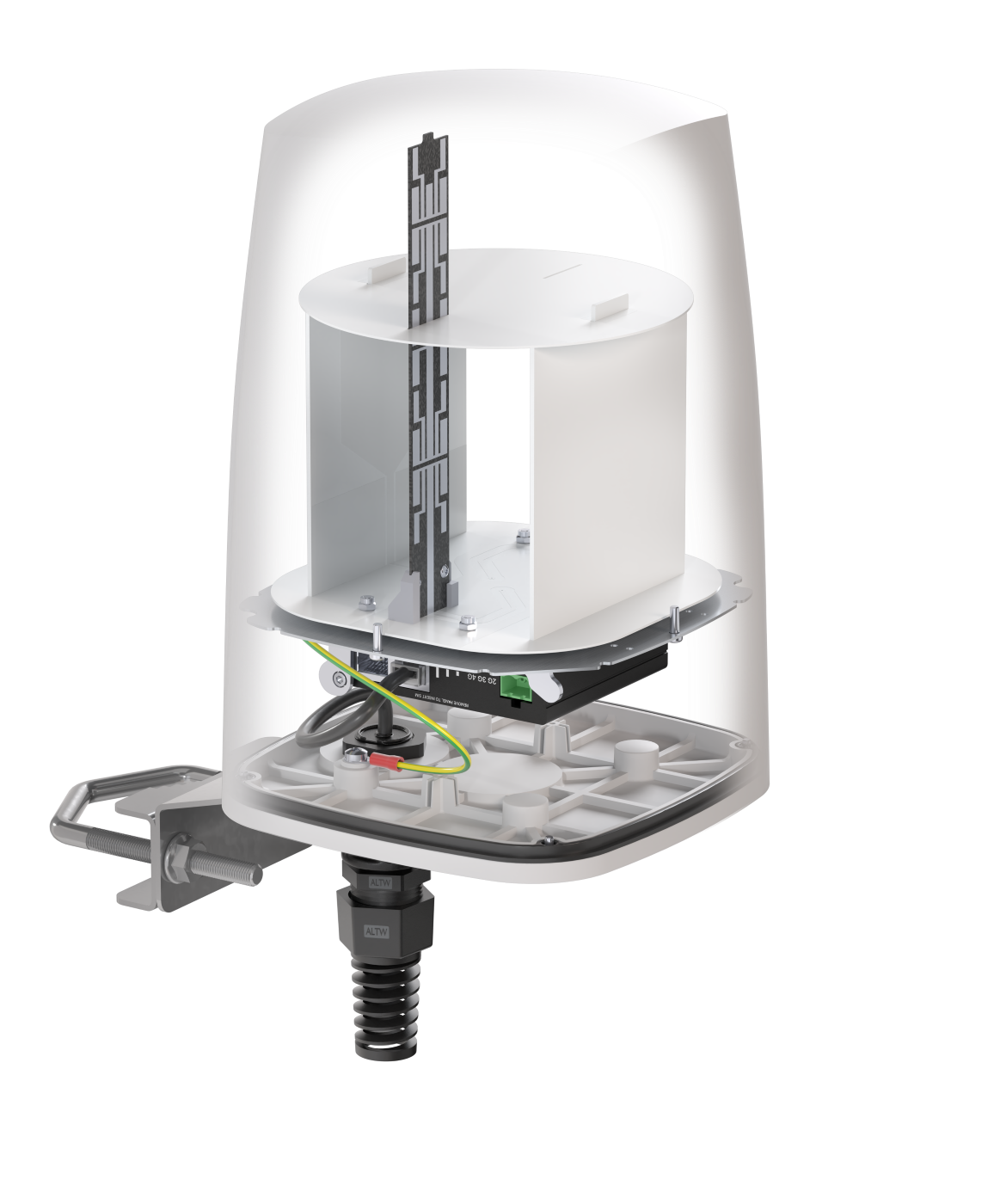

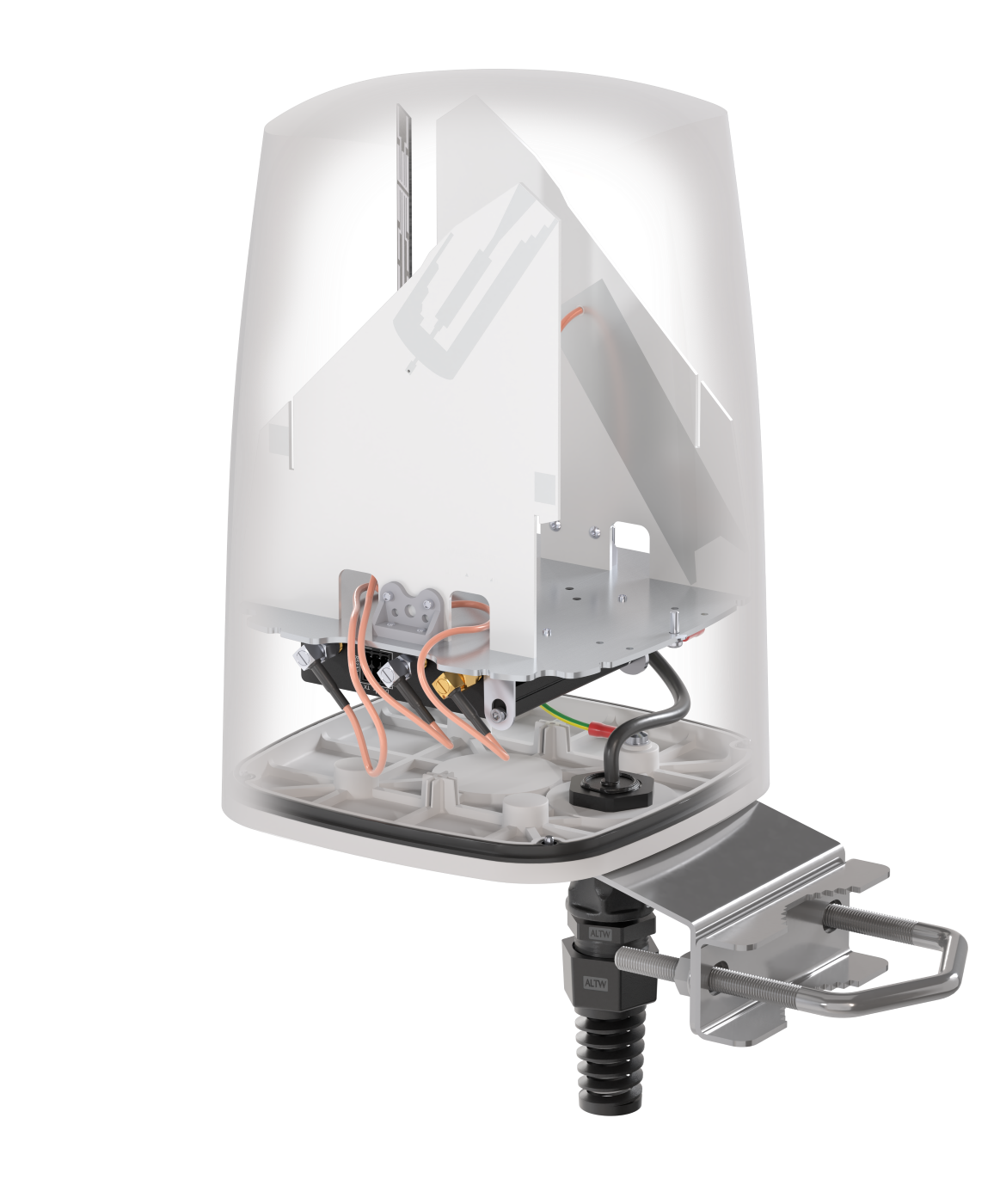

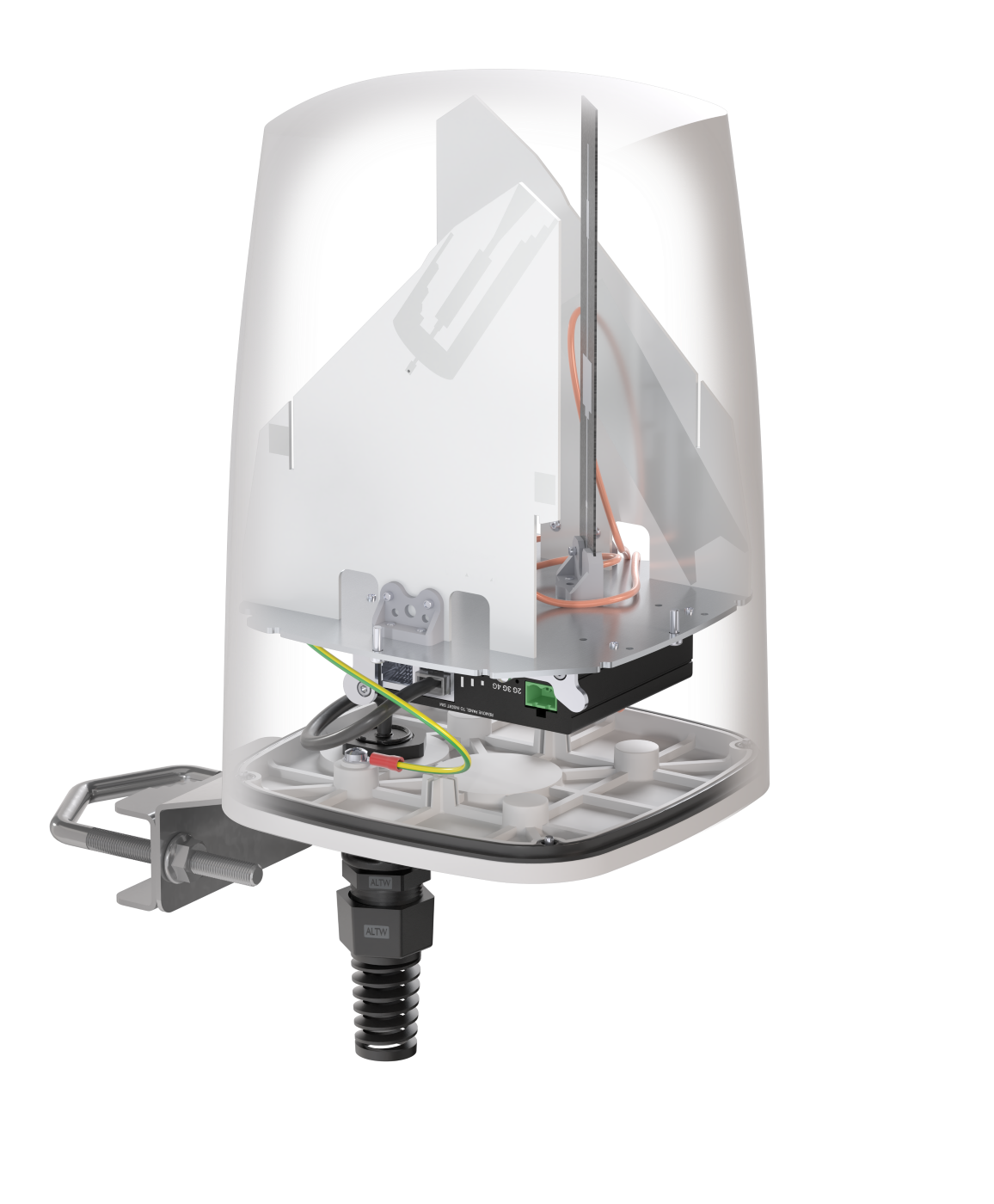

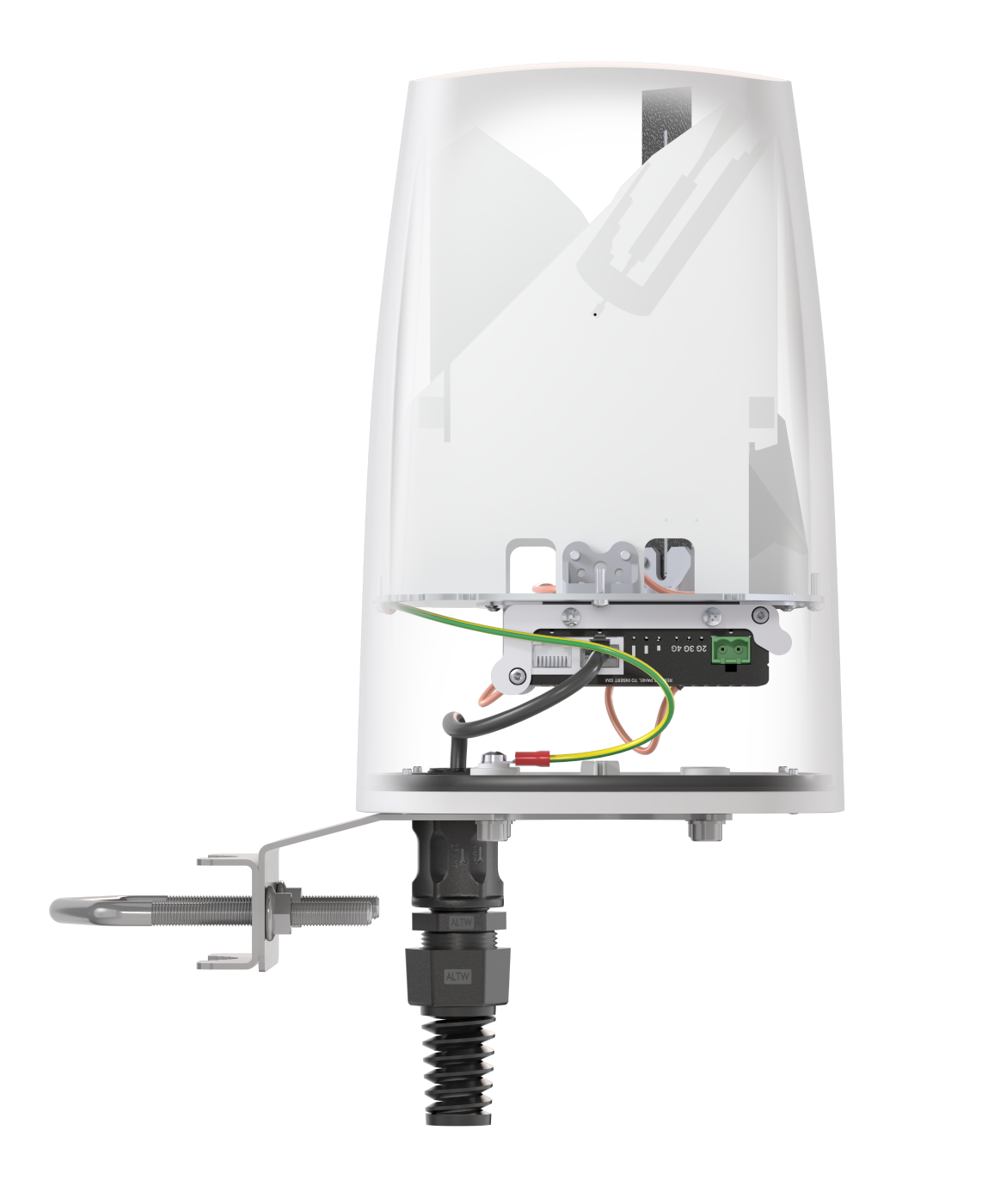

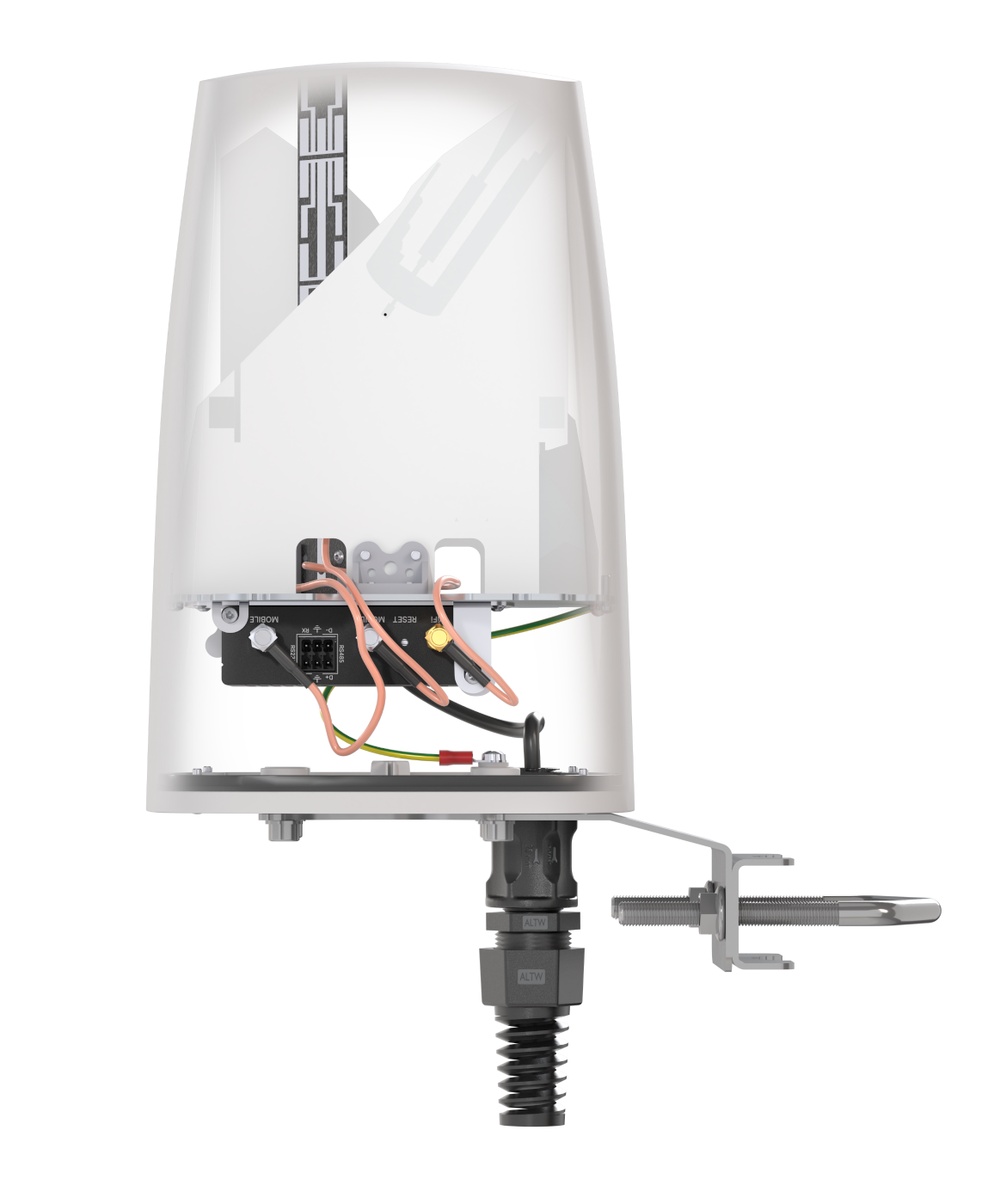

QuSpot omnidirectional 5G/LTE antenna for Teltonika RUT202/RUT206/RUT276/RUT286 router is a perfect outdoor device for mobile and fixed installations e.g. CCTV, hotspots, industrial areas, campervans, ships etc.. In addition to having omnidirectional, multi-band 5G/LTE antennas, it has also embedded omnidirectional Wi-Fi antenna. If you use RUT202/RUT206/RUT276/RUT286 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Technical specification

Any question?

Why QuSpot for Teltonika RUT202/RUT206/RUT276/RUT286

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.6 - 1.4 GHz

1.5 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.35 GHz

Max. Gain

0.6 - 1.4 GHz : 2.6 dBi

1.5 - 3.0 GHz : 4.2 dBi

3.0 - 5.0 GHz : 4.4 dBi

5.0 - 6.35 GHz : 2.1 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n105, n106, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316
