1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

Porównaj

QuSpot for Teltonika RUTX50 2xRJ45 1xQuPS2

Antenna QuSpot for Teltonika RUTX50 2xRJ45 1xQuPS2

P/n: AX50S_T1

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + PLACE TO INSTALL TELTONIKA RUTX50/RUTM51/RUTM54/RUTM55 (ALL-IN-ONE)

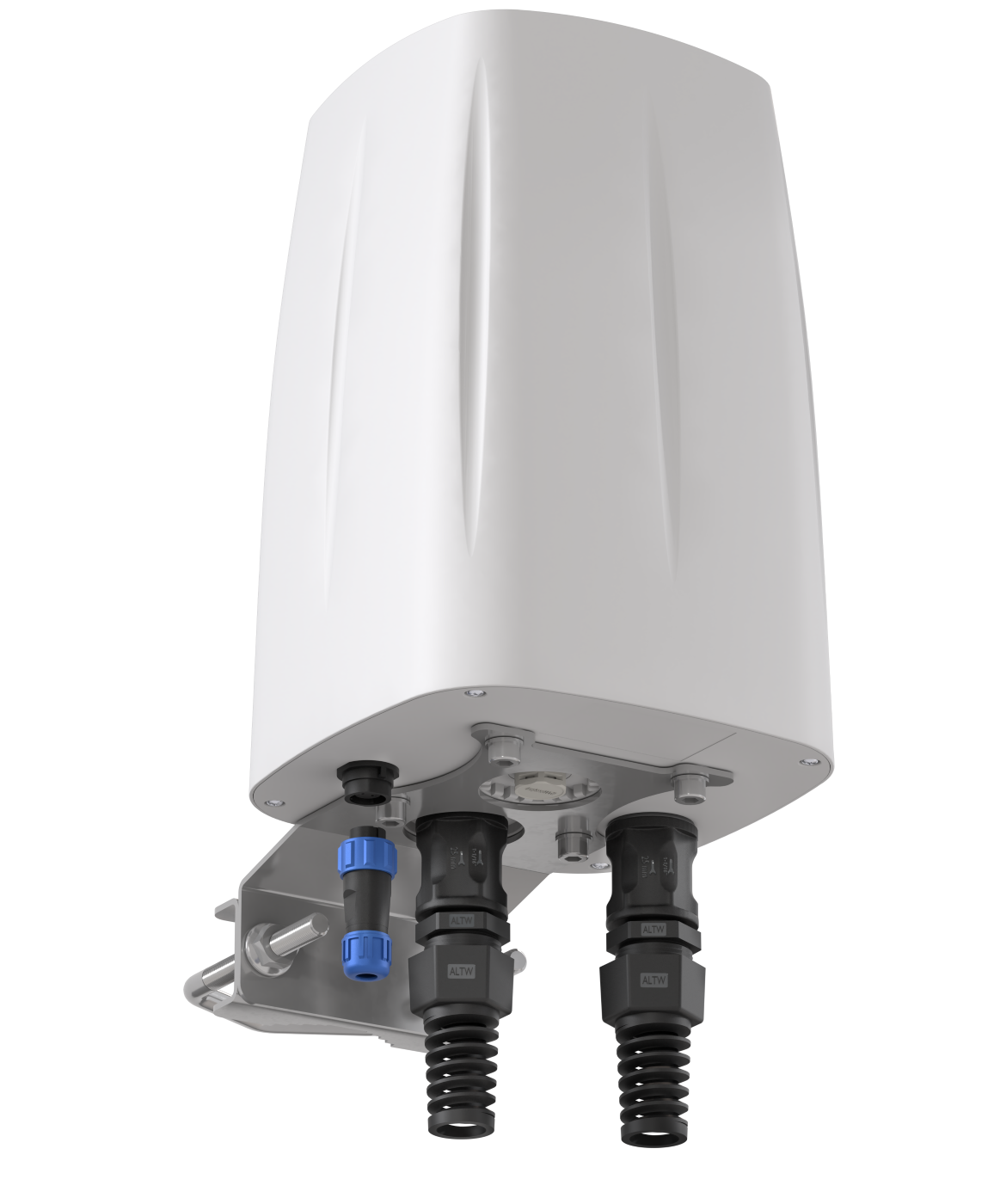

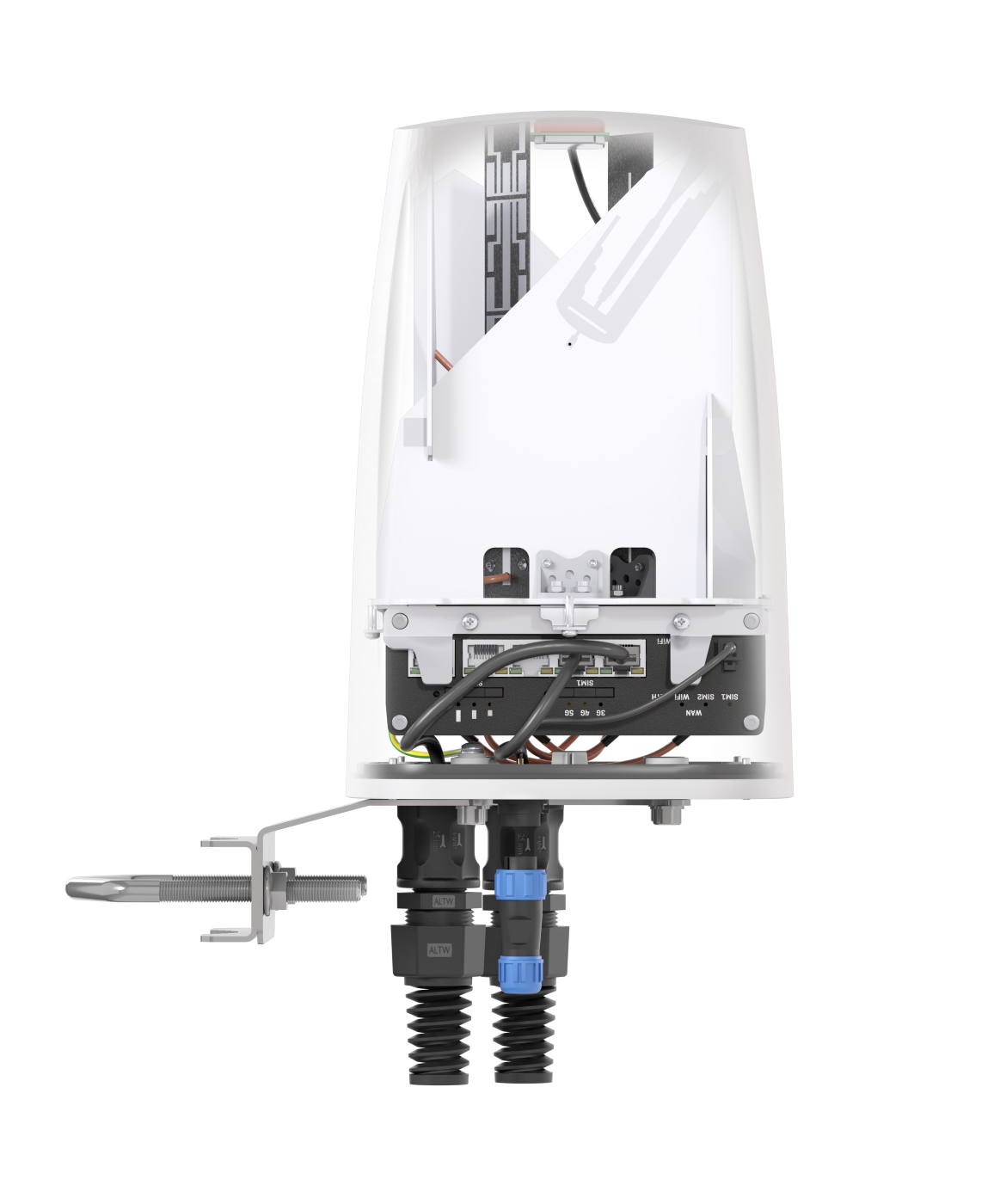

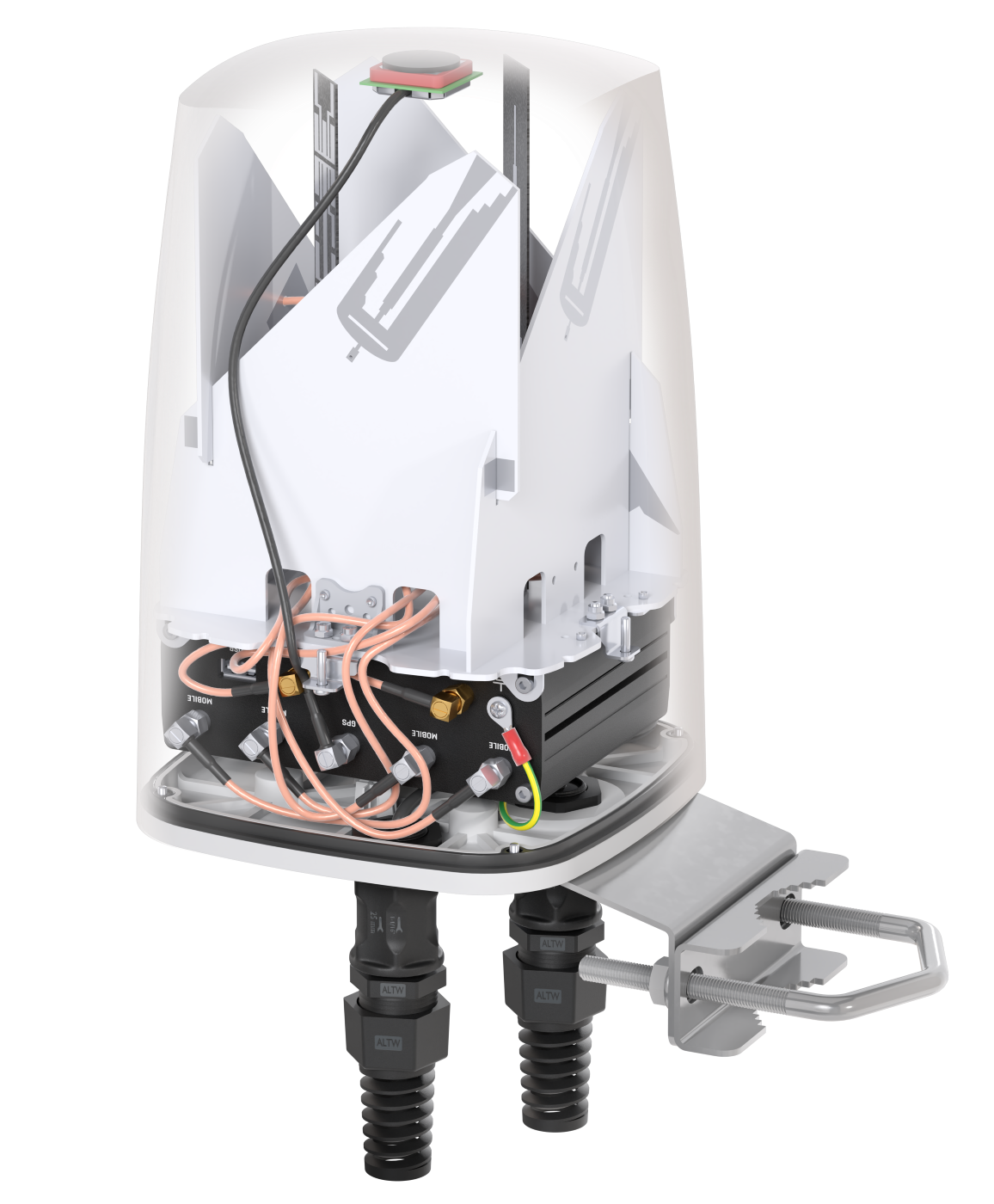

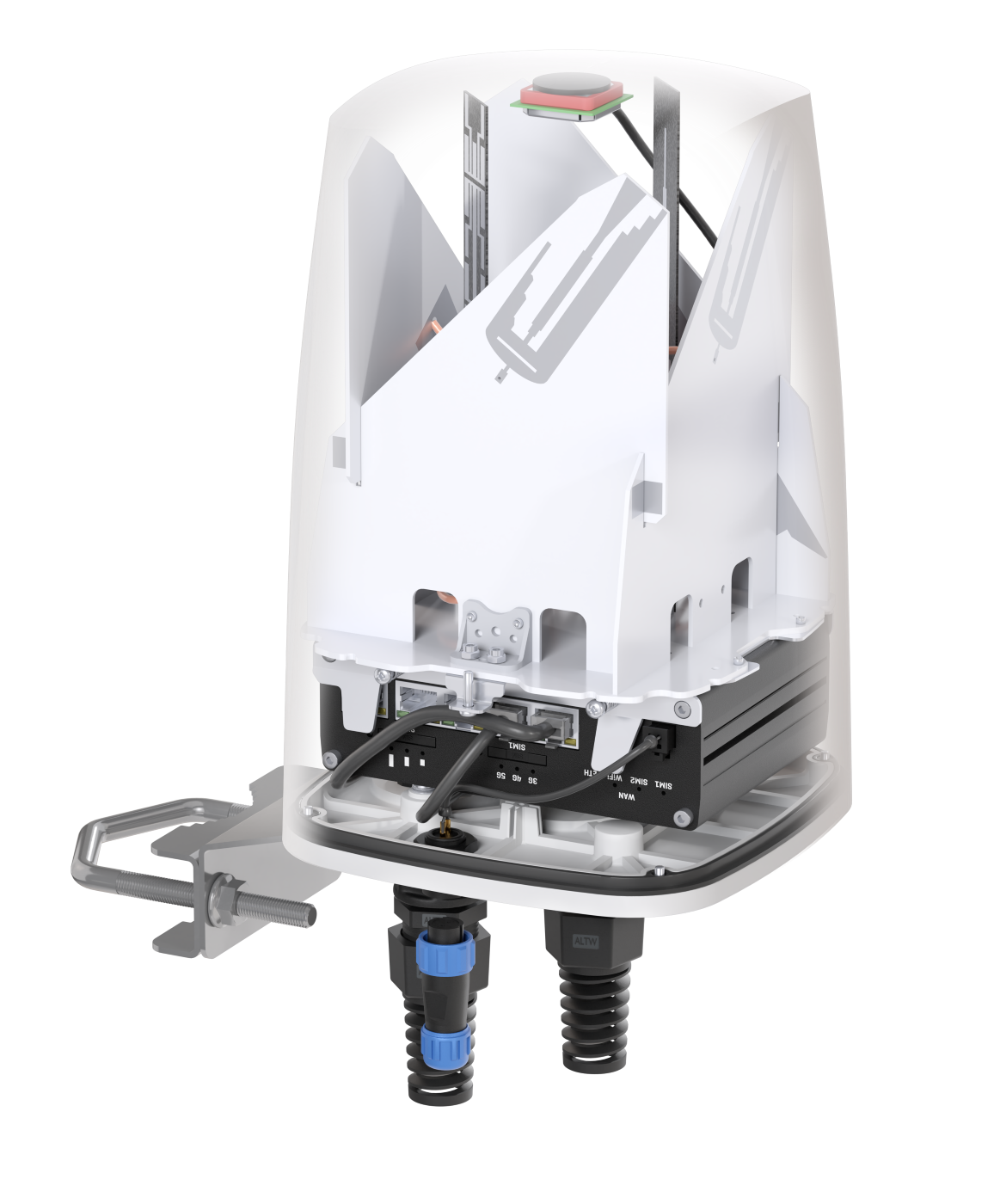

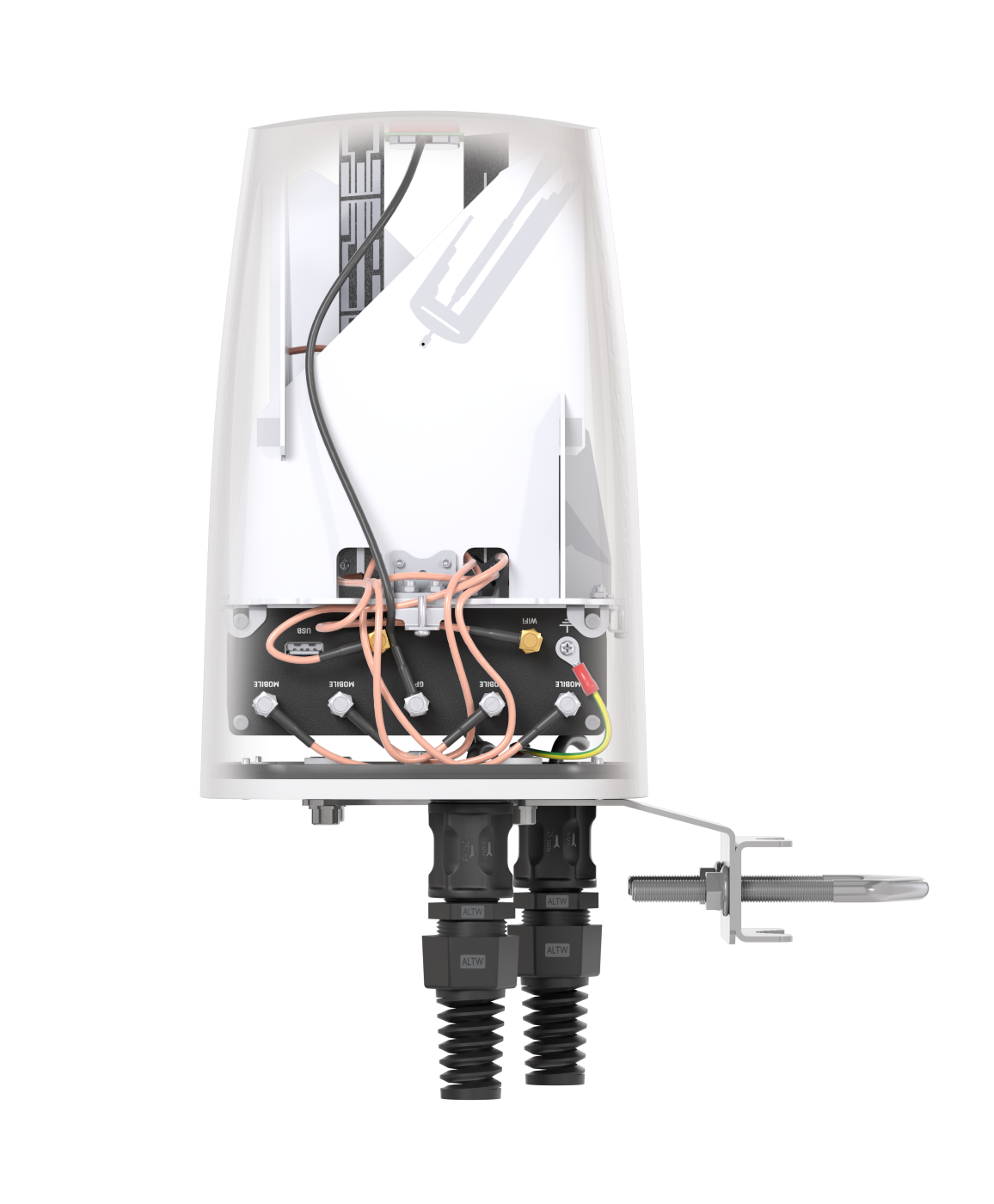

QuSpot for RUTX50/RUTM51/RUTM54/RUTM55 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G and Wi-Fi antennas with RUTX50, RUTM51, RUTM54, RUTM55 into a single IP67 enclosure. Such integration allows implementation of new outdoor 5G solutions.

QuSpot for RUTX50/RUTM51/RUTM54/RUTM55 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Technical specification

Any question?

Why QuSpot for Teltonika RUTX50 2xRJ45 1xQuPS2

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

4x SMA

Cable type

RG316
