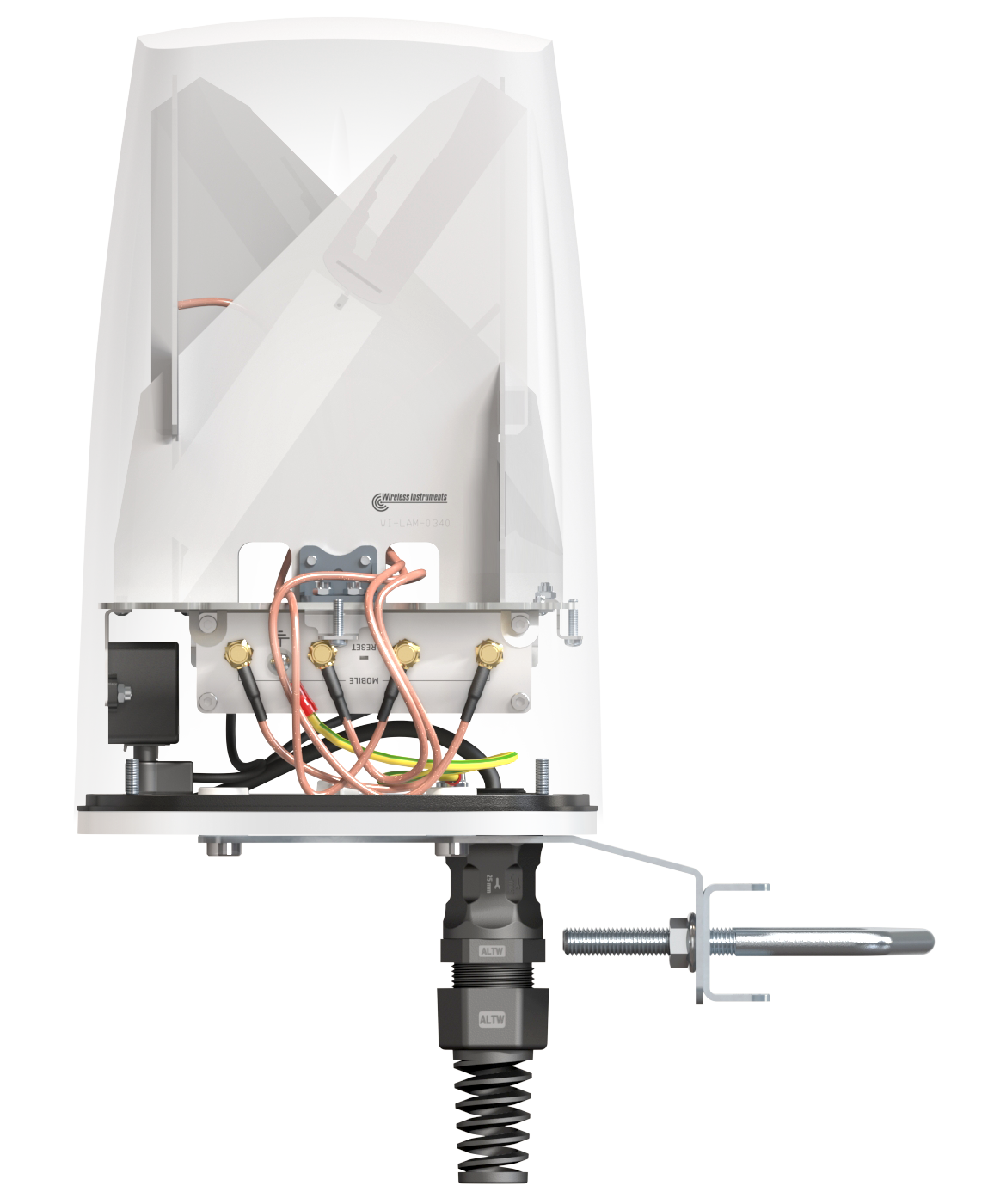

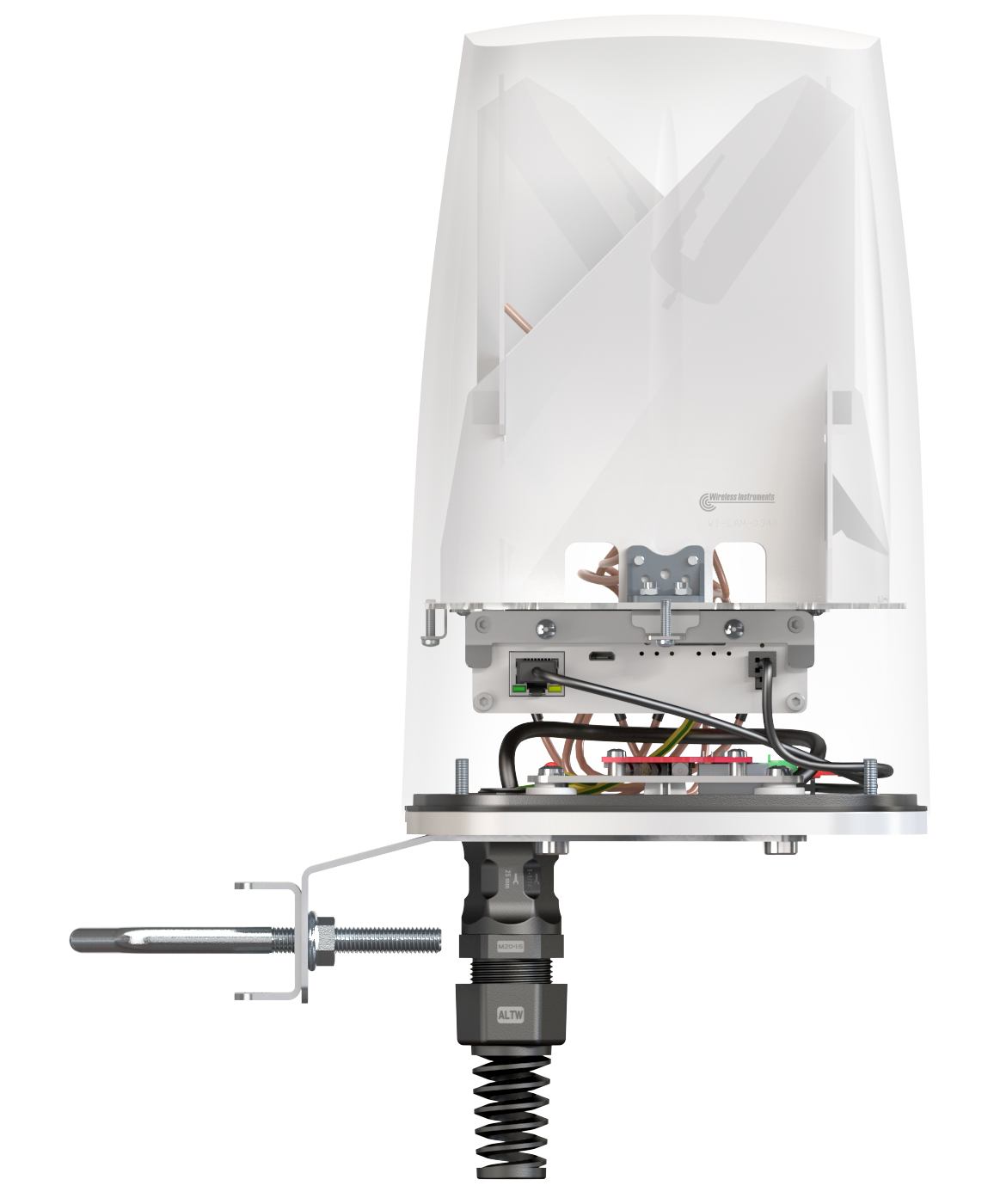

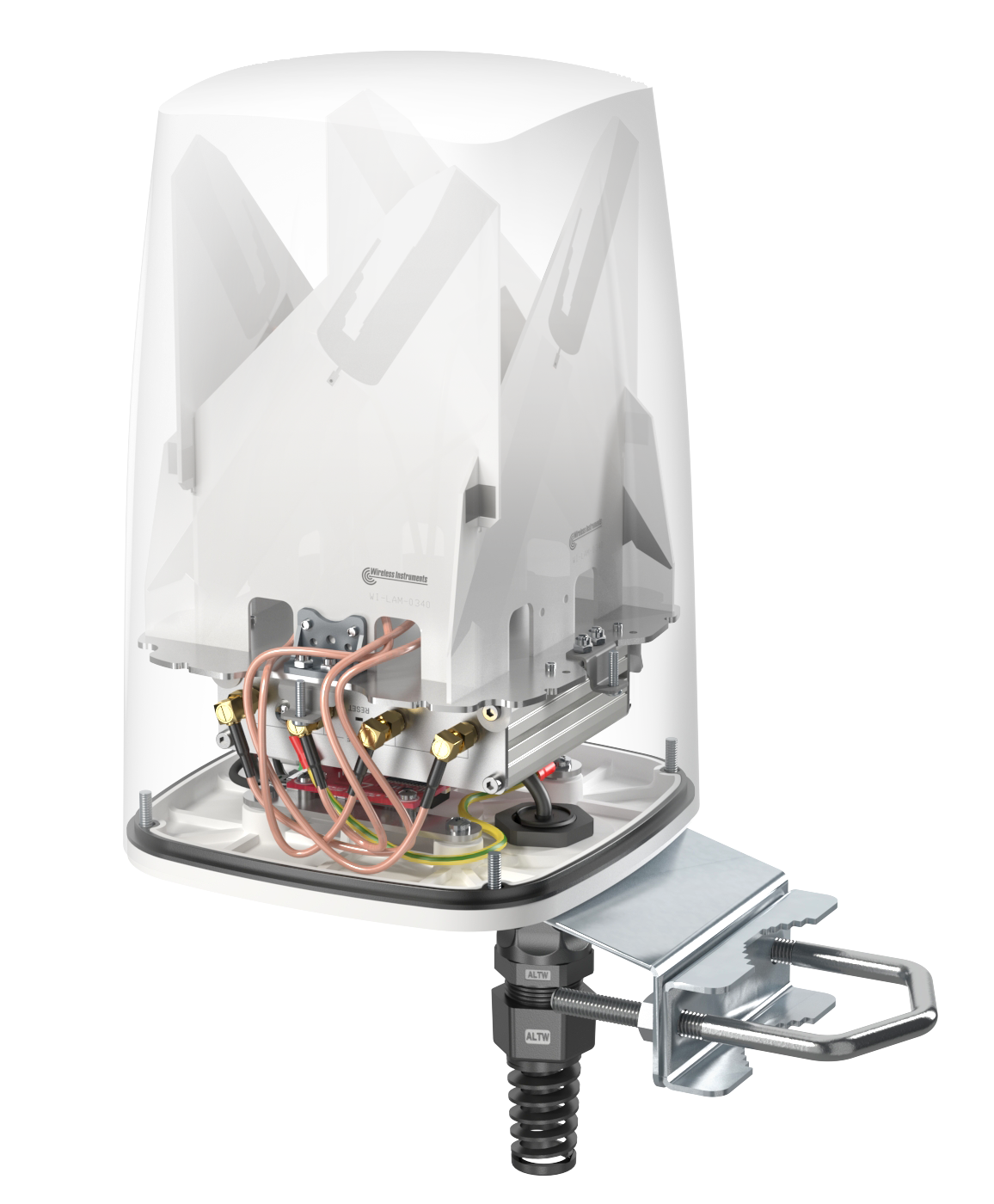

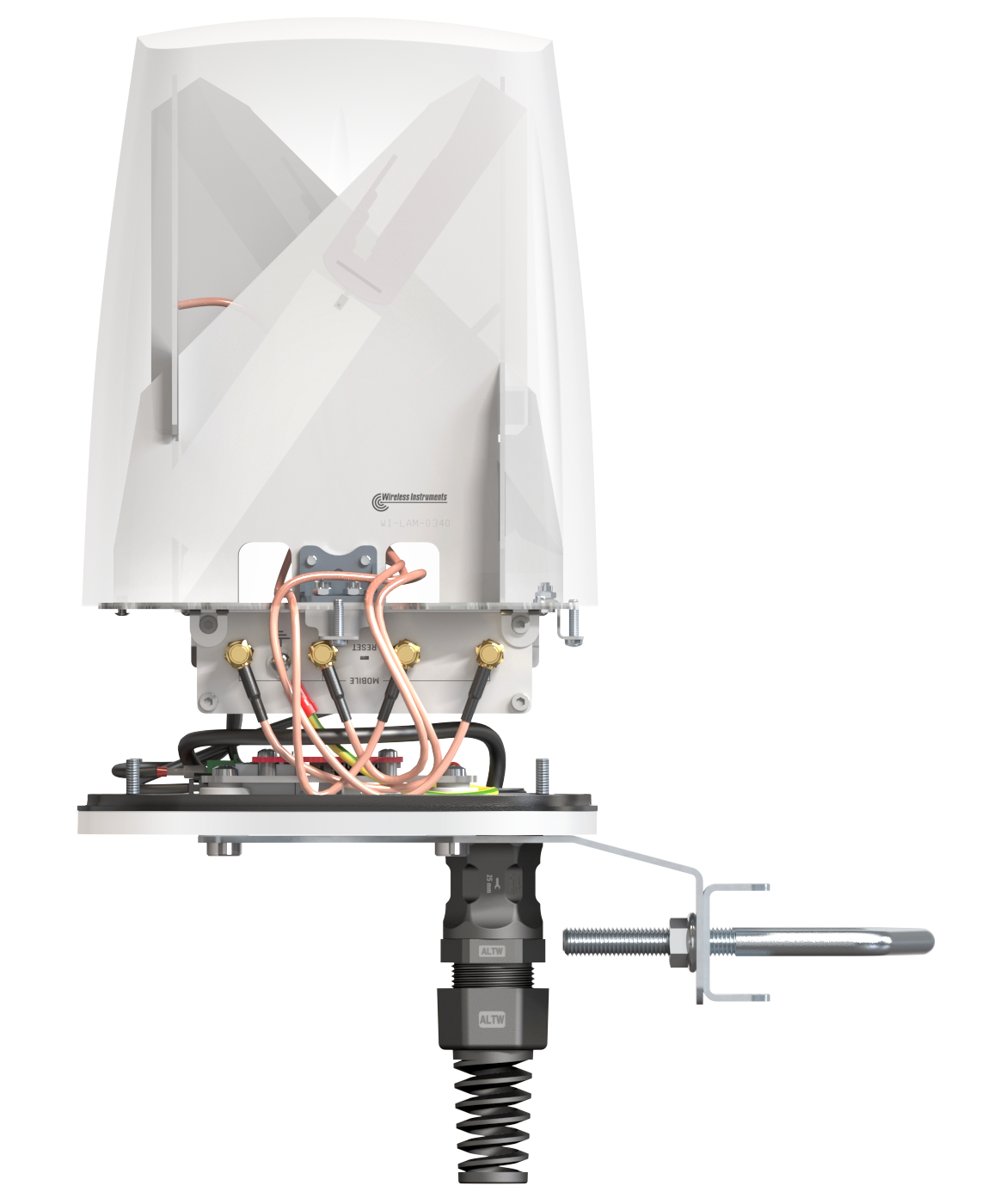

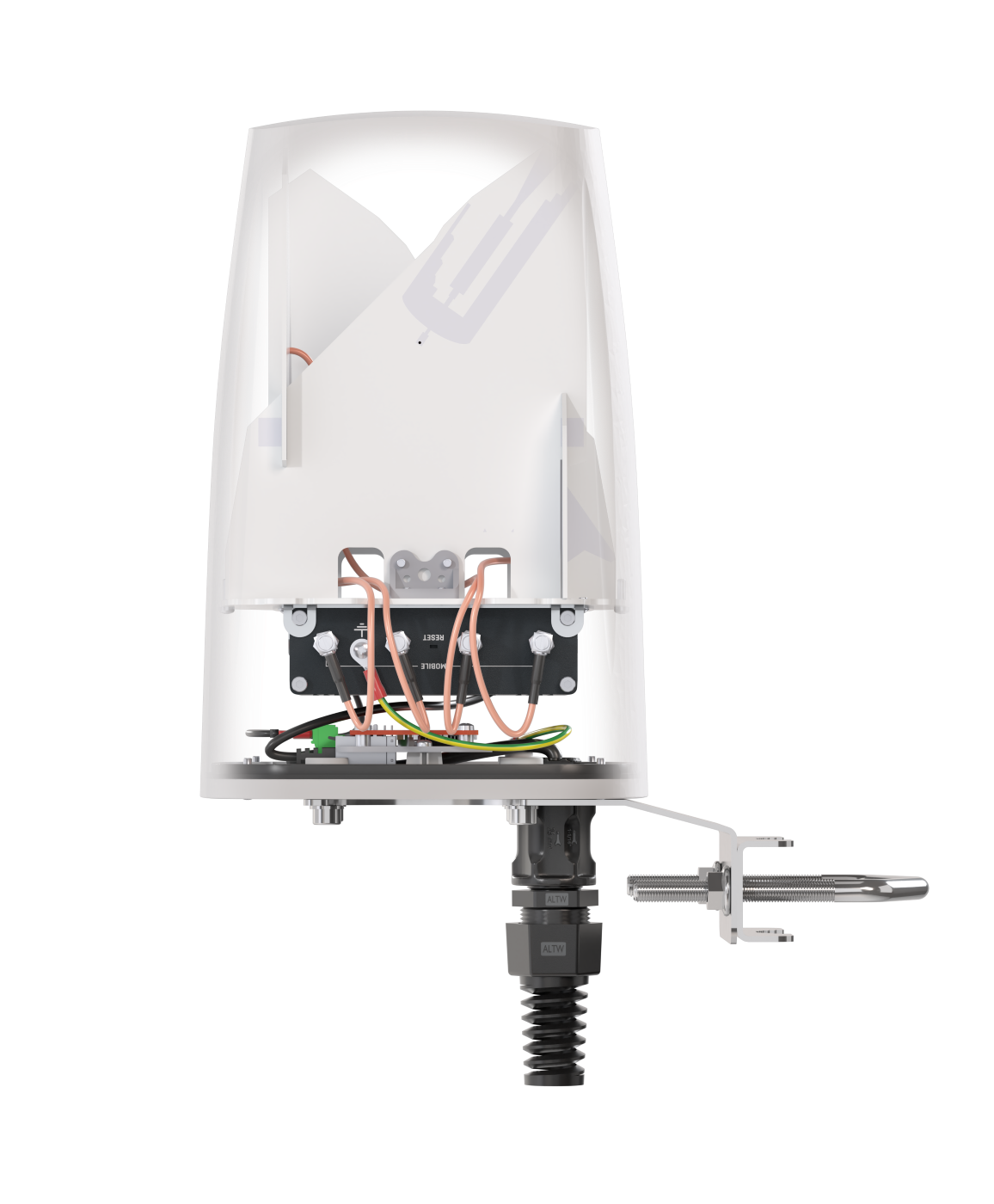

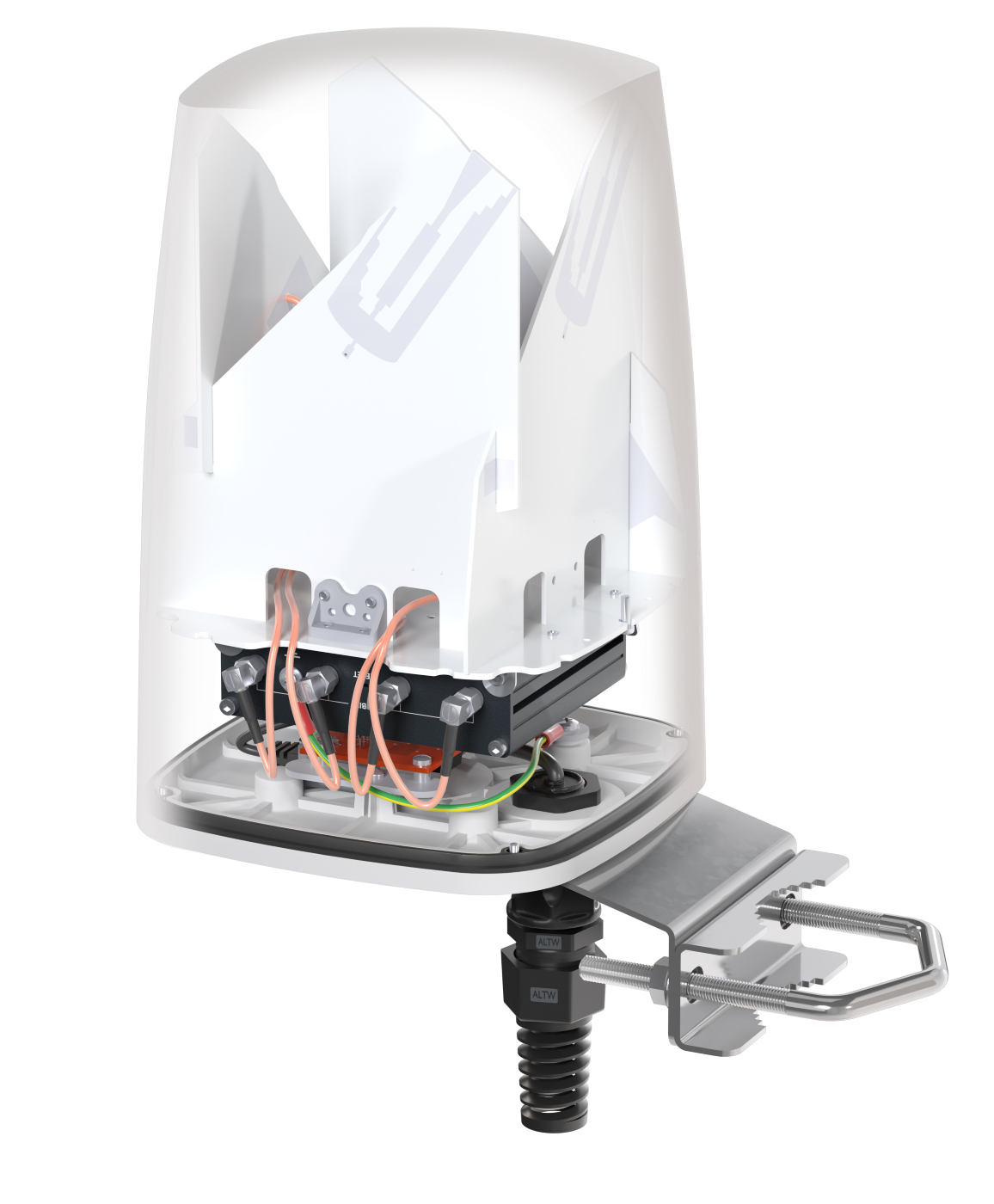

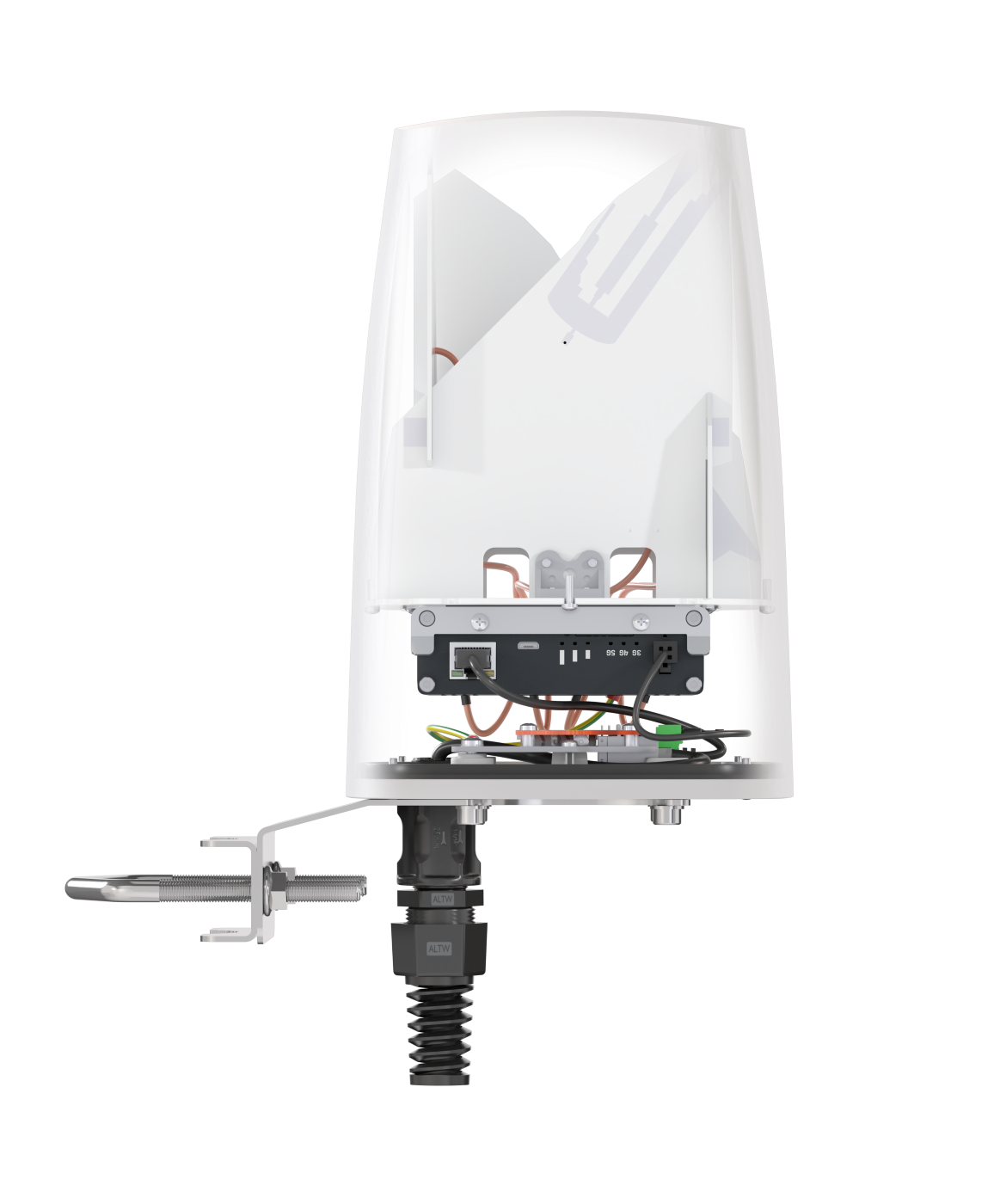

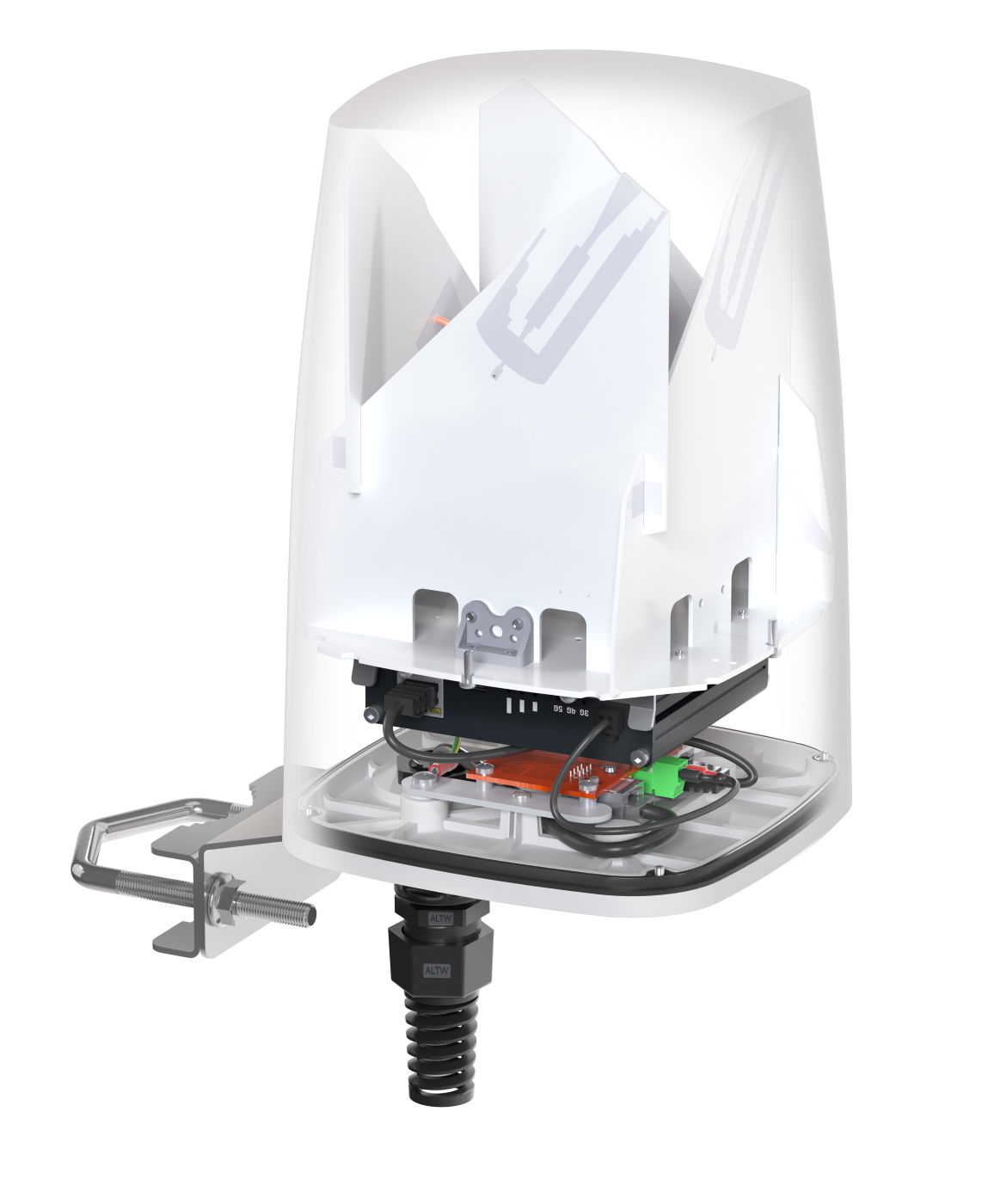

Antenna QuSpot for Teltonika TRB500

P/n: A500S

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + PLACE TO INSTALL TELTONIKA TRB500 (ALL-IN-ONE)

QuSpot for TRB500 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new outdoor TRB500 solutions.

QuSpot for TRB500 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!

Why QuSpot for Teltonika TRB500

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE support with gigabit splitter

Made in Europe

QuSpot for Teltonika TRB500

SPECIFICATION

PRODUCT DETAILS

5G ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

POE SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.3 GHz

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.3 GHz : 4.5 dBi

VSWR

<2.00, max <2.50

Beamwidth

360°/25° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Teltonika TRB500

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Teltonika TRB500
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika TRB500QuSpot for Teltonika TRB500
QuSpot for Teltonika TRB500QuSpot for Teltonika TRB500

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for TRB500

Parts of QuSpot for Teltonika TRB500
1x With mounting for Teltonika TRB500
Parts of QuSpot for Teltonika TRB500
1x 8mm wrench
Parts of QuSpot for Teltonika TRB500
x4 3,1 x 12
Parts of QuSpot for Teltonika TRB500
4x M6 x 10
Parts of QuSpot for Teltonika TRB500
4x
Parts of QuSpot for Teltonika TRB500
1x
Parts of QuSpot for Teltonika TRB500
2x M8
Parts of QuSpot for Teltonika TRB500
1x
Parts of QuSpot for Teltonika TRB500
1x QuRJ45
Parts of QuSpot for Teltonika TRB500
1 x QuPoe58V
