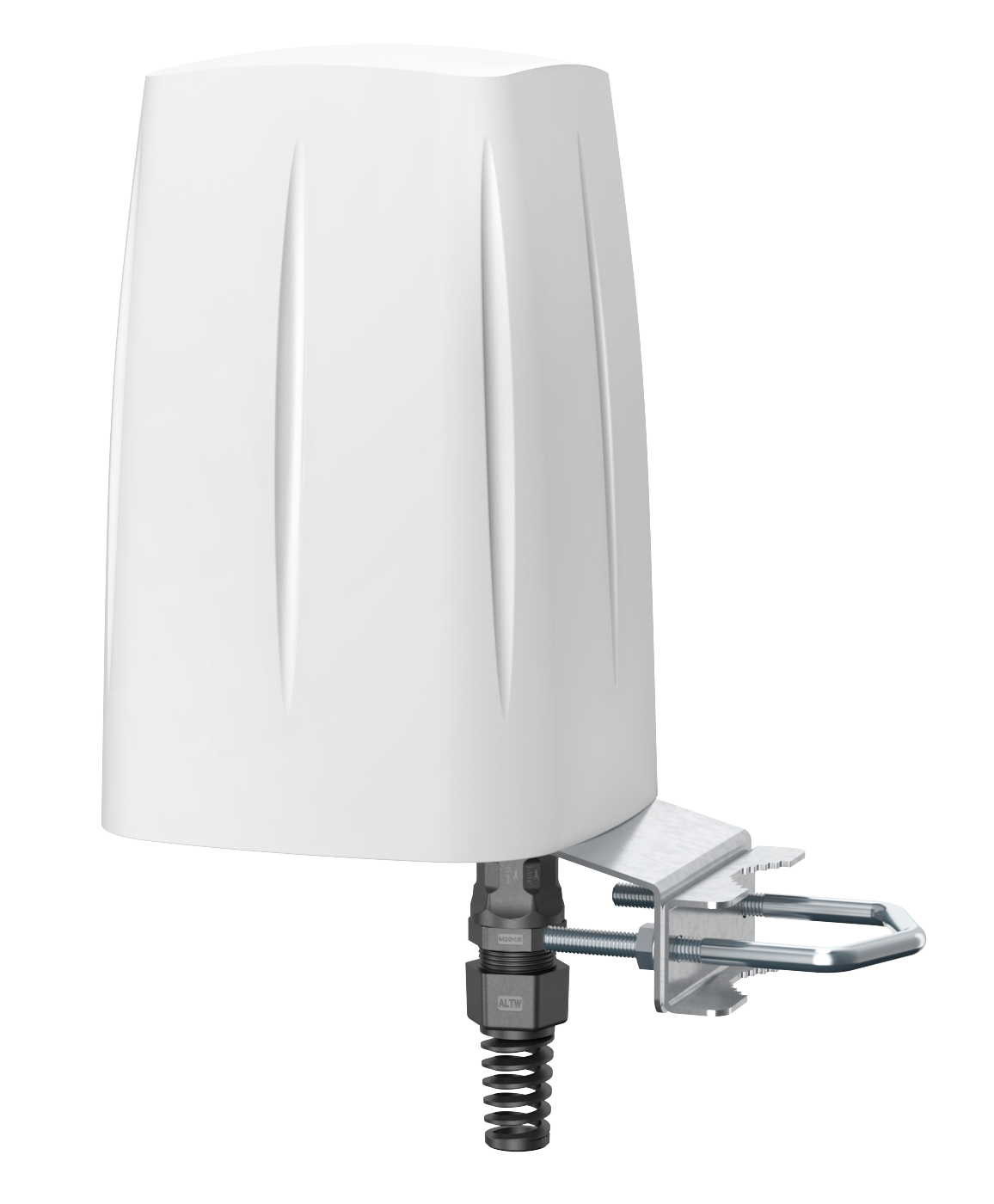

Antenna QuSpot for Teltonika TRB245/TRB255

P/n: A245SUS

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + GPS ANTENNA + POE SPLITTER + PLACE TO INSTALL TELTONIKA TRB245/TRB246/TRB255 (ALL-IN-ONE)

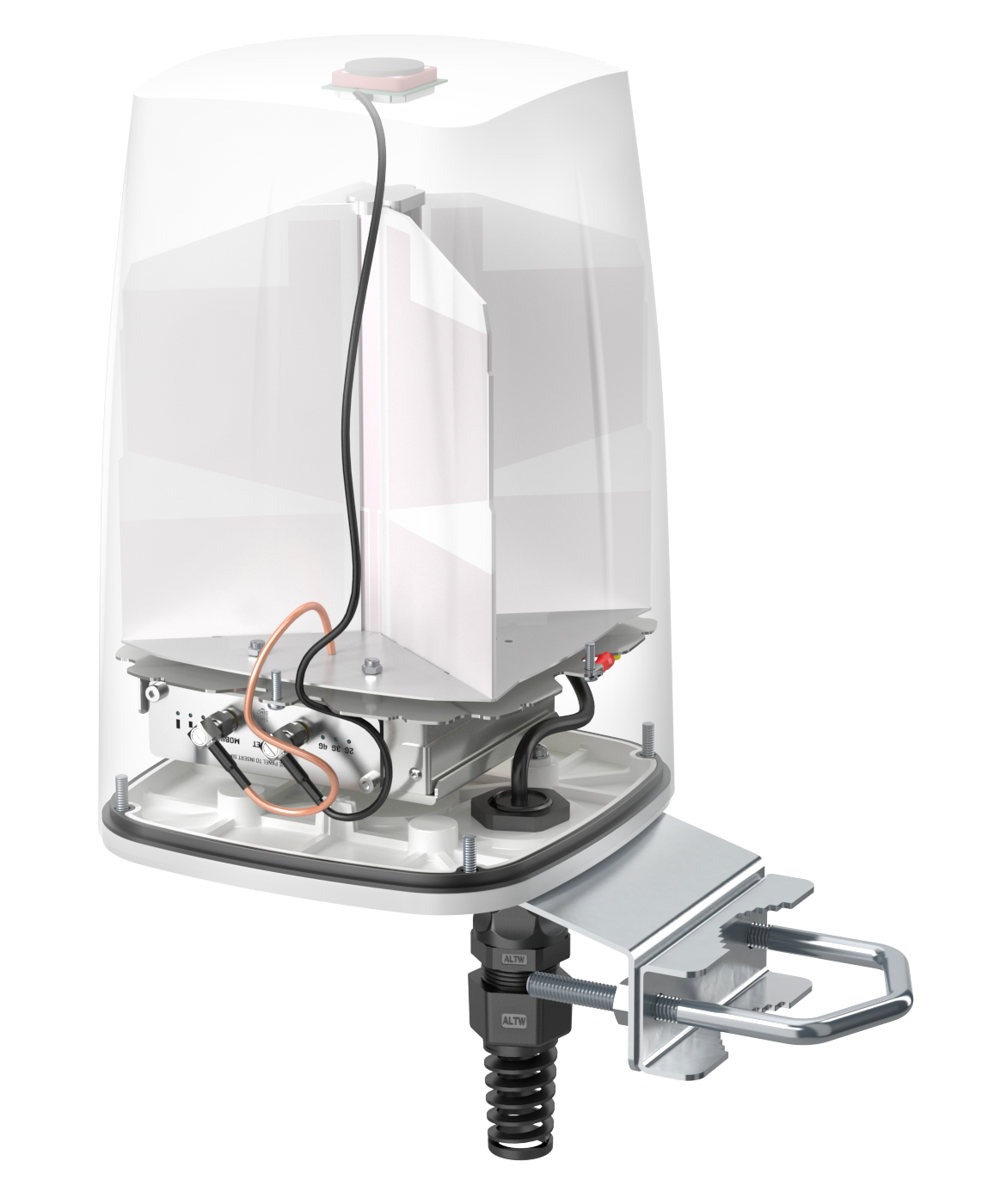

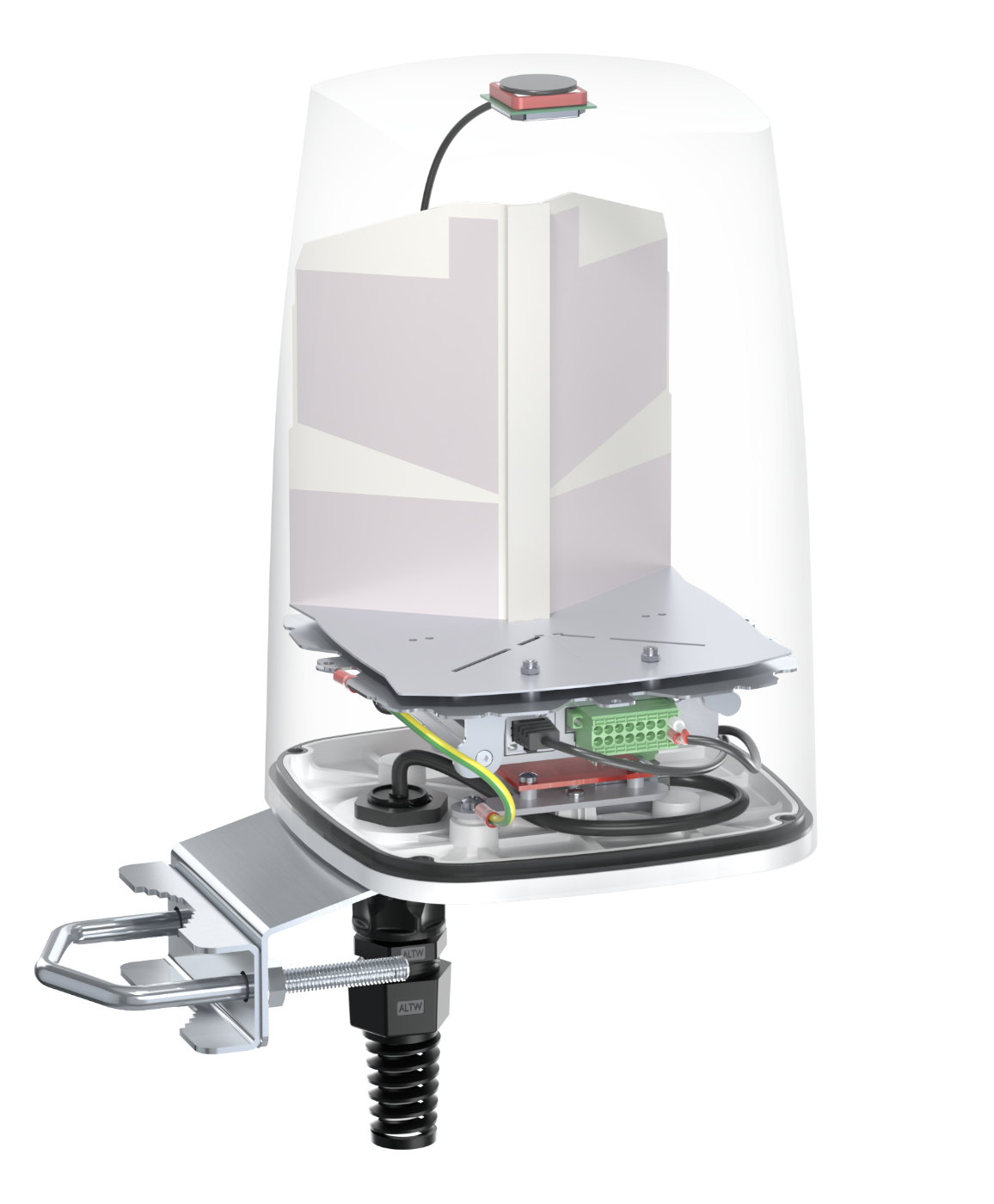

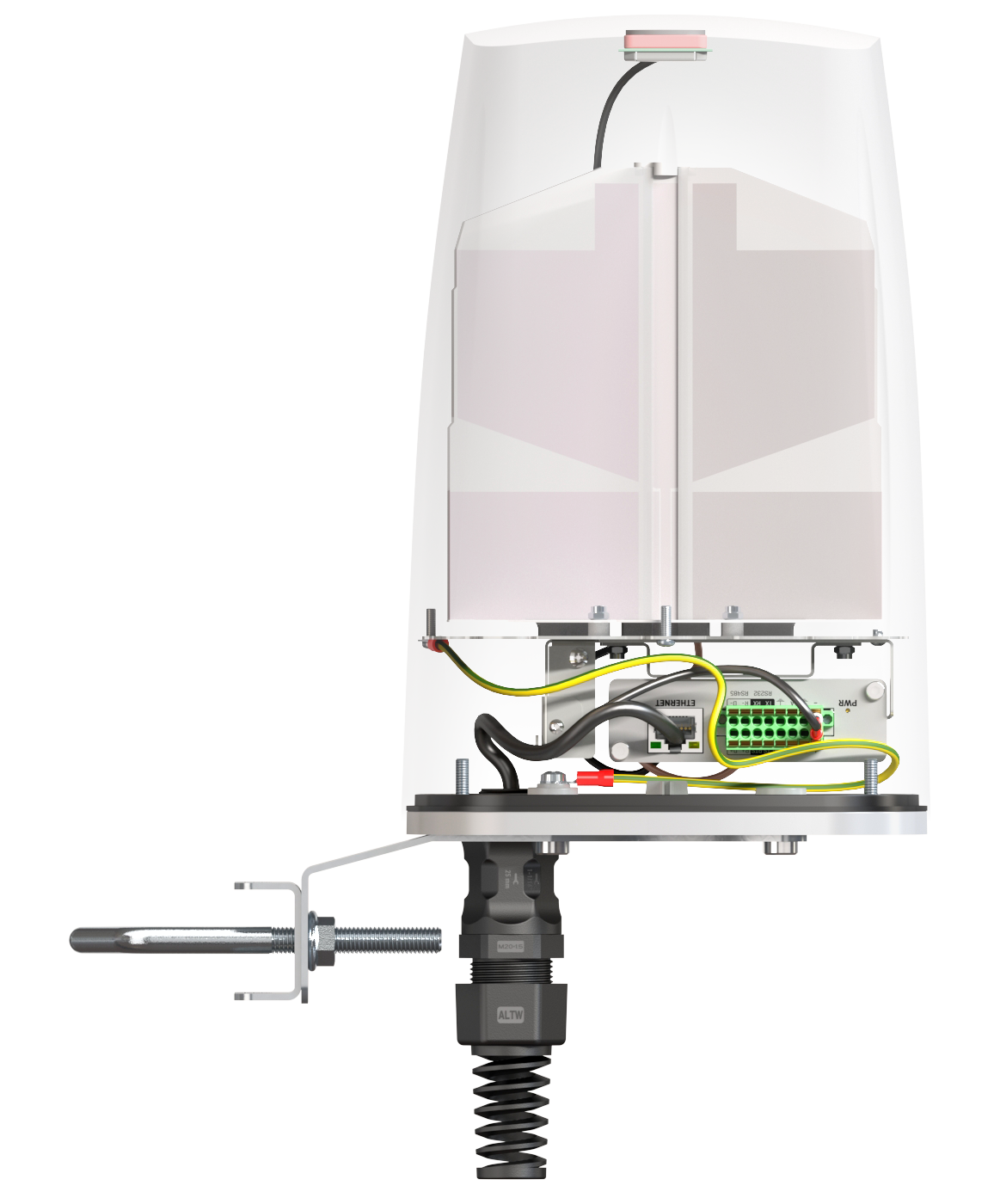

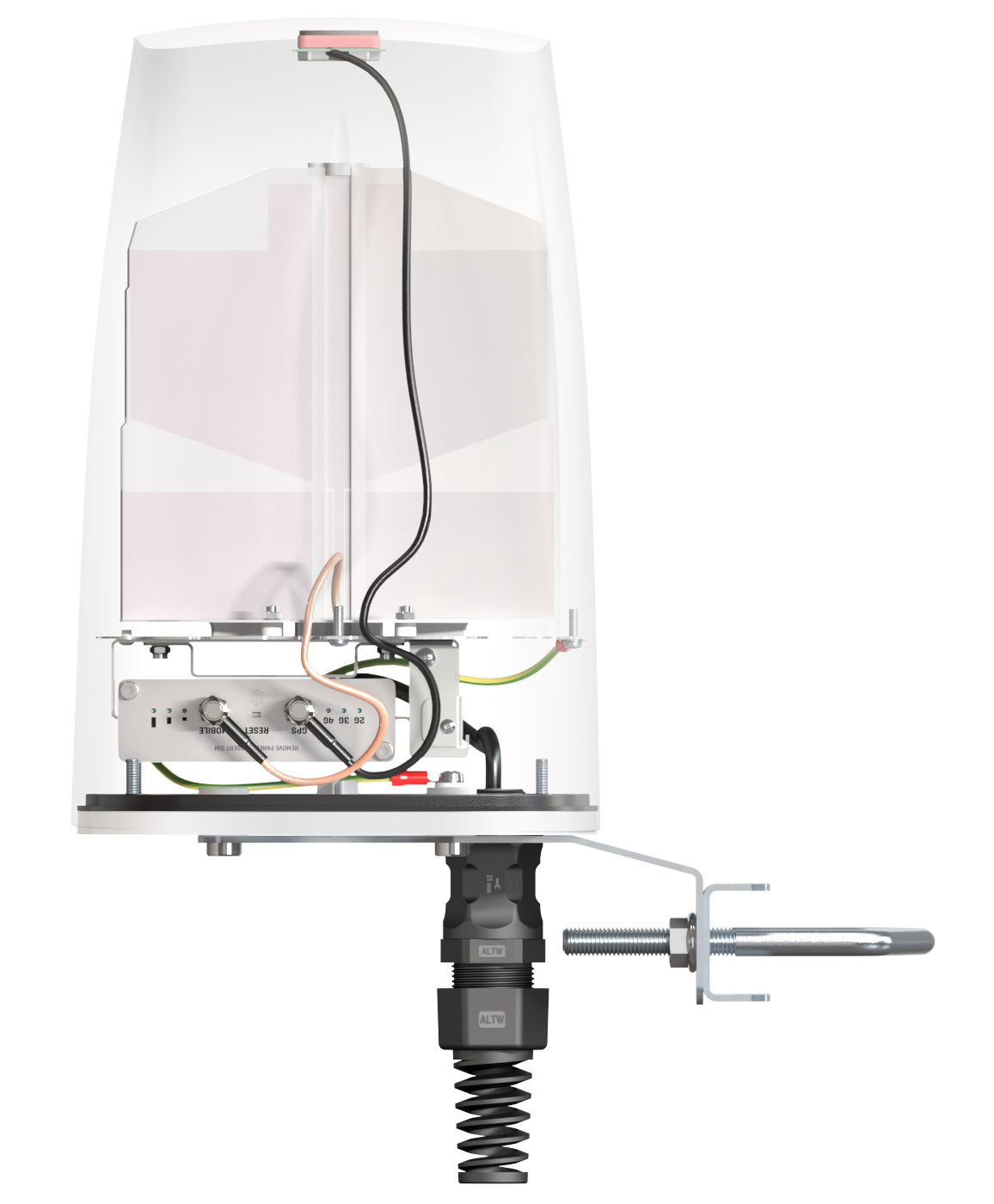

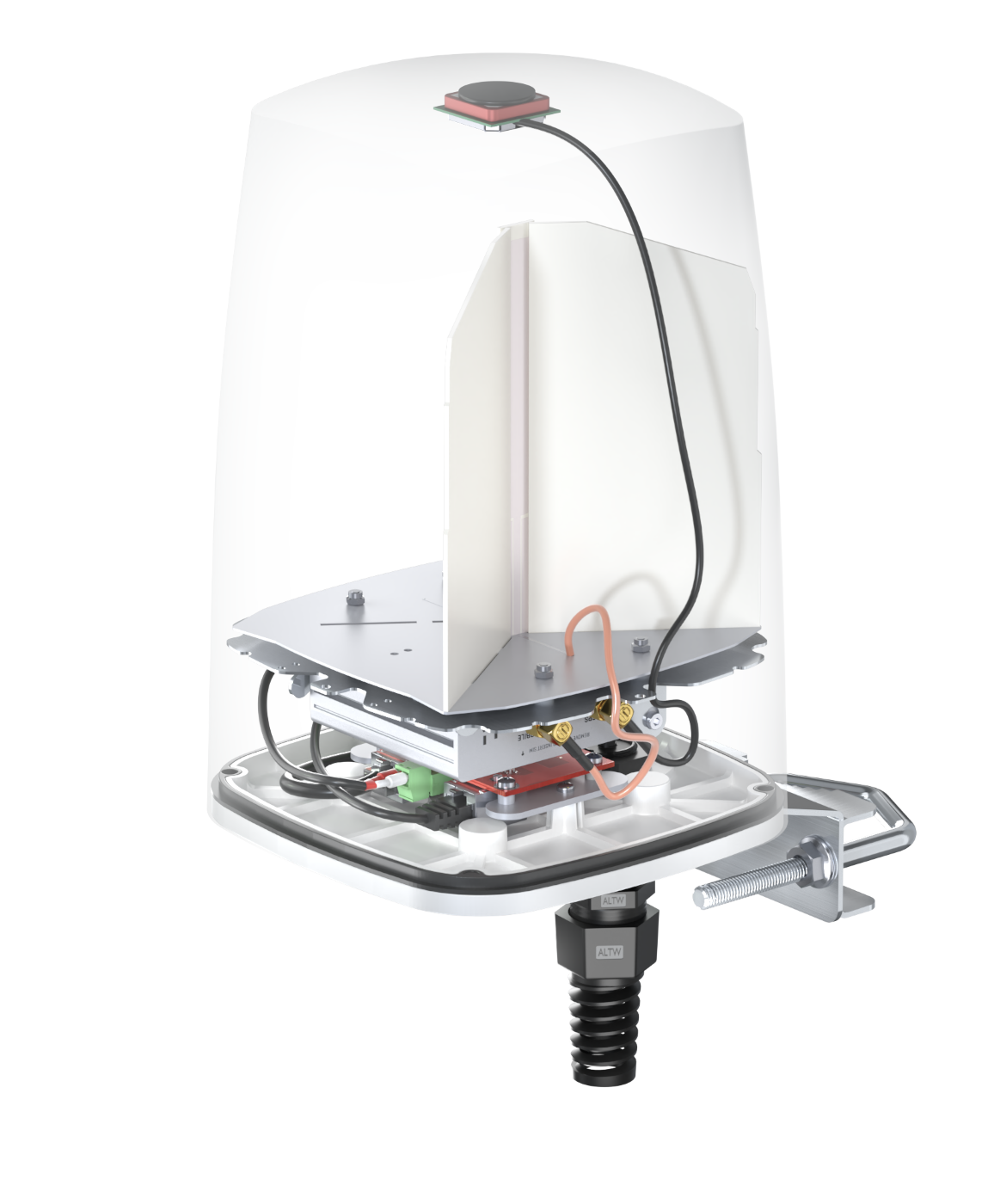

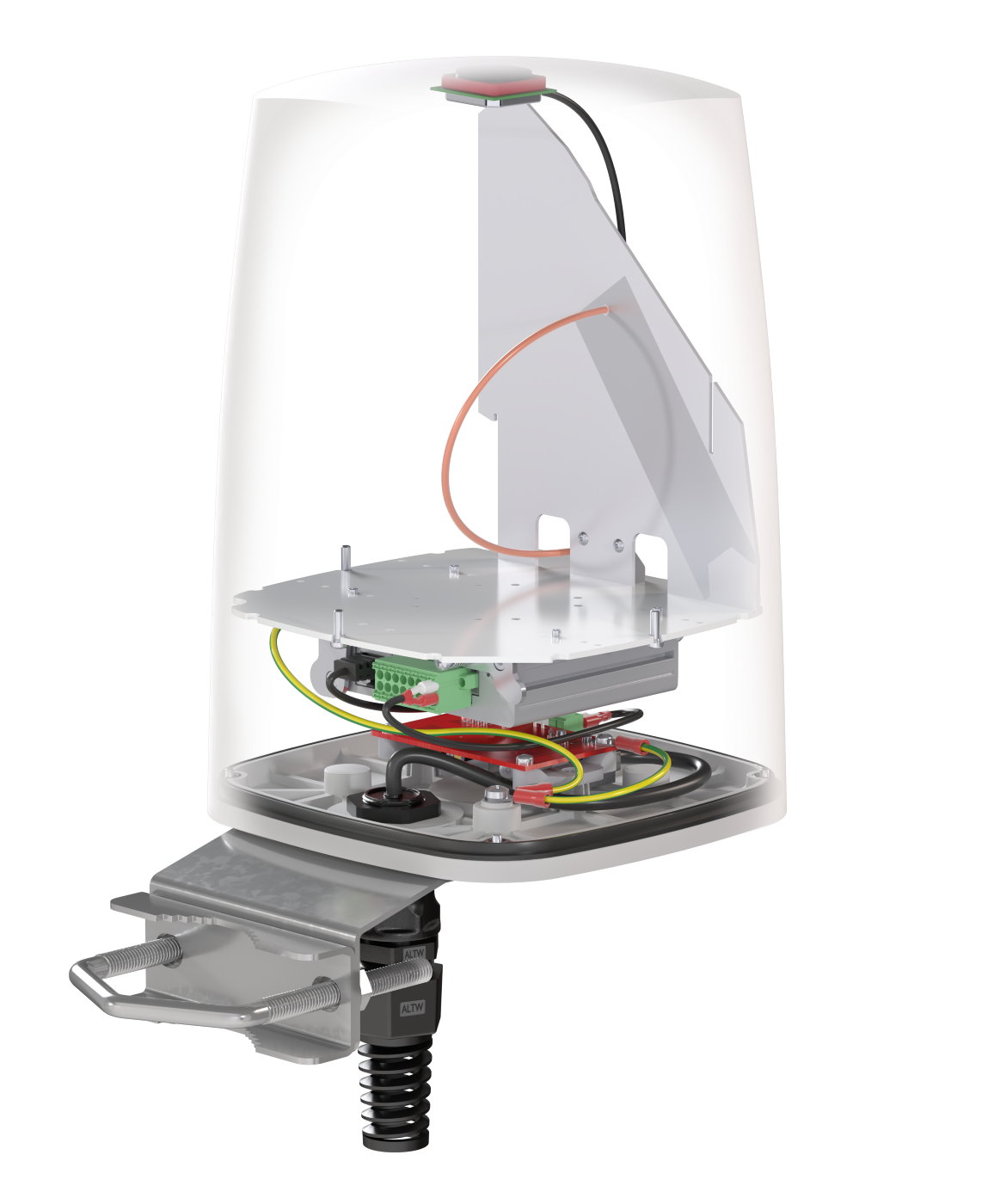

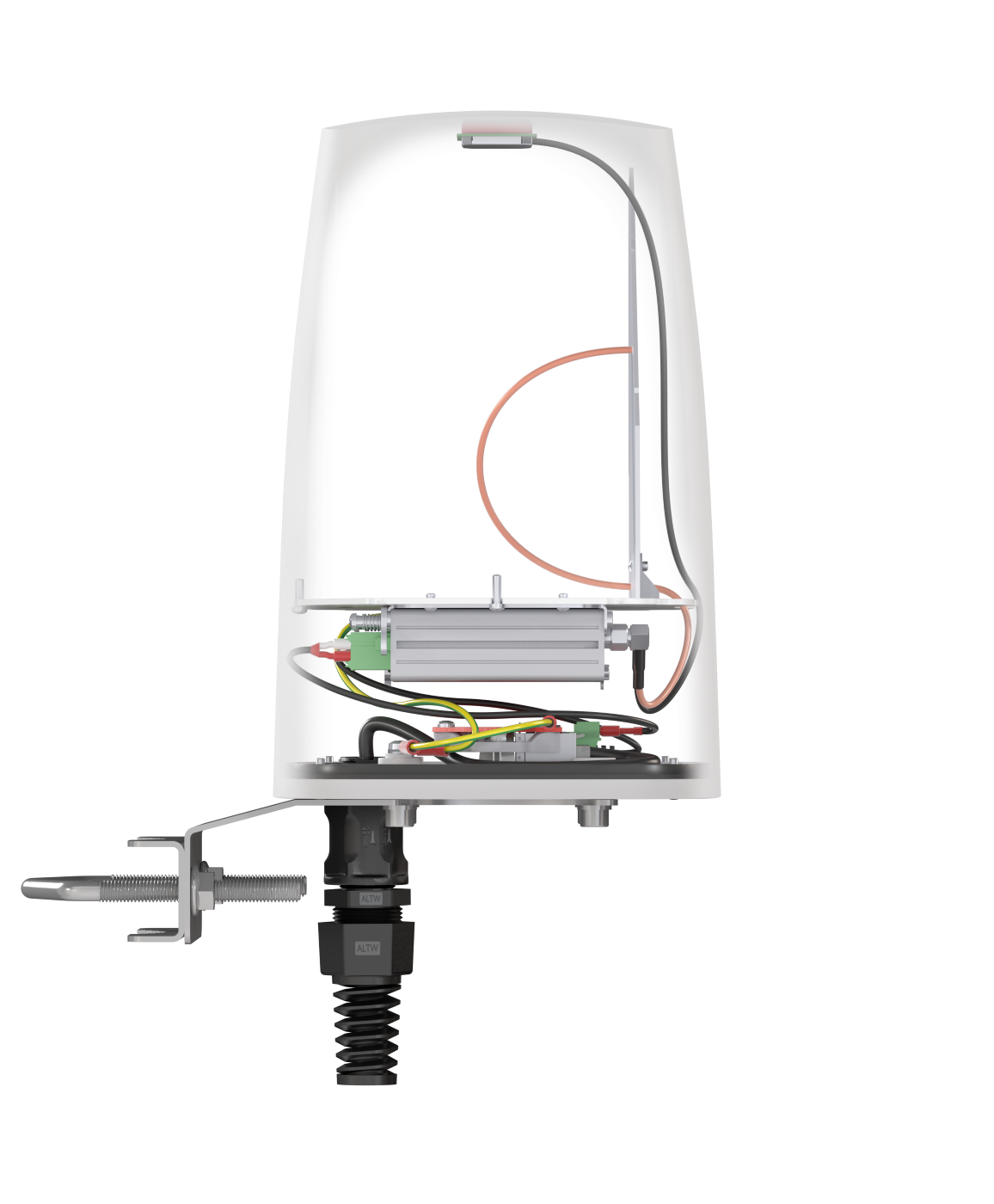

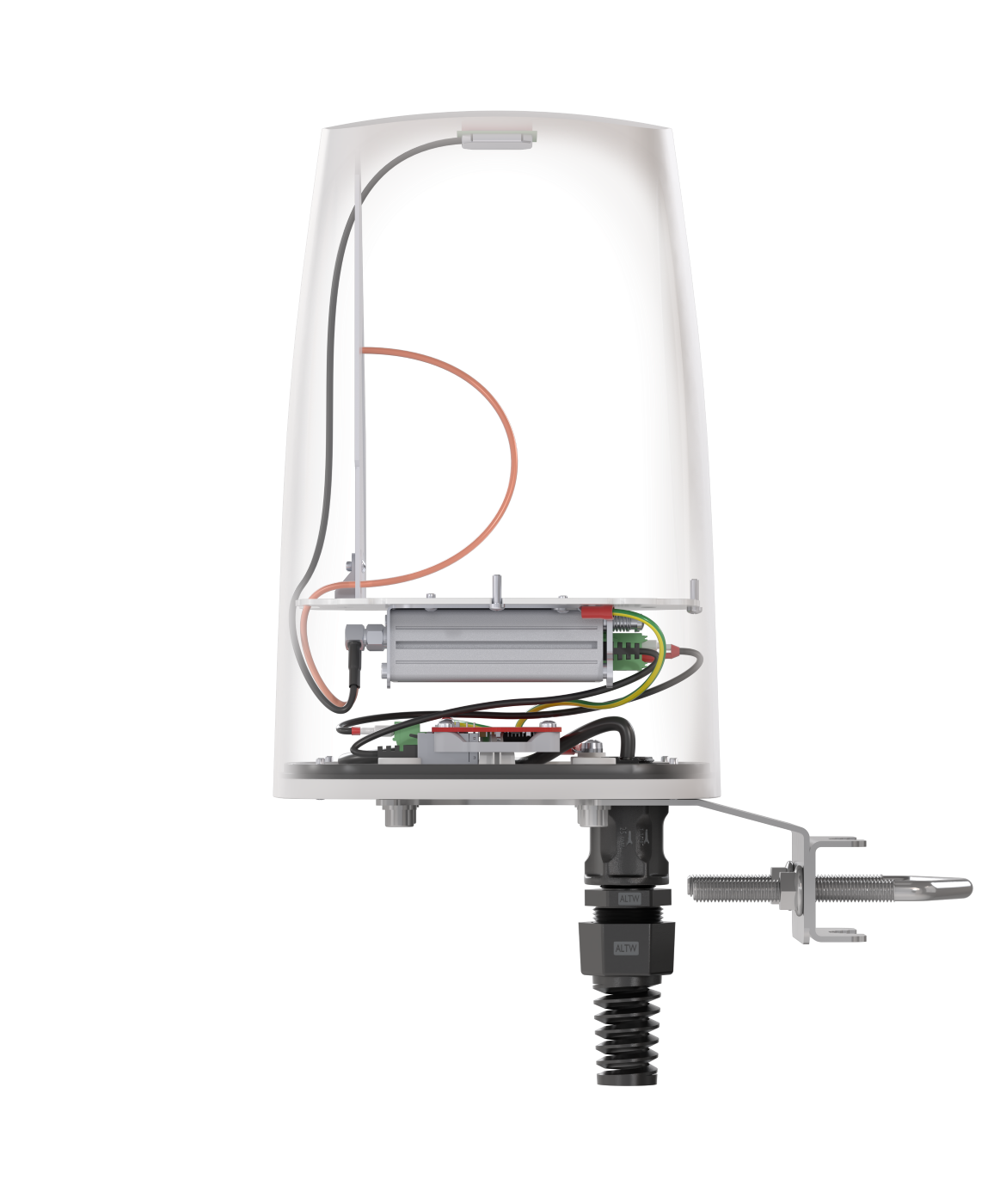

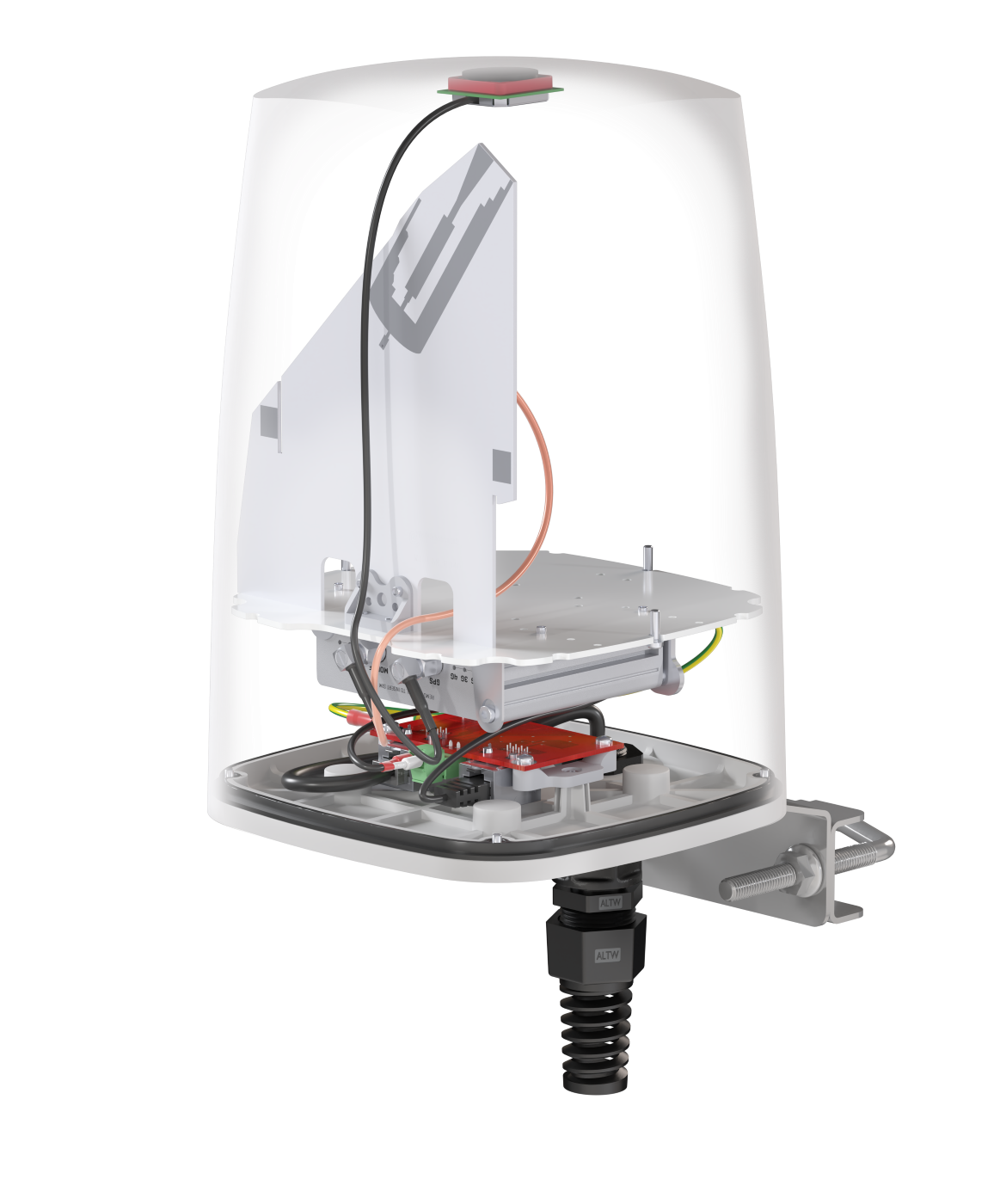

QuSpot omni LTE antenna for Teltonika TRB245, TRB246 or TRB255 gateway is a perfect outdoor device for mobile and fixed installations like industrial, hotspots, yachts, boats, campers, RV etc. The LTE/5G antenna supports band 71. It has embedded also GPS antenna. If you use TRB245/TRB246/TRB255 with QuSpot antenna, you get an integrated complete solution with embedded gateway and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuSpot for Teltonika TRB245/TRB255

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

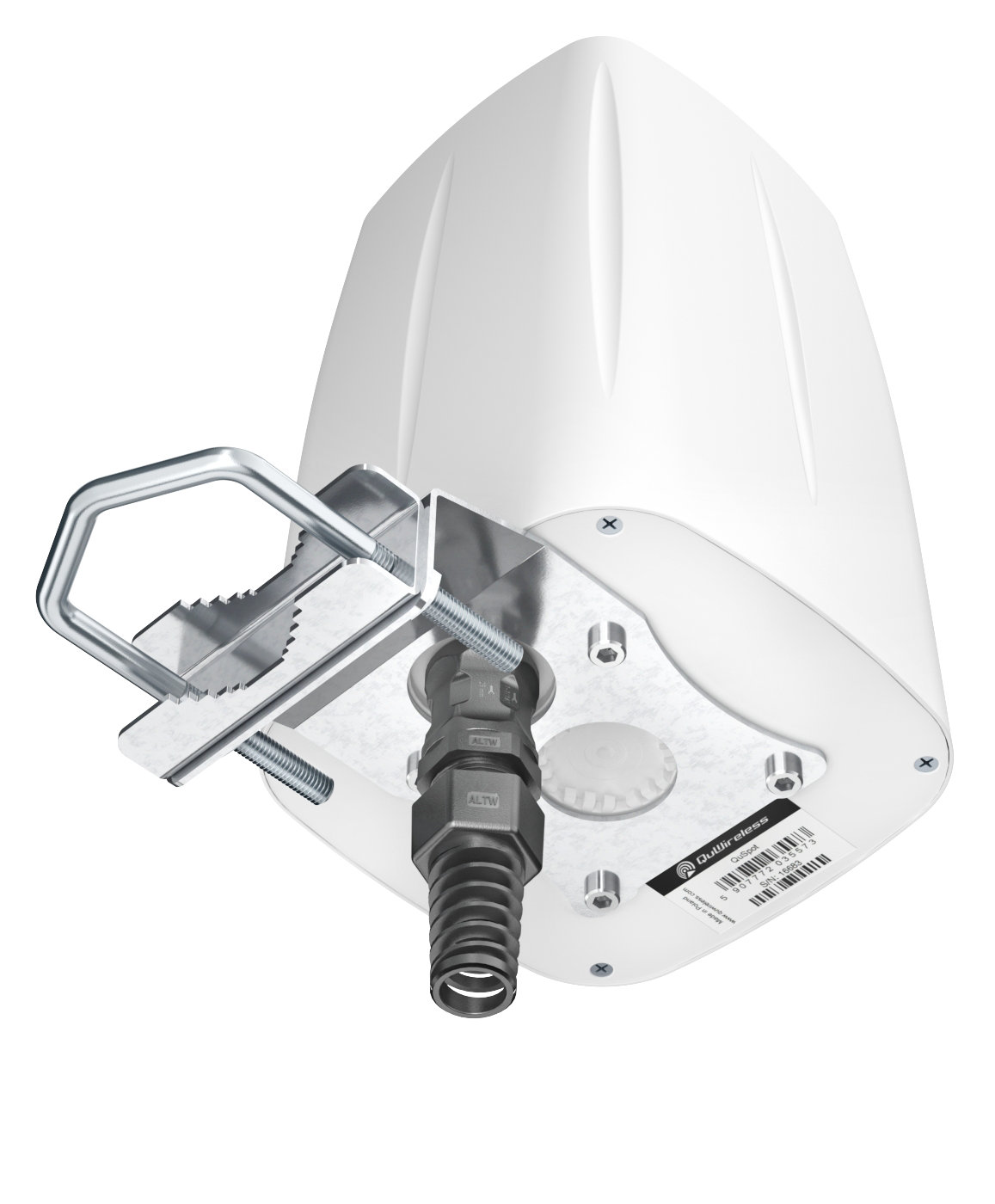

Galvanized steel, wall or pole mounting bracket

Beamwidth (360)

Gain (4dBi)

Made in Europe

QuSpot for Teltonika TRB245/TRB255

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.2 GHz

2.3 - 2.7 GHz

3.3 - 3.8 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 3.5 dBi

2.3 - 2.7 GHz : 3.5 dBi

3.3 - 3.8 GHz : 4dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 71, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSpot for Teltonika TRB245/TRB255

Gain

Gain of QuSpot for Teltonika TRB245/TRB255
From 650MHz to 950MHz
Elevation
Azimuth
From 1.71GHz to 2.5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika TRB245/TRB255QuSpot for Teltonika TRB245/TRB255
QuSpot for Teltonika TRB245/TRB255QuSpot for Teltonika TRB245/TRB255

Download

Datasheet QuSpot for Teltonika TRB245/TRB255
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
