1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

Antenna QuWave High Gain for RUT951 POE+

P/n: A951PWX

INTEGRATED MULTI-BAND 5G/LTE OMNI ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL TELTONIKA RUT951 POE+ (ALL-IN-ONE)

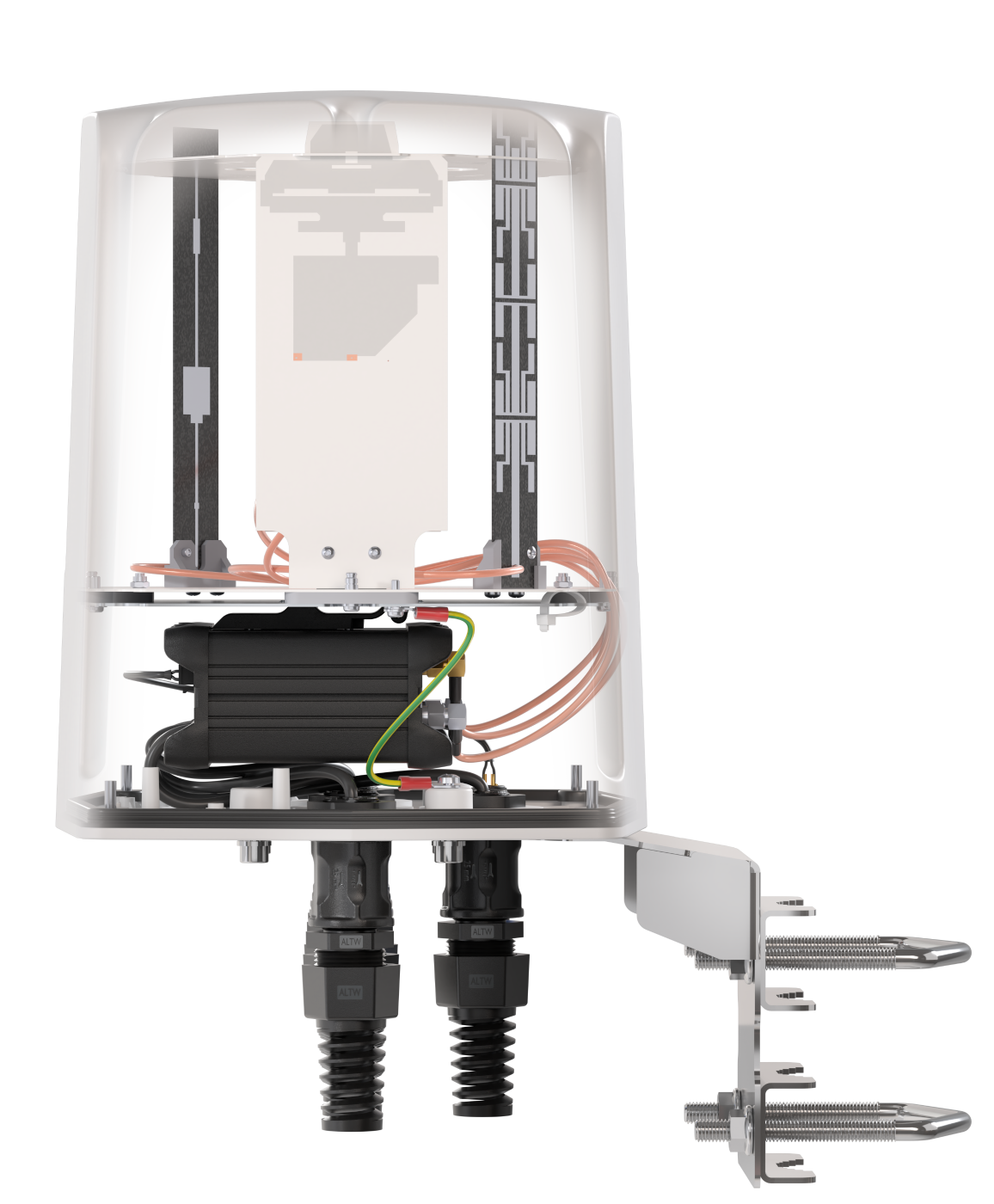

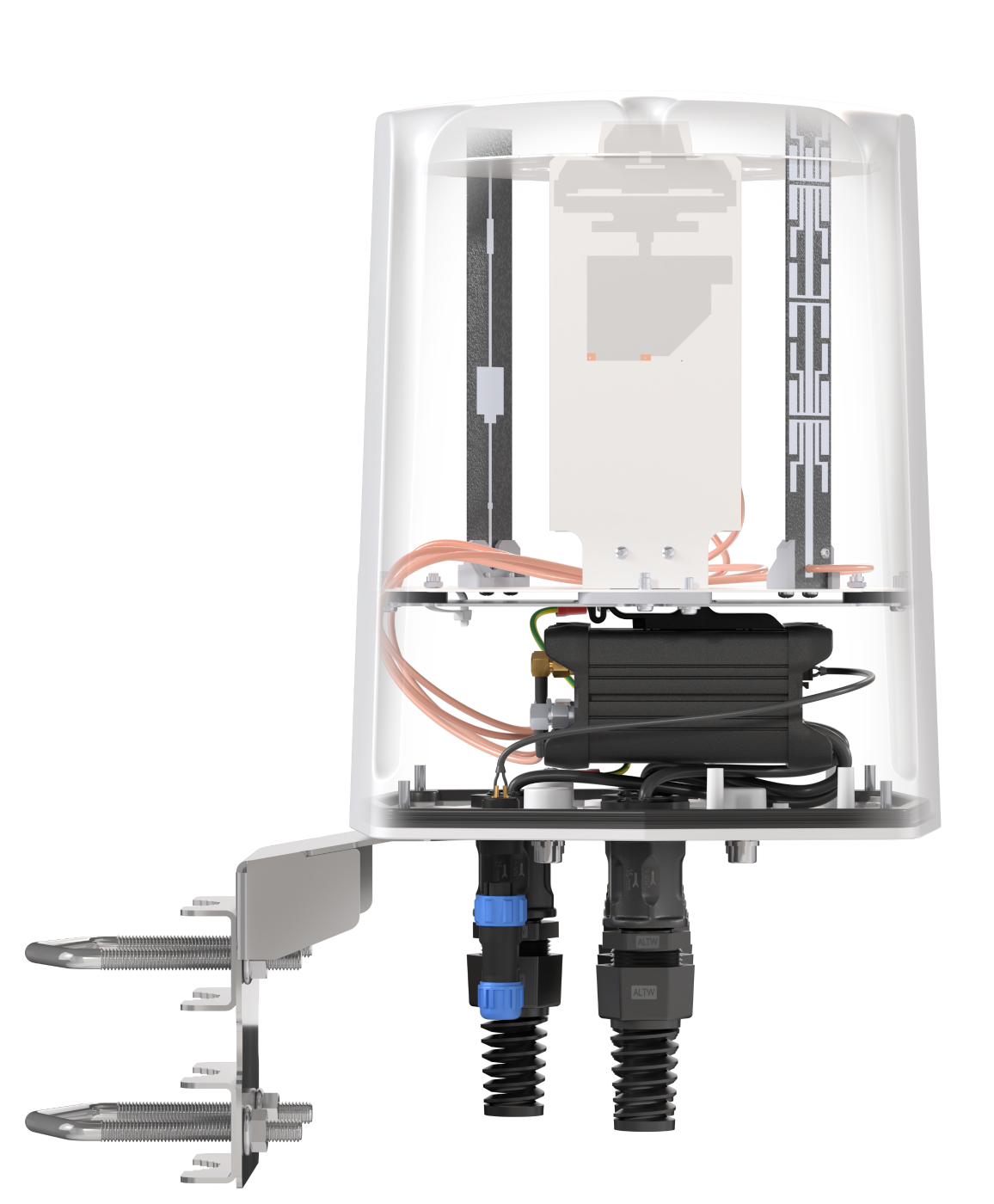

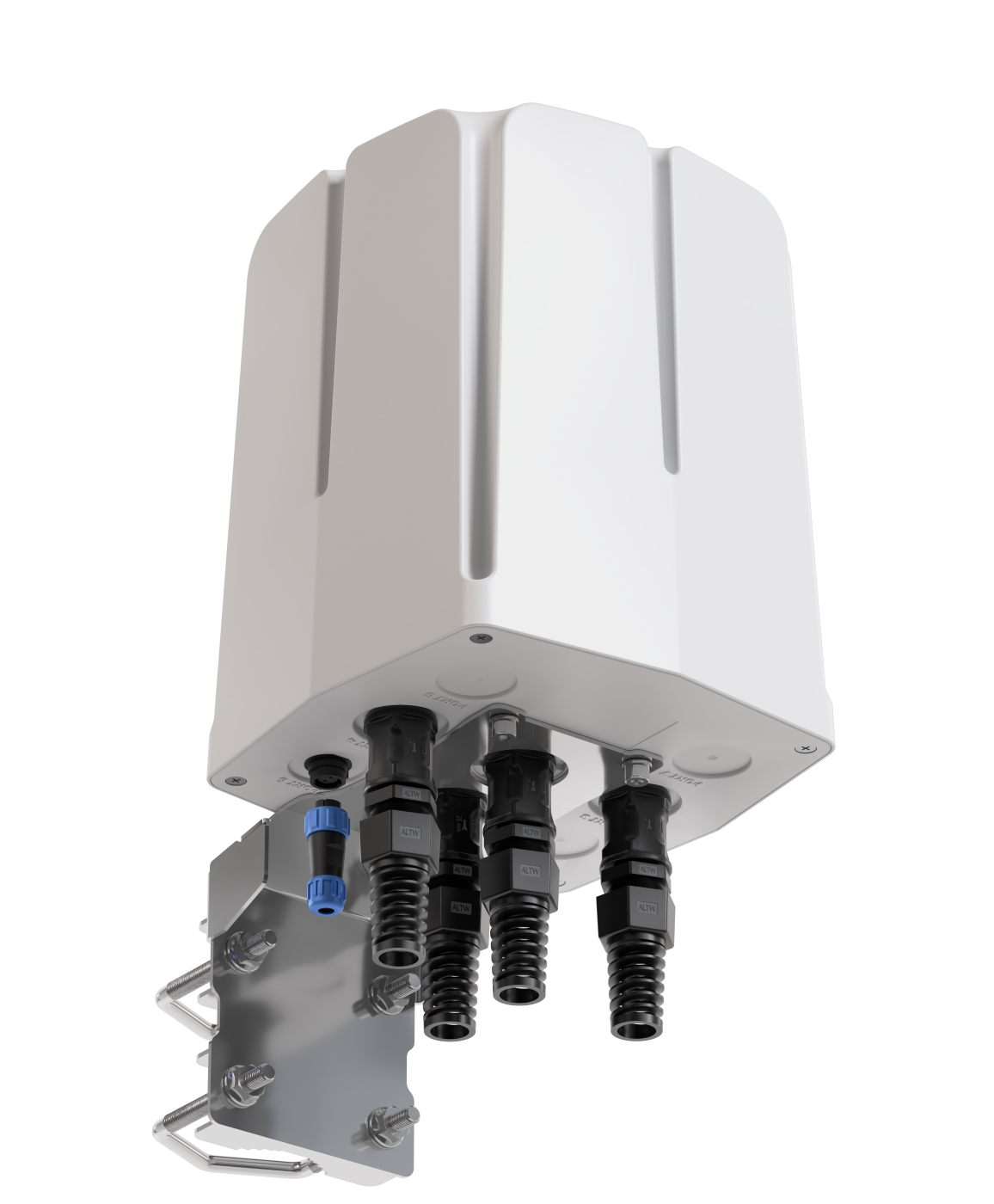

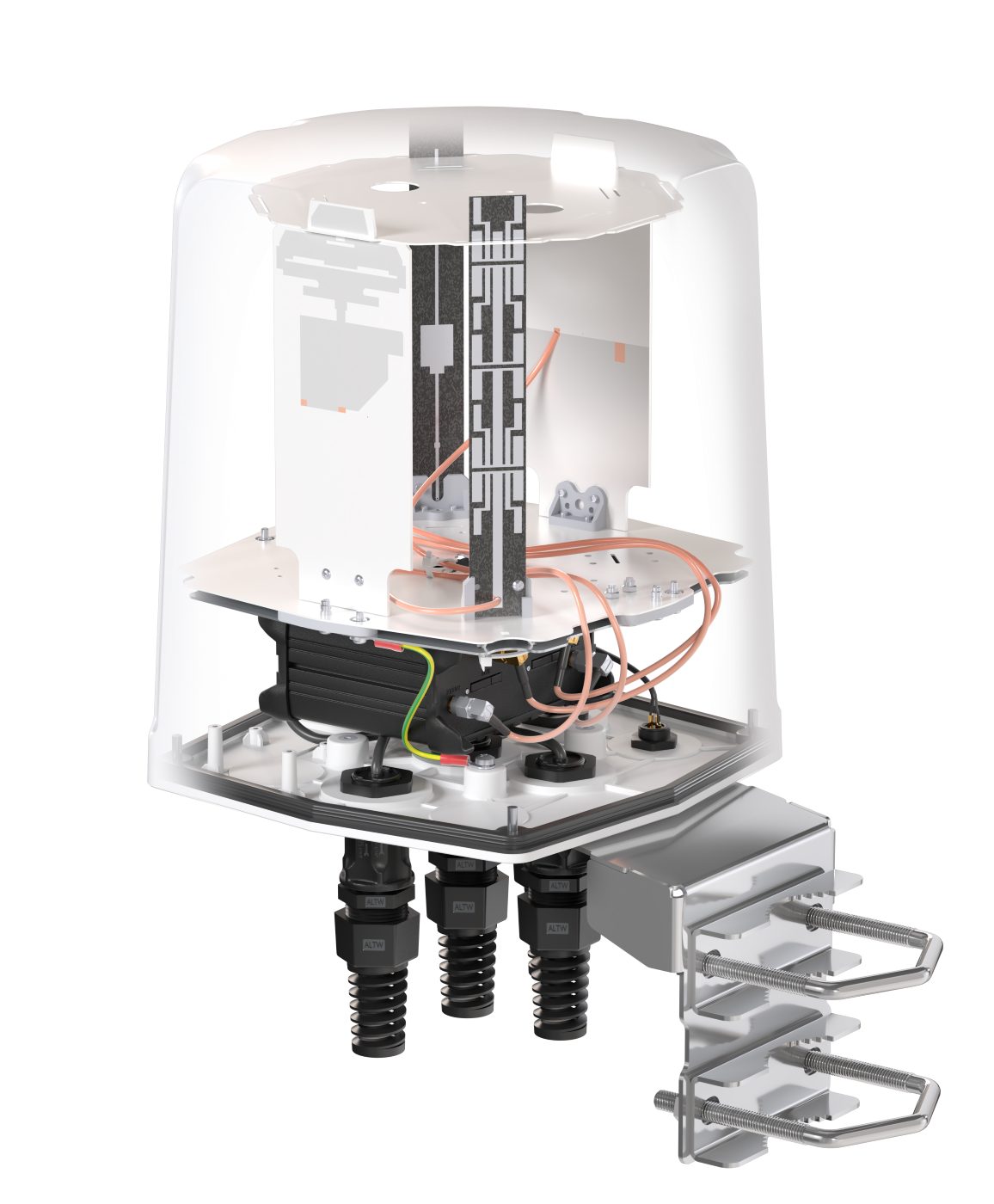

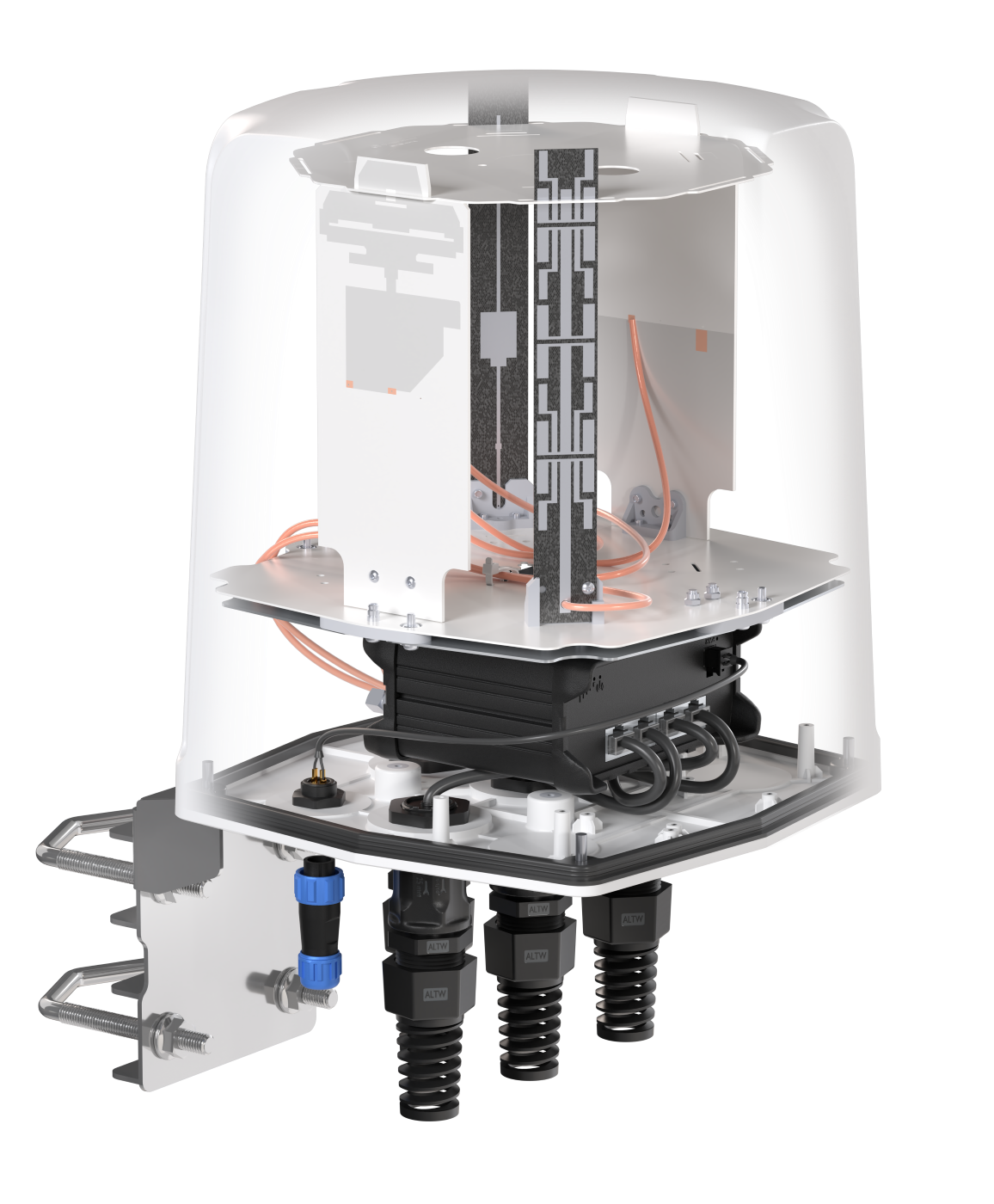

QuWave is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional 5G/LTE and Wi-Fi antennas with Teltonika RUT951 PoE+ into a single IP67 enclosure. Such integration allows implementation of new outdoor 5G/LTE solutions.

QuWave for Teltonika RUT951 PoE+ is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Compatible with the following Teltonika routers: RUT951 PoE+

Technical specification

Any question?

Why QuWave High Gain for RUT951 POE+

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

ANTENNA PERFECTLY MATCHED WITH THE TELTONIKA RUT951 POE+

Galvanized steel, wall or pole mounting bracket

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.5 - 2.0 GHz

2.0 - 3.7 GHz

3.7 - 5.0 GHz

5.0 - 6.23 GHz

Max. Gain

0.5 - 2.0 GHz : 3 dBi

2.0 - 3.7 GHz : 4 dBi

3.7 - 5.0 GHz : 4.6 dBi

5.0 - 6.23 GHz : 4.1 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

< 2.50, max < 3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE Gain

WI-FI VSWR

WI-FI Gain

5G/LTE From 617MHz to 960MHz

Elevation

Azimuth

5G/LTE From 1.71GHz to 2.7GHz

Elevation

Azimuth

5G/LTE From 3.3GHz to 4.2GHz

Elevation

Azimuth

5G/LTE From 4.6GHz to 5.7GHz

Elevation

Azimuth

Wi-Fi From 2.4 GHz to 6.5 GHz

Elevation

Azimuth
