1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

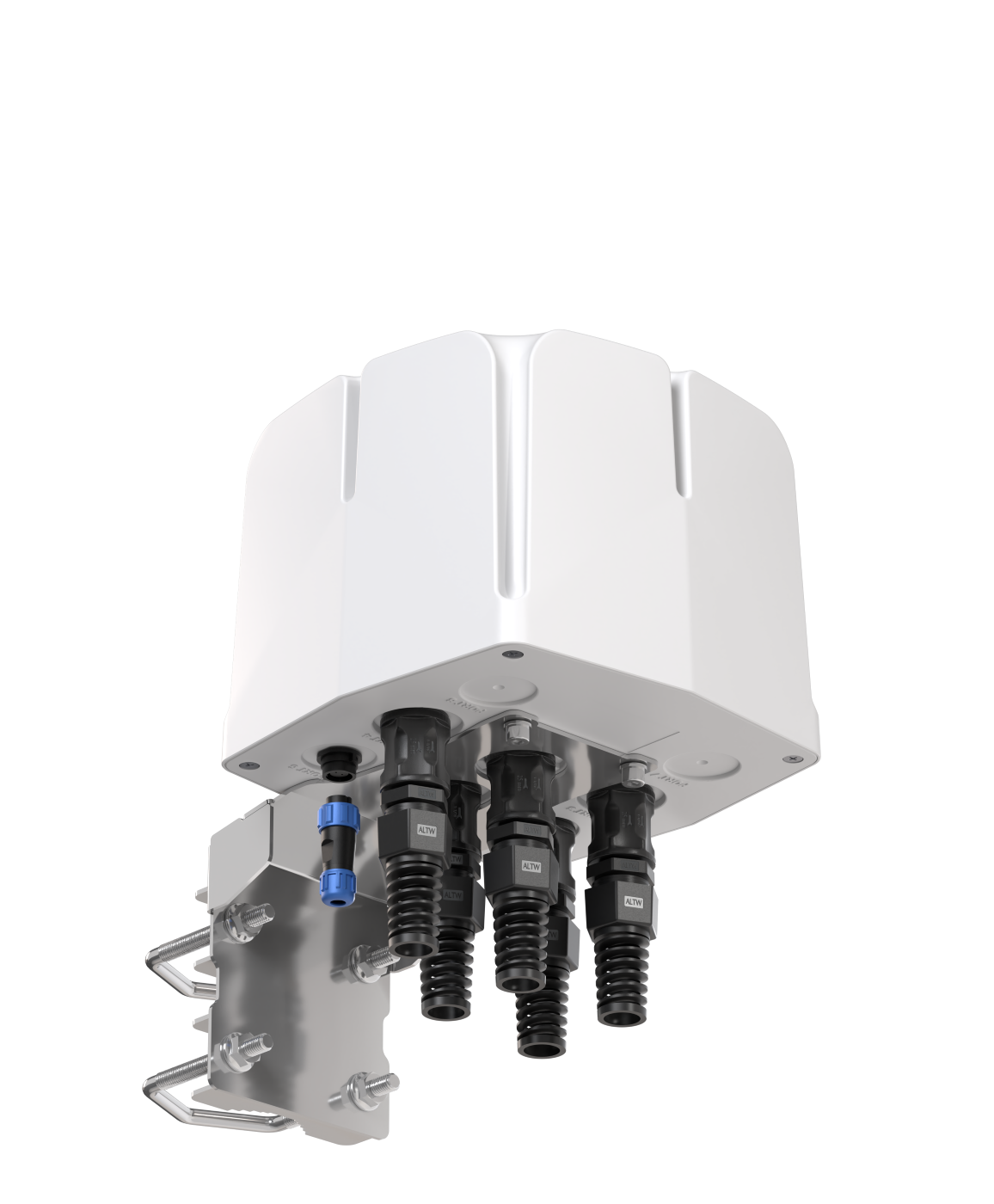

Antenna QuWave Lite for Teltonika RUTX50/RUTM51/RUTM54/RUTM55

P/n: -

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + WI-FI ANTENNA + GPS ANTENNA + PASSIVE POE SPLITTER + PLACE TO INSTALL TELTONIKA RUTX50/RUTM51/RUTM54/RUTM55 (ALL-IN-ONE)

QuWave Lite for Teltonika RUTX50/RUTM51/RUTM54/RUTM55 is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. Designed specifically as an antenna for RUTX50/RUTM51/RUTM54/RUTM55 router, it delivers reliable, high-speed wireless connectivity in even the most demanding environments.

This all-in-one unit integrates high-gain omnidirectional 5G, Wi-Fi and GPS antennas with Teltonika router into a compact, rugged IP67-rated waterproof enclosure. The integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions. Engineered for outdoor and mobile applications, QuWave Lite is ideal for use in transportation systems, for underground connectivity or urban and public installations.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

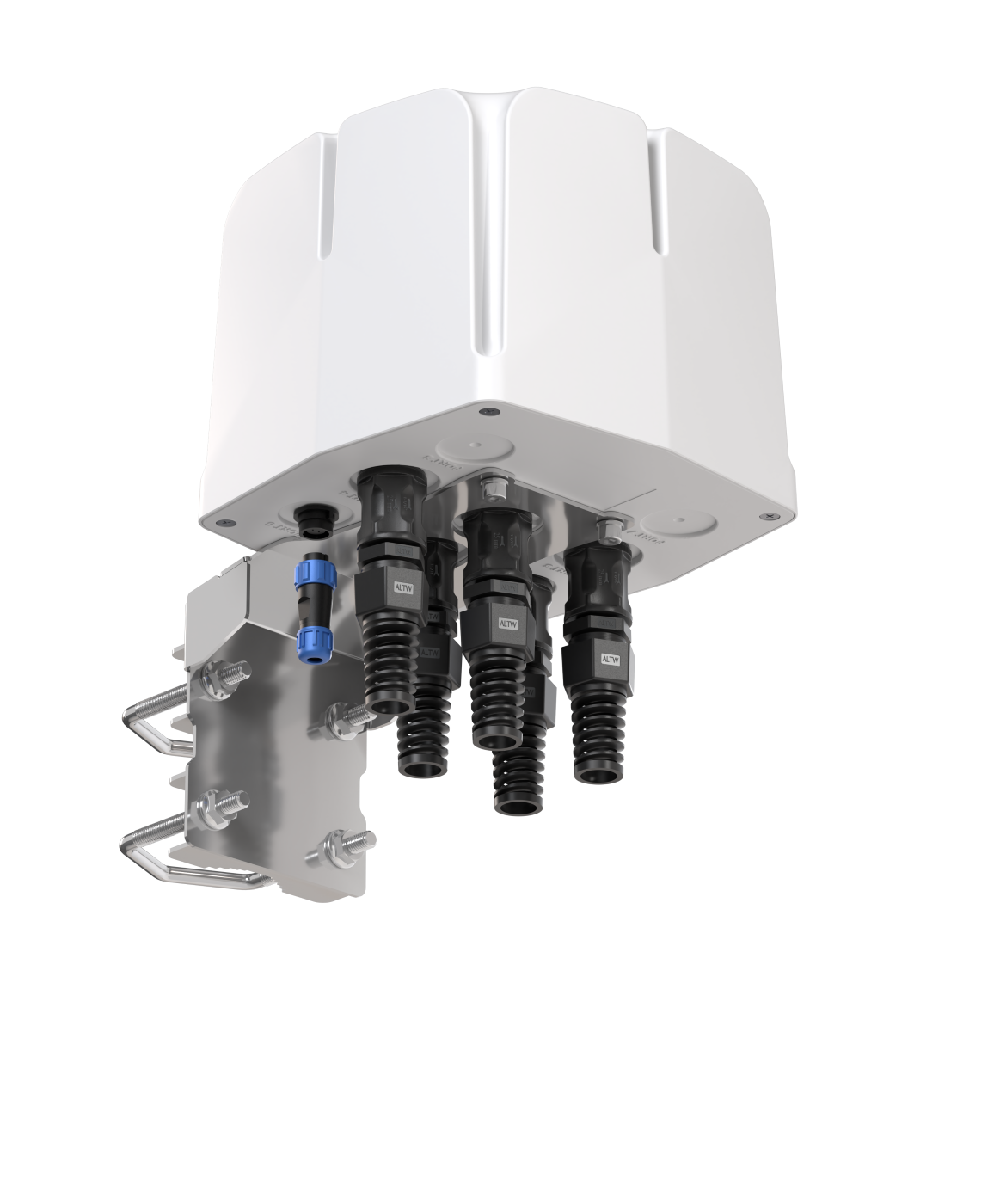

Why QuWave Lite for Teltonika RUTX50/RUTM51/RUTM54/RUTM55

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

SPECIFICATION

PRODUCT DETAILS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 3.8 GHz

4.2 - 6.0 GHz

GAIN

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 3 dBi

3.3 - 3.8 GHz : 3 dBi

4.2 - 6.0 GHz : 4 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.20, max <2.50

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE GAIN

Wi-Fi - V VSWR

Wi-Fi - V Gain

5G/LTE from 617MHz to 960MHz

Elevation

Azimuth

5G/LTE from 1.71GHz to 2.7GHz

Elevation

Azimuth

5G/LTE from 3.3GHz to 4.2GHz

Elevation

Azimuth

5G/LTE from 4.8GHz to 5.8GHz

Elevation

Azimuth

Wi-Fi V From 2.4 GHz to 6.5 GHz

Elevation

Azimuth
