Antenna QuWave Lite XL 2* Peplink MAX BR1 Mini 5G

P/n: C_APBRM5GL_TG

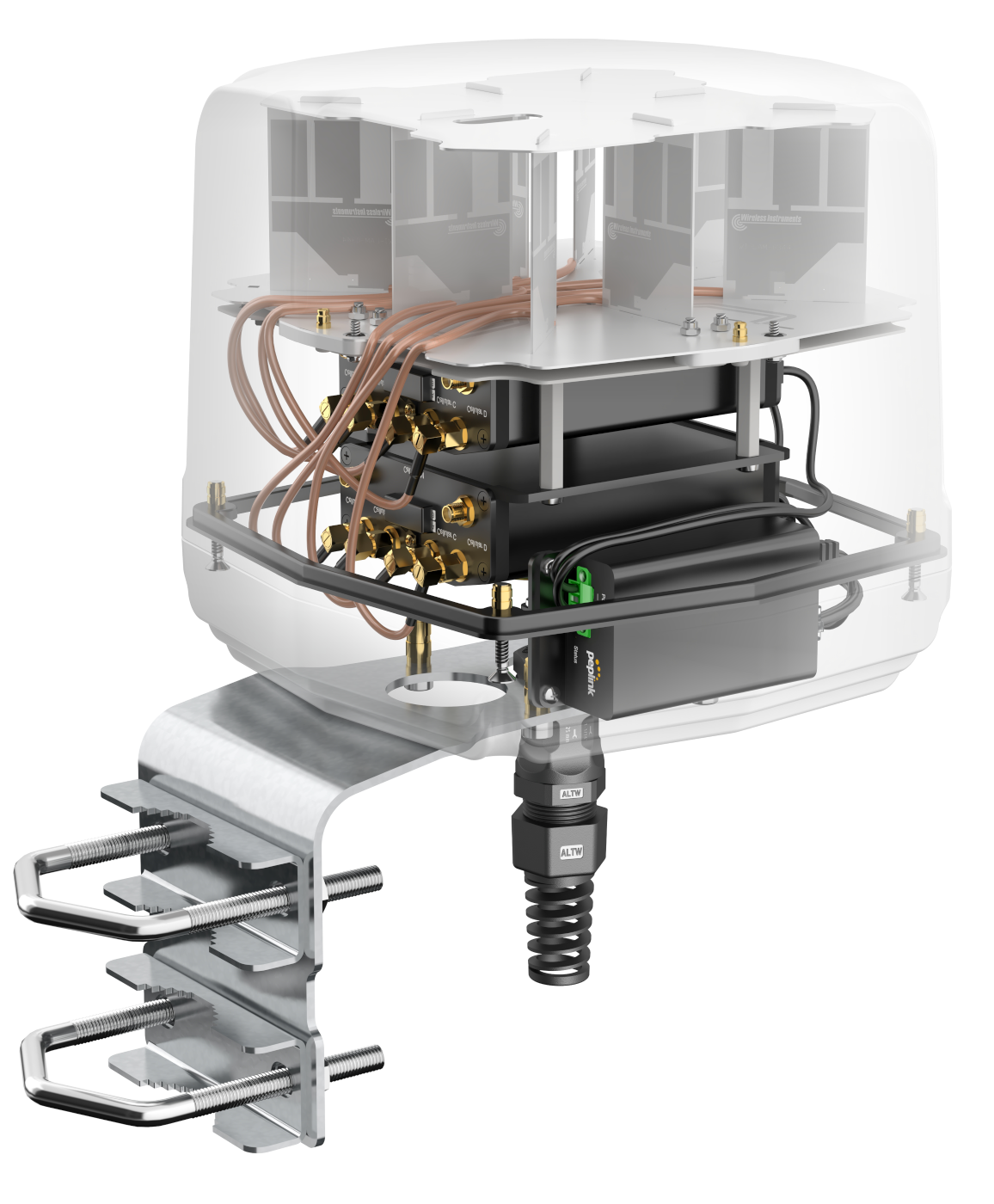

INTEGRATED MULTI-BAND 5G/LTE OMNI ANTENNA + PLACE TO INSTALL POE SPLITTER + PLACE TO INSTALL PEPLINK ROUTERS (ALL-IN-ONE)

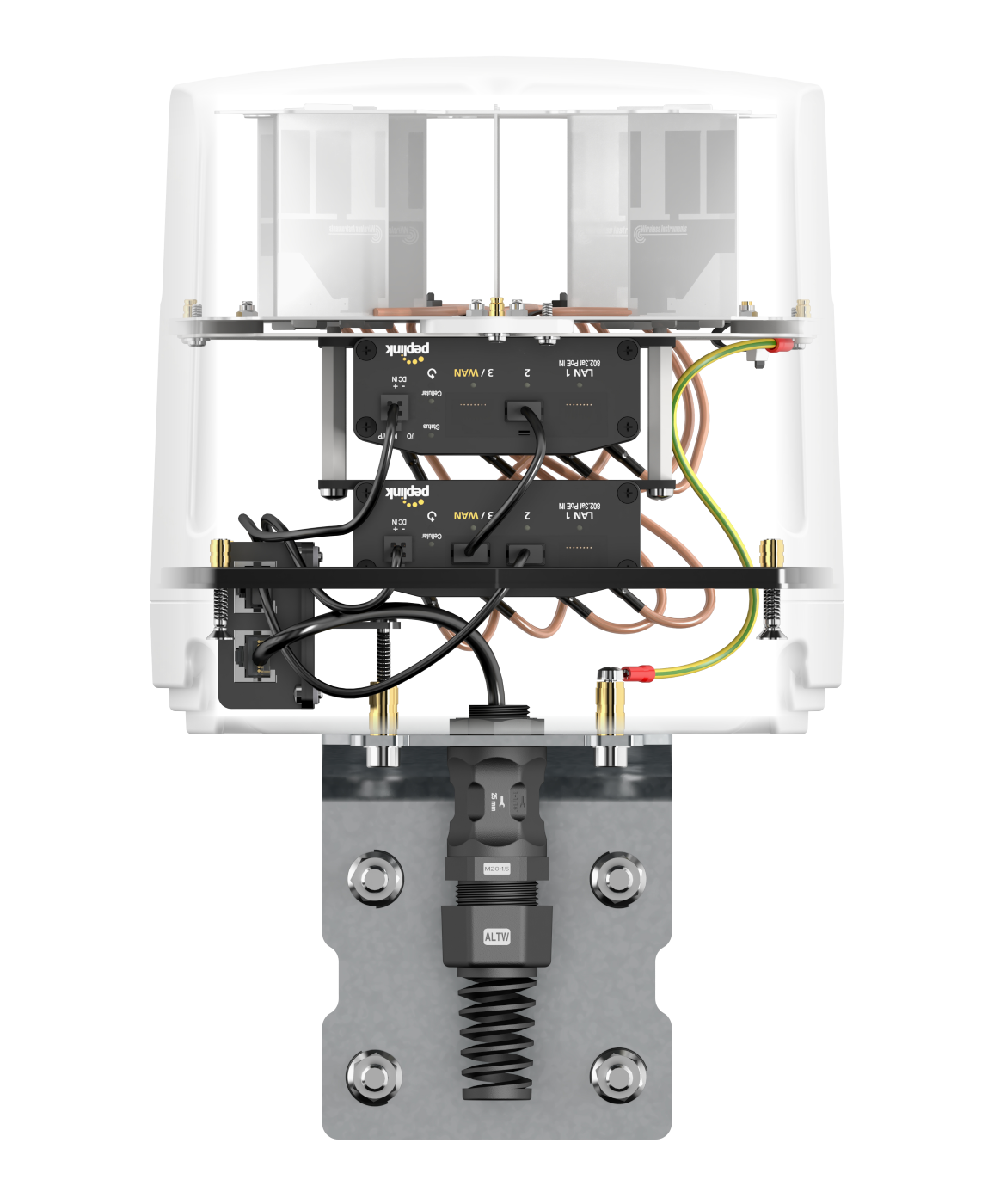

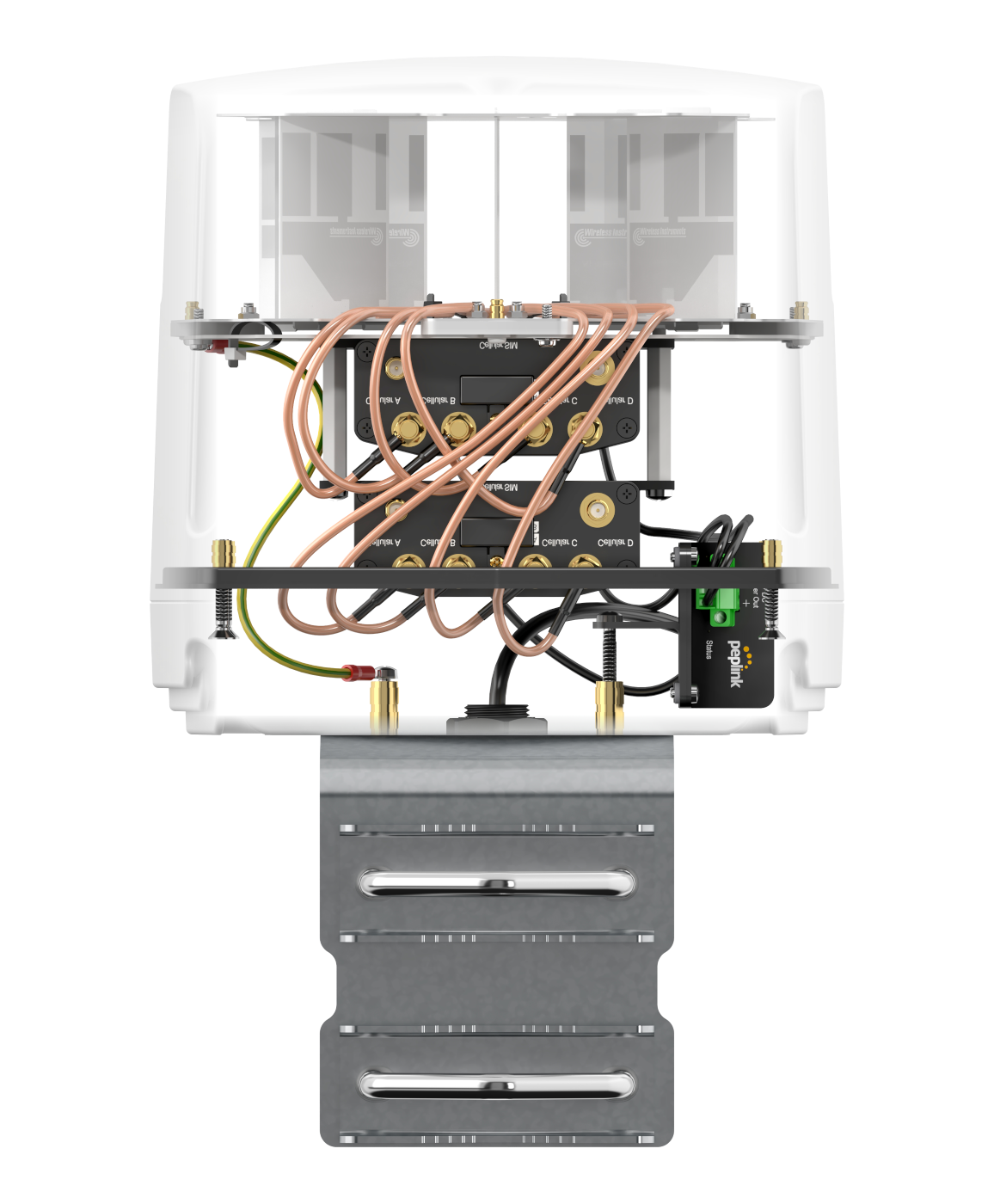

QuWave Lite is an all-in-one outdoor connectivity solution that combines high-gain omnidirectional 5G/LTE antennas and space for two Peplink MAX BR1 Mini 5G routers and a PoE Splitter MAX inside a single rugged IP67-rated enclosure.

Designed to support Peplink's Synergy Mode, it enables multiple routers to operate as a single centrally managed WAN platform, delivering flexible multi-WAN connectivity for demanding applications. Ideal for transportation, marine, camping, and high-density urban deployments, QuWave simplifies installation while providing reliable, high-performance outdoor wireless connectivity.

Technical specification

Any question?

Contact us

Why QuWave Lite XL 2* Peplink MAX BR1 Mini 5G

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

ANTENNA PERFECTLY MATCHED WITH THE PEPLINK ROUTERS

ALL ANTENNAS AND PEPLINK ROUTER INTEGRATED IN ONE ENCLOSURE

Galvanized steel, wall or pole mounting bracket

Made in Europe

QuWave Lite XL 2* Peplink MAX BR1 Mini 5G

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

COMPATIBLE ROUTERS

Frequency

0.58 - 2.0 GHz

2.0 - 3.5 GHz

3.5 - 5.0 GHz

5.0 - 6.35 GHz

Max. Gain

0.58 - 2.0 GHz : 2 dBi

2.0 - 3.5 GHz : 3.2 dBi

3.5 - 5.0 GHz : 3.1 dBi

5.0 - 6.35 GHz : 3.8 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.50, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

8x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuWave Lite XL 2* Peplink MAX BR1 Mini 5G

5G/LTE Gain

5G/LTE Gain of QuWave Lite XL 2* Peplink MAX BR1 Mini 5G
5G/LTE From 617MHz to 960MHz
Elevation
Azimuth
5G/LTE From 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE From 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE From 4.8GHz to 5.8GHz
Elevation
Azimuth
