1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. What is MIMO and SISO?

MIMO (Multiple Input Multiple Output) is a technology that uses more than one antenna for both, transmitter and receiver. Systems using MIMO utilize those numerous antennas to receive many data streams at once operating in a single radio channel. In general, the more antennas are in your MIMO system,the more data streams can be received. SISO (Single Input Single output) – kind of system that uses only one antenna for transmitter and receiver, e.g. GSM, CDMA, satellite or radio systems. It is the most basic antenna technology used.

Porównaj

QuWave LTE High Gain 802.3at for Digi IX15, IX10

Antenna QuWave LTE High Gain 802.3at for Digi IX15, IX10

P/n: ADMLWXAT

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WI-FI OMNI ANTENNA + ACTIVE POE SPLITTER + PLACE TO INSTALL DIGI ROUTERS (ALL-IN-ONE)

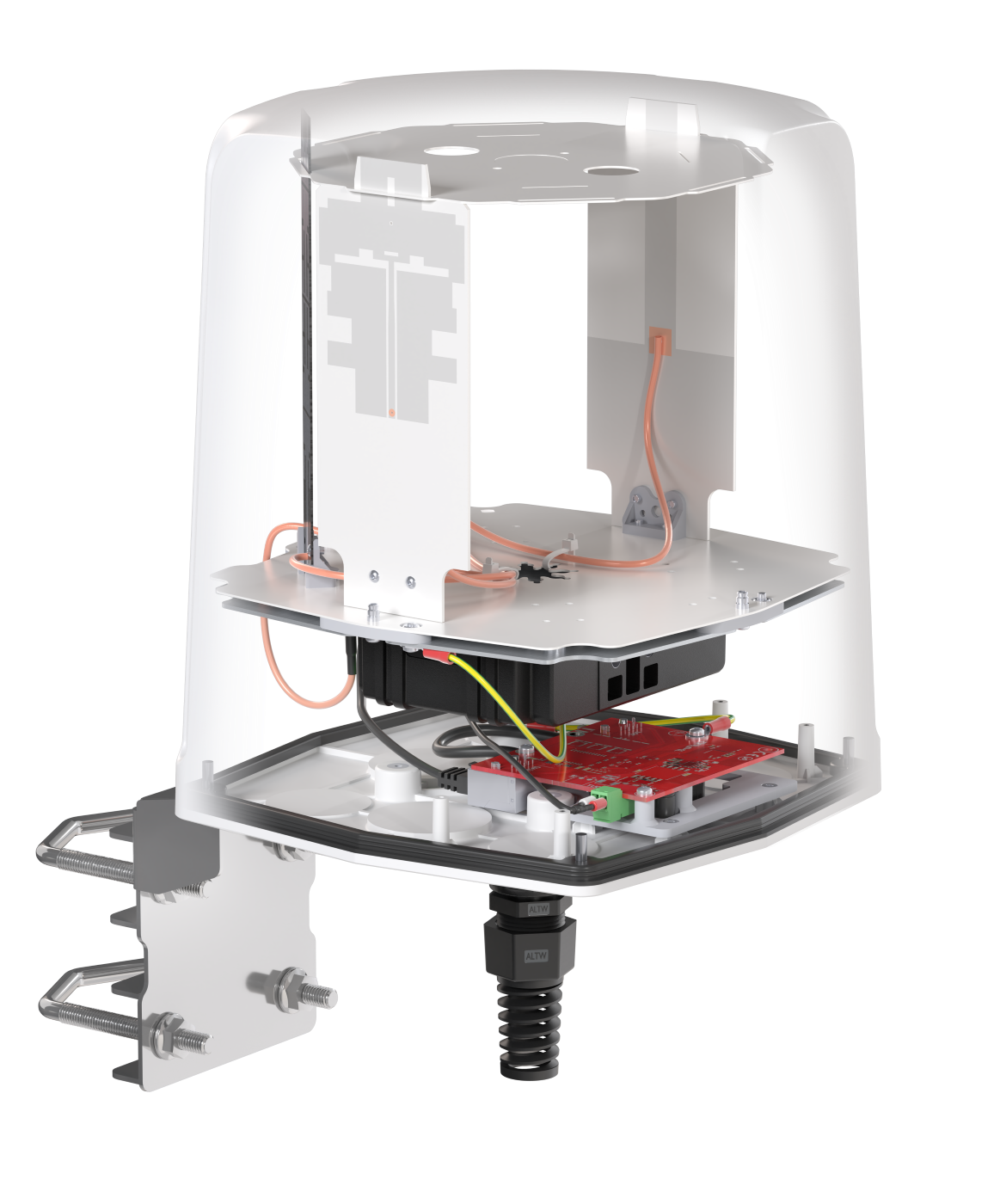

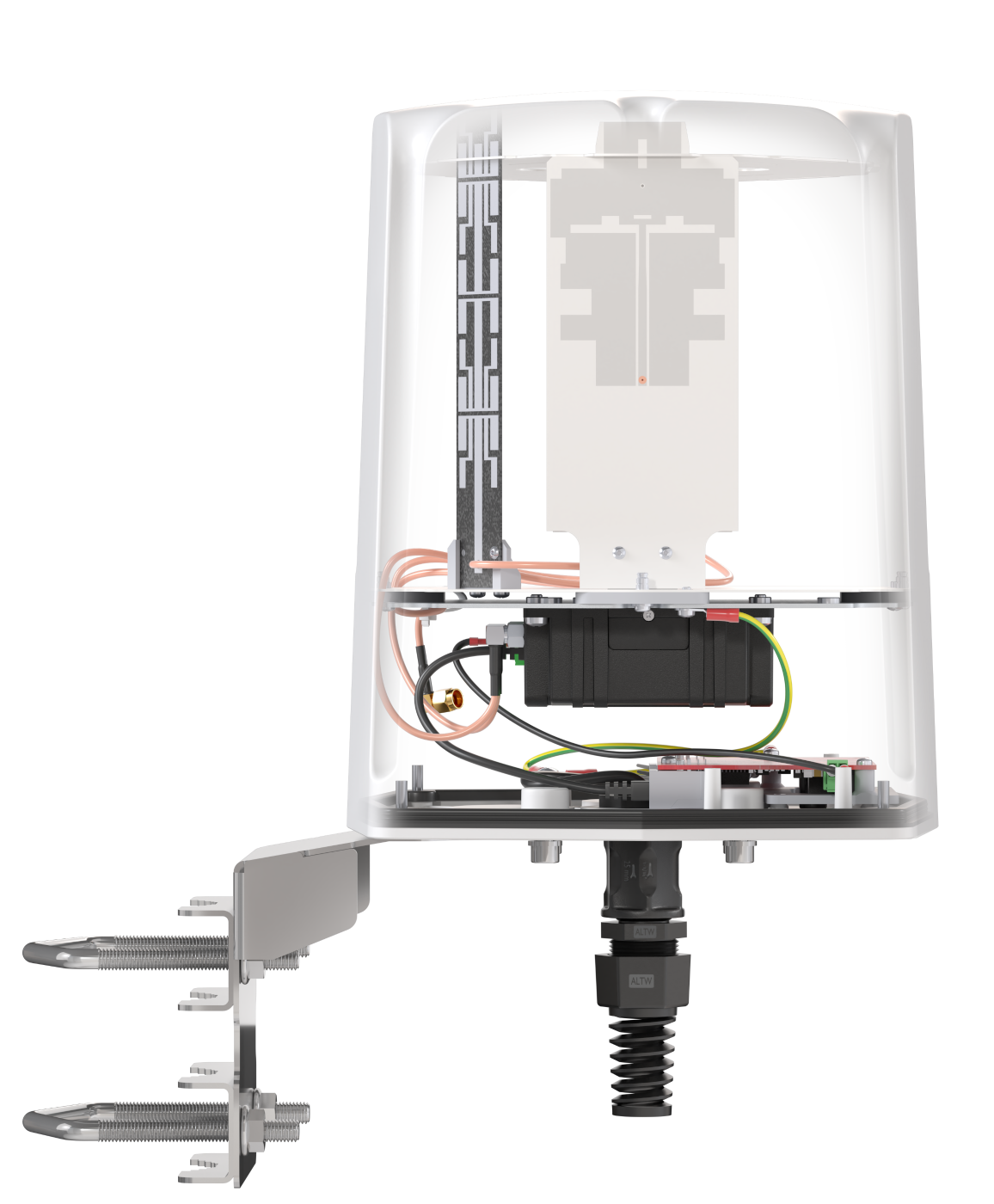

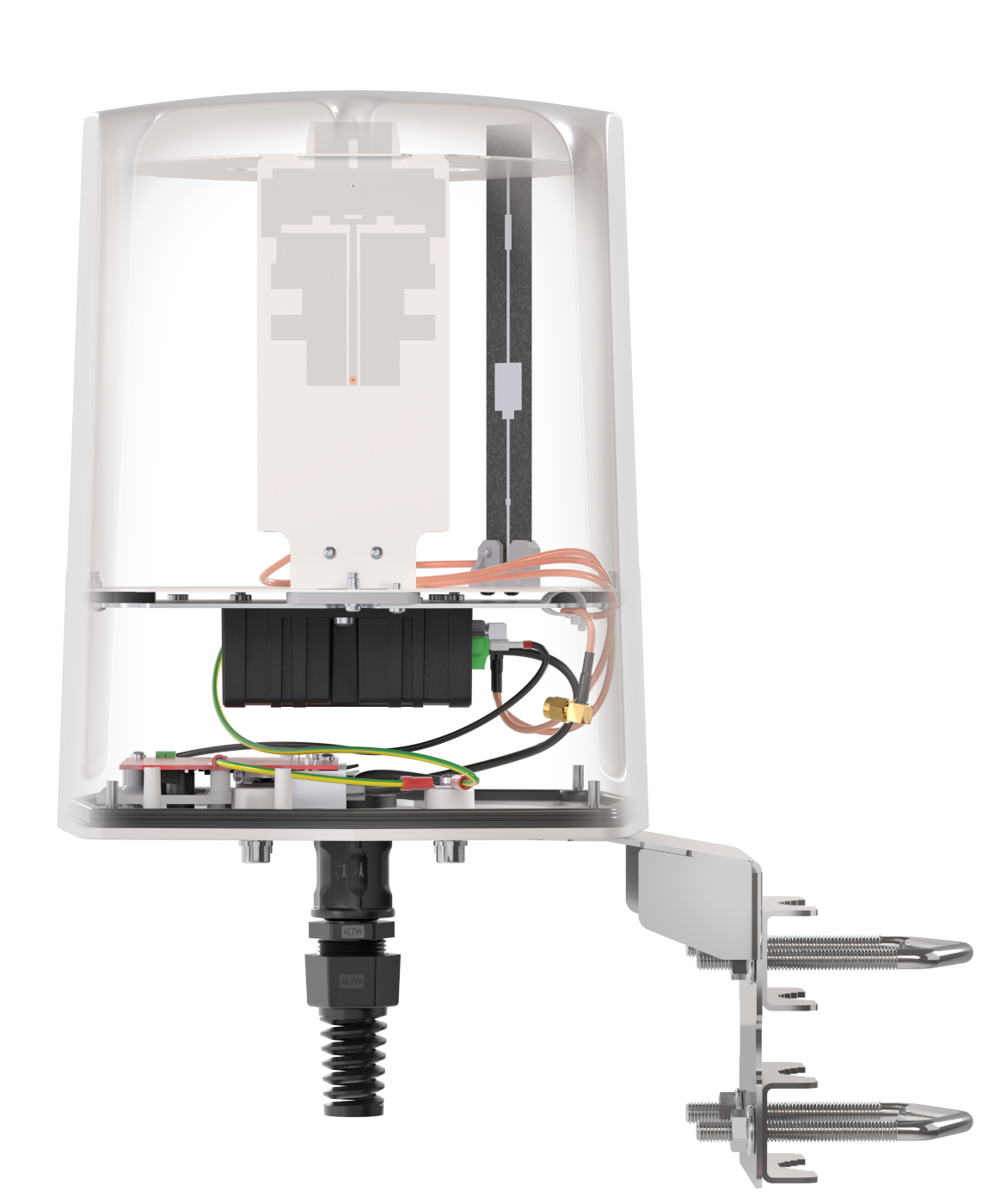

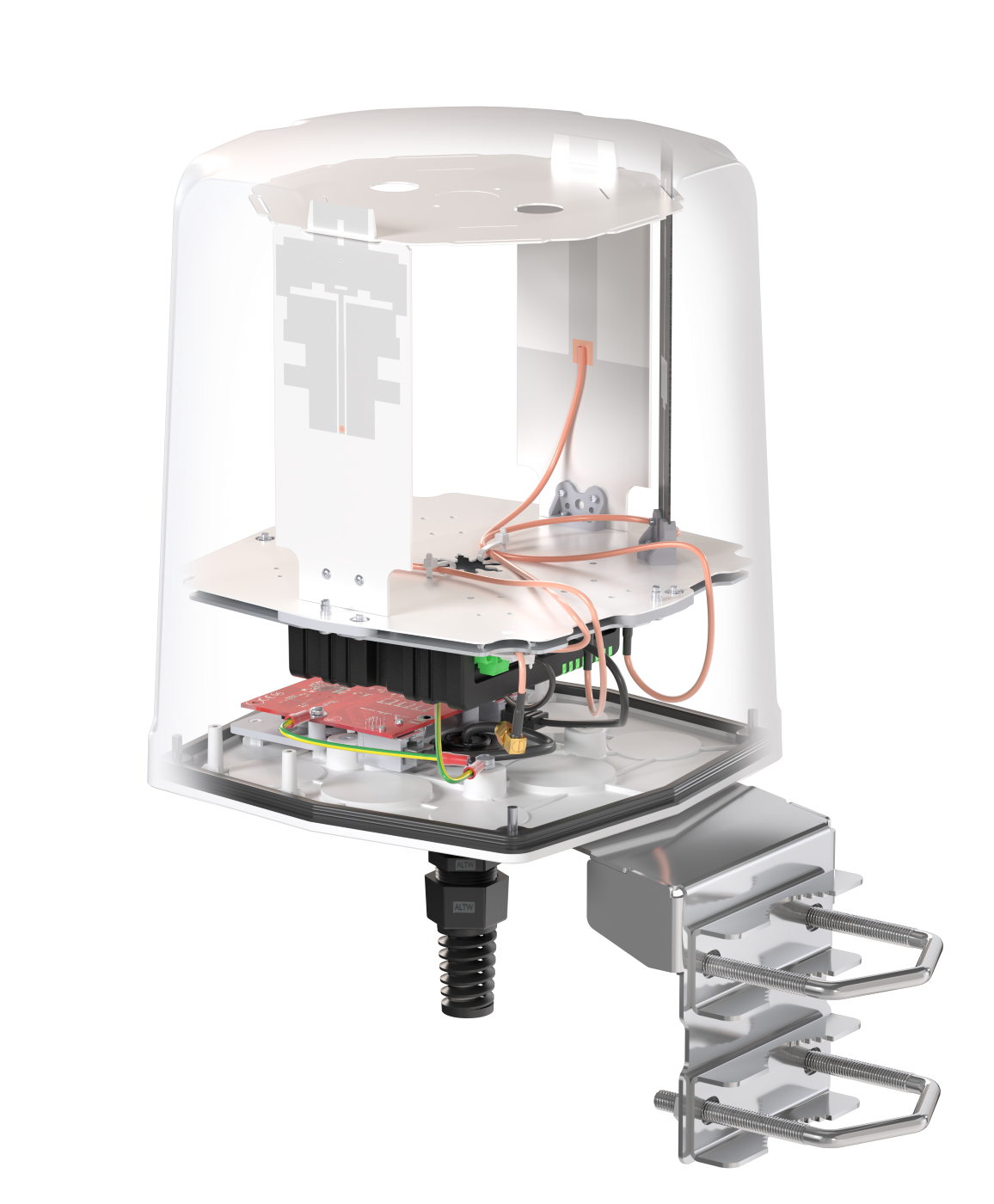

QuWave is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all in one solution that integrates a high gain omnidirectional LTE, Wi-Fi and GPS antennas with DIGI routers into a single IP67 enclosure. Such integration allows implementation of new outdoor LTE solutions.

QuWave for DIGI is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.

Compatible with the following DIGI routers: IX15, IX10

The set contains a 802.3at PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. Using QuWireless splitter provides 3KA surge and lightning protection.

Technical specification

Any question?

Why QuWave LTE High Gain 802.3at for Digi IX15, IX10

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

ANTENNA PERFECTLY MATCHED WITH THE DIGI ROUTERS

ALL ANTENNAS AND DIGI ROUTER INTEGRATED IN ONE ENCLOSURE

Galvanized steel, wall or pole mounting bracket

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.5 - 2.0 GHz

2.0 - 3.7 GHz

3.7 - 5.0 GHz

5.0 - 6.23 GHz

Max. Gain

0.5 - 2.0 GHz : 3 dBi

2.0 - 3.7 GHz : 4 dBi

3.7 - 5.0 GHz : 4.6 dBi

5.0 - 6.23 GHz : 4.1 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 74, 75, 76, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n54, n65, n66, n67, n68, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n97, n98, n99, n100, n101, n105, n106, n109, n110, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.50, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE Gain

WI-FI VSWR

WI-FI Gain

5G/LTE From 617MHz to 960MHz

Elevation

Azimuth

5G/LTE From 1.71GHz to 2.7GHz

Elevation

Azimuth

5G/LTE From 3.3GHz to 4.2GHz

Elevation

Azimuth

5G/LTE From 4.6GHz to 5.7GHz

Elevation

Azimuth

Wi-Fi From 2.4 GHz to 6.5 GHz

Elevation

Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

Download

Datasheet QuWave LTE High Gain 802.3at for Digi IX15, IX10

Download

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

Antenna QuWave LTE High Gain 802.3at for Digi IX15, IX10

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WI-FI OMNI ANTENNA + ACTIVE POE SPLITTER + PLACE TO INSTALL DIGI ROUTERS (ALL-IN-ONE)

Why QuWave LTE High Gain 802.3at for Digi IX15, IX10

SPECIFICATION

LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS
