QuWave for Robustel R5020 LiteQuWave for Robustel R5020 Lite
QuWave for Robustel R5020 LiteQuWave for Robustel R5020 Lite

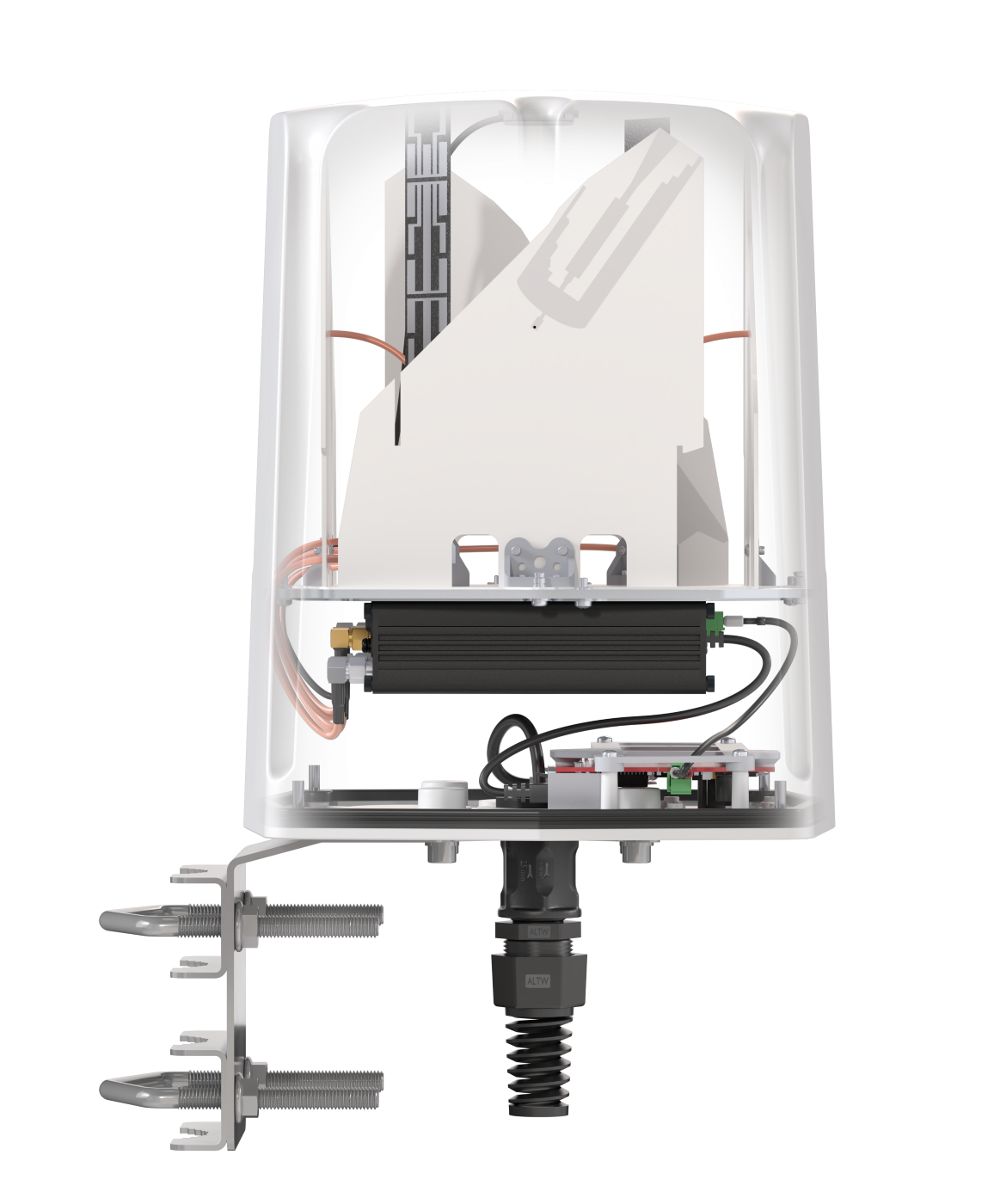

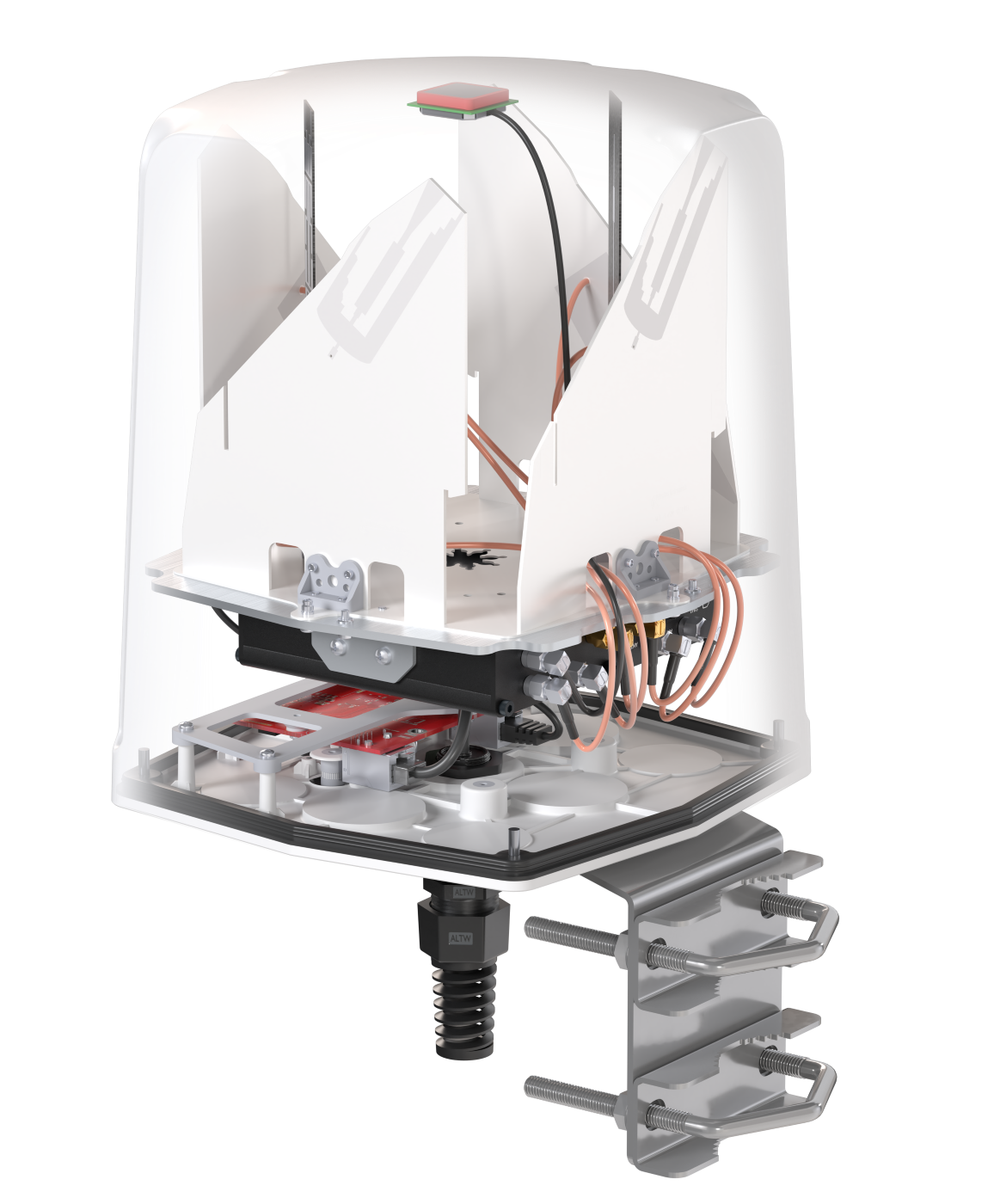

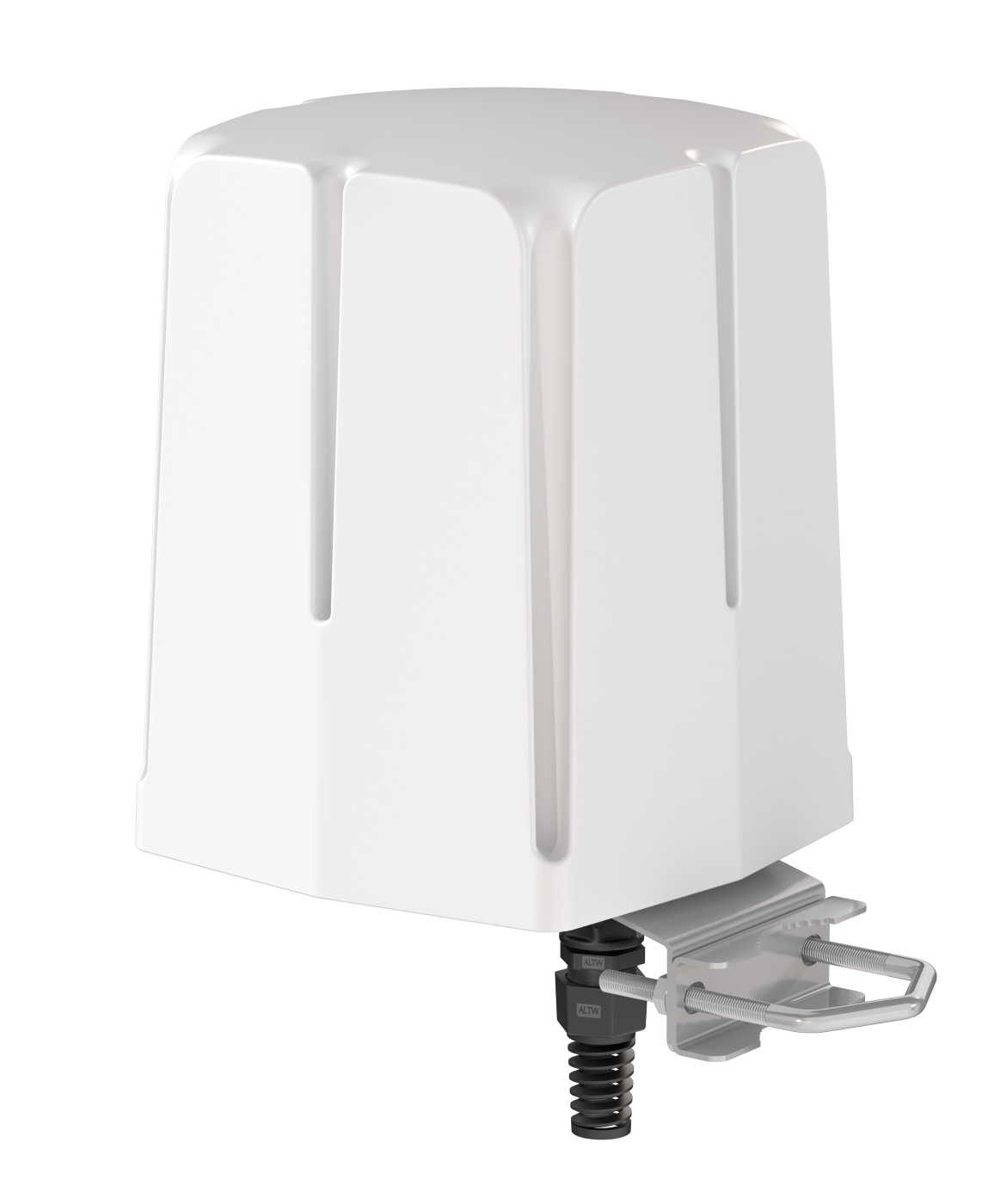

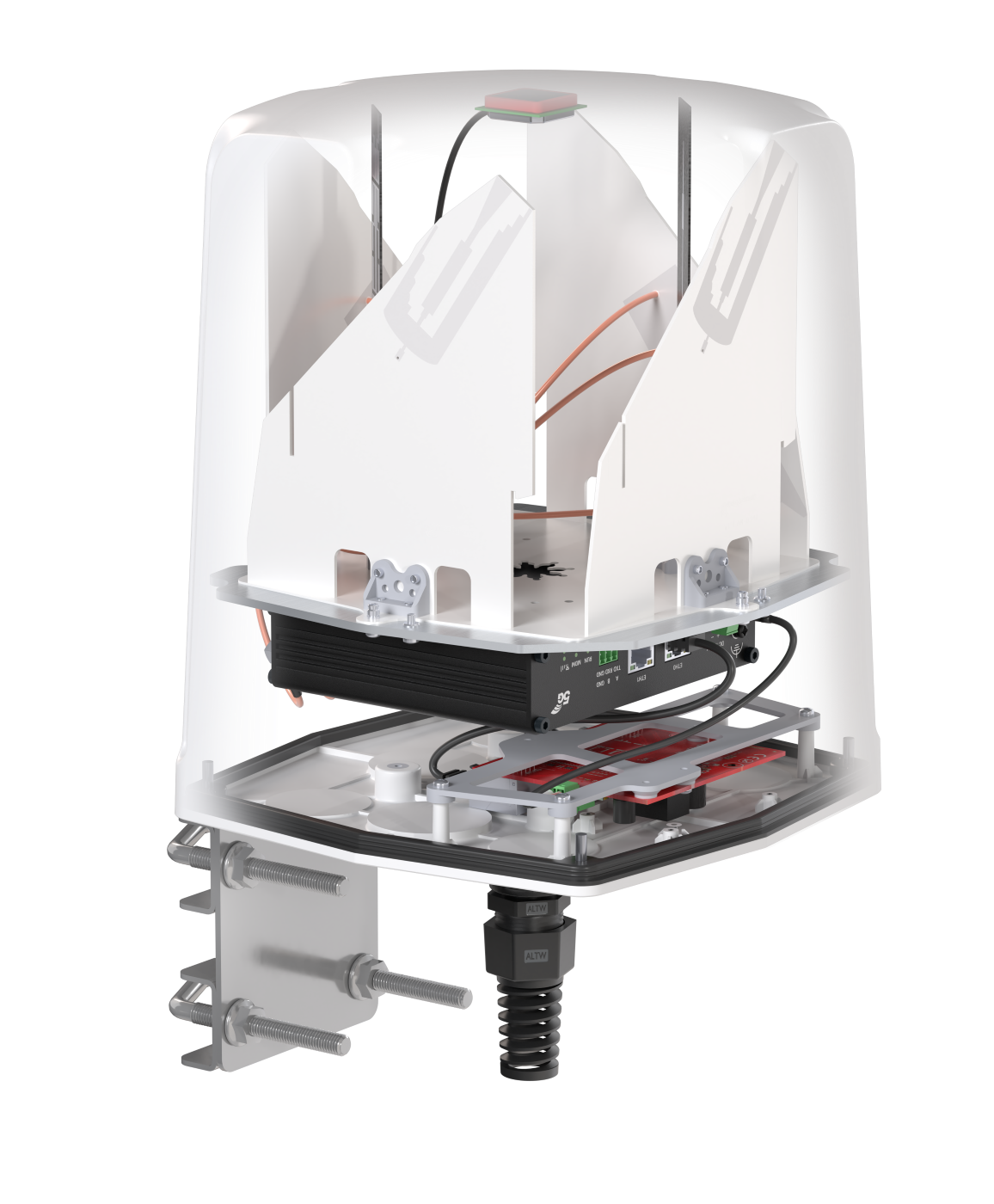

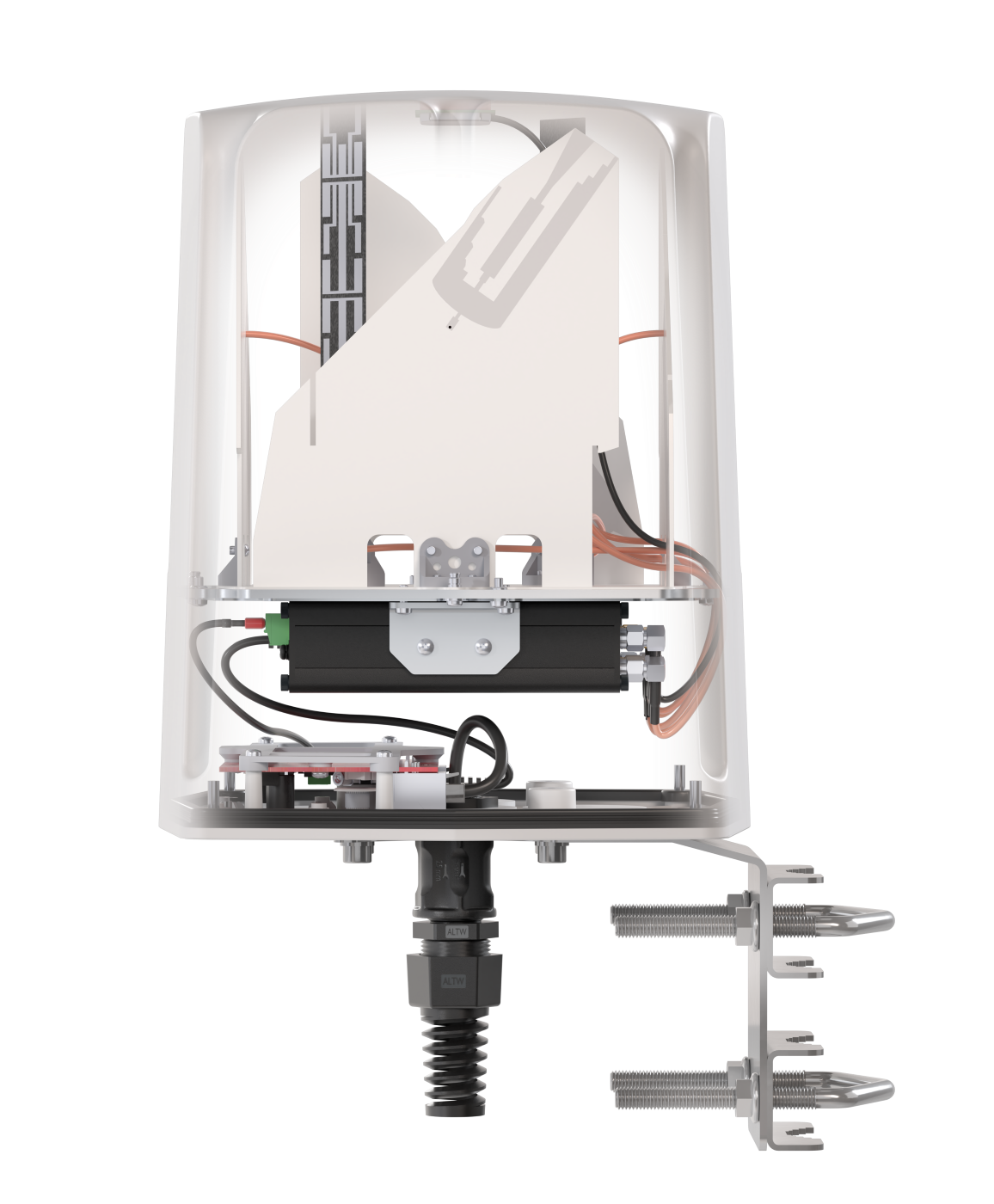

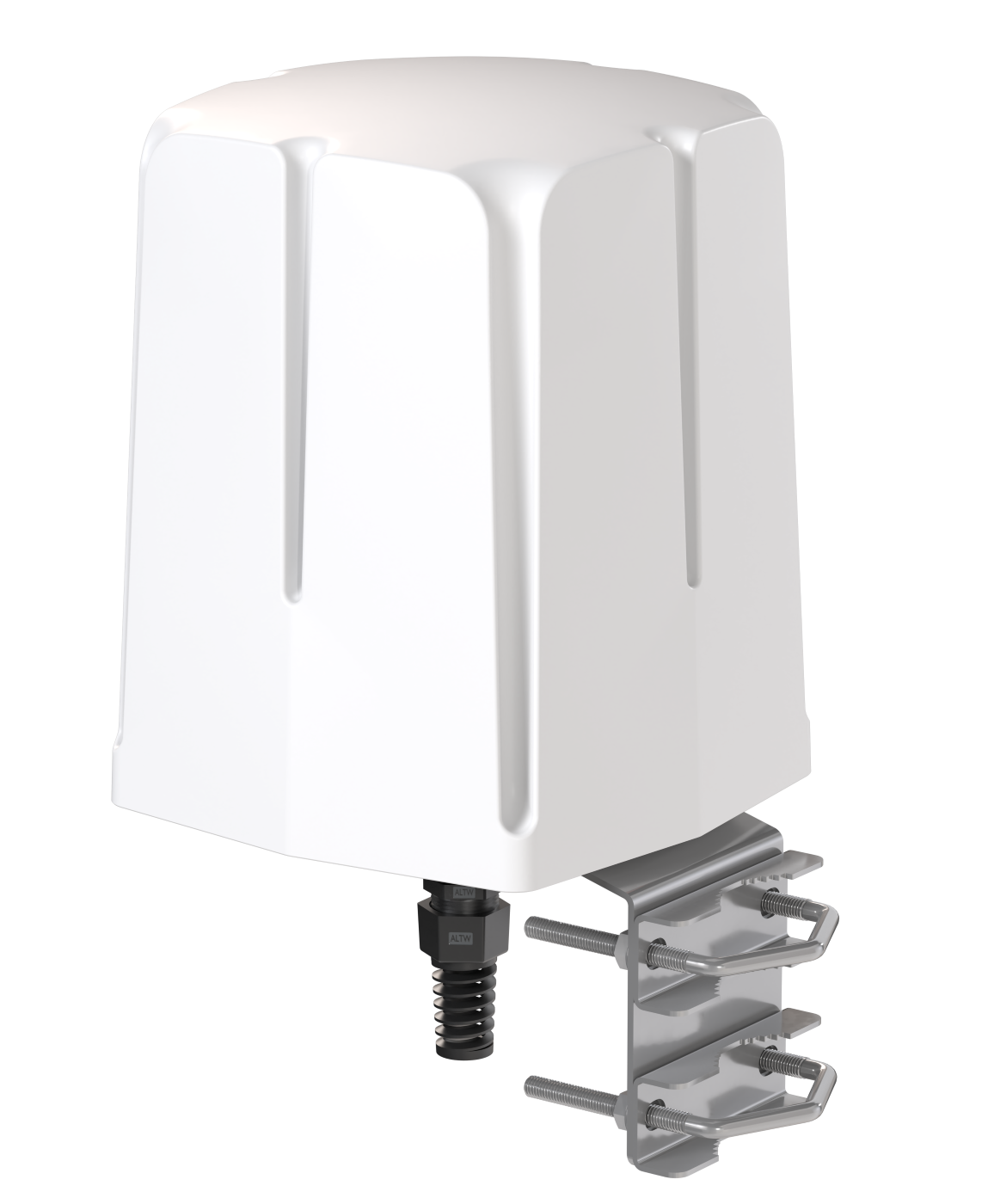

Antenna QuWave for Robustel R5020 Lite

P/n: -

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + ACTIVE POE SPLITTER + PLACE TO INSTALL ROBUSTEL R5020 LITE (ALL-IN-ONE)

QuWave antenna for Robustel R5020 Lite router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G and omni Wi-Fi 6E antenna. If you use R5020 Lite with QuWave antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Wi-Fi 6E support!

The set contains a 802.3af PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Technical specification

Any question?

Contact us

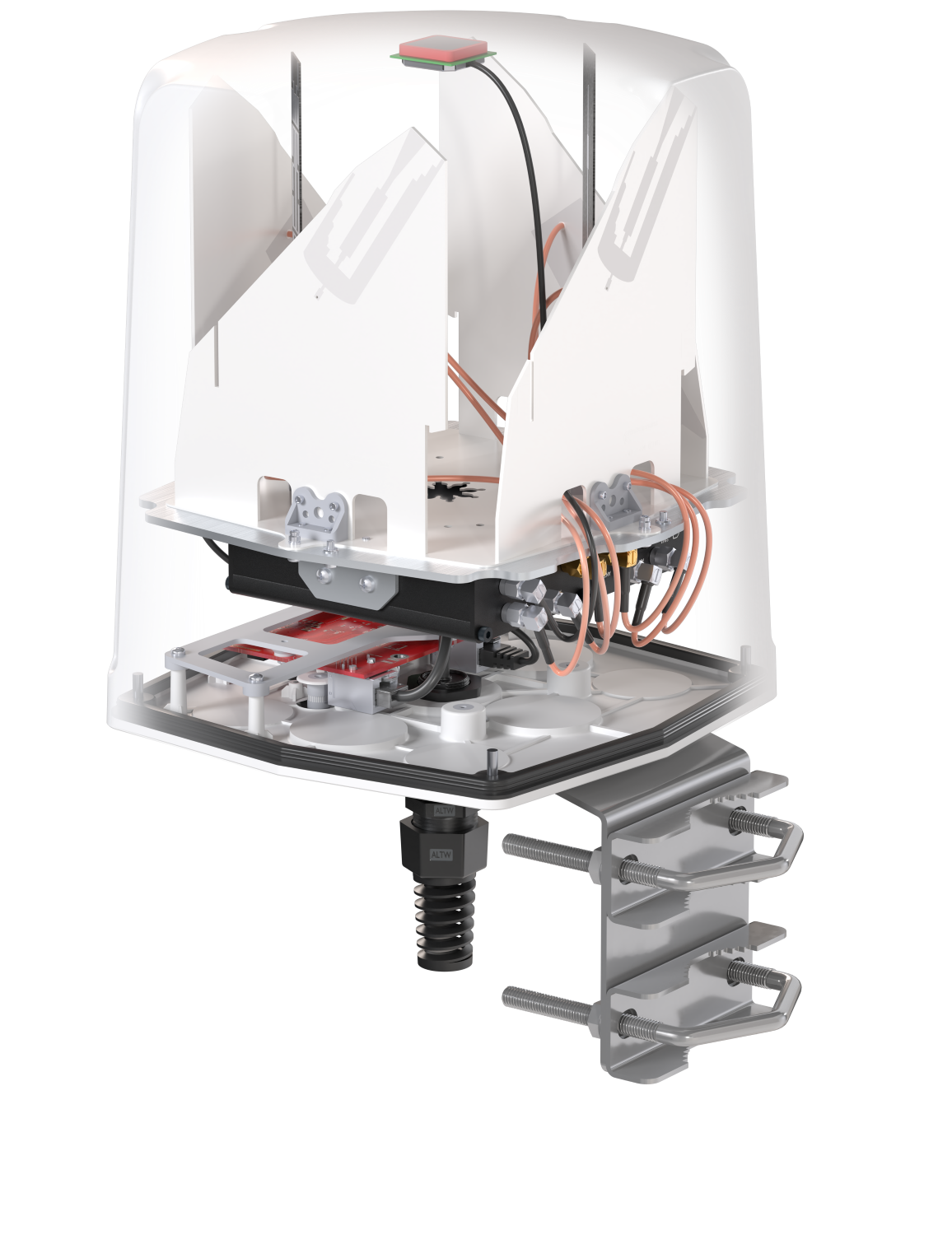

Why QuWave for Robustel R5020 Lite

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP68

ANTENNA PERFECTLY MATCHED WITH THE ROBUSTEL R5020 LITE

ALL ANTENNAS AND ROBUSTEL ROUTER INTEGRATED IN ONE ENCLOSURE

Galvanized steel, wall or pole mounting bracket

Made in Europe

QuWave for Robustel R5020 Lite

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.2 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuWave for Robustel R5020 Lite

LTE Gain

LTE Gain of QuWave for Robustel R5020 Lite

WI-FI VSWR

WI-FI VSWR of QuWave for Robustel R5020 Lite

WI-FI Gain

WI-FI Gain of QuWave for Robustel R5020 Lite
LTE From 617MHz to 960MHz
Elevation
Azimuth
LTE From 1.71GHz to 2.5GHz
Elevation
Azimuth
LTE From 3.3GHz to 4.2GHz
Elevation
Azimuth
LTE From 4.6GHz to 5.5GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth
