Antenna QuMax for DIGI IX20

P/n: ADIX20M

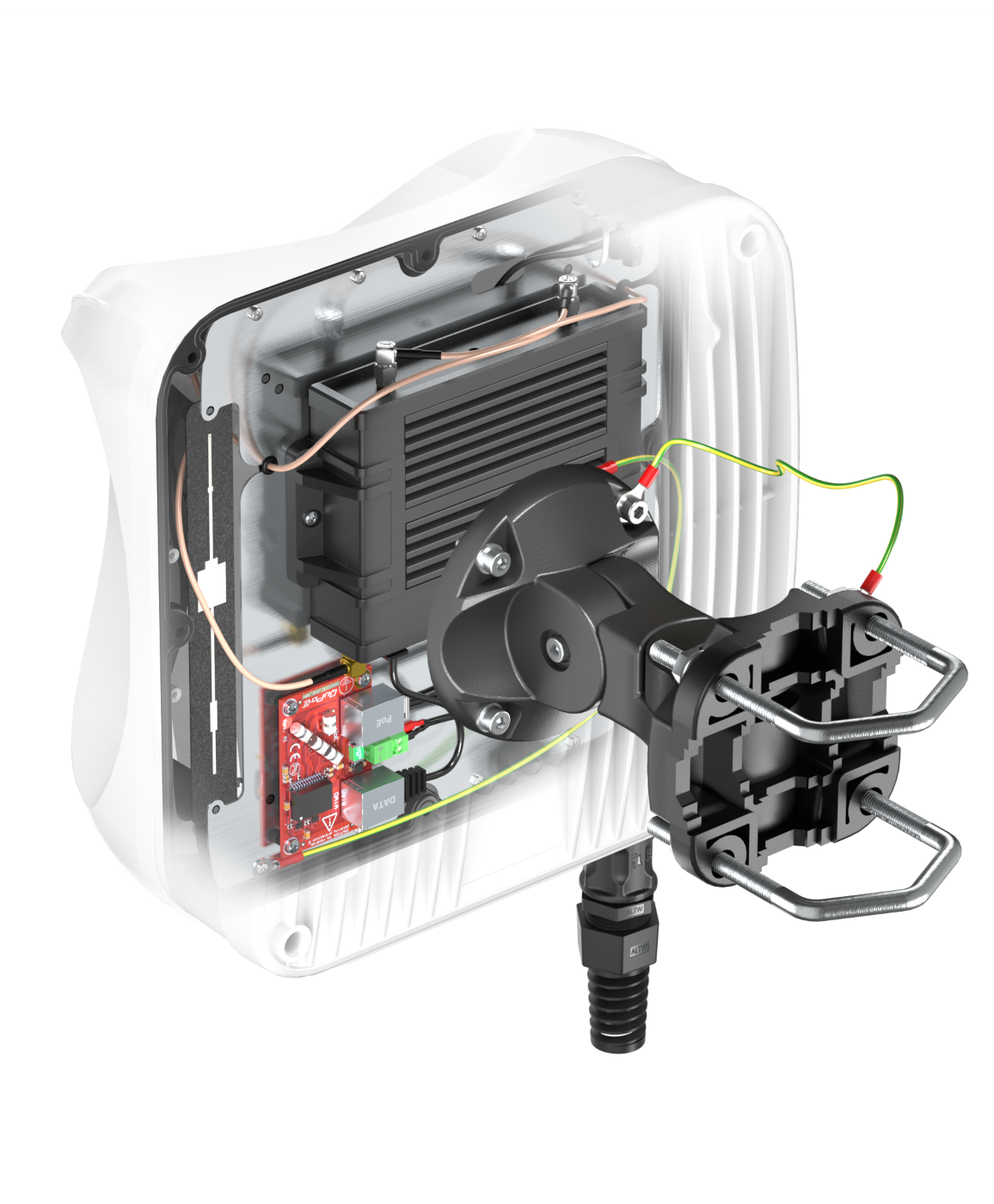

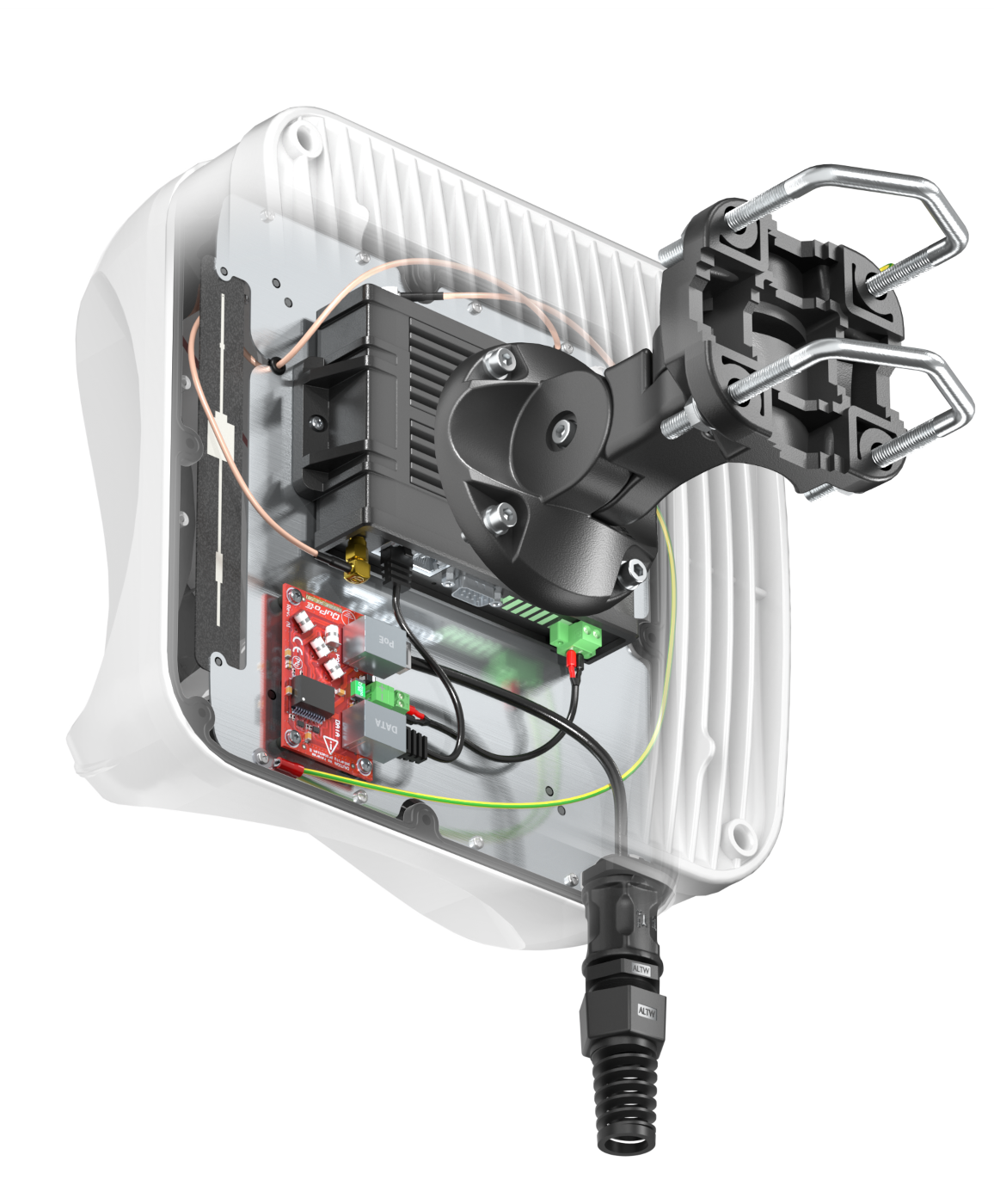

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI OMNI ANTENNA + GPS ANTENNA + POE SPLITTER + PLACE TO INSTALL DIGI IX20 (ALL-IN-ONE)

QuMax antenna for DIGI IX20 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, omni Wi-Fi and GPS antenna. If you use IX20 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuMax for DIGI IX20

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ANTENNA PERFECTLY MATCHED WITH THE DIGI IX20

ALL ANTENNAS AND DIGI ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for DIGI IX20

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax for DIGI IX20

WI-FI VSWR

WI-FI VSWR of QuMax for DIGI IX20

LTE Gain

LTE Gain of QuMax for DIGI IX20

WI-FI Gain

WI-FI Gain of QuMax for DIGI IX20
PORT 1 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth
