Antenna QuMax for Robustel R2110

To check PN please select variant below

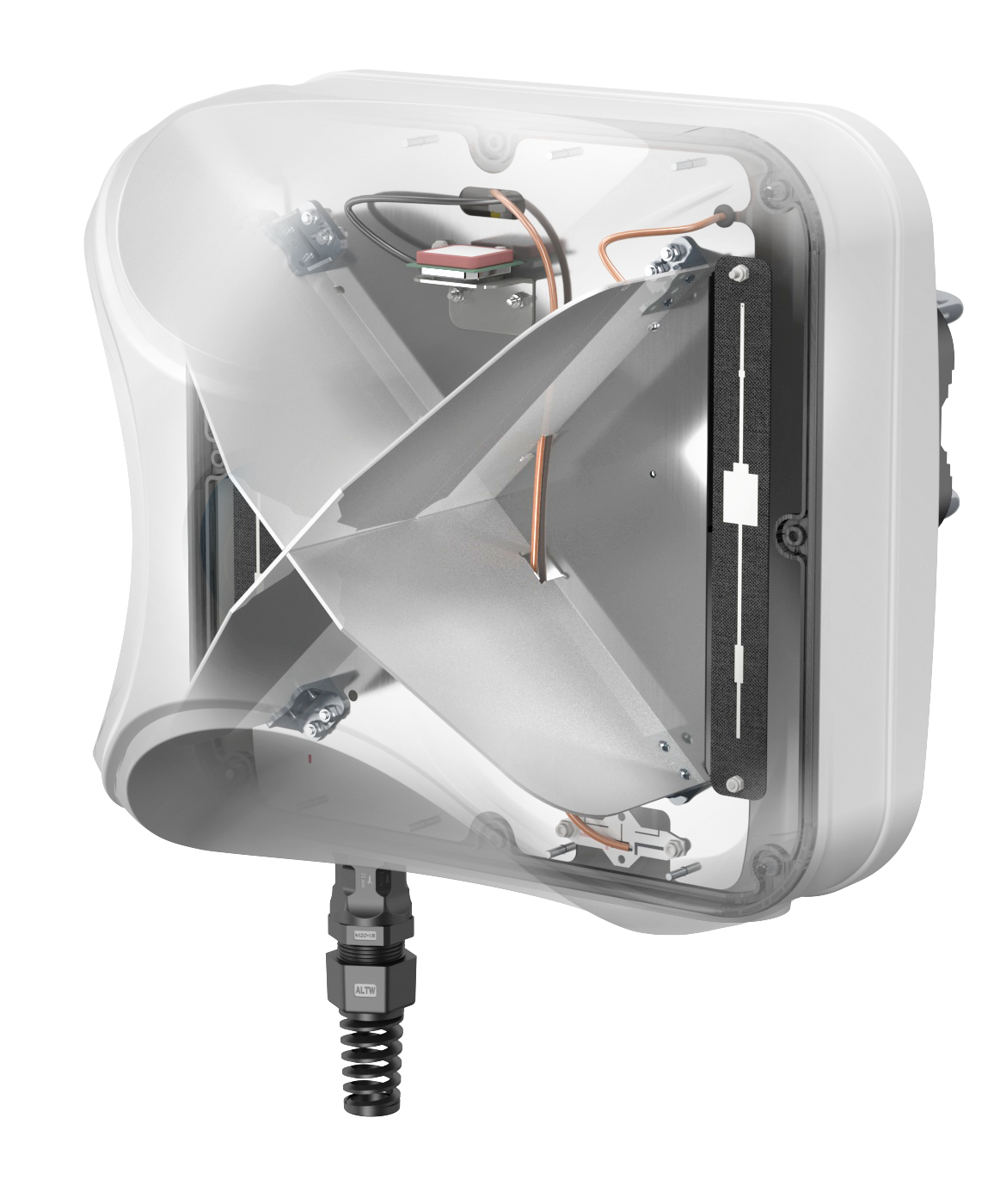

INTEGRATED MULTI-BAND LTE DIRECTIONAL ANTENNA + WIFI OMNI ANTENNA + BLUETOOTH ANTENA + GPS ANTENNA + PLACE TO INSTALL ROBUSTEL R2110 (ALL-IN-ONE)

QuMax all-in-one antenna for Robustel R2110 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G, omni Wi-Fi 6E, Bluetooth and GPS antenna. If you use R2110 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

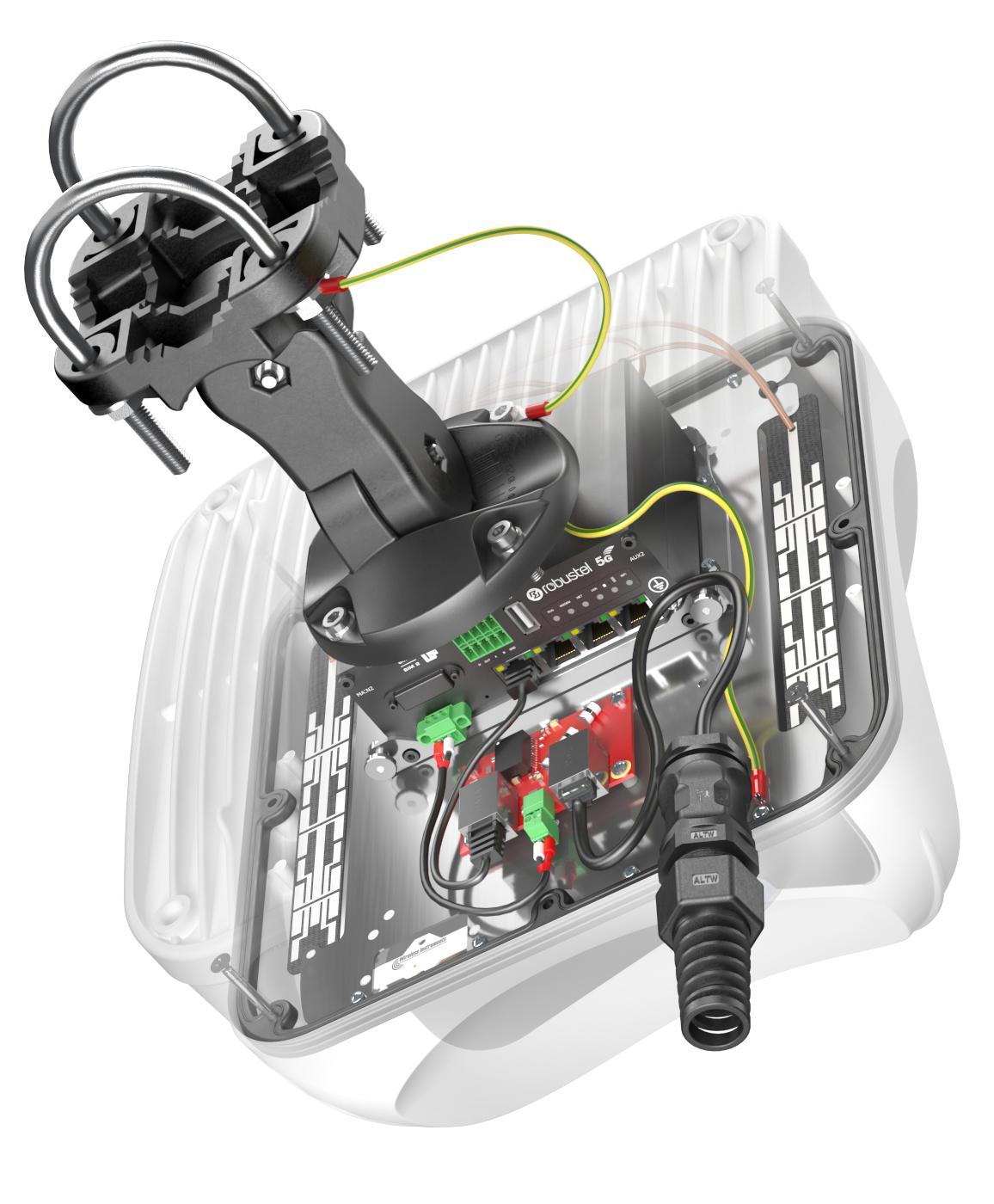

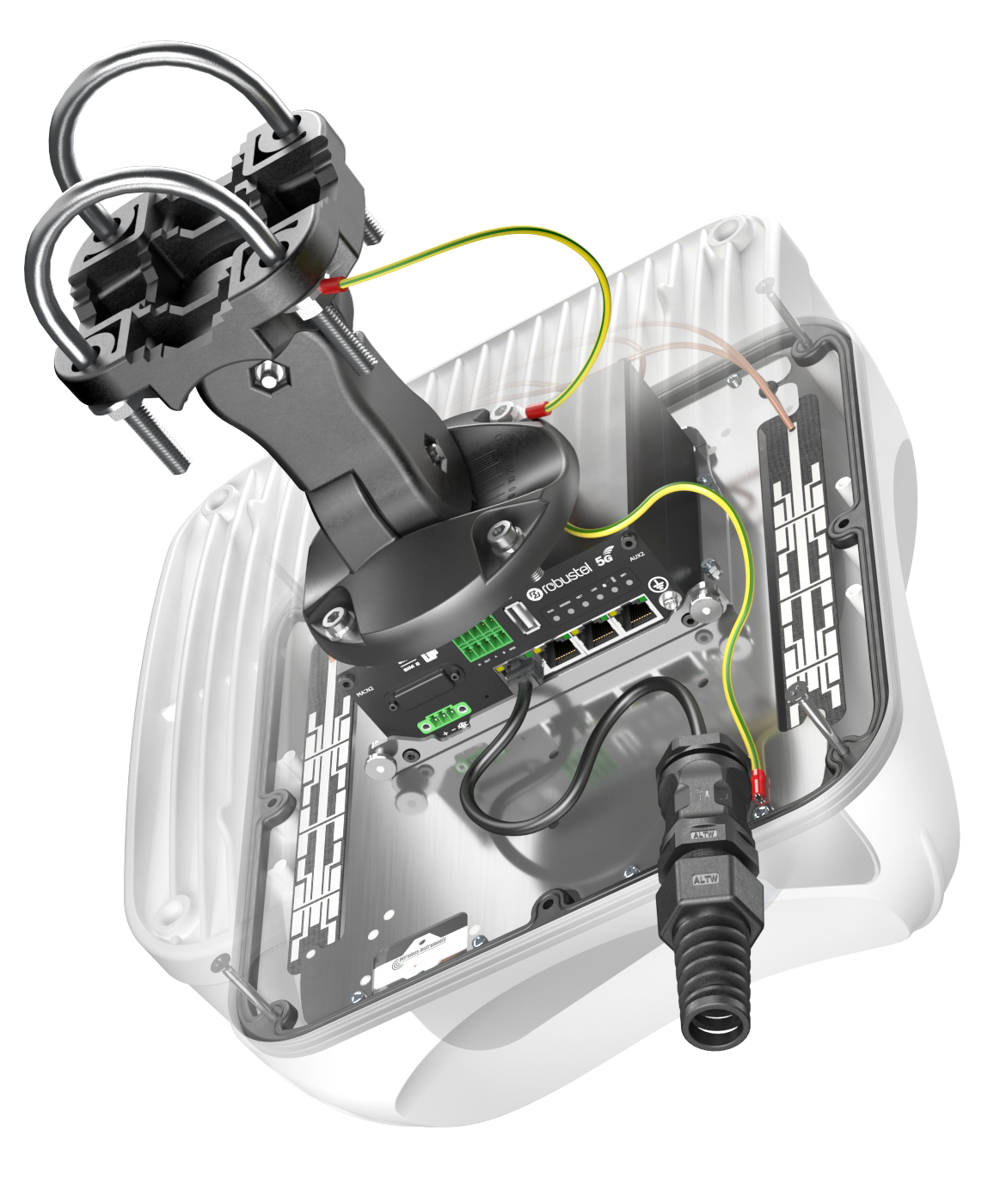

Note! This antenna comes in two different versions, depending on your router configuration. When you use R2110 supporting Power over Ethernet (PoE) please choose version "no PoE splitter'. For R2110 without PoE support, please choose "PoE splitter" version. Compatible Robustel part numbers available in the specification below.

Variants:

no PoE Splitter

PoE Splitter

Why QuMax for Robustel R2110

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Robustel R2110

All antennas and Robustel router integrated in one enclosure

Made in Europe

QuMax for Robustel R2110

SPECIFICATION

PRODUCT DETAILS

LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE PART NUMBERS

COMPATIBLE ROUTERS

FREQUENCY

0.694-0.96 GHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

SUPPORTED LTE/5G BANDS

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

GAIN

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.5 - 2.7 GHz : 6 dBi

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuMax for Robustel R2110

WI-FI VSWR

WI-FI VSWR of QuMax for Robustel R2110

5G/LTE Gain

5G/LTE Gain of QuMax for Robustel R2110

Wi-Fi Gain

Wi-Fi Gain of QuMax for Robustel R2110
5G/LTE Port 1 from 700MHz to 900MHz
Elevation
Azimuth
5G/LTE Port 1 from 1.71GHz to 2.17GHz
Elevation
Azimuth
5G/LTE Port 1 from 2.3GHz to 2.7GHz
Elevation
Azimuth
5G/LTE Port 1 from 3.3GHz to 3.8GHz
Elevation
Azimuth
5G/LTE Port 1 from 4.2GHz to 4.6GHz
Elevation
Azimuth
5G/LTE Port 1 from 5.0GHz to 5.9GHz
Elevation
Azimuth
5G/LTE Port 2 from 700MHz to 900MHz
Elevation
Azimuth
5G/LTE Port 2 from 1.71GHz to 2.17GHz
Elevation
Azimuth
5G/LTE Port 2 from 2.3GHz to 2.7GHz
Elevation
Azimuth
5G/LTE Port 2 from 3.3GHZ to 3.8GHz
Elevation
Azimuth
5G/LTE Port 2 from 4.2GHz to 4.6GHz
Elevation
Azimuth
5G/LTE Port 2 from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz and 6GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Robustel R2110QuMax for Robustel R2110

Download

Datasheet QuMax for Robustel R2110
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Robustel R2110
Use case QuMax for Robustel R2110
Use case QuMax for Robustel R2110
