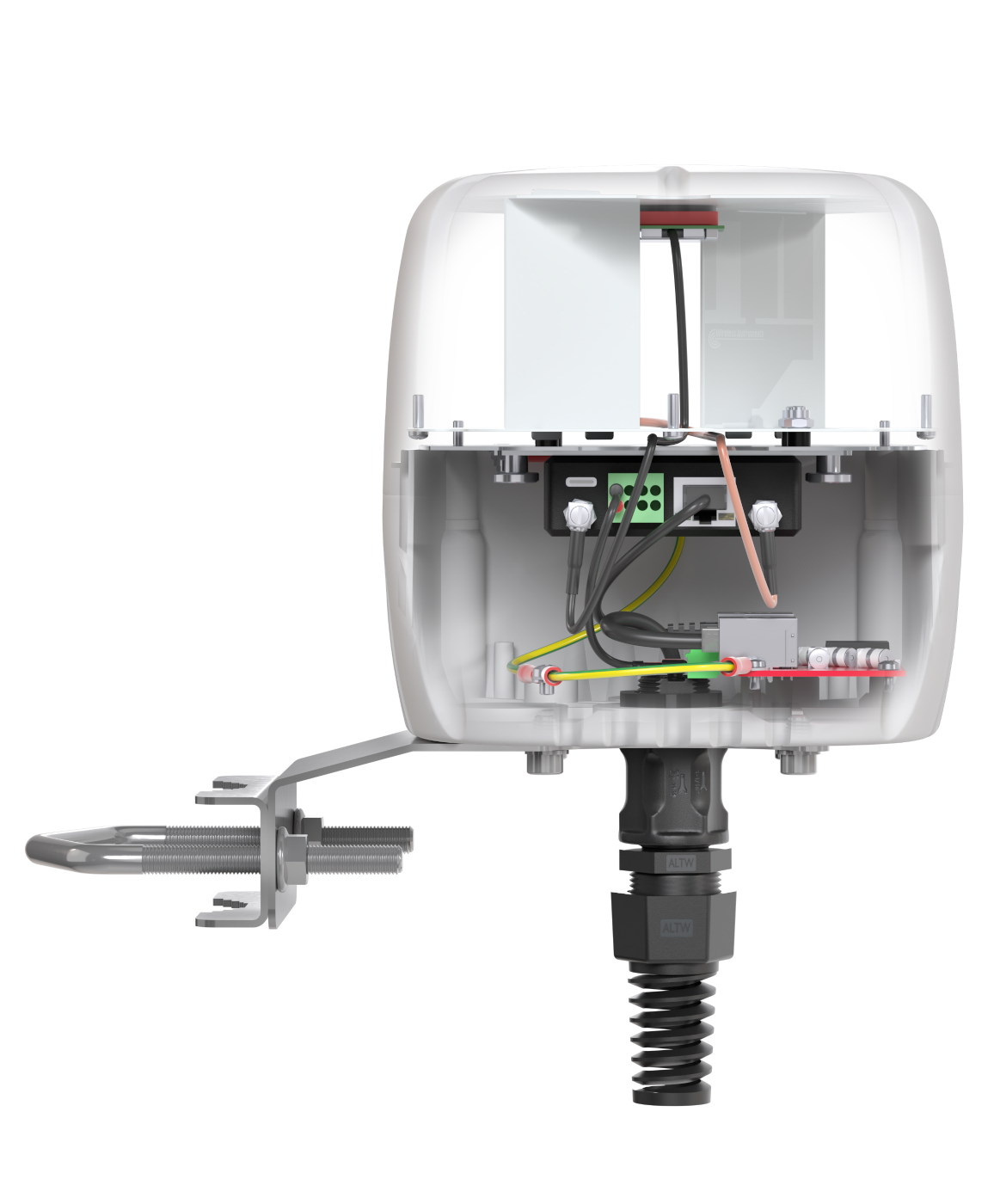

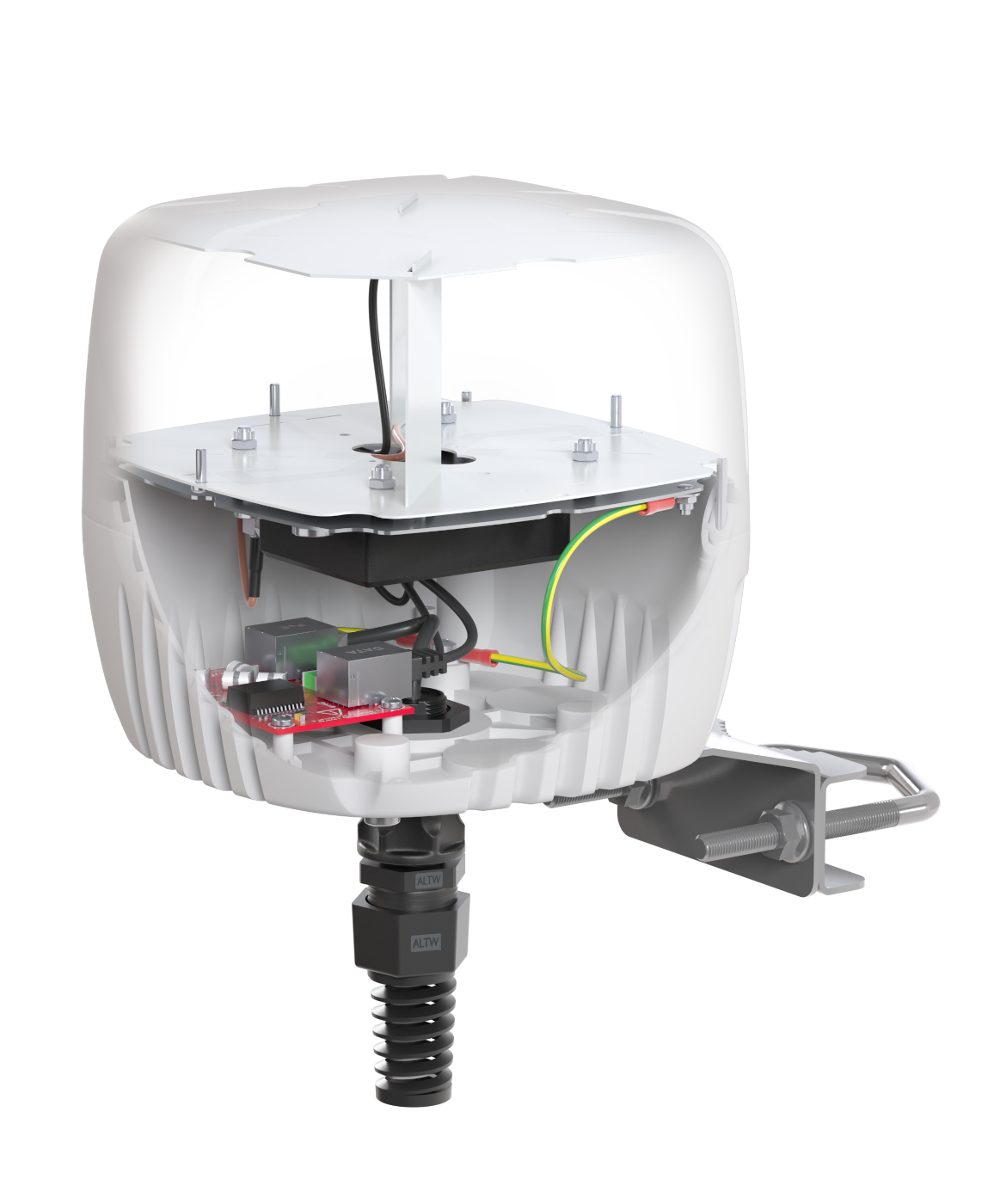

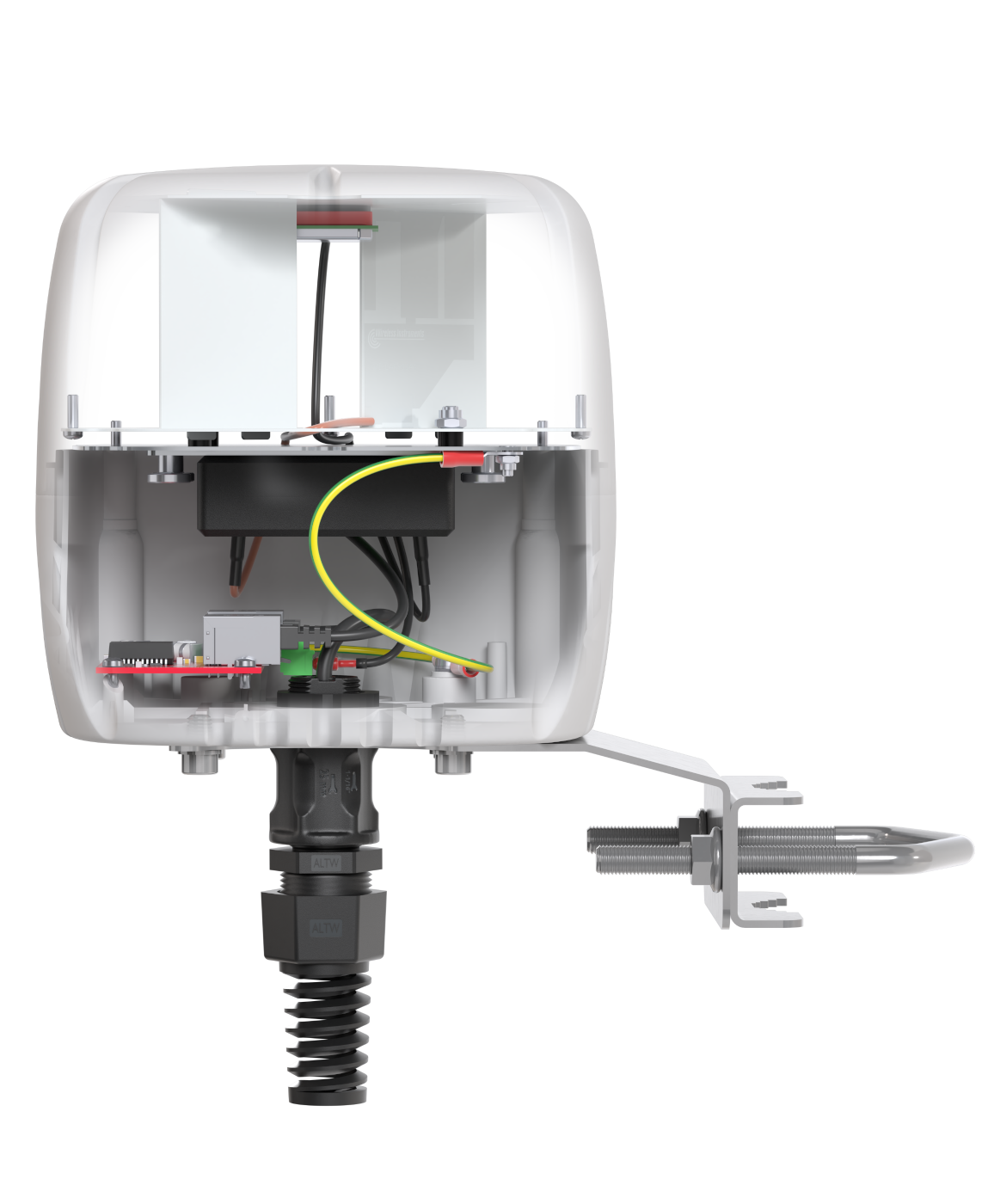

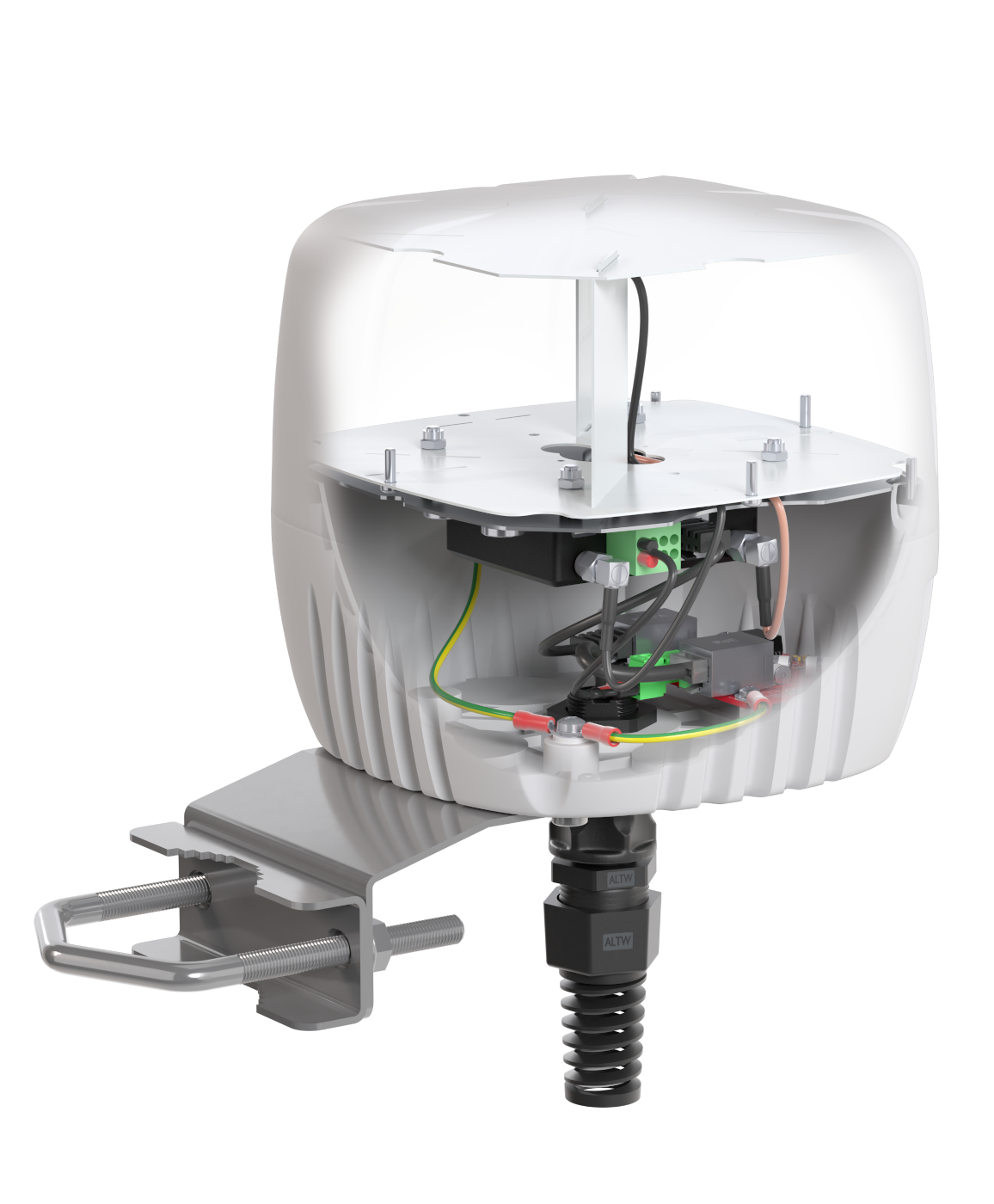

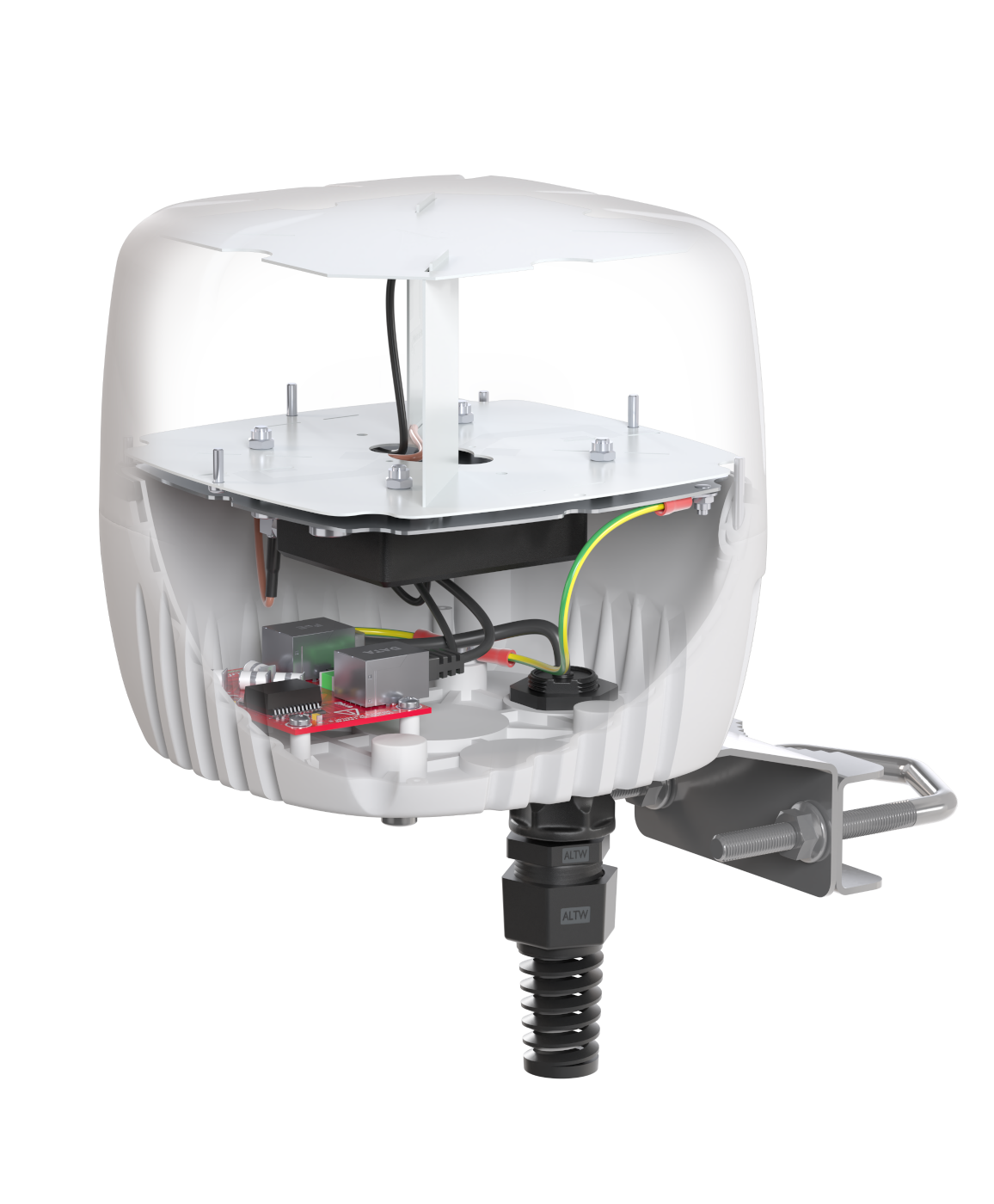

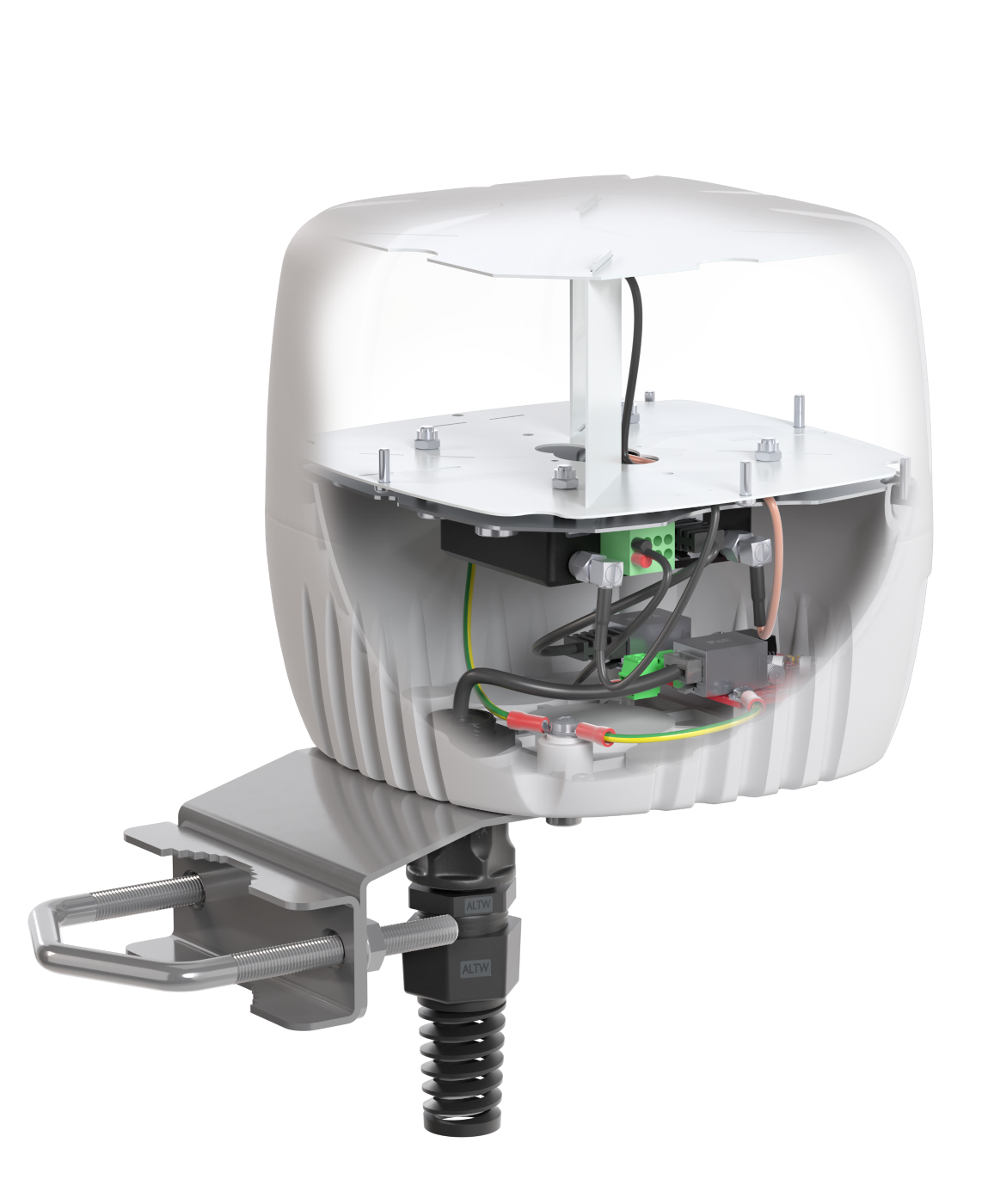

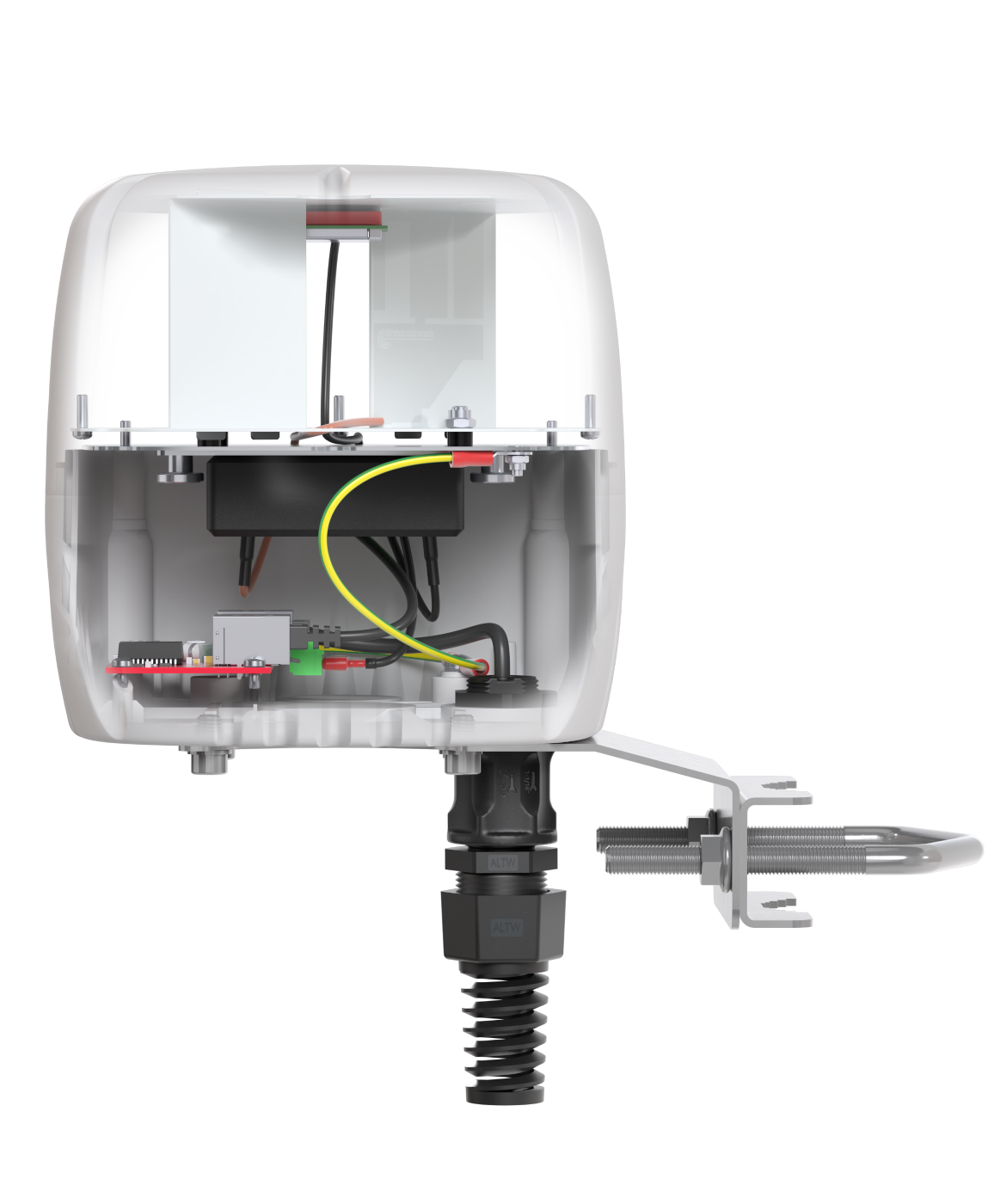

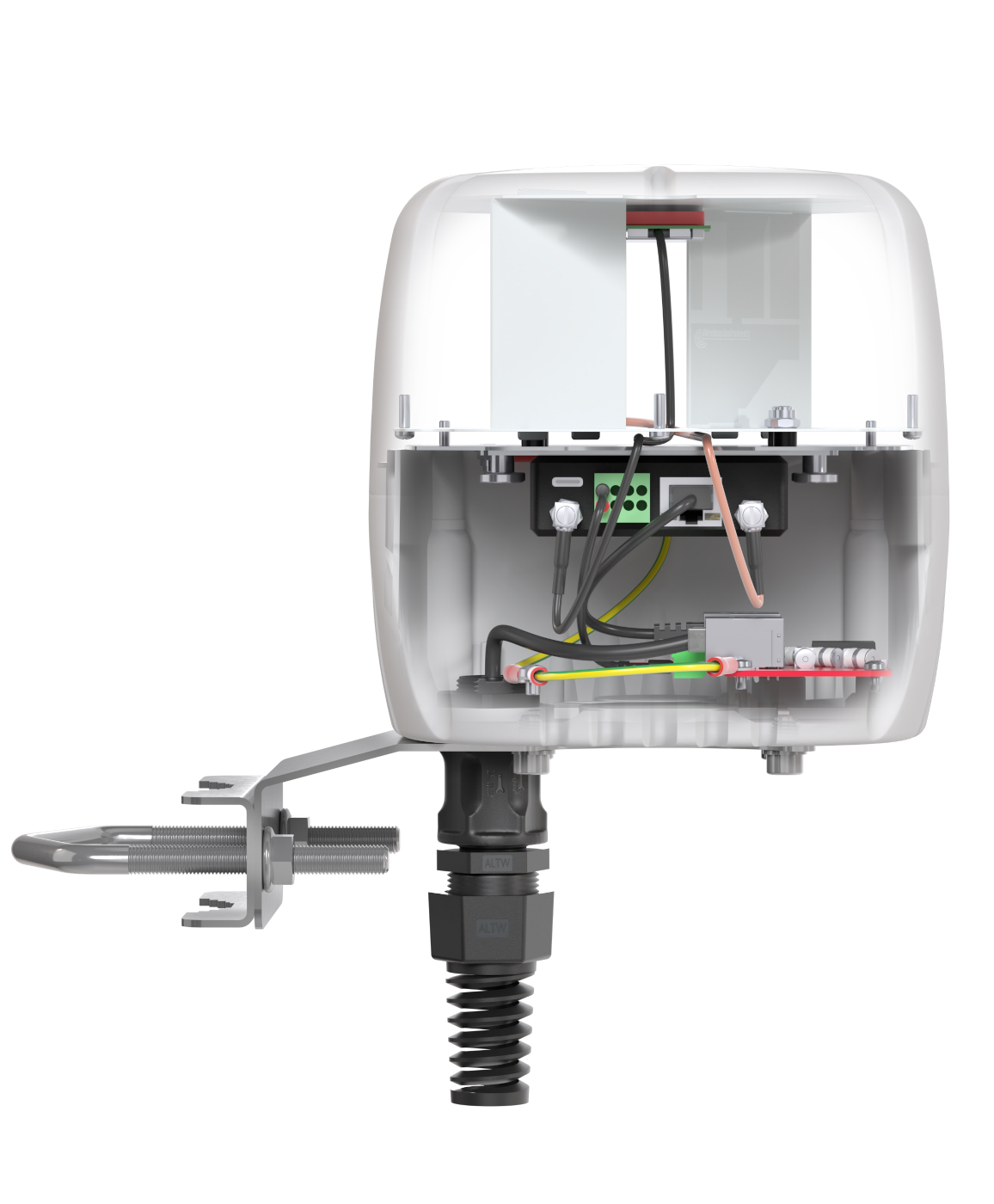

QuCube for Milesight UR41QuCube for Milesight UR41
QuCube for Milesight UR41QuCube for Milesight UR41
QuCube for Milesight UR41QuCube for Milesight UR41
QuCube for Milesight UR41QuCube for Milesight UR41
QuCube for Milesight UR41QuCube for Milesight UR41
QuCube for Milesight UR41QuCube for Milesight UR41

Antenna QuCube for Milesight UR41

P/n: AUR41C

INTEGRATED MULTI-BAND LTE & 5G OMNI ANTENNA + GPS ANTENNA + PASSIVE POE SPLITTER + PLACE TO INSTALL MILESIGHT UR41 (ALL-IN-ONE)

QuCube for Milesight UR41 is a revolutionary outdoor antenna solution that combines minimized dimensions with exceptional antenna performance. Designed specifically as an antenna for Milesight UR41 router, it delivers reliable, high-speed wireless connectivity in even the most demanding environments.

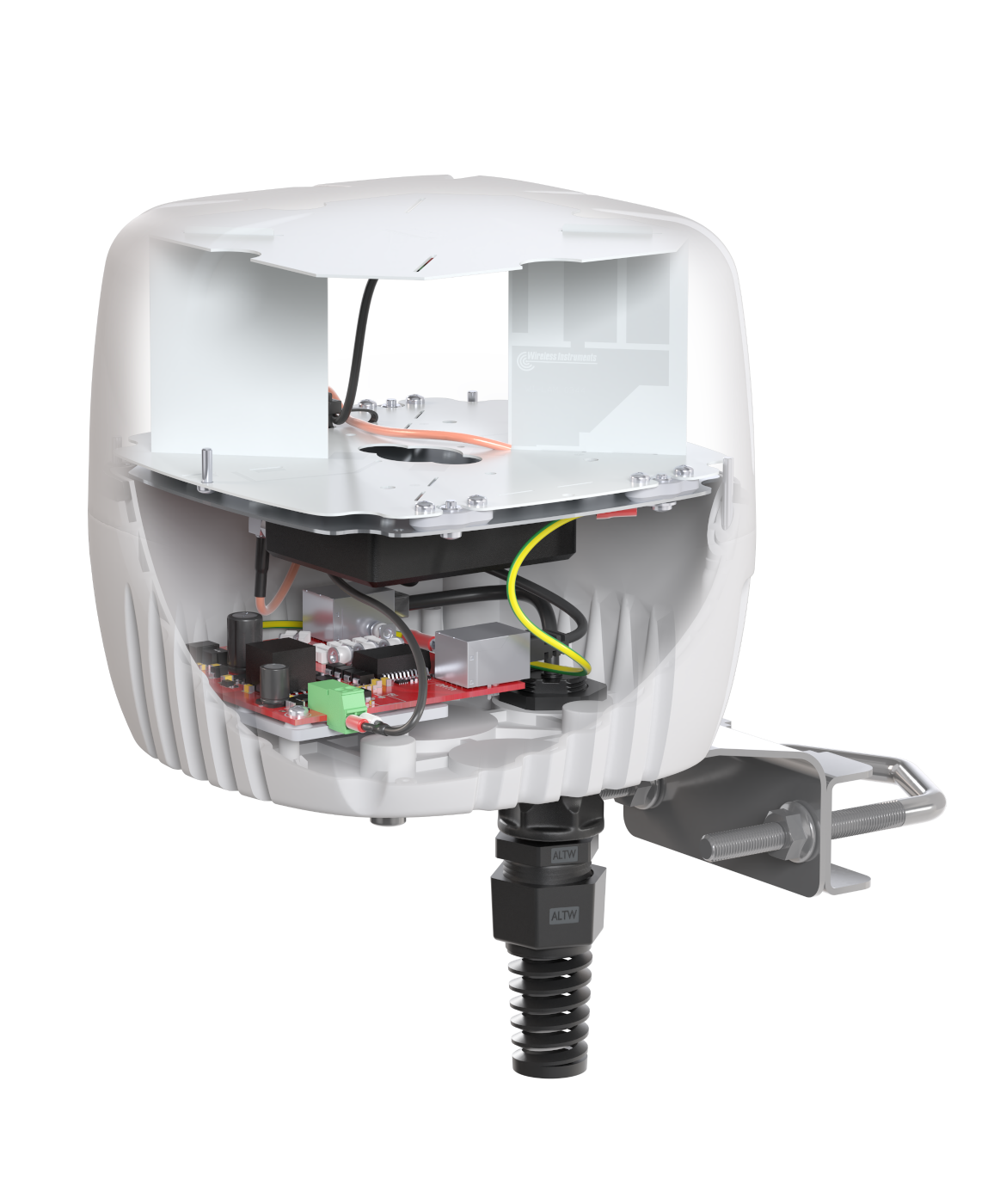

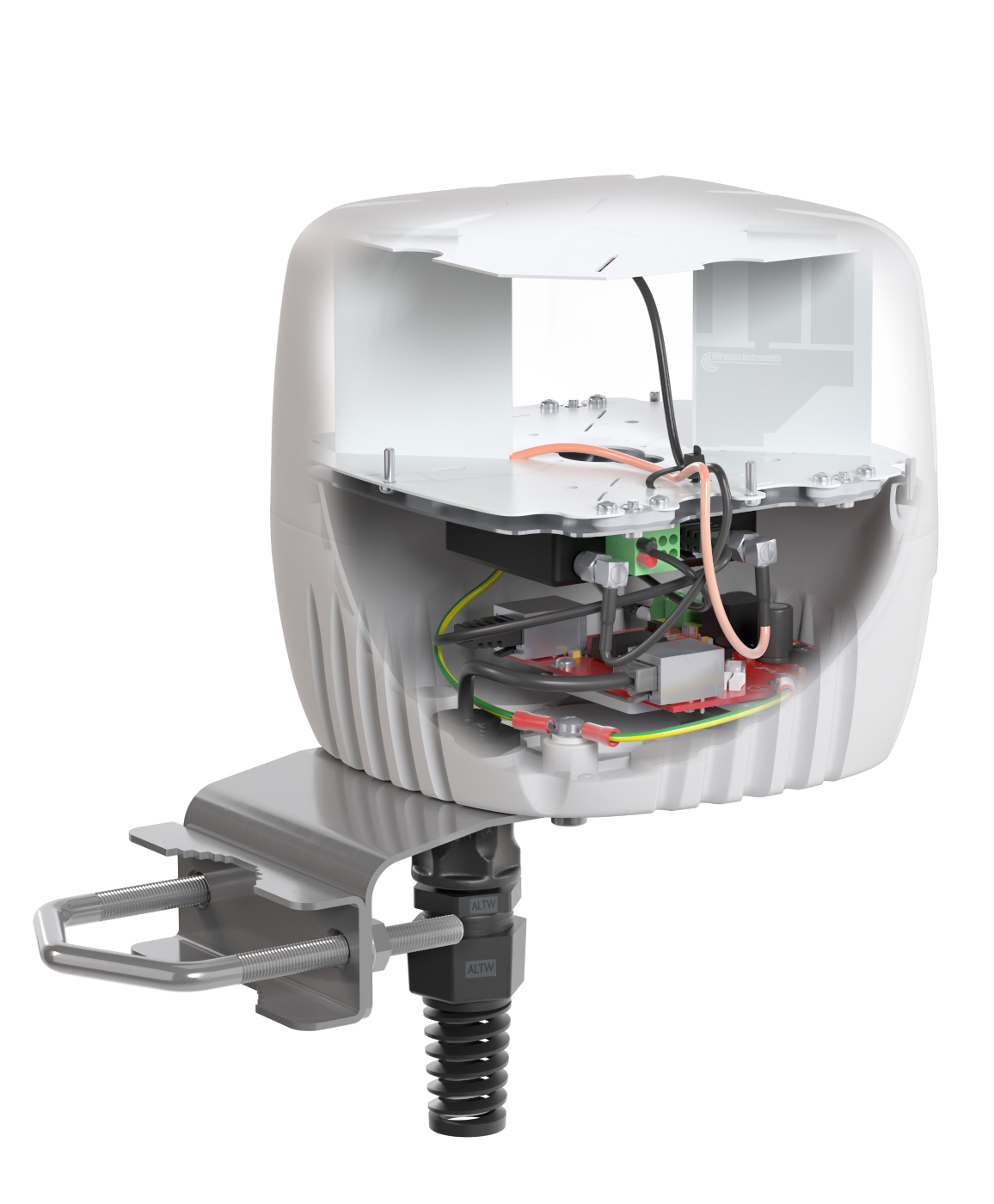

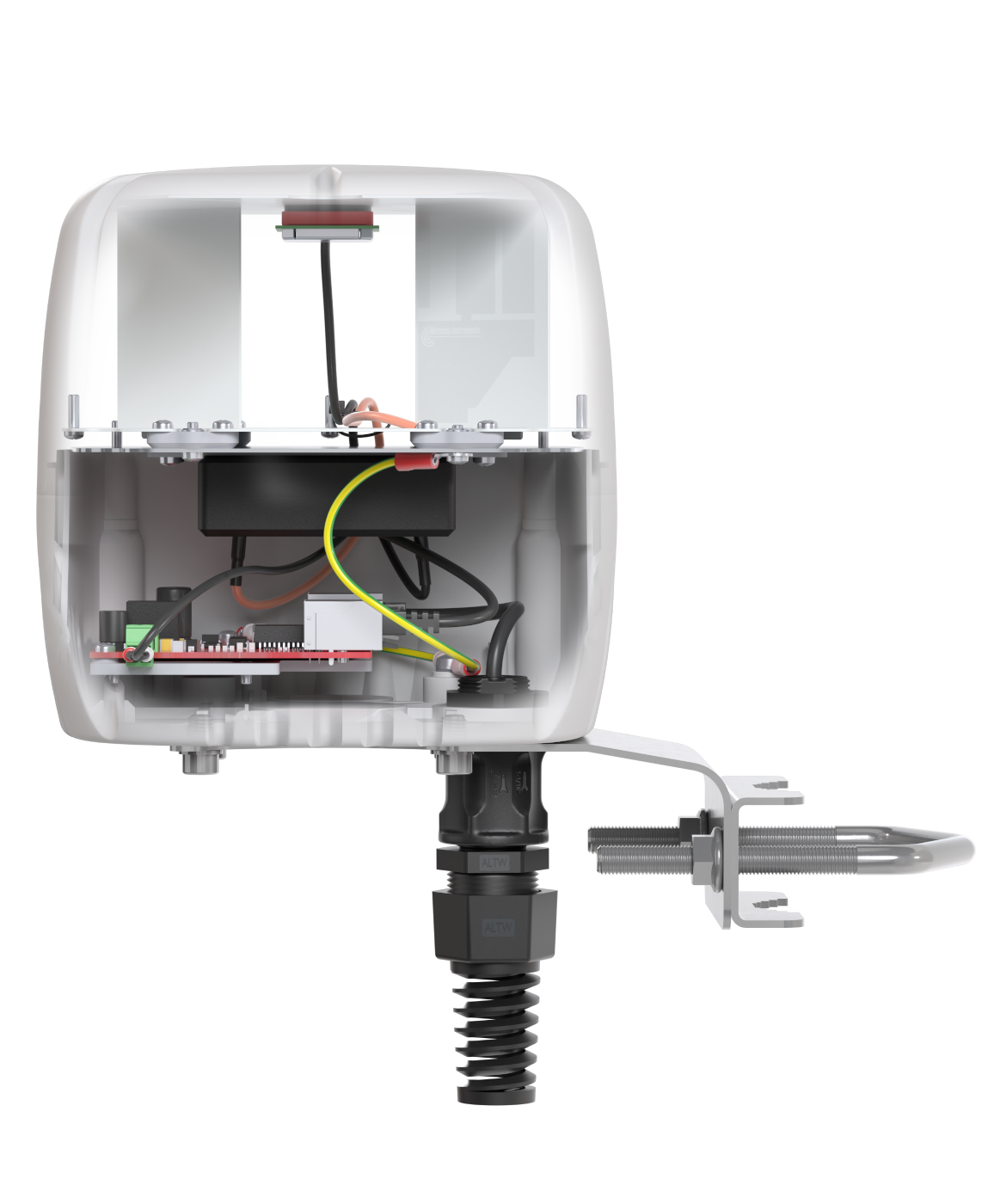

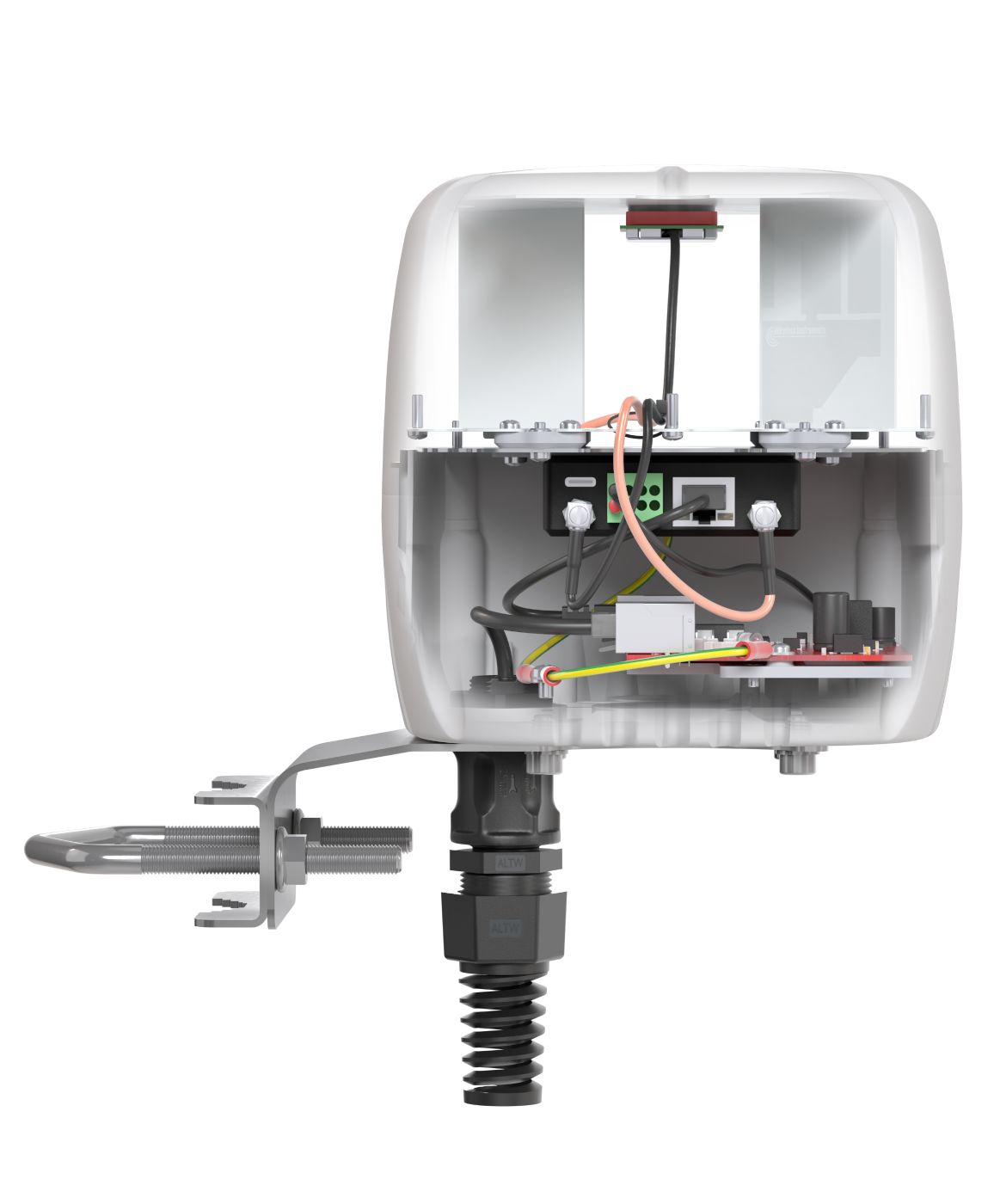

This all-in-one unit integrates high-gain omnidirectional 5G and GPS antennas with Milesight routers into a compact, rugged IP68-rated waterproof enclosure. The integration reduces installation complexity while enabling rapid deployment of advanced outdoor 5G solutions.

Engineered for outdoor and mobile applications, QuCube is ideal for use in transportation systems, for underground connectivity or urban and public installations. It ensures consistent performance wherever dependable connectivity is essential.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. NOTE: should only be used with a 24V (or lower voltage) Passive PoE power supply it is not compatible with an 802.3af/at power source!



Why QuCube for Milesight UR41

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Made in Europe

QuCube for Milesight UR41

SPECIFICATION

PRODUCT DETAILS

5G/LTE SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 3.8 GHz

4.2 - 6.0 GHz

GAIN

617 - 960 MHz : 2 dBi

1.7 - 2.7 GHz : 3 dBi

3.3 - 3.8 GHz : 3 dBi

4.2 - 6.0 GHz : 4 dBi

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<1.20, max <2.50

BEAMWIDTH

360°/35° ±5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuCube for Milesight UR41

5G/LTE GAIN

5G/LTE GAIN of QuCube for Milesight UR41
5G/LTE from 617MHz to 960MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.7GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.2GHz
Elevation
Azimuth
5G/LTE from 4.8GHz to 5.8GHz
Elevation
Azimuth
