Antenna QuMax for Teltonika RUTX11 ver. US (Band71)

P/n: AX11MUS

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WI-FI OMNI ANTENNA + GPS ACTIVE ANTENNA + BLUETOOTH ANTENNA + PLACE TO INSTALL TELTONIKA RUTX11 (ALL-IN-ONE)

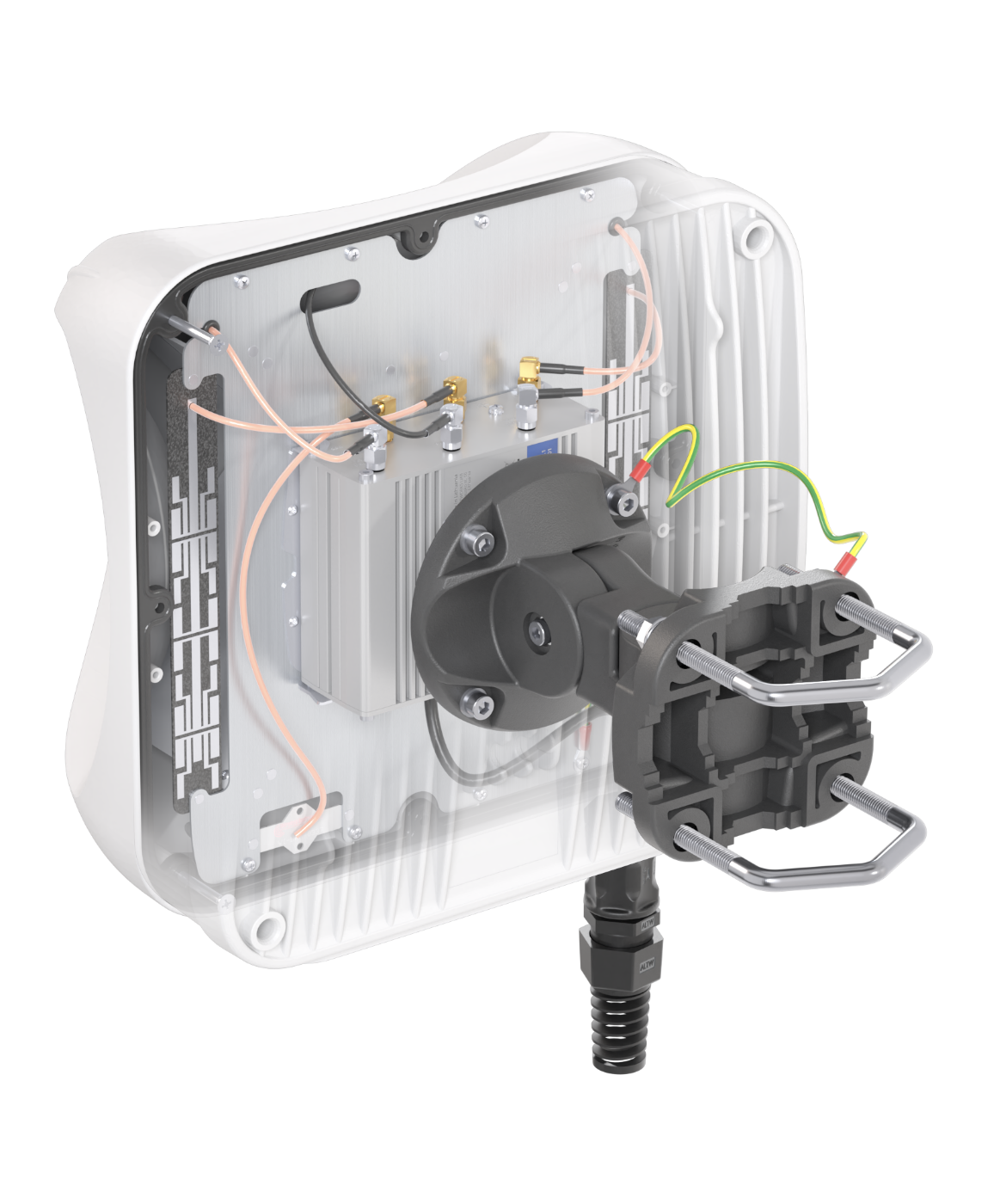

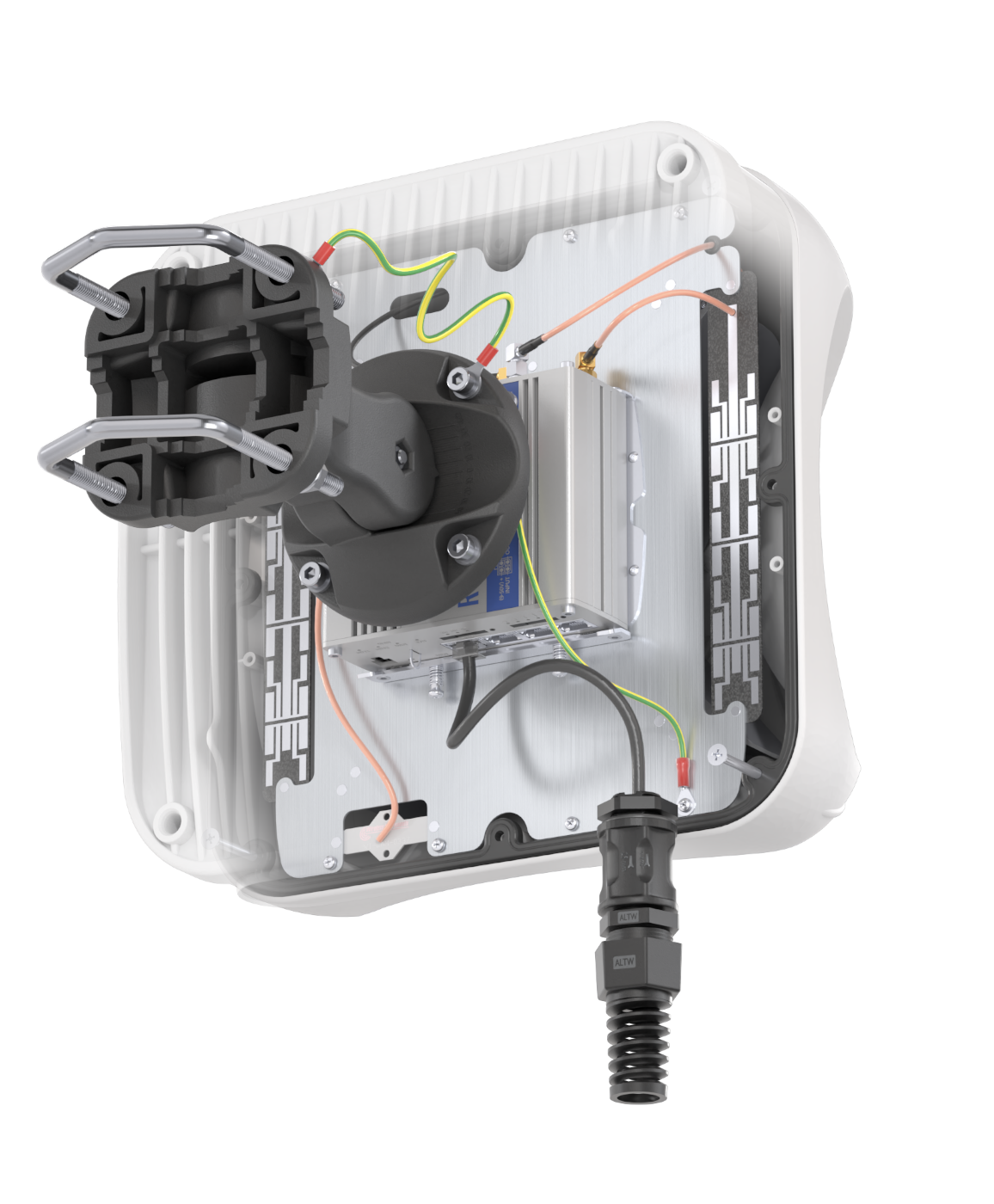

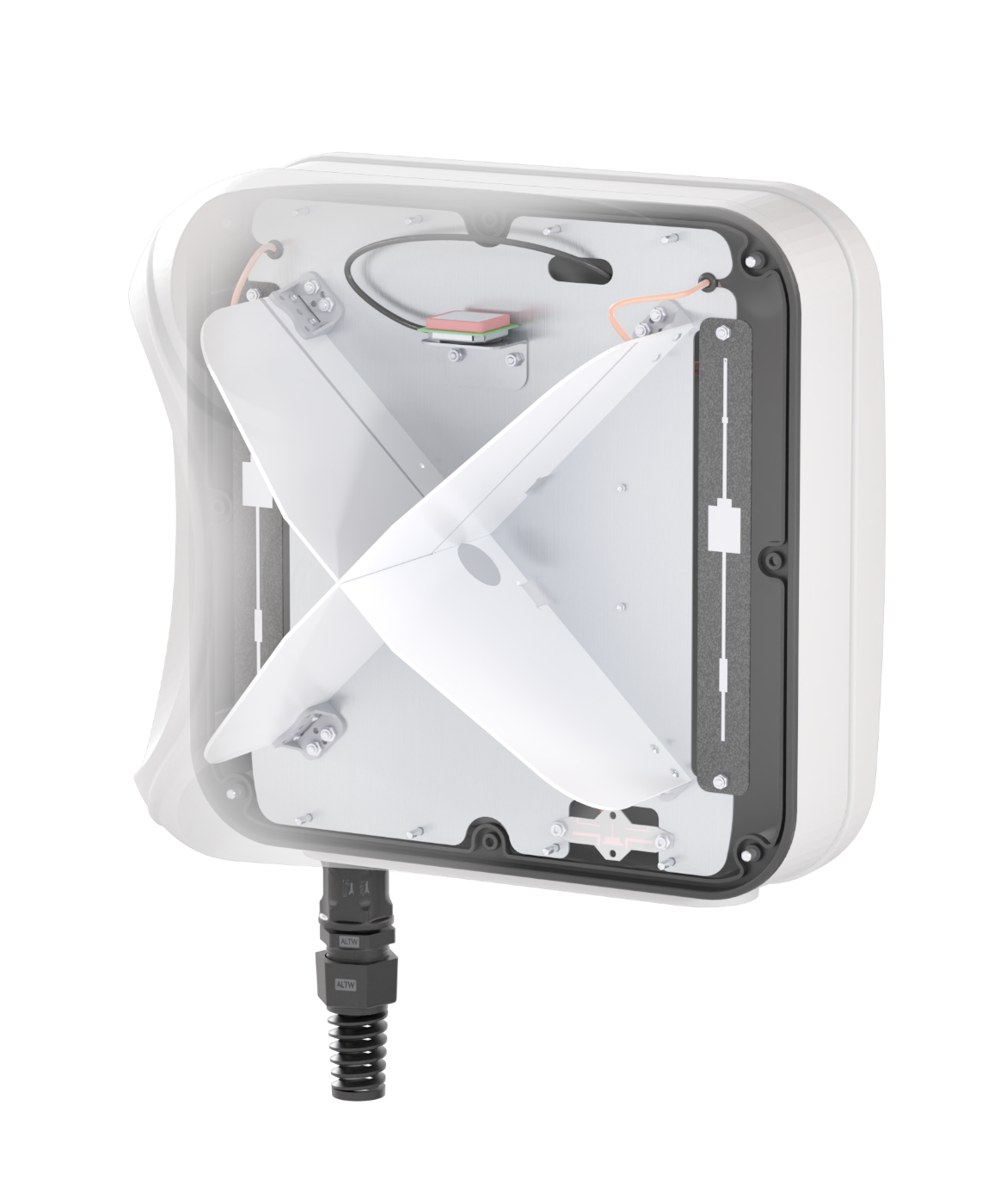

QuMax for RUTX11 ver. US (Band71) is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and Wi-Fi omni antennas.

Why QuMax for Teltonika RUTX11 ver. US (Band71)

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP67

MOUNTING SYSTEM WITH TWO PLANES, 60 DEGREES REGULATION

Wide band 600-6000MHz, 5G technology

ALL ANTENNAS AND TELTONIKA ROUTER INTEGRATED IN ONE ENCLOSURE

Made in Europe

QuMax for Teltonika RUTX11 ver. US (Band71)

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

GPS ACTIVE ANTENNA SPECIFICATION

BLUETOOTH ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

Gain

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

Supported LTE bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

<2.00, max <3.00

Beamwidth

80°/80° ±15°

Polarization

X (+-45degrees)

Impedance

50 Ω

Connector

2x SMA

Cable type

RG316

PLOTS

PRODUCT DETAILS

LTE VSWR

LTE VSWR of QuMax for Teltonika RUTX11 ver. US (Band71)

WI-FI VSWR

WI-FI VSWR of QuMax for Teltonika RUTX11 ver. US (Band71)

LTE Gain

LTE Gain of QuMax for Teltonika RUTX11 ver. US (Band71)

WI-FI Gain

WI-FI Gain of QuMax for Teltonika RUTX11 ver. US (Band71)
PORT 1 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 1 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 3.3GHz to 3.8GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 4.2GHz to 4.6GHz
Elevation
Azimuth
PORT 2 - 5G/LTE from 5.0GHz to 5.9GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Teltonika RUTX11 ver. US (Band71)QuMax for Teltonika RUTX11 ver. US (Band71)

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for Teltonika RUTX11 ver. US (Band71)

Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
1 x
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
1 x
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
1 x QuRJ45
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
2 x
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
1 x 8mm wrench
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
2 x
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
4 x
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
4 x M4 x 40
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
4 x M6 x 18
Parts of QuMax for Teltonika RUTX11 ver. US (Band71)
4 x M8
