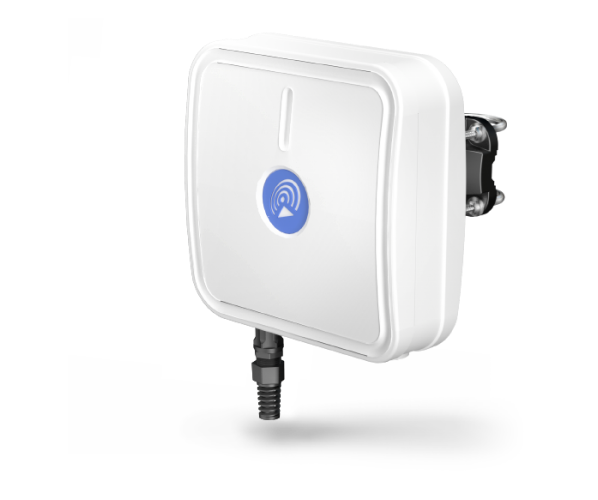

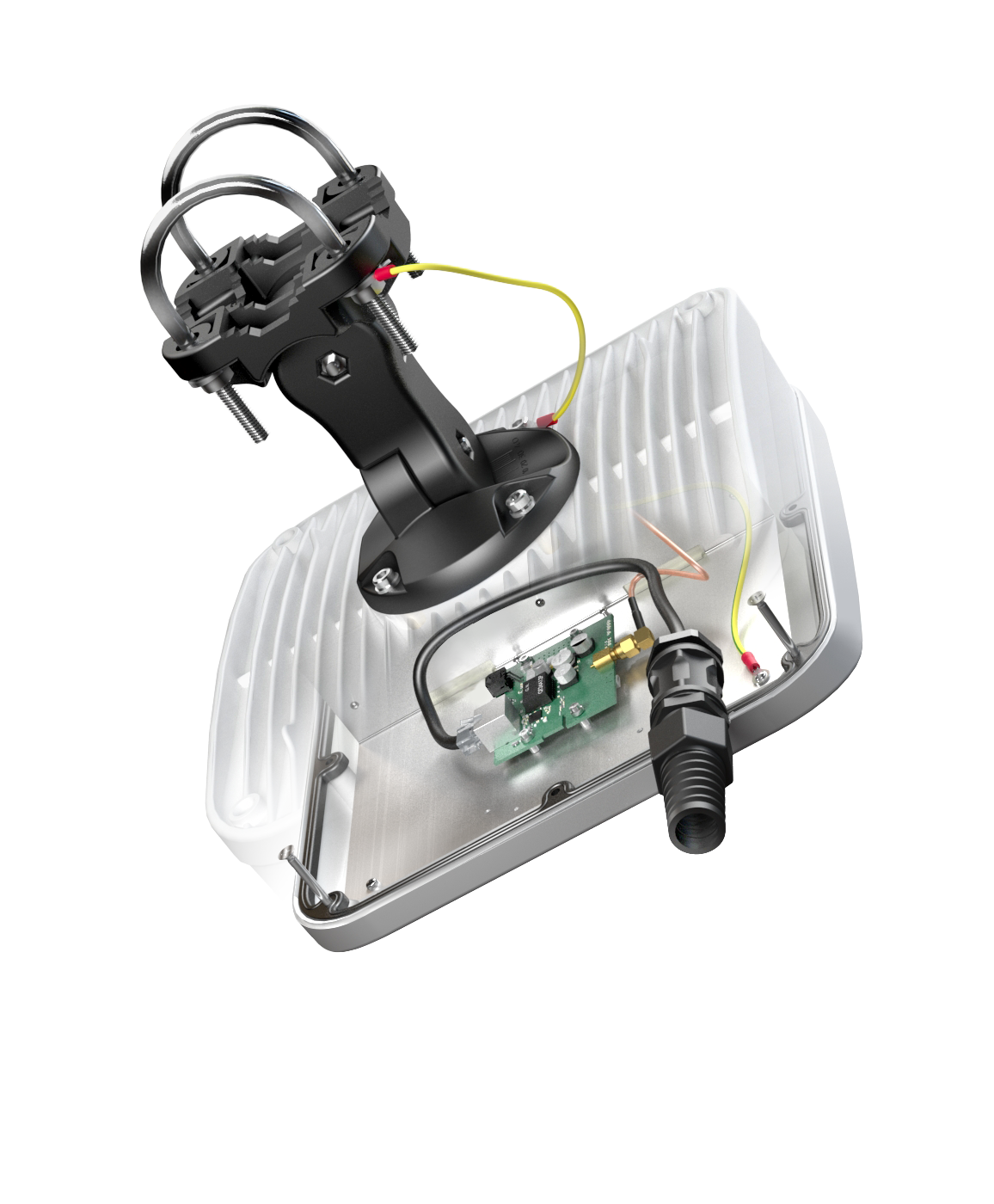

Antenna QuMax for TRB140

P/n: A140M

Integrated outdoor multi band high power LTE directional antenna + place to install Teltonika TRB140 (All-in-one)

QuMax offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika TRB140 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

This antenna is also compatible with TRB141, TRB142, TRB143 and TRB145.

Why QuMax for TRB140

Learn more about your profit

All antennas and Teltonika router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

QuMax for TRB140

SPECIFICATION

PRODUCT DETAILS

LTE antenna specification

Mechanical specification

COMPATIBLE ROUTERS

Frequency

0.694 - 0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n90, n95, n97, n98, n100, n101, n256

Gain

0.694 - 0.96 GHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax for TRB140

GAIN

GAIN of QuMax for TRB140
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for TRB140QuMax for TRB140
QuMax for TRB140QuMax for TRB140
QuMax for TRB140QuMax for TRB140

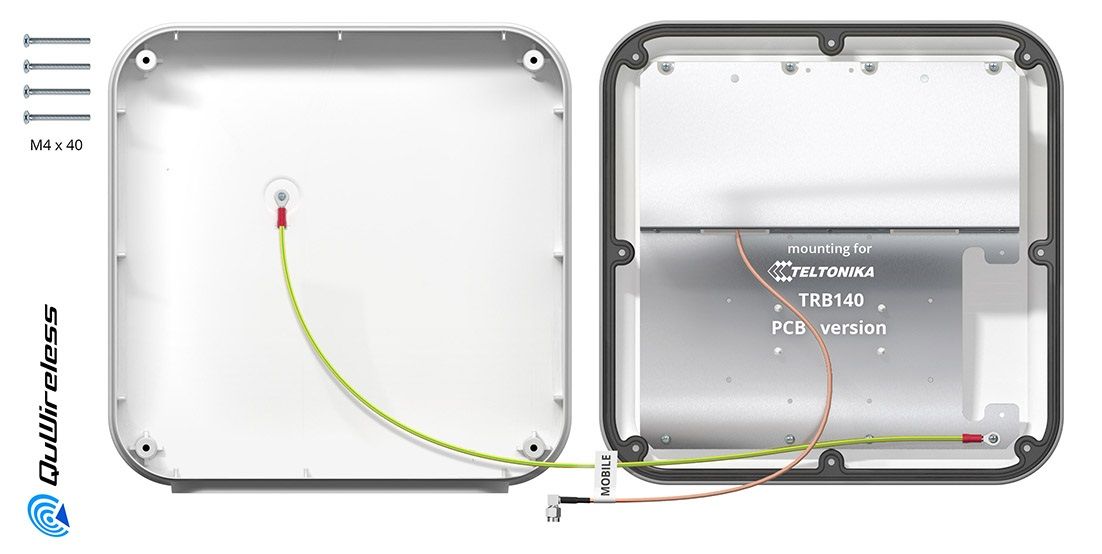

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuMax for Teltonika TRB140

Parts of QuMax for TRB140
1 x
Parts of QuMax for TRB140
4 M4 x 40
Parts of QuMax for TRB140
1 x QuRJ45
Parts of QuMax for TRB140
1 x
Parts of QuMax for TRB140
4 x M6 x 20
Parts of QuMax for TRB140
Parts of QuMax for TRB140
4 x M8
Parts of QuMax for TRB140
1 x 8mm wrench
Parts of QuMax for TRB140
2 x
Parts of QuMax for TRB140
1 x
