QuMax for Teltonika TRB160QuMax for Teltonika TRB160
QuMax for Teltonika TRB160QuMax for Teltonika TRB160
QuMax for Teltonika TRB160QuMax for Teltonika TRB160
QuMax for Teltonika TRB160QuMax for Teltonika TRB160

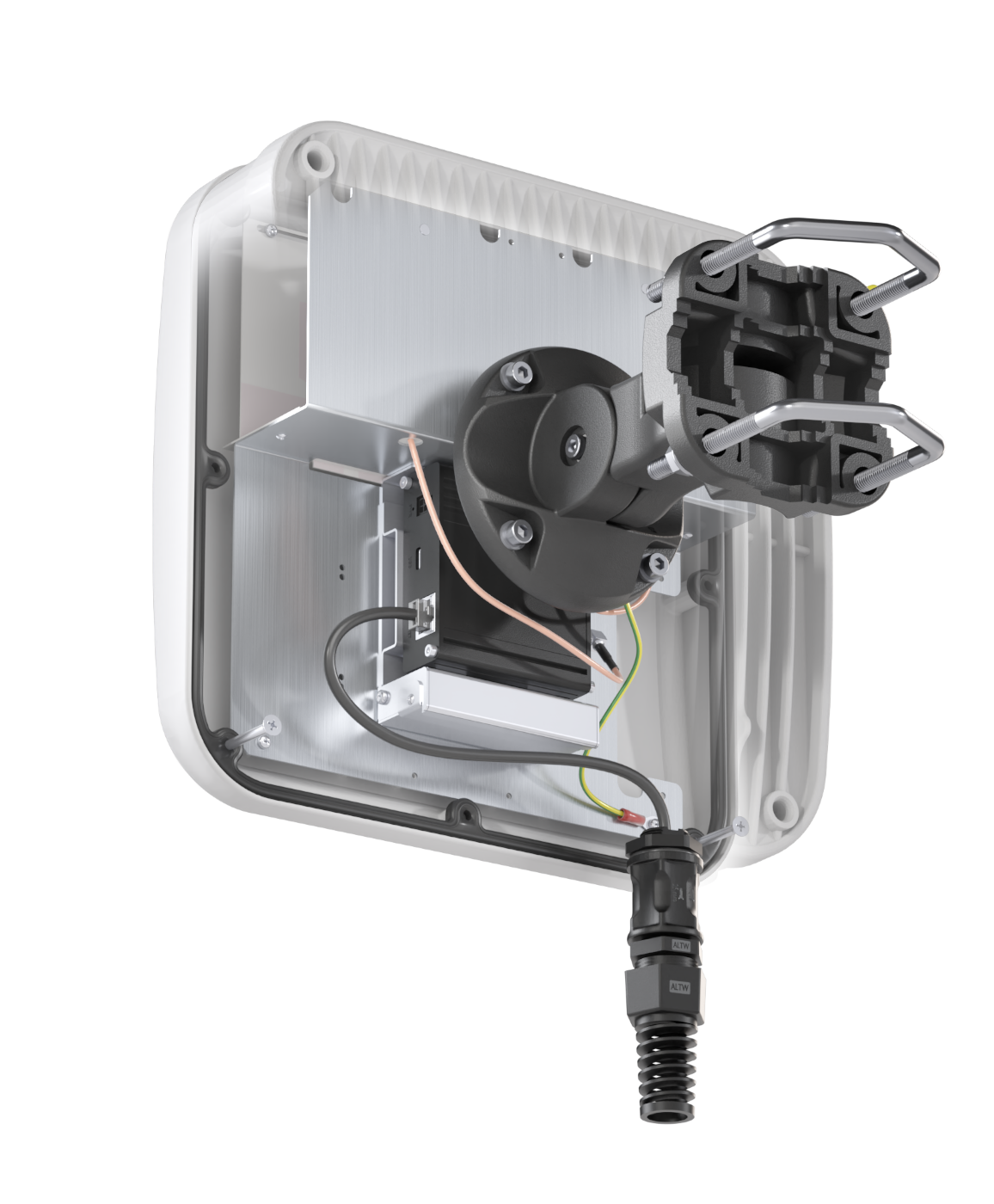

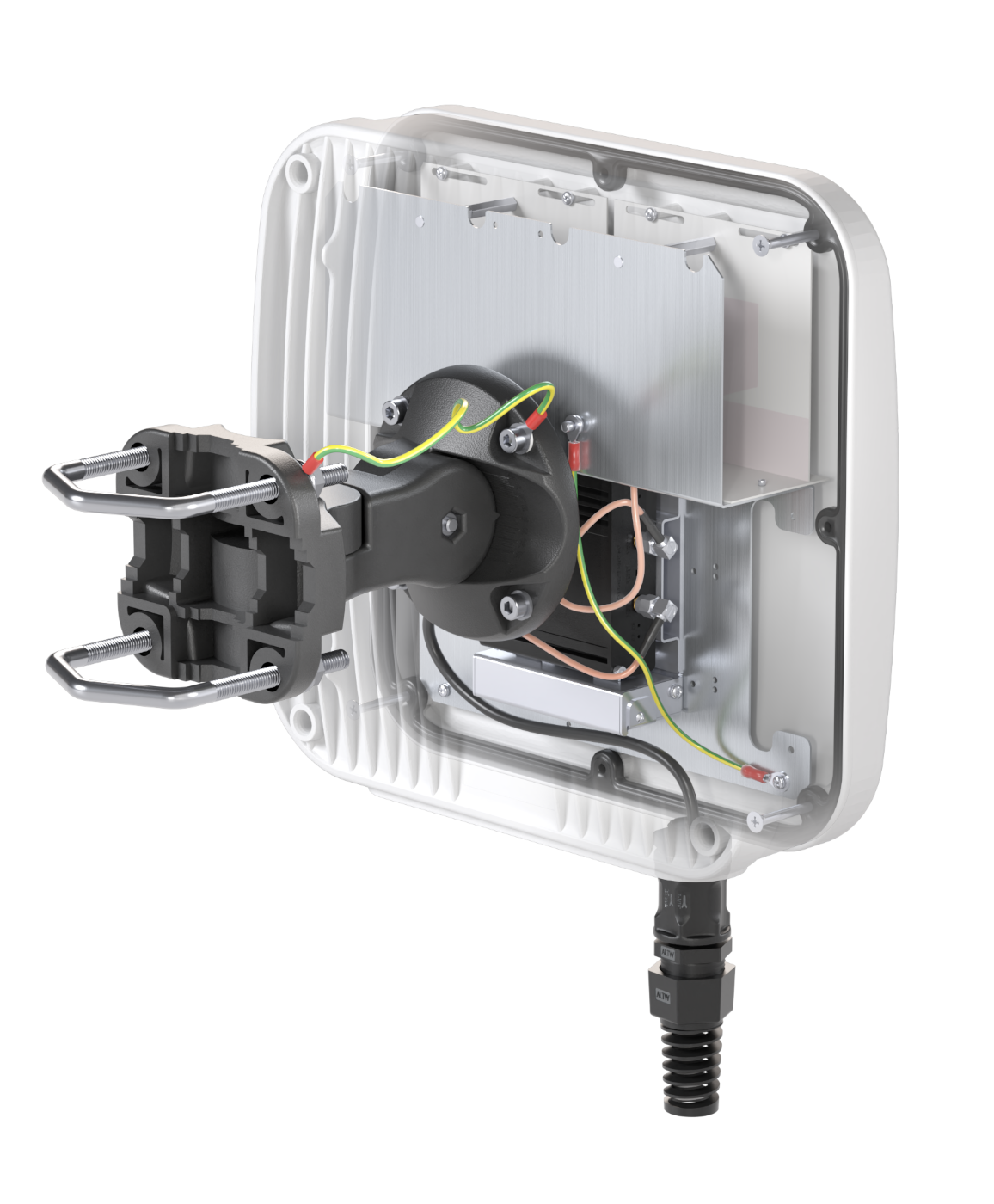

Antenna QuMax for Teltonika TRB160

P/n: A160M

Integrated outdoor multi-band high power LTE directional antenna + place to install Teltonika TRB160 (All-in-one)

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika TRB160 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

Technical specification

Any question?

Contact us

Why QuMax for Teltonika TRB160

Learn more about your profit

All antennas and Teltonika router integrated in one enclosure

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Made in Europe

QuMax for Teltonika TRB160

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

Gain

694 - 960 MHz : 4 dBi

1.7 - 2.2 GHz : 5 dBi

2.2 - 2.7 GHz : 6 dBi

Front-to-Back

>8 dB

VSWR

<1.30, max <1.80

Beamwidth

90°/90° ±30°

Polarization

Vertical

Impedance

50 Ω

Connector

2x SMA

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMax for Teltonika TRB160

Gain for LTE antenna

Gain for LTE antenna of QuMax for Teltonika TRB160
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Teltonika TRB160QuMax for Teltonika TRB160
QuMax for Teltonika TRB160QuMax for Teltonika TRB160
QuMax for Teltonika TRB160QuMax for Teltonika TRB160

Download

Datasheet QuMax for Teltonika TRB160
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Teltonika TRB160
Use case QuMax for Teltonika TRB160
Use case QuMax for Teltonika TRB160
