Antenna QuMax for Peplink MAX BR1 Pro 5G

P/n: APMBR1M

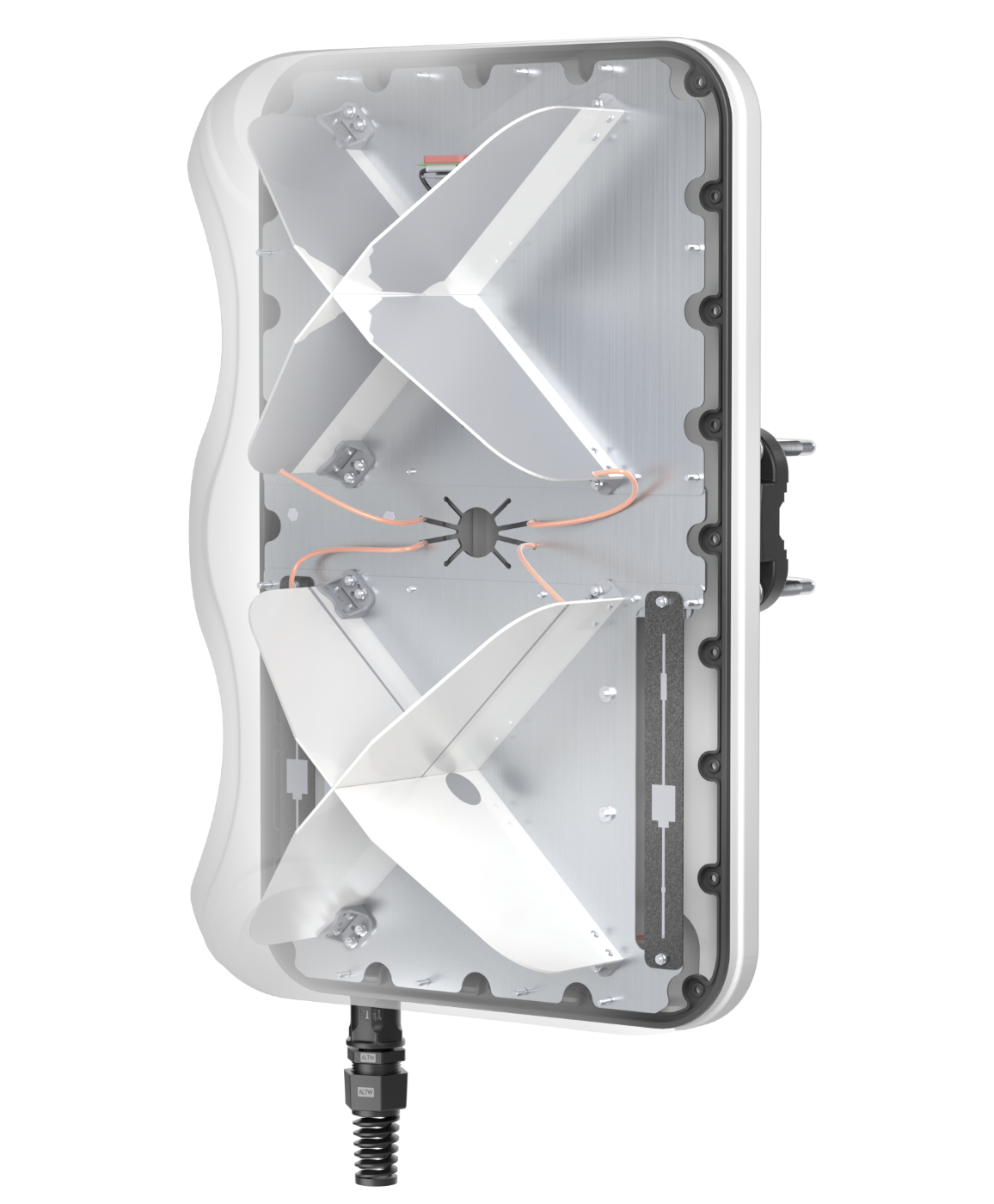

INTEGRATED MULTI-BAND 5G DIRECTIONAL ANTENNA + WIFI OMNI ANTENNA + GPS ANTENNA + PLACE TO INSTALL PEPLINK MAX BR1 PRO 5G (ALL-IN-ONE)

QuMax all-in-one antenna for Peplink MAX BR1 Pro 5G router is dedicated to connections with long distance to base station. It has embedded directional 5G, Wi-Fi and GPS antenna. If you use MAX BR1 Pro 5G with QuMax Omni antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure. It is the first choice for fixed installations in industrial environment.

It is also compatible with the Peplink MAX BR1 Pro CAT-20.

Why QuMax for Peplink MAX BR1 Pro 5G

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the Peplink MAX BR1 Pro 5G

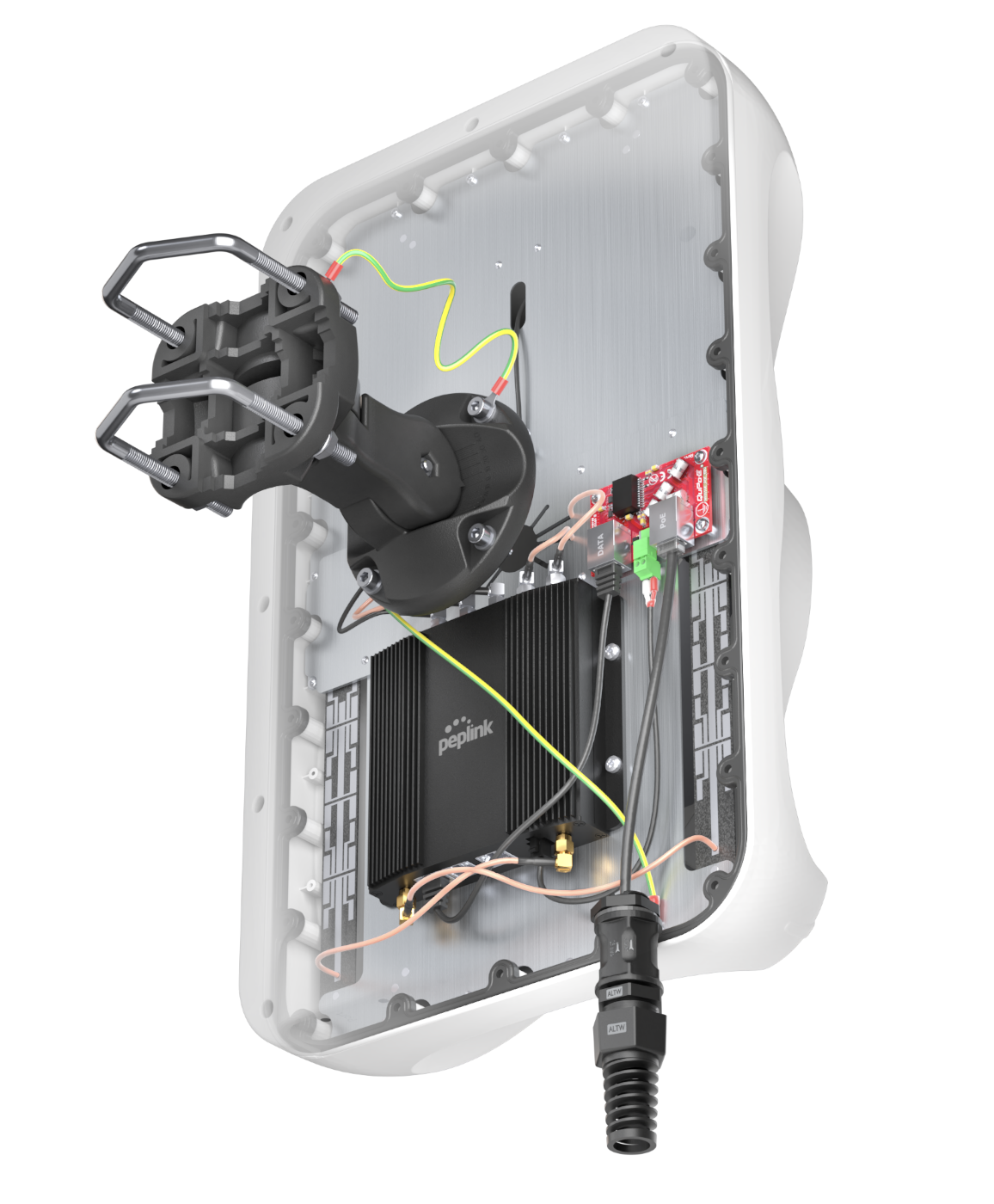

All antennas and Peplink router integrated in one enclosure

Made in Europe

QuMax for Peplink MAX BR1 Pro 5G

SPECIFICATION

PRODUCT DETAILS

5G/LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.6 GHz

4.7 - 6.0 GHz

SUPPORTED LTE BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

SUPPORTED 5G BANDS

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

GAIN

617 - 960 MHz : 6 dBi

1.7 - 2.7 GHz : 7 dBi

3.3 - 4.6 GHz : 7 dBi

4.7 - 6.0 GHz : 5.5dBi

VSWR

<2.00, max <3.00

BEAMWIDTH

80°/80° ±15°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuMax for Peplink MAX BR1 Pro 5G

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax for Peplink MAX BR1 Pro 5G

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuMax for Peplink MAX BR1 Pro 5G

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax for Peplink MAX BR1 Pro 5G
5G/LTE Port 1/3 from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE Port 1/3 from 1.71GHz to 2.17GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 2.3GHz to 2.7GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 3.3 GHz to 3.8 GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 4.2 GHz to 4.6 GHz
Elevation
Azimuth
5G/LTE Port 1/3 from 5.0 GHz to 5.9 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 650 MHz to 950 MHz
Elevation
Azimuth
5G/LTE Port 2/4 from 1.71 GHz to 2.17 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 2.3 GHz to 2.7 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 3.3 GHz to 3.8 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 4.2 GHz to 4.6 GHz
Elevation
Azimuth
5G/LTE Port 2/4 from 5.0 GHz to 5.9 GHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax for Peplink MAX BR1 Pro 5GQuMax for Peplink MAX BR1 Pro 5G

Download

Datasheet QuMax for Peplink MAX BR1 Pro 5G
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax for Peplink MAX BR1 Pro 5G
Use case QuMax for Peplink MAX BR1 Pro 5G
Use case QuMax for Peplink MAX BR1 Pro 5G
