Antenna QuMax XR for Cisco 9120AXE

P/n: AC9120.17HV.90.M

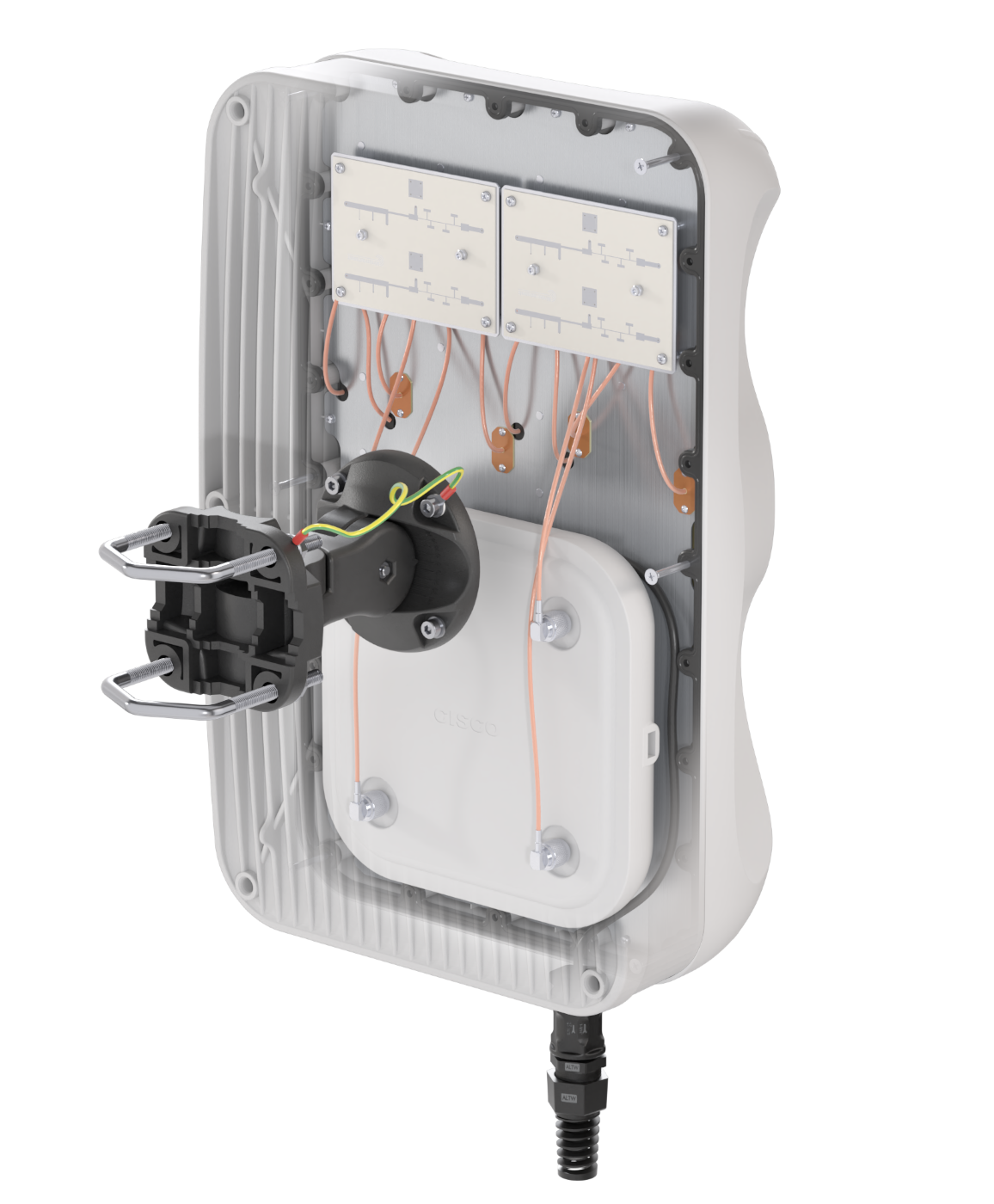

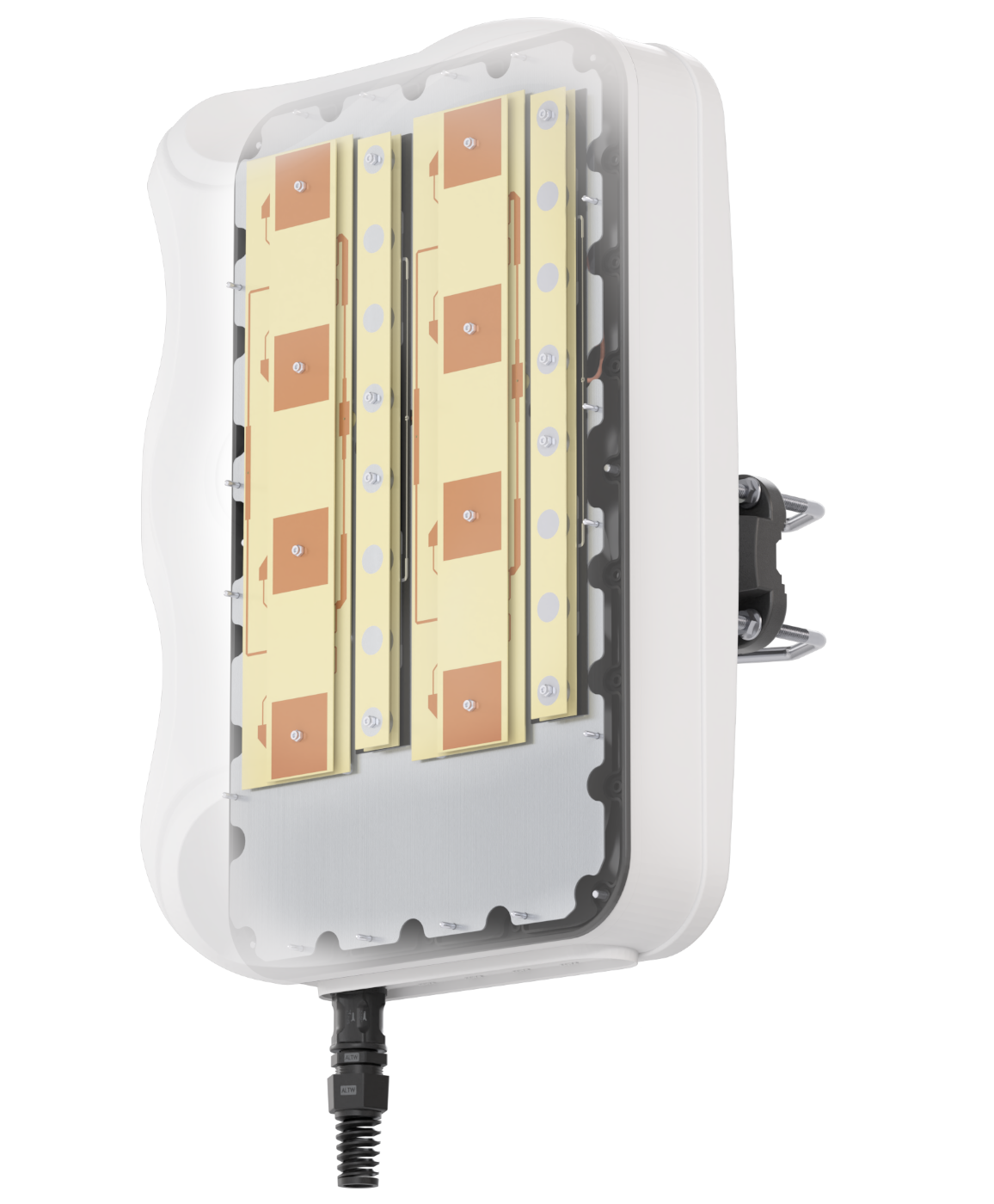

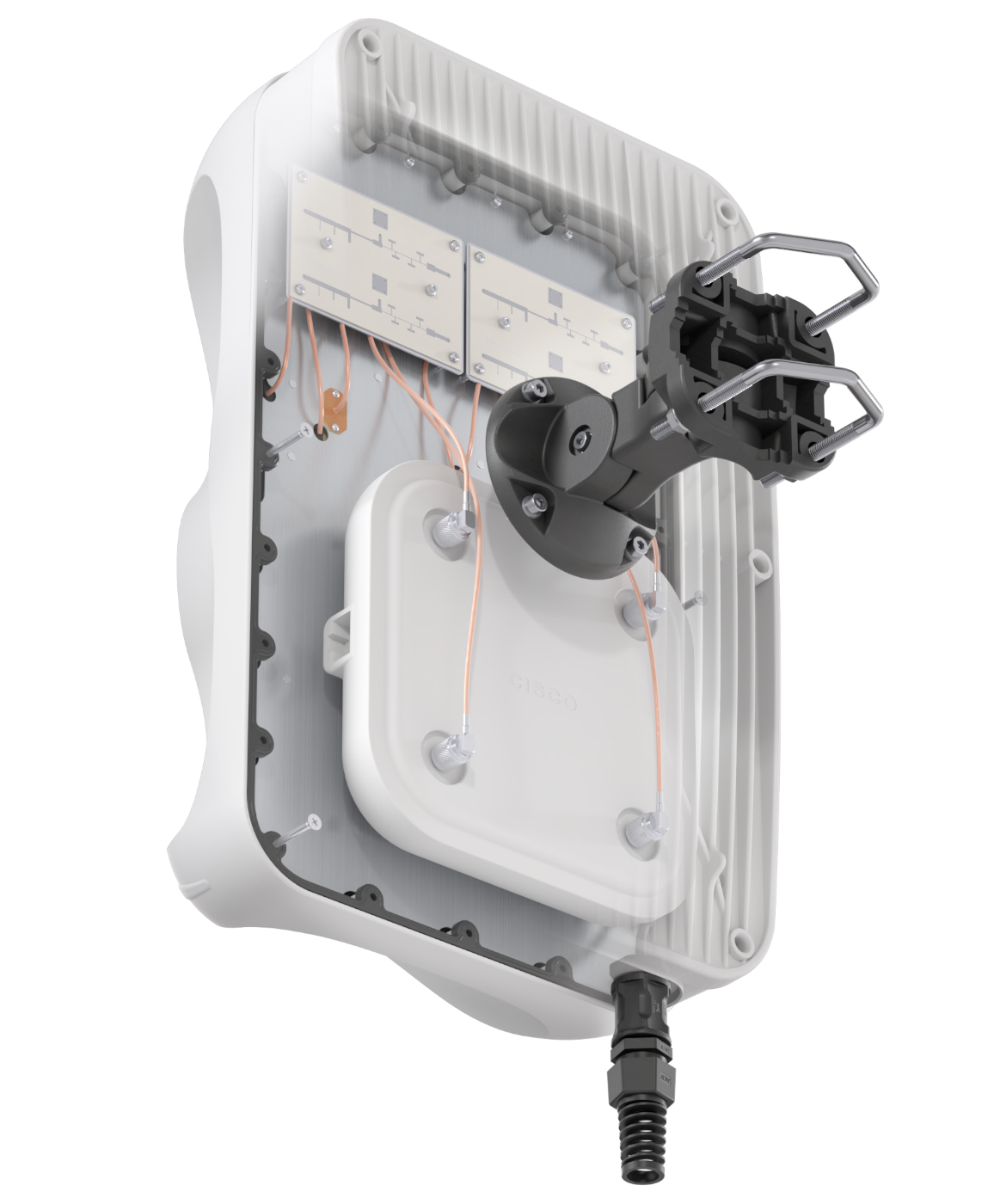

Integrated outdoor multi band eXtra Range Wi-Fi directional antenna + place to install Cisco 9120AXE

QuMax eXtra Range for Cisco 9120AXE offers the most powerful directional Wi-Fi antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Cisco 9120AXE router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.

Why QuMax XR for Cisco 9120AXE

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the access point

Wall or mast mounting system with two planes, 60 degrees regulation

Made in Europe

QuMax XR for Cisco 9120AXE

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.3 - 2.6GHz

5.1 - 7.125GHz

Gain

2.3 - 2.6 GHz : 14 dBi

5.1 - 7.125 GHz : 17 dBi

VSWR

< 2

Beamwidth

2.3 - 2.6 GHz : 90˚ /16˚

5.1 - 7.125 GHz : 90˚ /8˚

Polarization

Horizontal

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuMax XR for Cisco 9120AXE

Gain

Gain of QuMax XR for Cisco 9120AXE
PORT 1&3 From 2.4GHz to 2.5GHz
Elevation
Azimuth
PORT 2&4 From 2.4GHz to 2.5GHz
Elevation
Azimuth
PORT 1&3 From 5.1GHz to 5.9GHz
Elevation
Azimuth
PORT 2&4 From 5.1GHz to 5.9GHZ
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax XR for Cisco 9120AXEQuMax XR for Cisco 9120AXE
QuMax XR for Cisco 9120AXEQuMax XR for Cisco 9120AXE
QuMax XR for Cisco 9120AXEQuMax XR for Cisco 9120AXE

Download

Datasheet QuMax XR for Cisco 9120AXE
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuMax XR for Cisco 9120AXE
Use case QuMax XR for Cisco 9120AXE
Use case QuMax XR for Cisco 9120AXE
