Antenna QuOmni LTE SISO Nf

P/n: AOLS1-N

Omnidirectional multiband LTE SISO antenna

QuOmni LTE omnidirectional SISO LTE outdoor antenna operates with vertical polarization and is designed for LTE/3G/2G connections. It supports various popular LTE bands (such as 3, 7, 20) across frequencies ranging from 694 MHz to 2700 MHz.

This versatile antenna can be mounted on either on pole or wall. It can be used as an outdoor client antenna, or it can be installed on mobile platforms like trains, buses, trucks, yachts, and boats to enable LTE/3G internet reception.

Using integrated Nf connectors allows to connect cables of any length.

Why QuOmni LTE SISO Nf

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

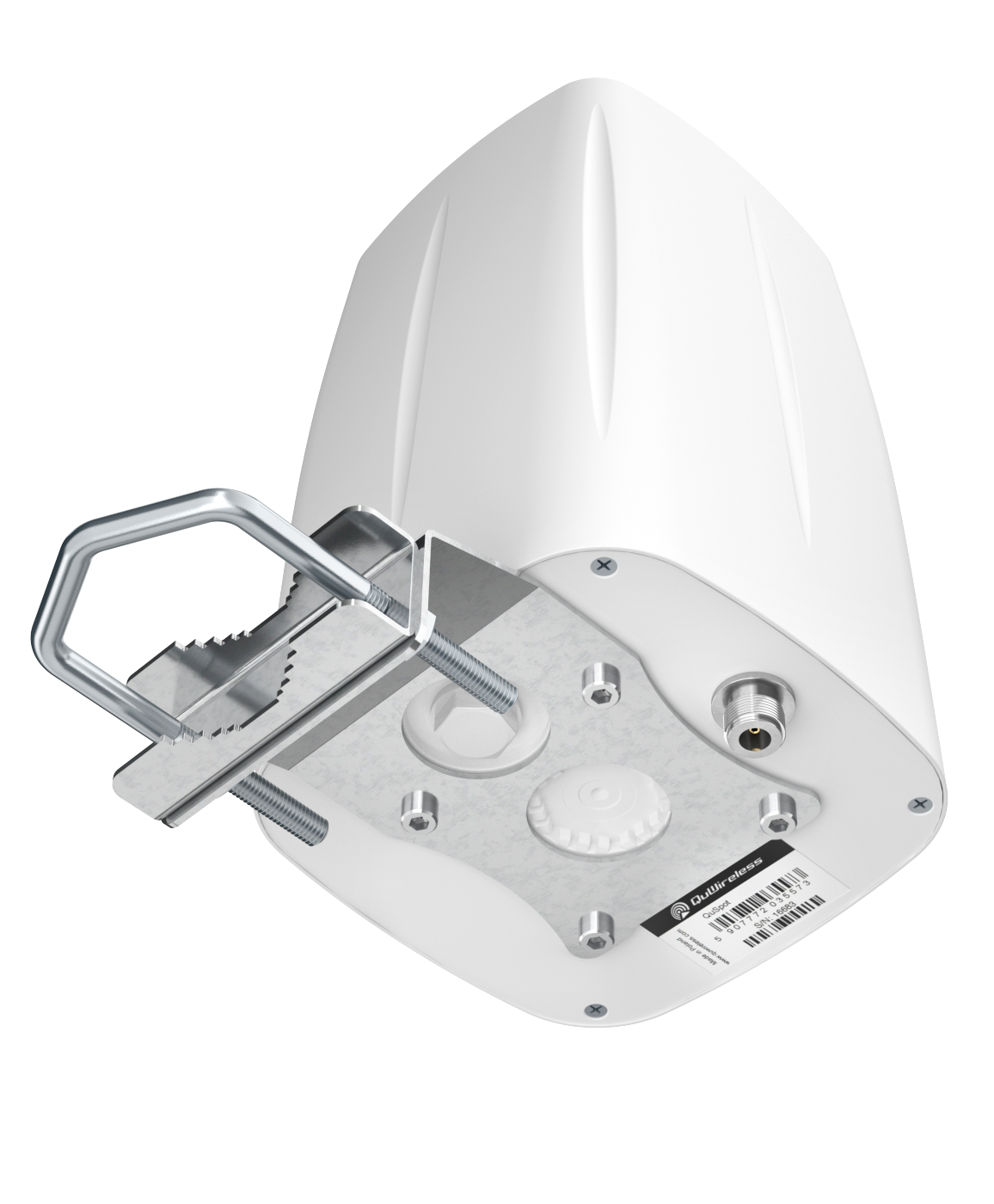

Galvanized steel, wall or pole mounting bracket

Integrated Nf connector

360° beamwidth

4dBi gain

Made in Europe

QuOmni LTE SISO Nf

SPECIFICATION

PRODUCT DETAILS

LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuOmni LTE SISO Nf

Gain

Gain of QuOmni LTE SISO Nf
From 700MHz to 900MHz
Elevation
Azimuth
From 1.71GHz to 2.17GHz
Elevation
Azimuth
From 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuOmni LTE SISO NfQuOmni LTE SISO Nf
QuOmni LTE SISO NfQuOmni LTE SISO Nf

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuOmni LTE SISO Nf

Parts of QuOmni LTE SISO Nf
1 x
Parts of QuOmni LTE SISO Nf
2 x M8
Parts of QuOmni LTE SISO Nf
1 x
Parts of QuOmni LTE SISO Nf
4 x M6 x 10
Parts of QuOmni LTE SISO Nf
4 x
Parts of QuOmni LTE SISO Nf
1 x

Download

Datasheet QuOmni LTE SISO Nf
Download
3D MODEL
Download
Installation Guide
Download
IP67 Certificate
Download
