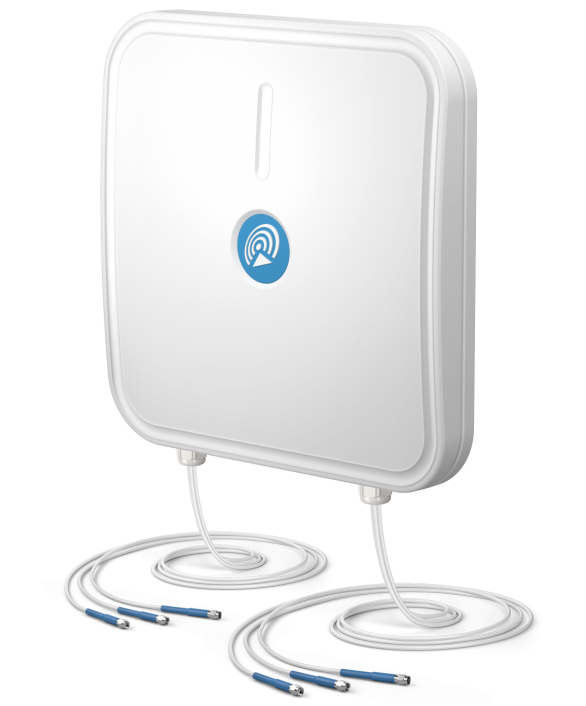

Antenna QuSector 15V-35-6 Wi-Fi 6E

To check PN please select variant below

QuSector 15V-35-6 offers a 35 degrees, 11dBi (2.4GHz) & 15dBi (5+7GHz) signal gain. It is a perfect indoor and outdoor device for industrial installations.

QuSector 15V-35-6 Wi-Fi 6E is a concurrent triple band, Vertical polarity, panel antenna. It operates at 2.4GHz with 11dBi gain and at 5GHz+7GHz with 15dBi gain. Its main purpose is to build small cells in high-density environments such as stadiums, lecture halls and concert halls. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. Wide frequency range (2.4-2.5GHz & 5.0-7.125GHz) helps to find suitable frequency for the most effective operation. The antenna comes with 6*70cm (28inch) cables terminated with RPSMA, RPTNC or Nm connectors.

Variants:

NM

RPTNC

RPSMA

WHY QUSECTOR 15V-35-6 Wi-Fi 6E

Learn more about your profit

Antenna perfectly matched with the router

Outdoor antenna works in any weather conditions, IP67

Wall or mast mounting system with two planes, 60 degrees regulation

Made in Europe

QuSector 15V-35-6 Wi-Fi 6E

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.4 - 2.5 GHz

5.0 - 7.125GHz

Gain

2.4 - 2.5 GHz: 11dBi

5.0 - 7.125 GHz: 15dBi

VSWR

< 2.00

Beamwidth

2.4 - 2.5 GHz: 80°/40°

5.0 - 7.125GHz: 35°/25°

Polarization

Vertical

Impedance

50 Ω

Separation between Connectors

> 35dB

Front-to-Back

> 25dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSector 15V-35-6 Wi-Fi 6E

Gain

Gain of QuSector 15V-35-6 Wi-Fi 6E
2.4GHz to 2.5GHz
Elevation
Azimuth
5.1GHz to 6.9GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSector 15V-35-6 Wi-Fi 6EQuSector 15V-35-6 Wi-Fi 6E
QuSector 15V-35-6 Wi-Fi 6EQuSector 15V-35-6 Wi-Fi 6E

Download

Datasheet QuSector 15V-35-6 Wi-Fi 6E
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSector 15V-35-6 Wi-Fi 6E
Use case QuSector 15V-35-6 Wi-Fi 6E
Use case QuSector 15V-35-6 Wi-Fi 6E
