QuSector 7V-120-8

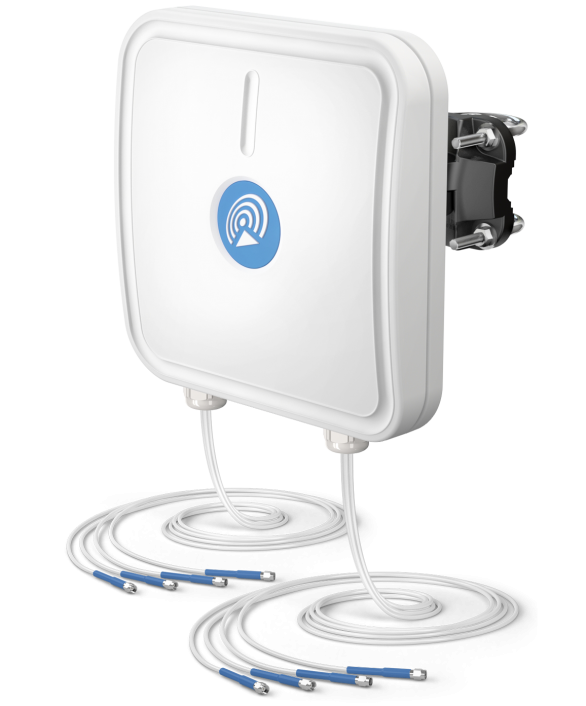

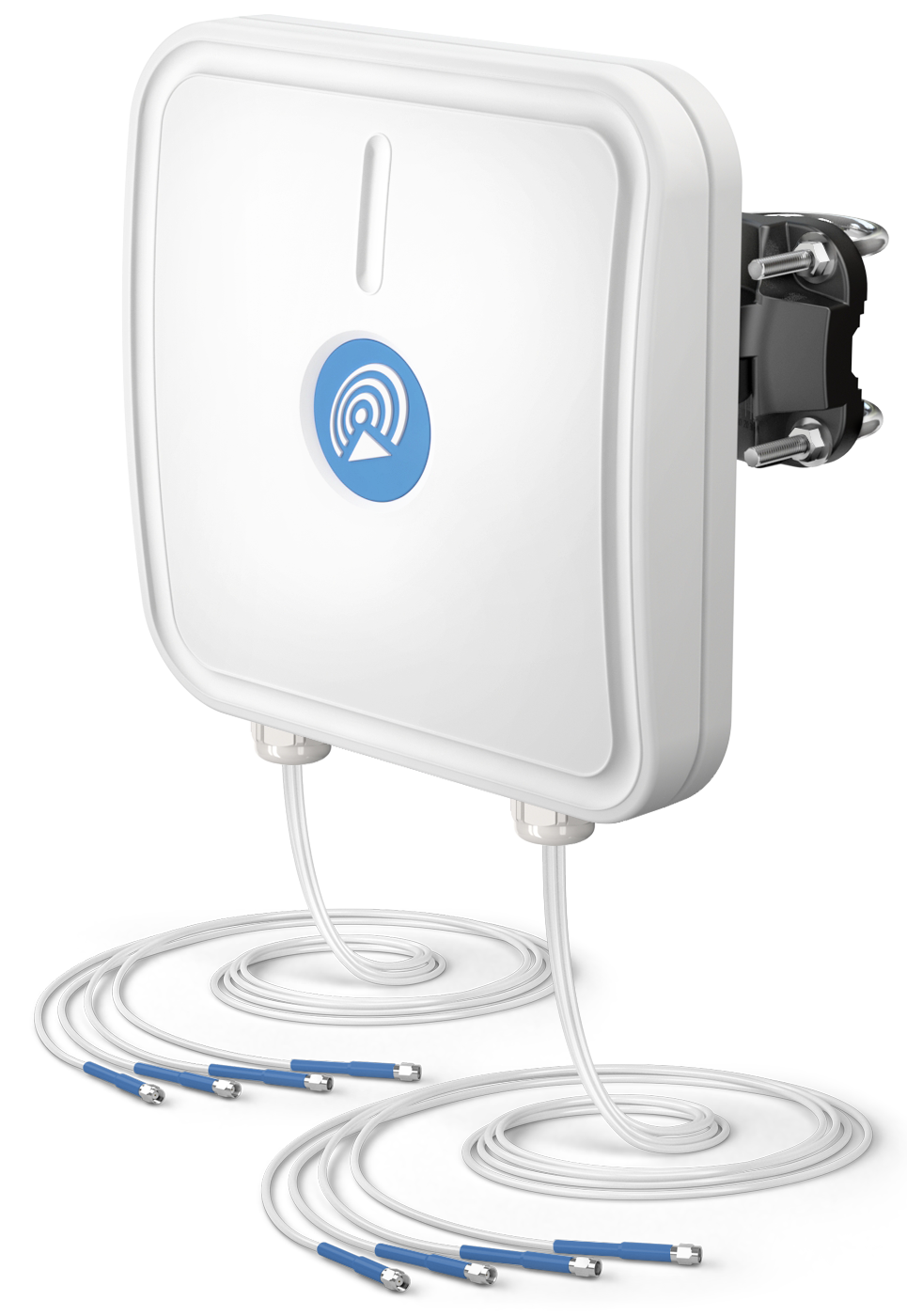

QuSector 7V-120-8 offers a 120 degrees, 7dBi signal gain. It is a perfect indoor and outdoor device for industrial installations.

QuSector 7V-120-8 is a concurrent dual band, Vertical polarity, panel antenna with 8 connectors. It operates at 2.4GHz and 5GHz simultaneously with 7dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure is characterized by a wide range of applications: from indoor through mobile devices to the outdoor (IP67) ones. Wide frequency range (2.4-2.5GHz & 4.9-6.0GHz) helps to find suitable frequency for the most effective operation. The antenna comes in four versions: with 8*70cm (28inch) cables terminated with Nm, RPSMA, RPTNC connectors.

Variants:

RPSMA

NM

RPTNC

Why QuSector 7V-120-8

Learn more about your profit

Antenna perfectly matched with the access point

Adjustable, pole mounting system

Made in Europe

QuSector 7V-120-8

SPECIFICATION

PRODUCT DETAILS

Wi-Fi antenna specification

Mounting kit

Mechanical specification

COMPATIBLE ROUTERS

FREQUENCY

2.4 - 2.5 GHz

4.9 - 6 GHz

GAIN

2.4 - 2.5 GHz: 7 dBi

4.9 - 6 GHz: 7 dBi

VSWR

<1.80

BREAMWIDTH

120°/60°

120°/90°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

Separation between Connectors

>30dB

Front-to-Back

20dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS

VSWR

VSWR of QuSector 7V-120-8

Gain

Gain of QuSector 7V-120-8
From 2.4GHz to 2.5GHz
Azimuth
Elevation
From 5.1GHz to 6.9GHz
Azimuth
Elevation
