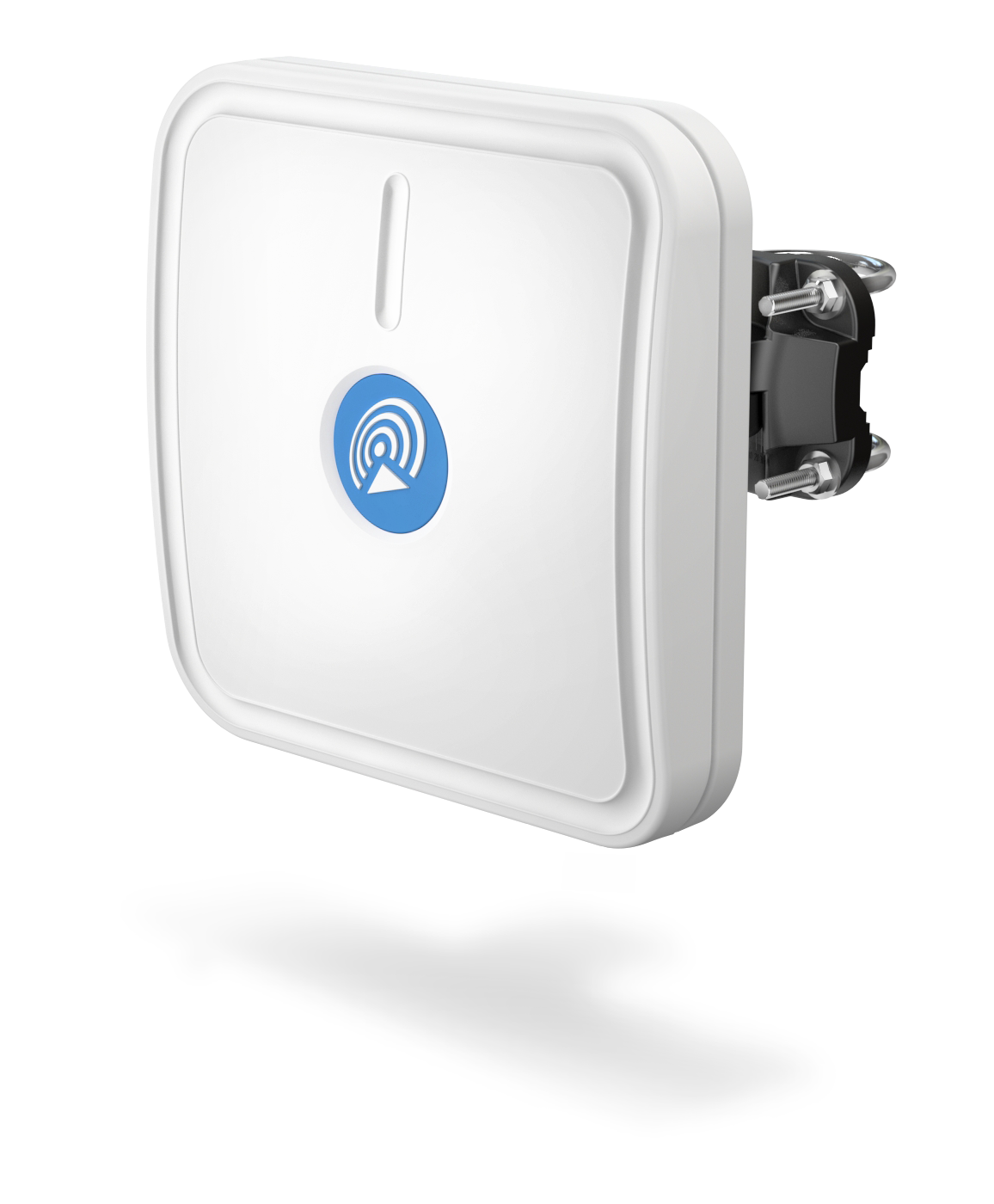

Antenna QuSector S24-12HV-90-2 Nf

P/n: SS24.12HV.90.2NF

QuSector S24-12HV-90-2 offers a 90 degrees, 12dBi gain signal with two RP-SMA 2.4GHz connectors. It is a perfect indoor and outdoor device for industrial installations.

QuSector S24-12HV-90-2 is a single band, H&V polarity, MIMO 2x2 panel antenna. Two connectors operate at 2.4GHz with 12dBi gain. Due to its medium gain, it can be used on short or medium distances, for example for hotspots in schools, stadiums, offices or public places. High quality injection moulded enclosure allows to implement it alongside with indoor and IP67 outdoor solutions. The antenna comes with 2Nf connectors. QuSector S24-12HV-90-2 was designed to be a perfect match for your access point.

Why QuSector S24-12HV-90-2 Nf

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Wall or mast mounting system with two planes, 60 degrees regulation

Made in Europe

QuSector S24-12HV-90-2 Nf

SPECIFICATION

PRODUCT DETAILS

Wi-Fi SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

Frequency

2.3 - 2.7GHz

Gain

14 dBi

VSWR

< 1.80

Beamwidth

30°/30°

Polarization

Horizontal

Vertical

Impedance

50 Ω

Separation between Connectors

> 32dB

Front-to-Back

> 30dB

Max Input Power

50W

DC Ground

Yes

PLOTS

PRODUCT DETAILS
From 2.4GHz to 2.5GHz
PORT 1 Elevation
PORT 1 Azimuth
From 2.4GHz to 2.5GHz
PORT 2 Elevation
PORT 2 Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSector S24-12HV-90-2 NfQuSector S24-12HV-90-2 Nf
QuSector S24-12HV-90-2 NfQuSector S24-12HV-90-2 Nf

Download

Datasheet QuSector S24-12HV-90-2 Nf
Download
Installation Guide
Download
IP67 Certificate
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSector S24-12HV-90-2 Nf
Use case QuSector S24-12HV-90-2 Nf
Use case QuSector S24-12HV-90-2 Nf
