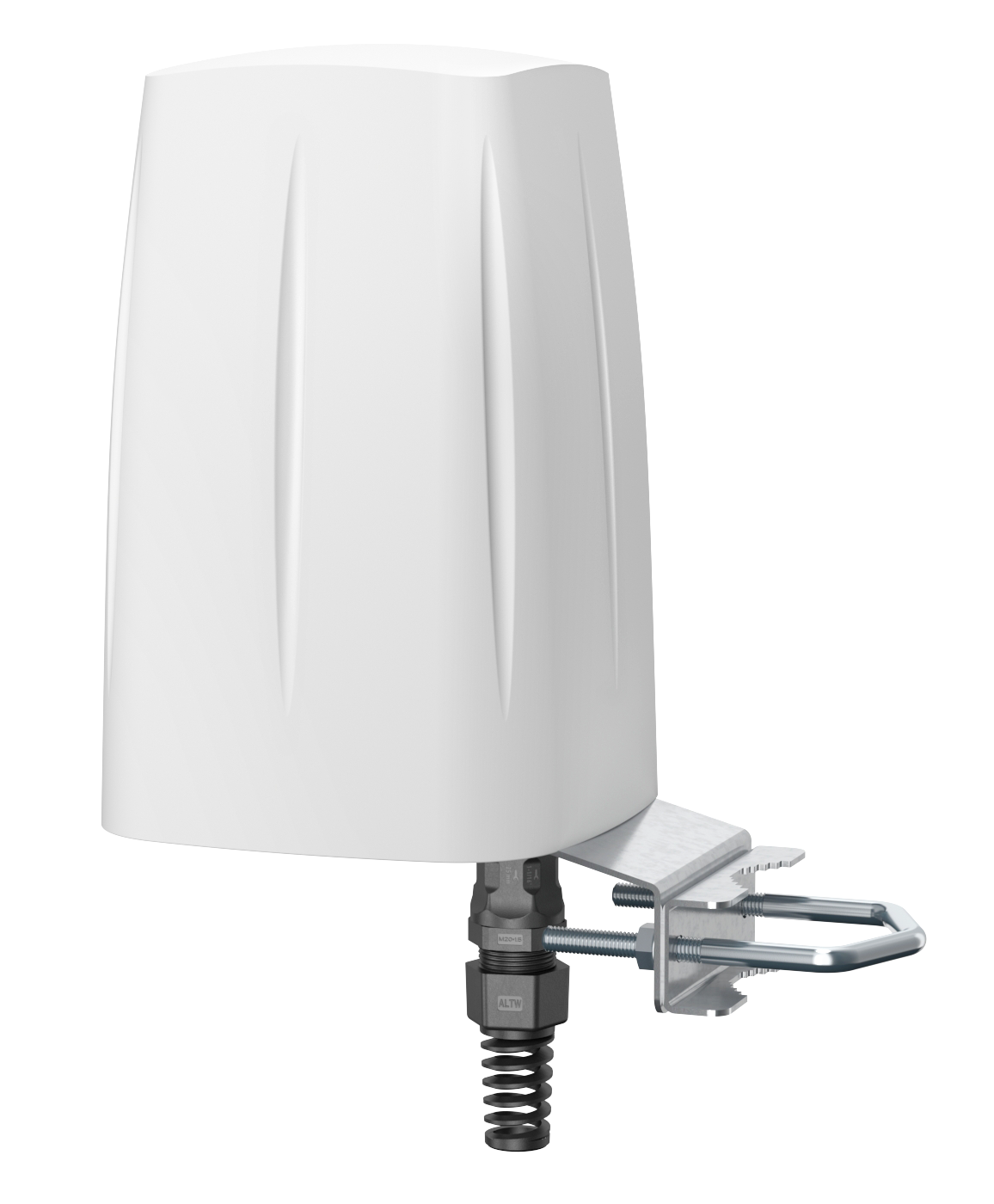

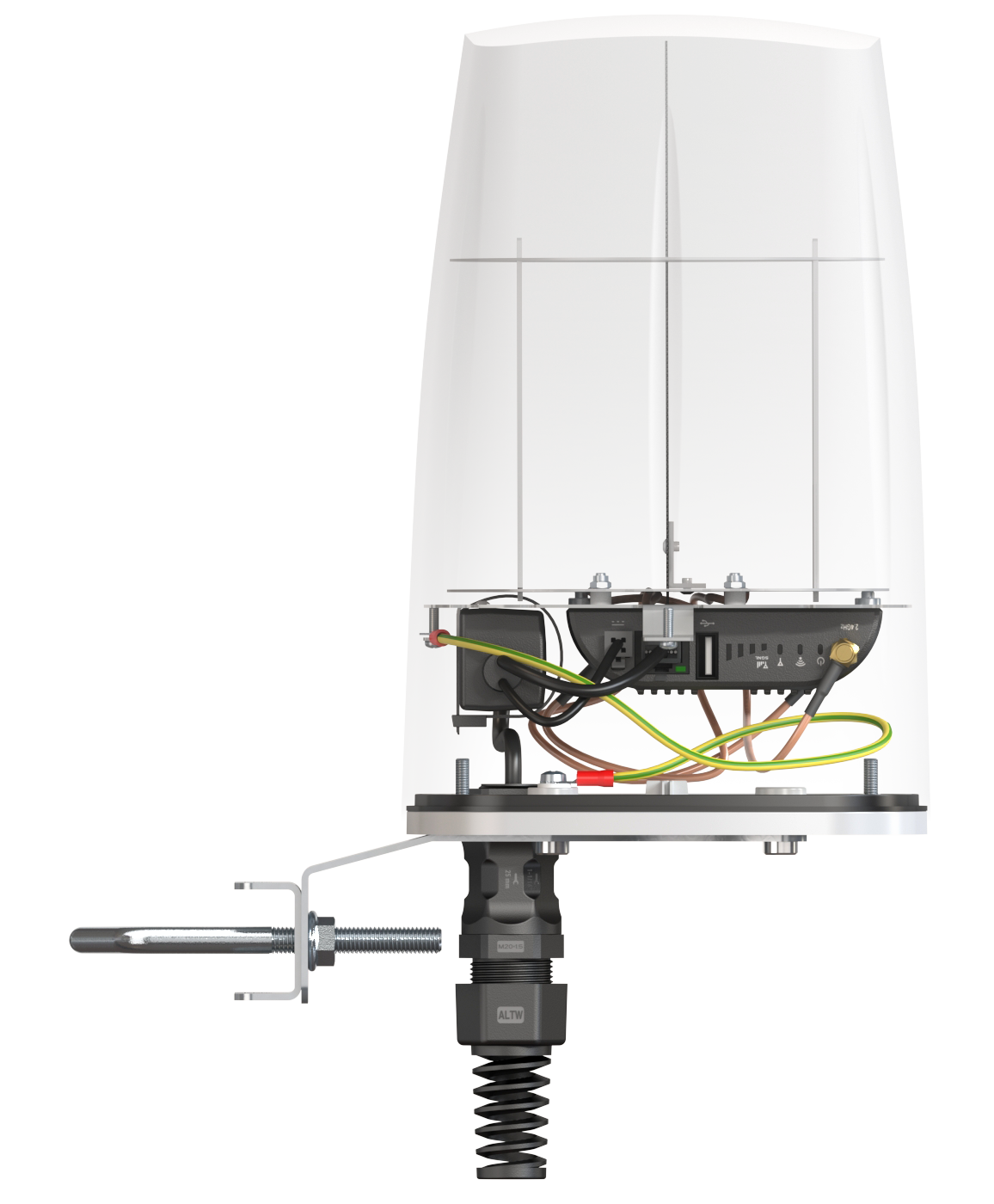

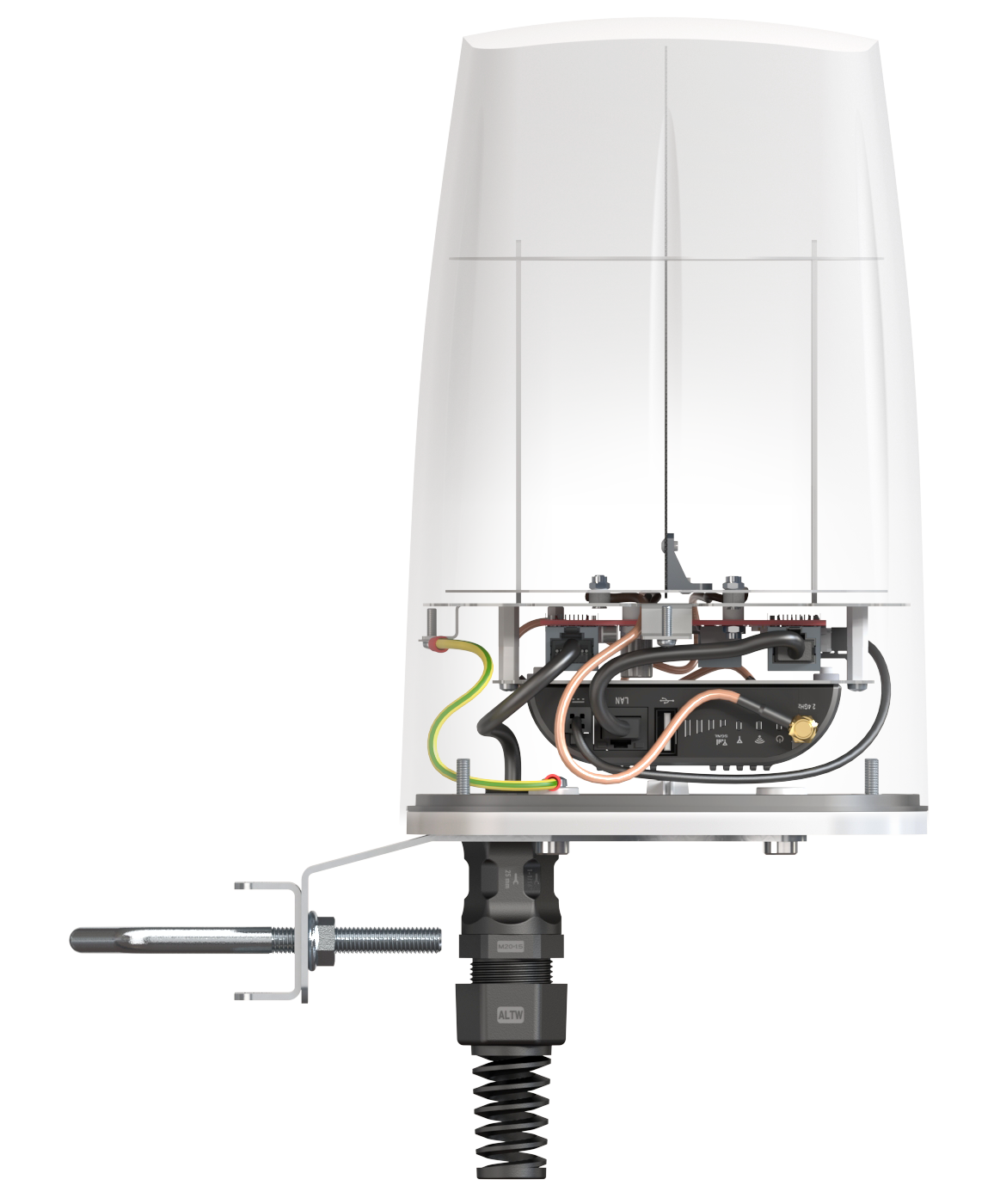

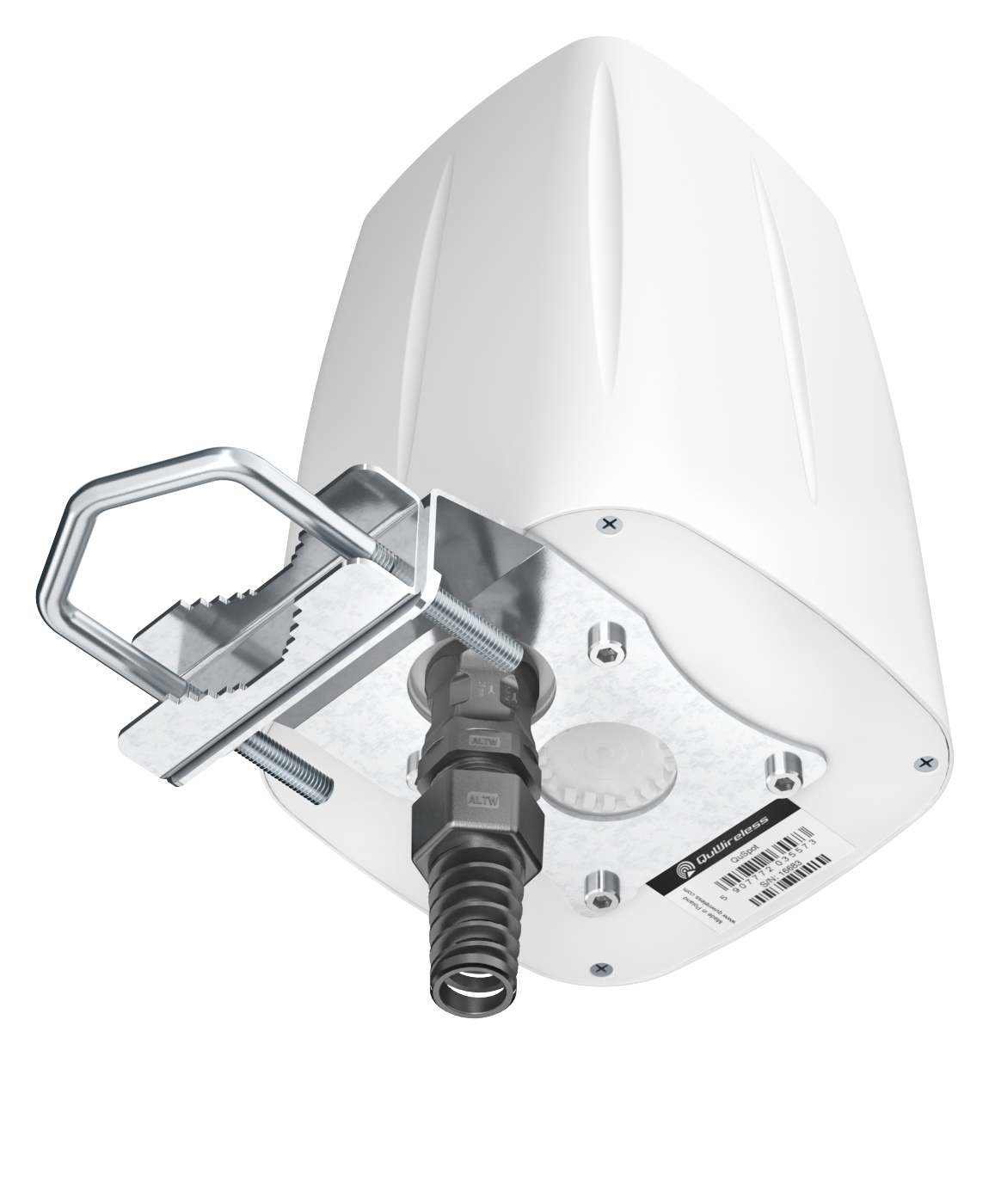

Antenna QuSpot for Cradlepoint IBR200

P/n: ACP200S

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WIFI OMNI ANTENNA + PLACE TO INSTALL CRADLEPOINT IBR200 (ALL-IN-ONE)

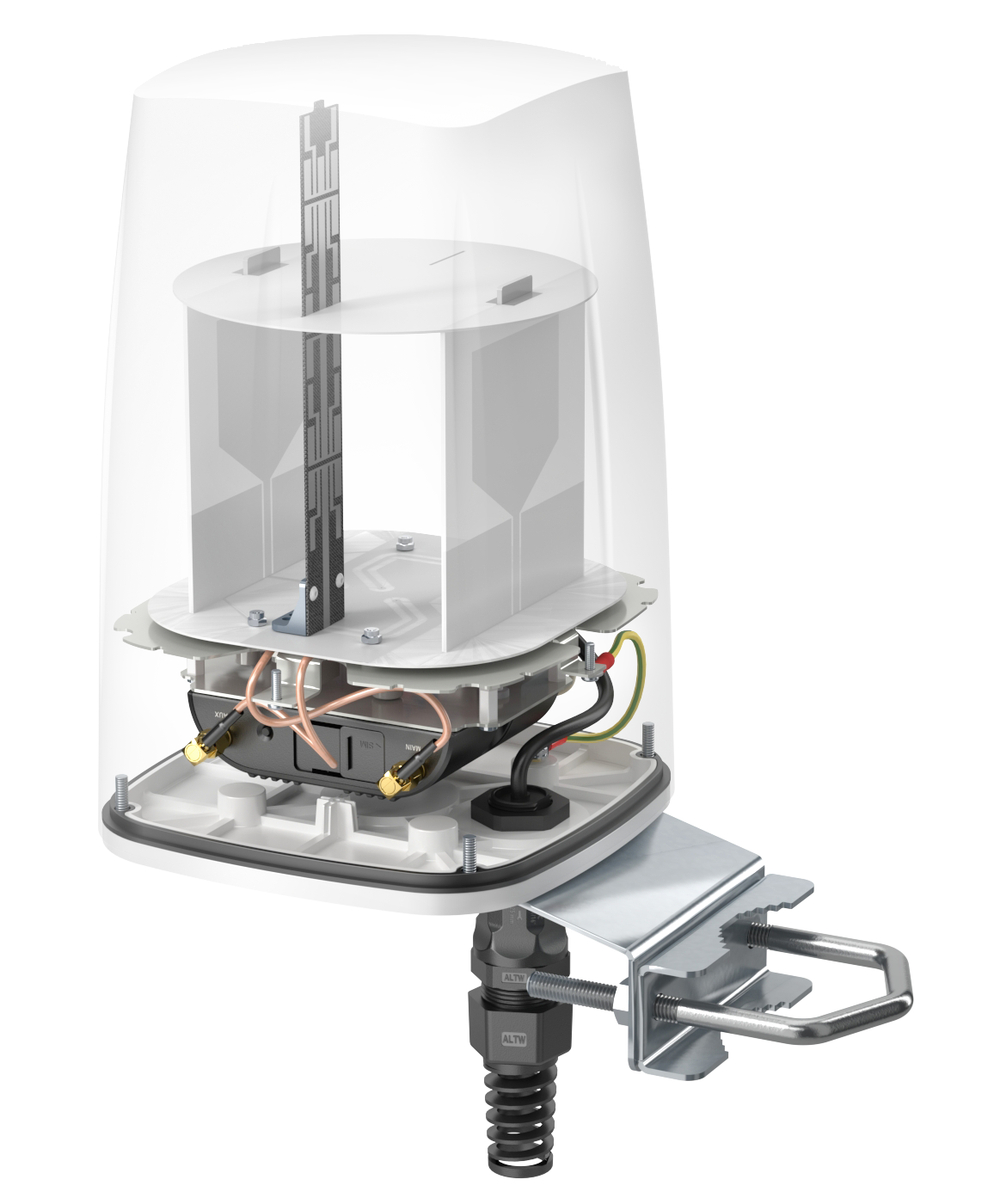

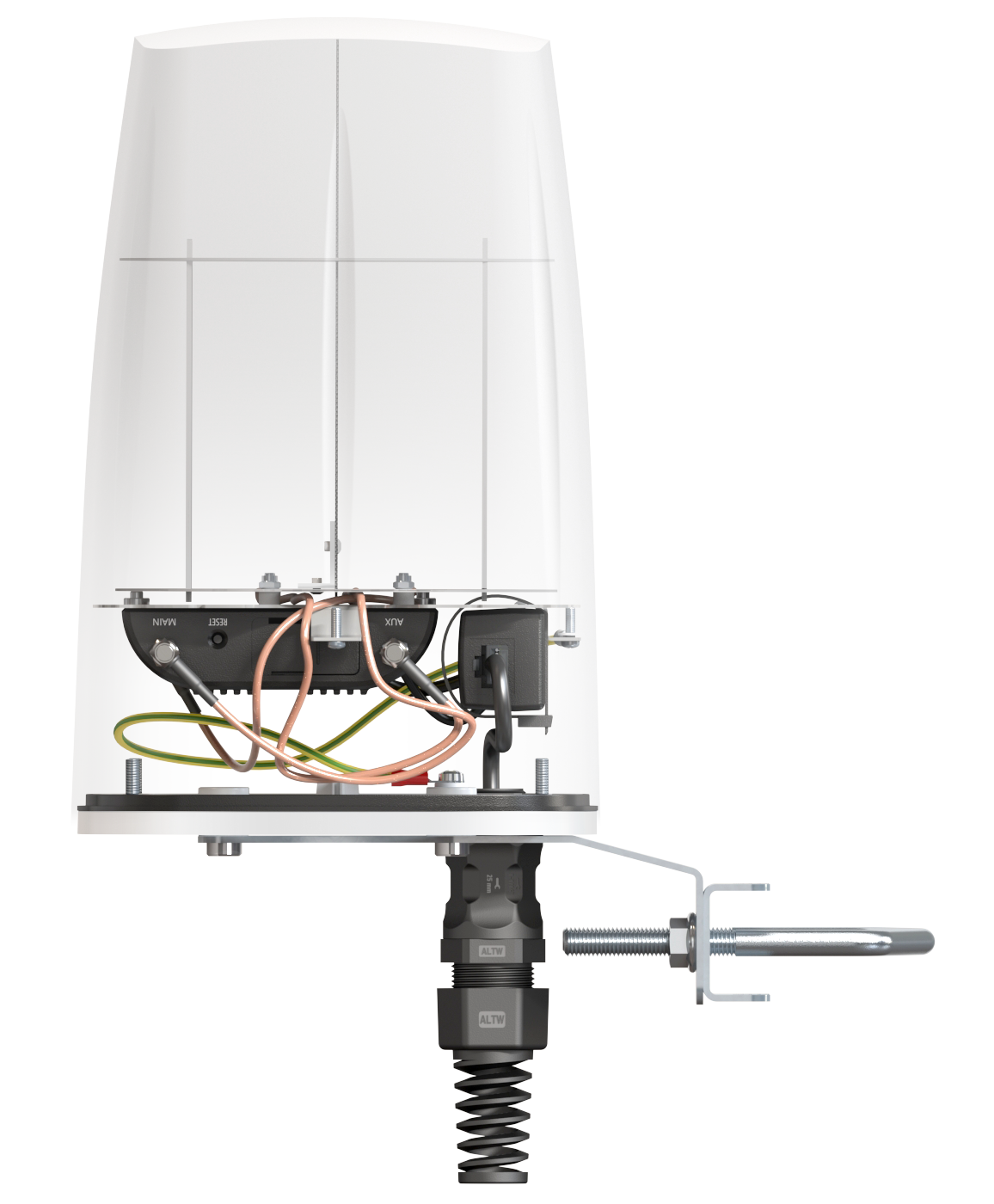

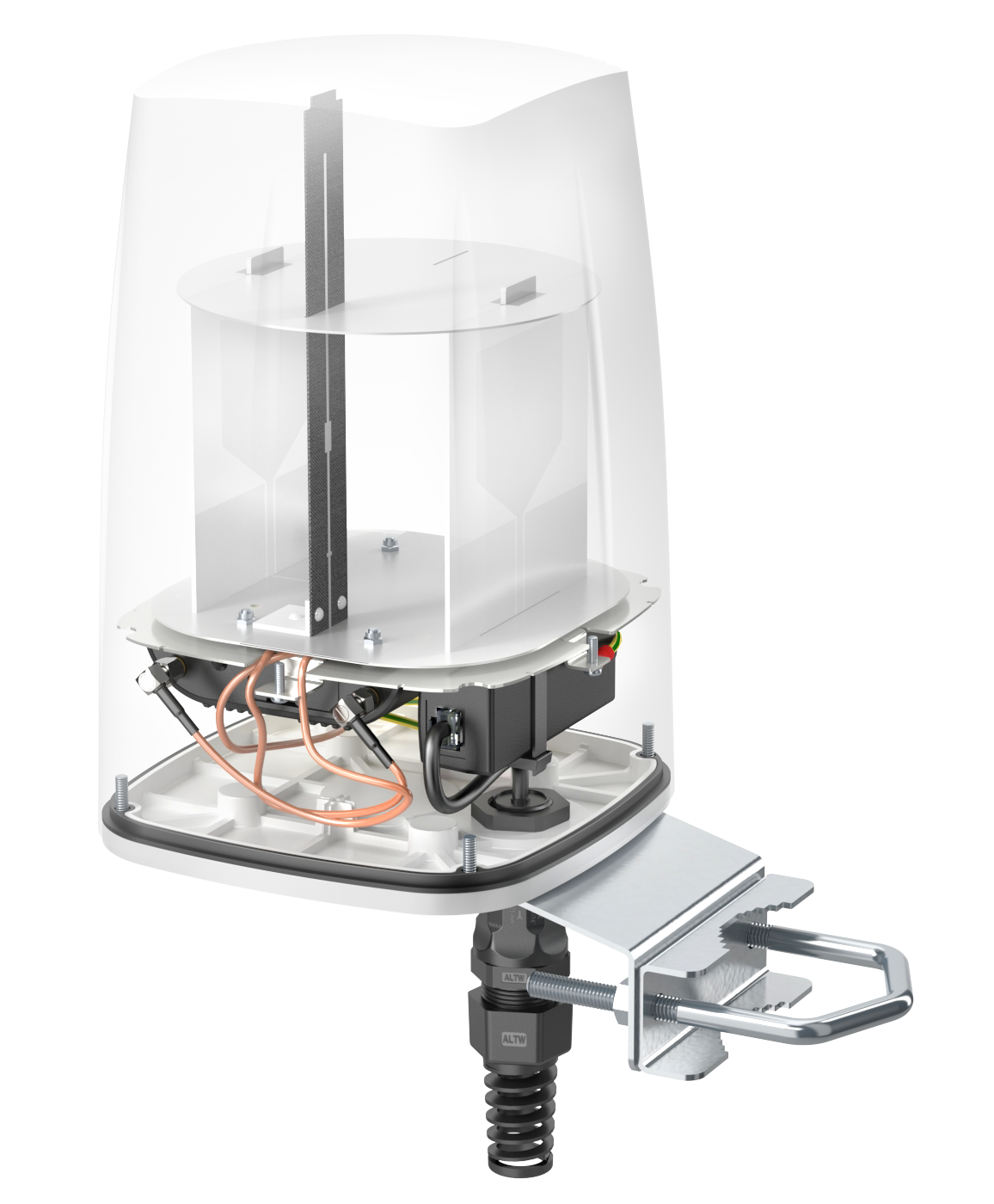

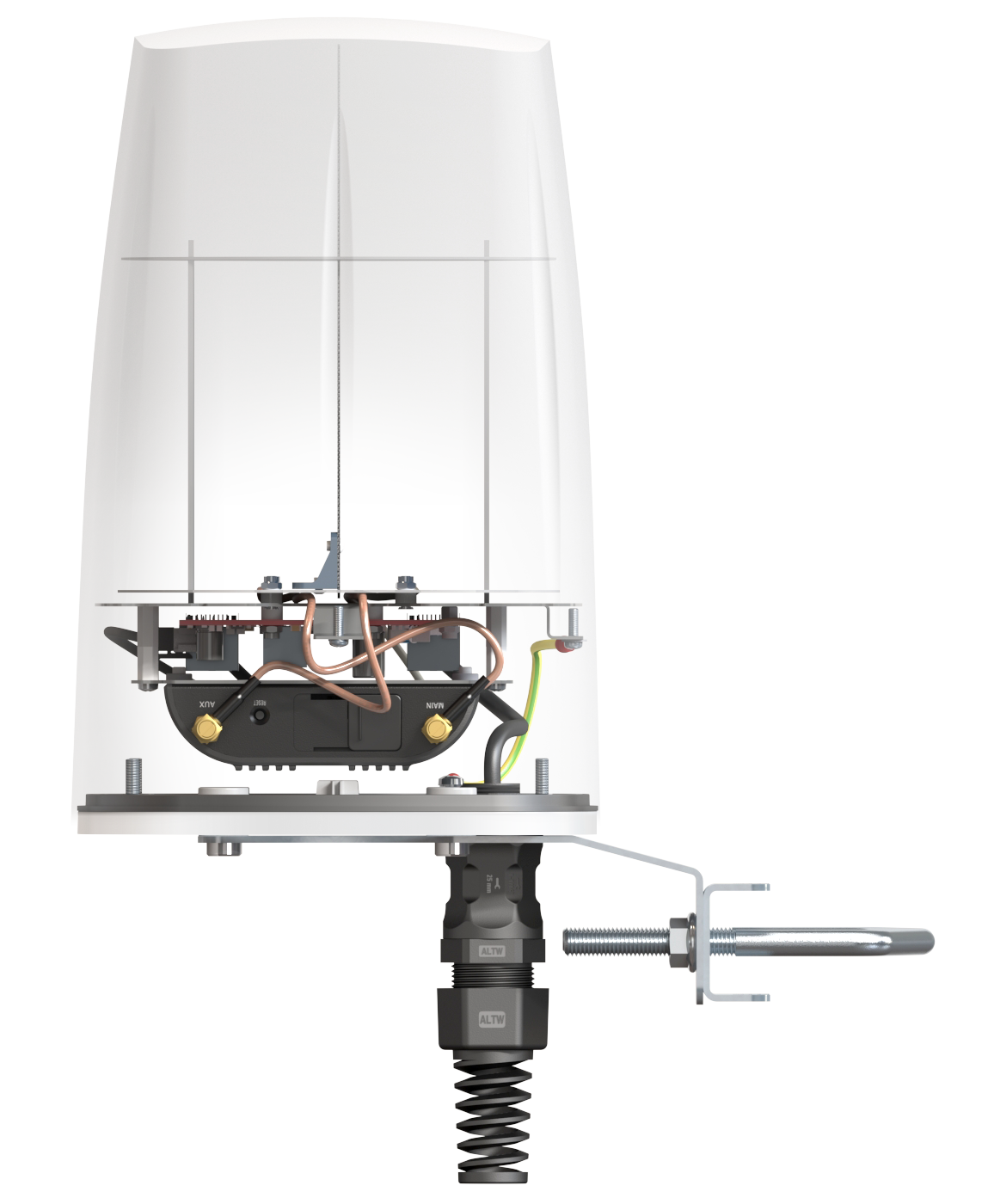

QuSpot omni LTE antenna for Cradlepoint IBR200 router is a perfect outdoor device for mobile and fixed installations like industrial, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi. If you use IBR200 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

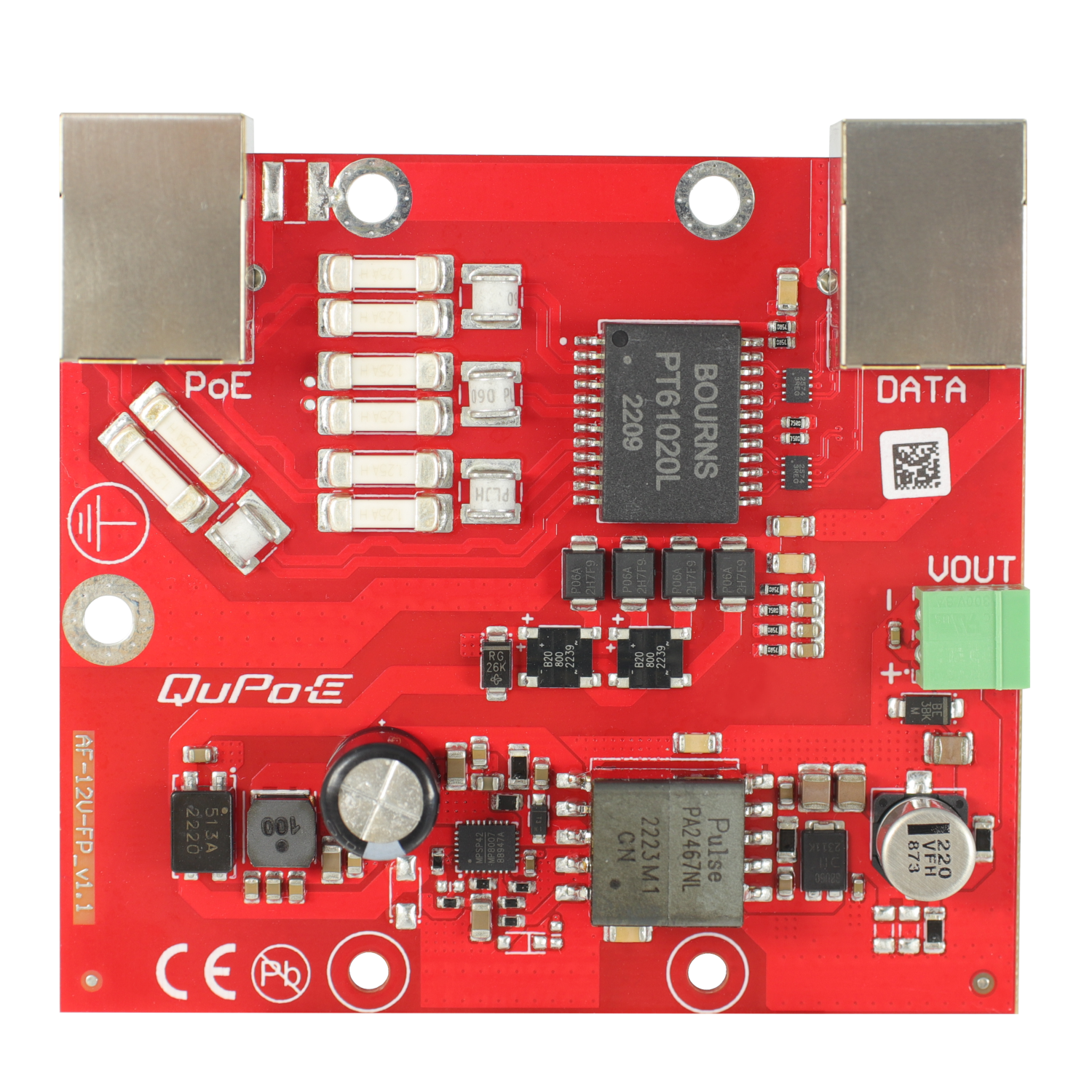

The set contains a PoE splitter, allowing to provide both data and power via one Ethernet cable and keep Fast Ethernet transfer speeds. Using QuWireless splitter provides 3KA surge and lightning protection.

Why QuSpot for Cradlepoint IBR200

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

802.3af PoE Support

Made in Europe

QuSpot for Cradlepoint IBR200

SPECIFICATION

PRODUCT DETAILS

LTE antenna specification

Wi-Fi antenna specification

Mechanical specification

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.5 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.5 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for Cradlepoint IBR200

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuSpot for Cradlepoint IBR200

Gain for LTE antenna

Gain for LTE antenna of QuSpot for Cradlepoint IBR200

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuSpot for Cradlepoint IBR200
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71 GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Cradlepoint IBR200QuSpot for Cradlepoint IBR200
QuSpot for Cradlepoint IBR200QuSpot for Cradlepoint IBR200

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for IBR200

Parts of QuSpot for Cradlepoint IBR200
1x router not included
Parts of QuSpot for Cradlepoint IBR200
1x 8mm wrench
Parts of QuSpot for Cradlepoint IBR200
x4 3,1 x 12
Parts of QuSpot for Cradlepoint IBR200
4x M6 x 10
Parts of QuSpot for Cradlepoint IBR200
4x
Parts of QuSpot for Cradlepoint IBR200
1x
Parts of QuSpot for Cradlepoint IBR200
2x M8
Parts of QuSpot for Cradlepoint IBR200
1x
Parts of QuSpot for Cradlepoint IBR200
1x
