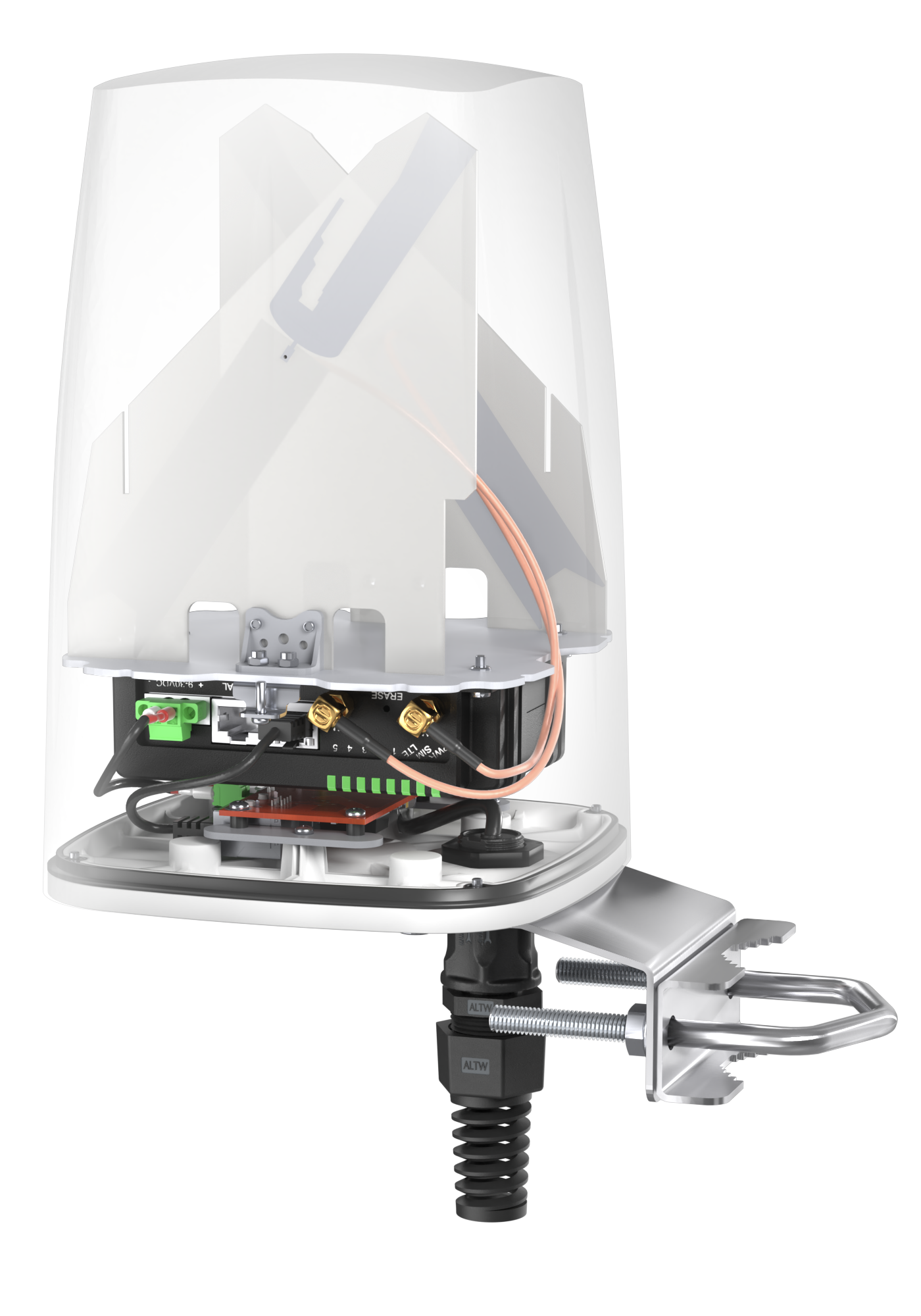

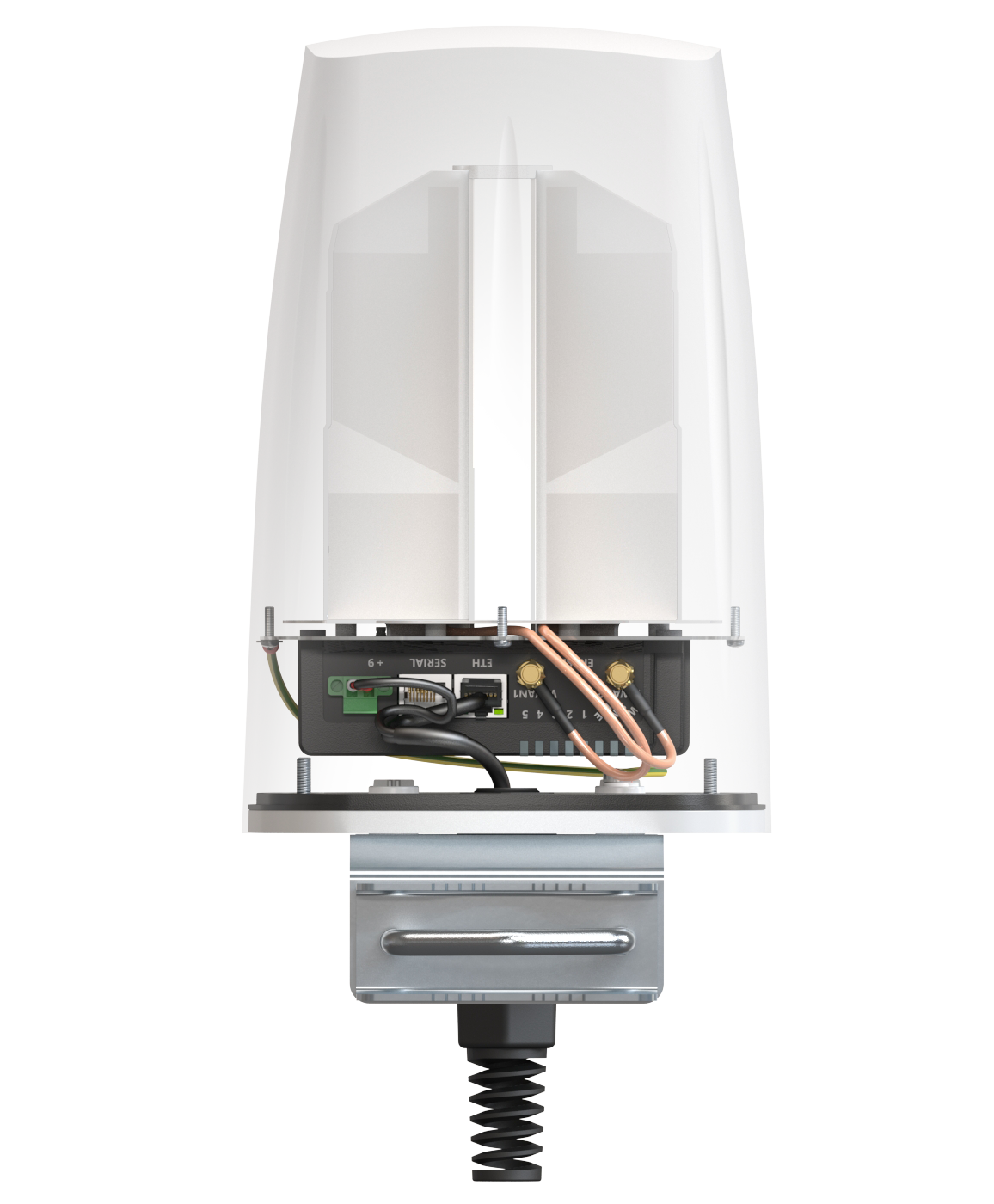

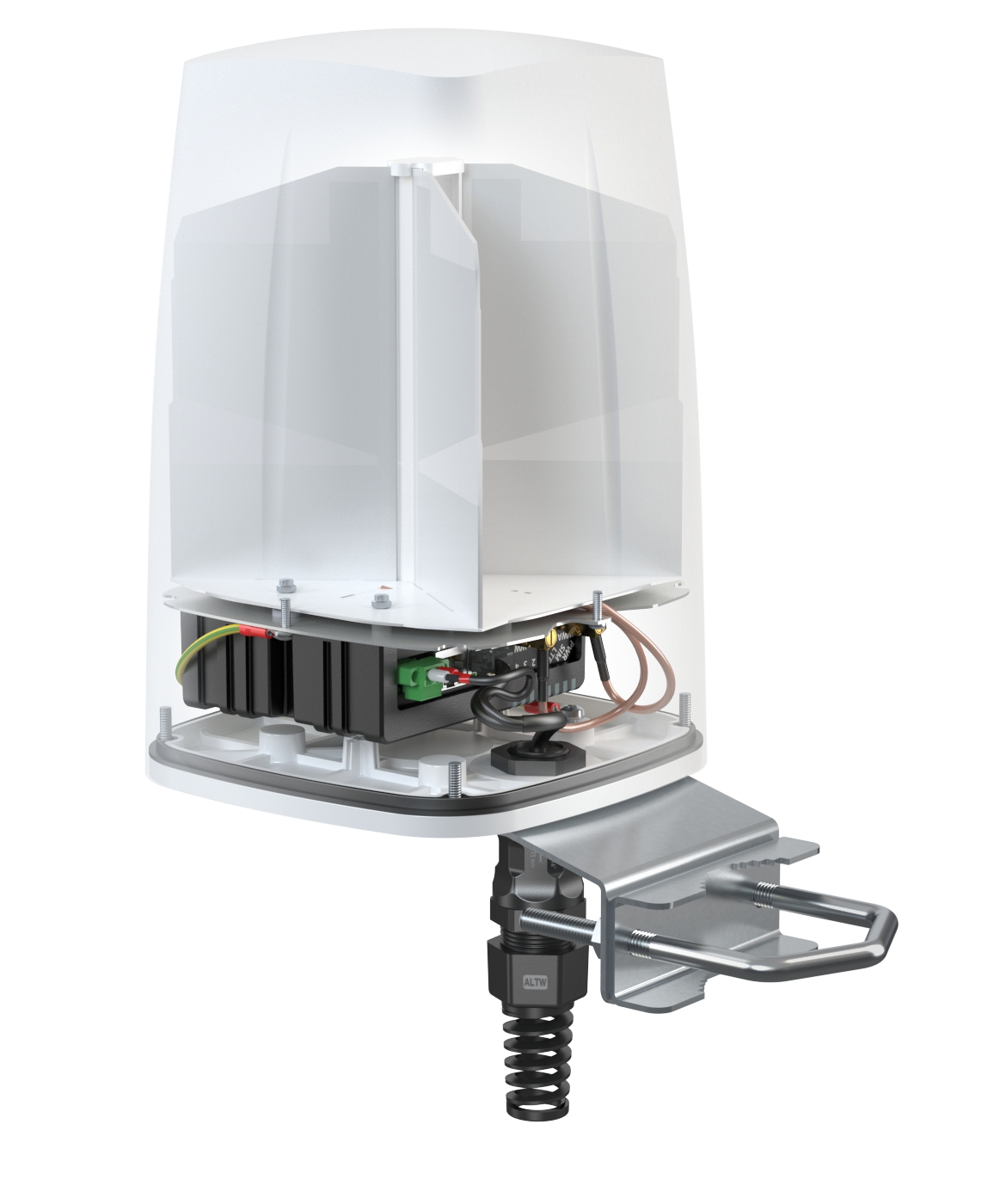

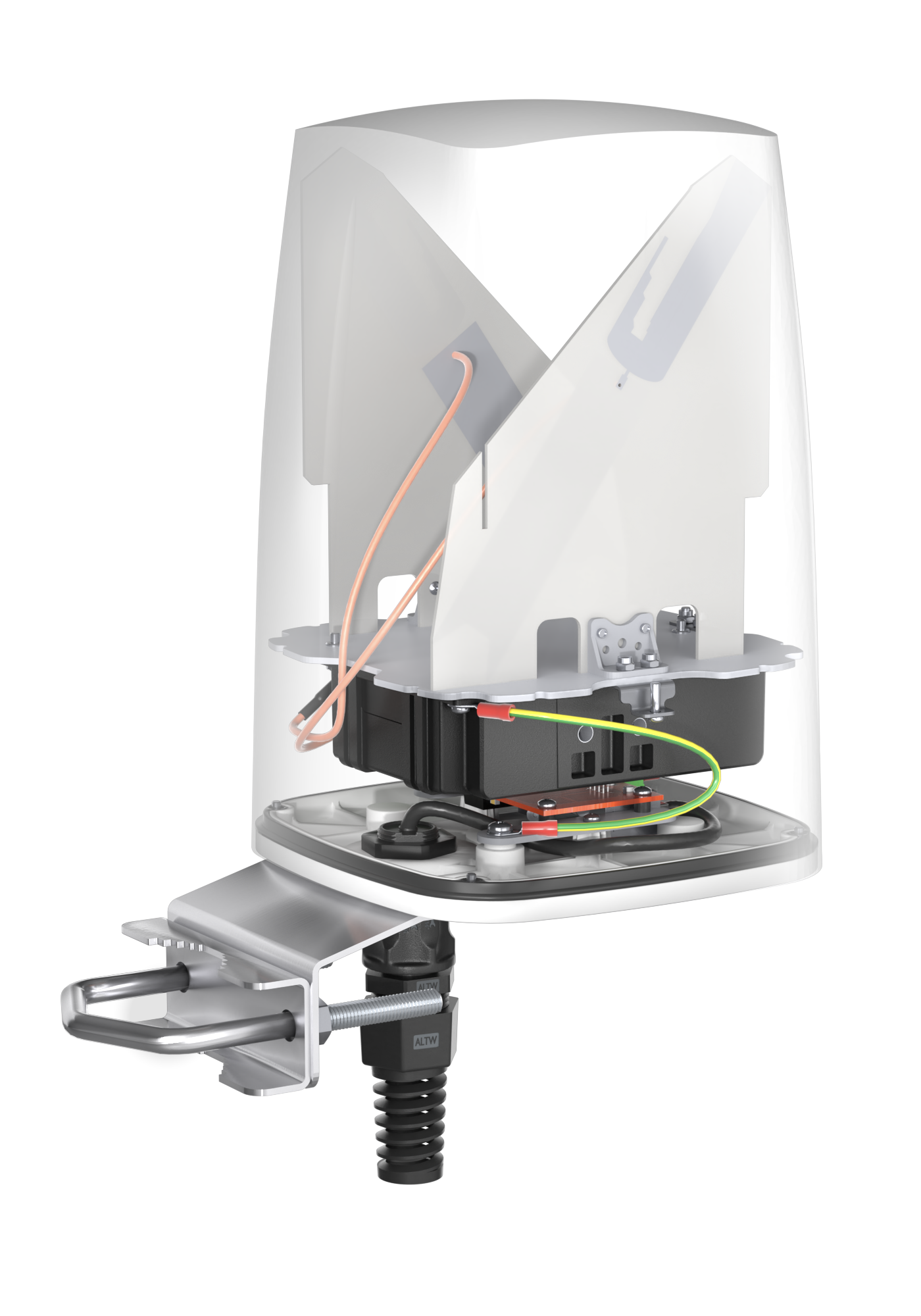

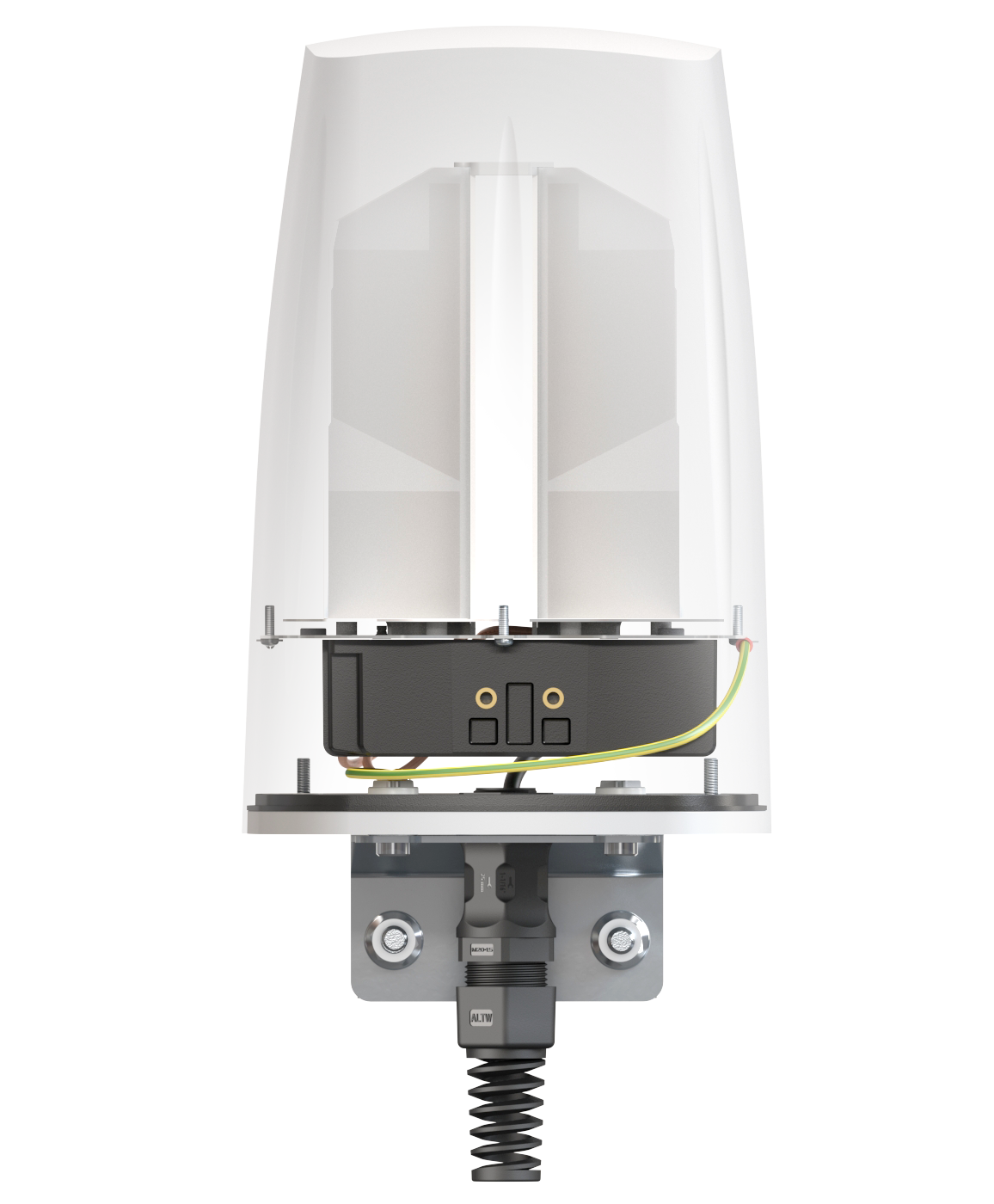

Antenna QuSpot for Digi IX10

P/n: ADIX10S

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + POE SPLITTER + PLACE TO INSTALL DIGI IX10 (ALL-IN-ONE)

QuSpot antenna for DIGI IX10 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G antenna. If you use IX10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuSpot for Digi IX10

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

QuSpot for Digi IX10

SPECIFICATION

PRODUCT DETAILS

5G/LTE ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

COMPATIBLE ROUTERS

Frequency

617 - 960 MHz

1.7 - 2.7 GHz

3.3 - 4.7 GHz

5.2 - 6.0 GHz

Gain

617 - 960 MHz : 3 dBi

1.7 - 2.7 GHz : 4 dBi

3.3 - 4.7 GHz : 4.5 dBi

5.2 - 6.0 GHz : 2.5dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 59, 62, 65, 66, 67, 68, 69, 71, 85, n78, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.80, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for 5G/LTE antenna of QuSpot for Digi IX10

Gain for 5G/LTE antenna

Gain for 5G/LTE antenna of QuSpot for Digi IX10
5G/LTE from 650MHz to 950MHz
Elevation
Azimuth
5G/LTE from 1.71GHz to 2.5GHz
Elevation
Azimuth
5G/LTE from 3.3GHz to 4.0GHz
Elevation
Azimuth
5G/LTE from 4.5GHz to 5.5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Digi IX10QuSpot for Digi IX10
QuSpot for Digi IX10QuSpot for Digi IX10

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot for Digi IX10

Parts of QuSpot for Digi IX10
1x With mounting for Digi IX10
Parts of QuSpot for Digi IX10
1x 8mm wrench
Parts of QuSpot for Digi IX10
x4 3,1 x 12
Parts of QuSpot for Digi IX10
4x M6 x 10
Parts of QuSpot for Digi IX10
4x
Parts of QuSpot for Digi IX10
1x
Parts of QuSpot for Digi IX10
2x M8
Parts of QuSpot for Digi IX10
1x
Parts of QuSpot for Digi IX10
1x QuRJ45

Download

Datasheet QuSpot for Digi IX10
Download
Installation Guide
Download
IP67 Certificate
Download
IP68 Certificate
Download
