1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

Porównaj

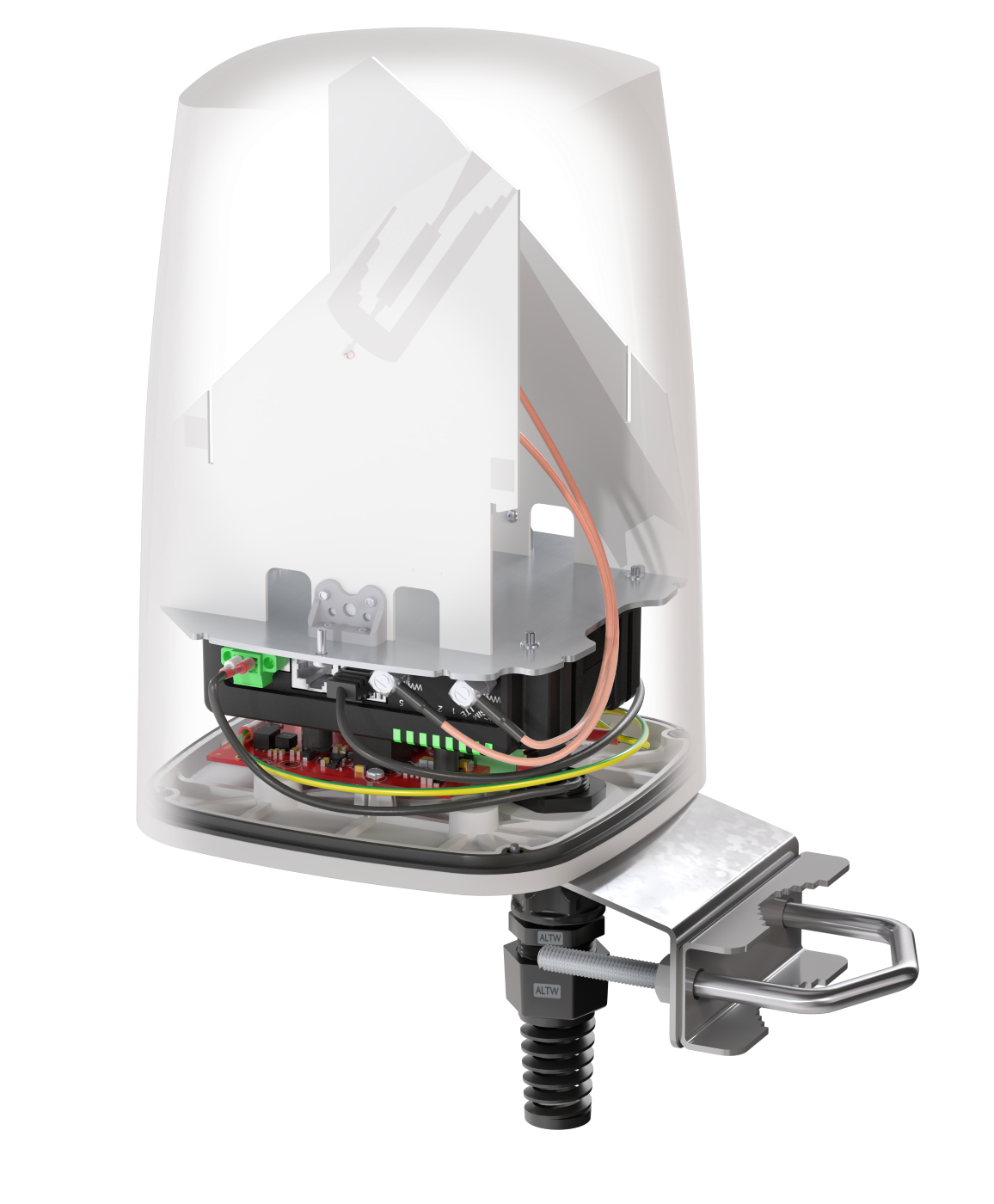

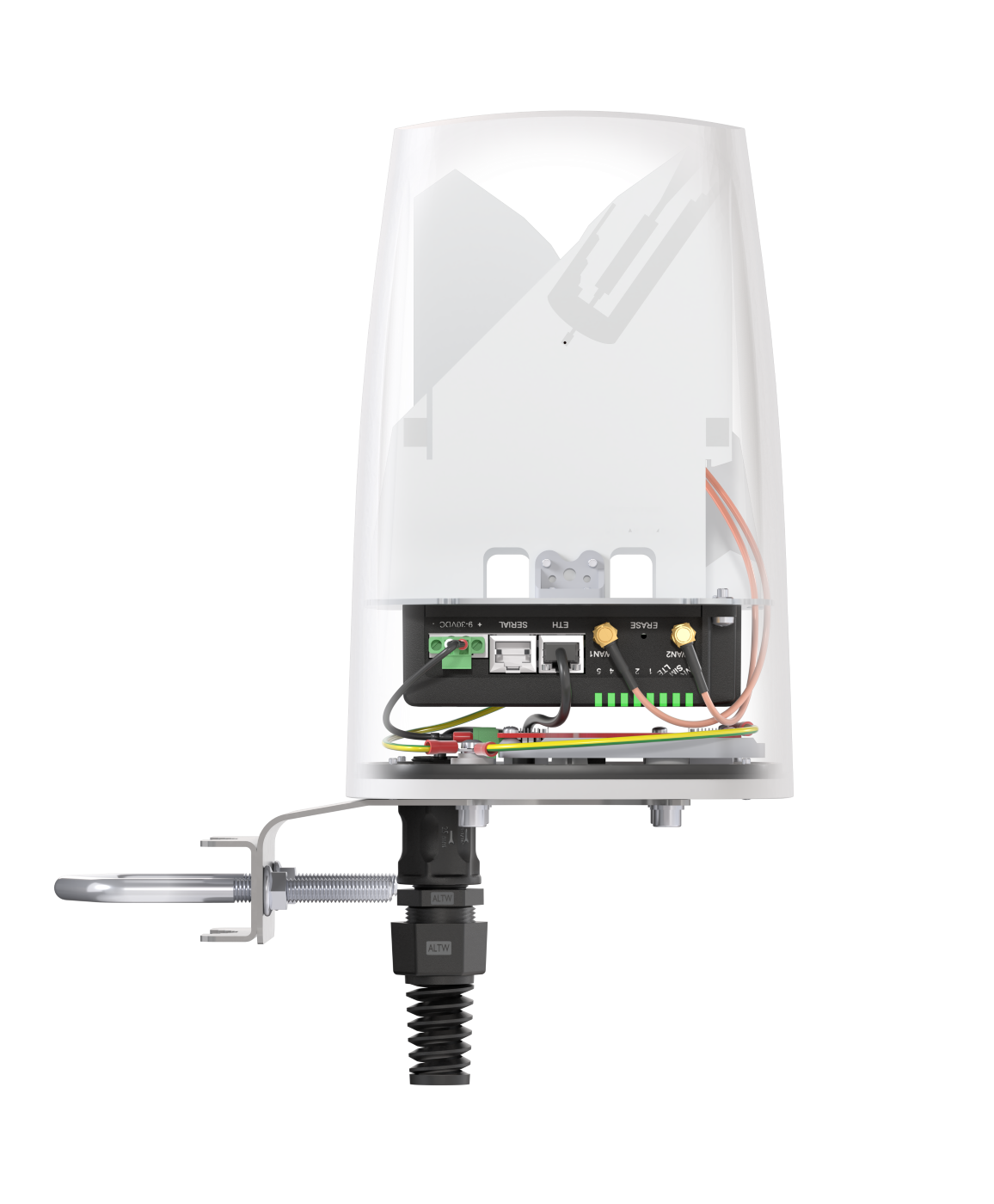

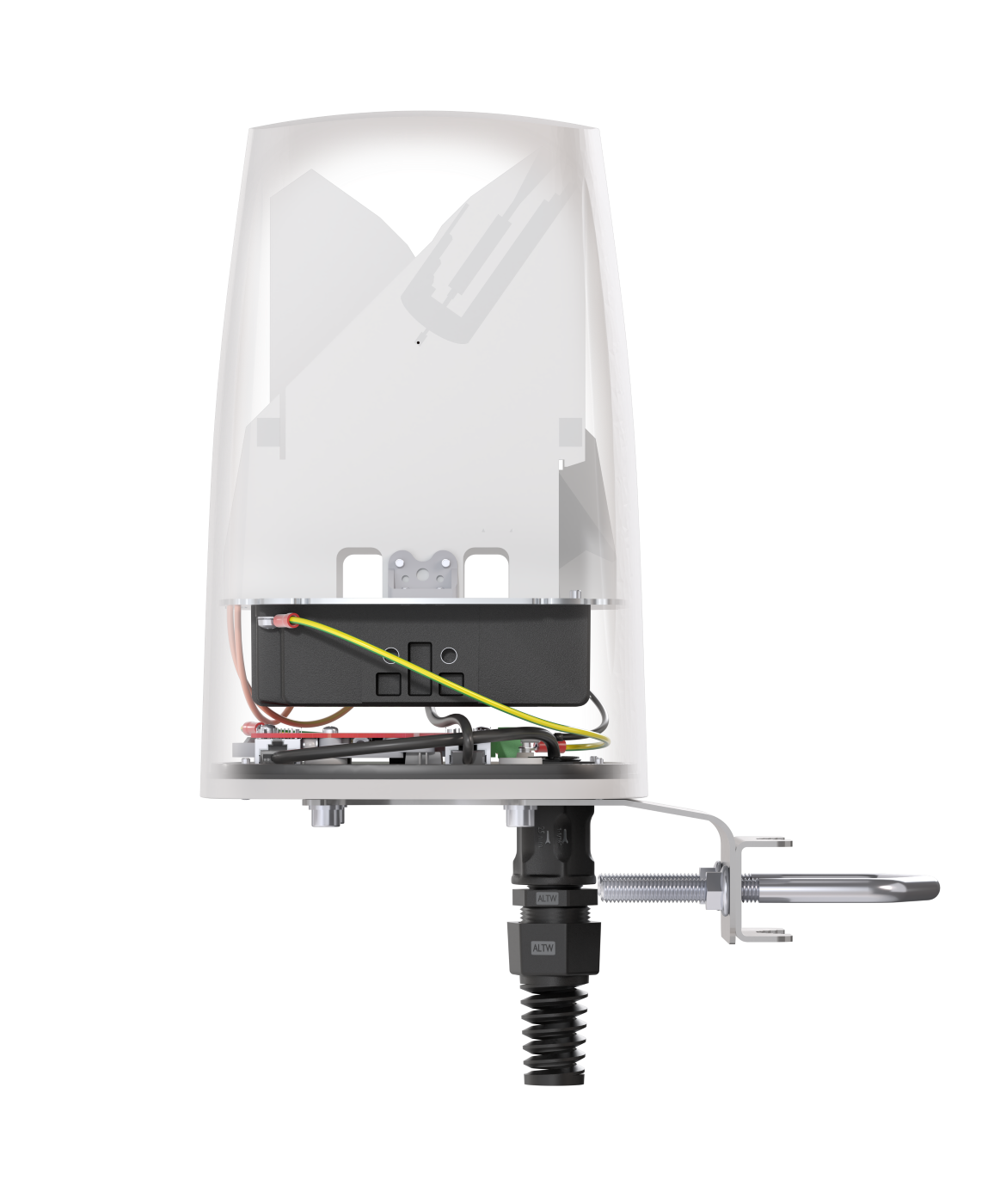

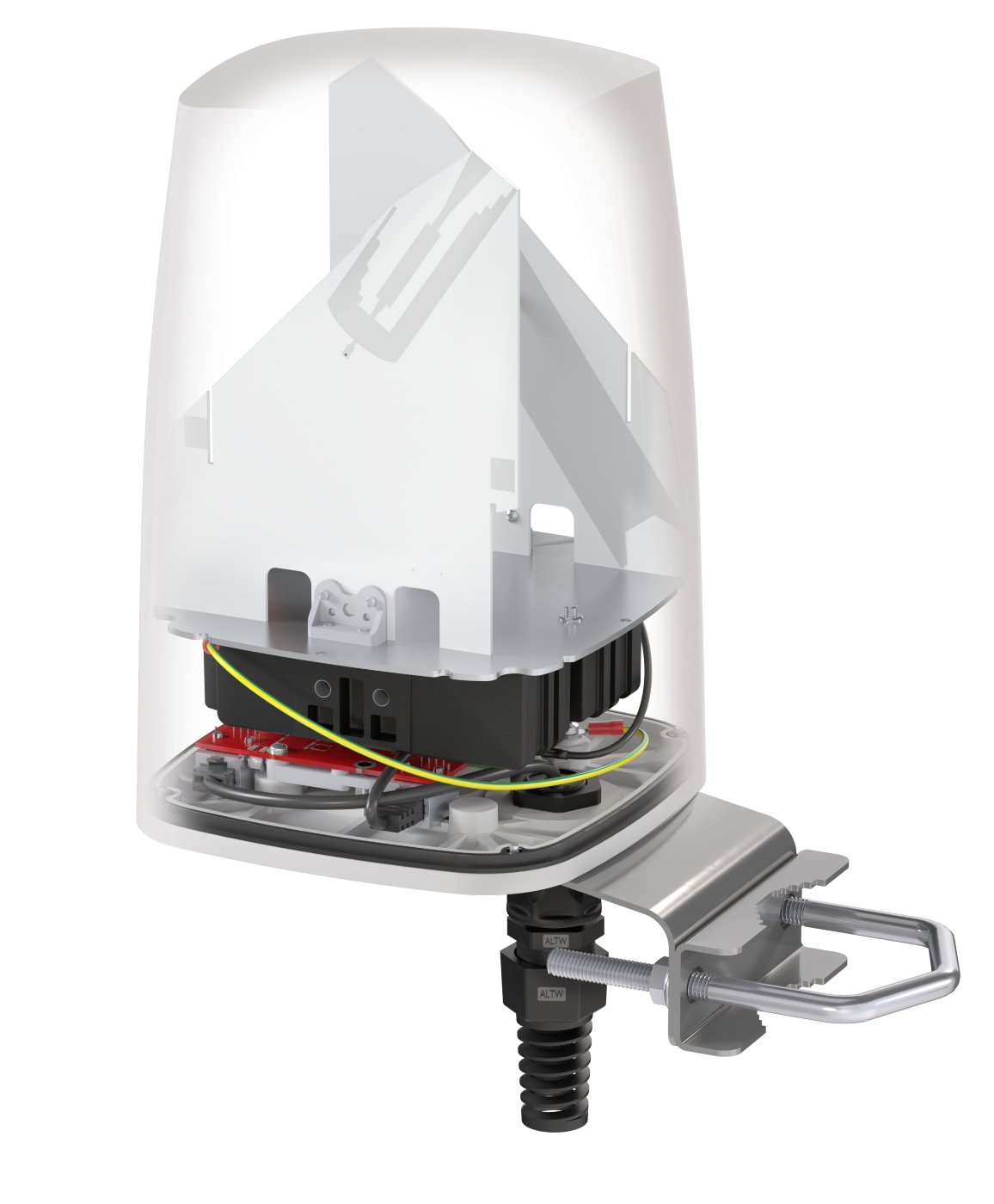

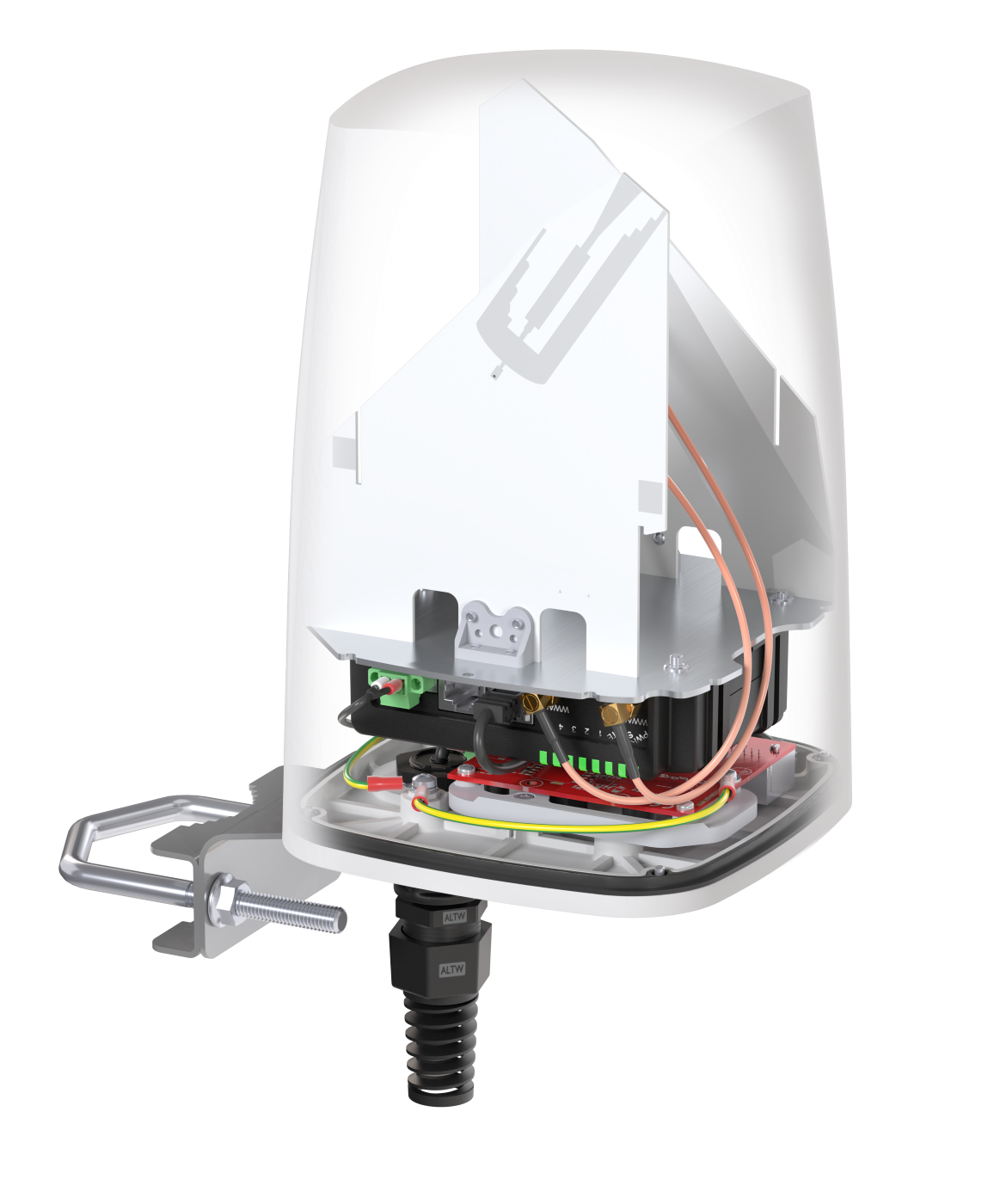

Antenna QuSpot LTE 802.3at for Digi IX10

P/n: ADIX10SAT

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + ACTIVE 802.3AT POE SPLITTER + PLACE TO INSTALL DIGI IX10 (ALL-IN-ONE)

QuSpot LTE 802.3at for Digi IX10 is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G antenna. If you use IX10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a 802.3at PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection. Using QuWireless splitter provides 3KA surge and lightning protection.

Technical specification

Any question?

Why QuSpot LTE 802.3at for Digi IX10

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

Wall or mast mounting system

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.617 - 0.960 GHz

1.6 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.0 GHz

Max. Gain

0.617 - 0.960 GHz : 2 dBi

1.6 - 3.0 GHz : 4 dBi

3.0 - 5.0 GHz : 4 dBi

5.0 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 111, 252, 254, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n106, n252, n254, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

Gain for 5G/LTE antenna

5G/LTE From 650MHz to 950MHz

Elevation

Azimuth

5G/LTE From 1710MHz to 2500MHz

Elevation

Azimuth

5G/LTE From 3300MHz to 4000MHz

Elevation

Azimuth

5G/LTE From 4500MHz to 5500MHz

Elevation

Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

WHAT'S IN THE BOX?

PRODUCT DETAILS

IN THE BOX

QuSpot LTE 802.3at for Digi IX10

1x 8mm wrench

x4 3,1 x 12

4x M6 x 10

2x M8

1x QuRJ45

1 x AT-12V-FP - Already installed inside

Designed For

Digi

Download

Datasheet QuSpot LTE 802.3at for Digi IX10

IP67 Certificate

IP68 Certificate

IK08 Certificate

IP68 Certificate with QuPS2/4 & QuSIM

Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA

EV chargers

01.02.2013

Upgrade your electric vehicle charger with a QuWireless antenna to provide the most reliable internet connection, trouble-free payments and seamless spot booking.

Important Events

01.01.2013

Being with your loved ones at important events is very important, but sometimes impossible. With QuWireless you can see their smiles and hear theit laughs wherever your are.

Camping & RV antenna

01.02.2013

QuWireless antennas are the best choice if you're want to stay connected wherever you go.
