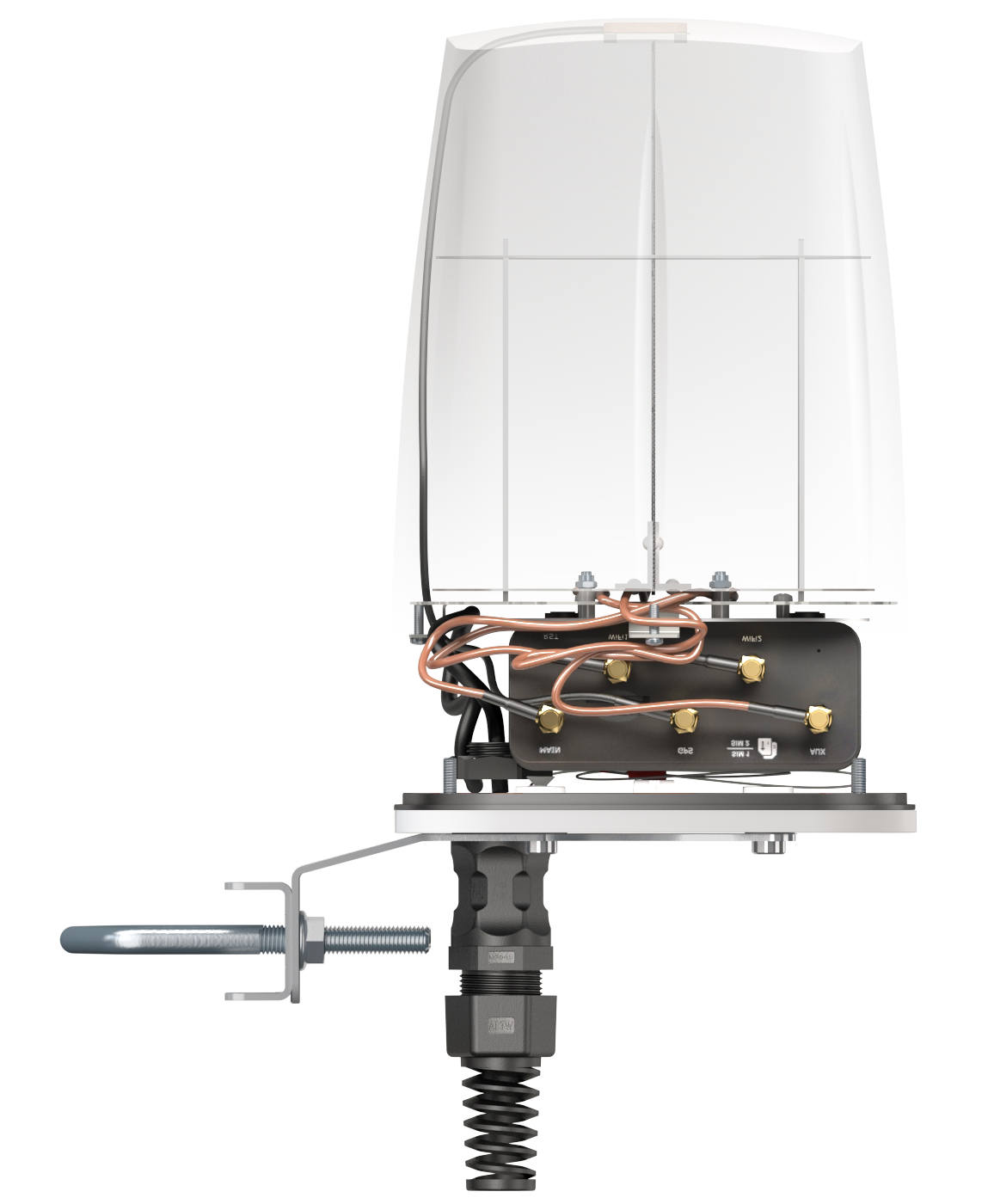

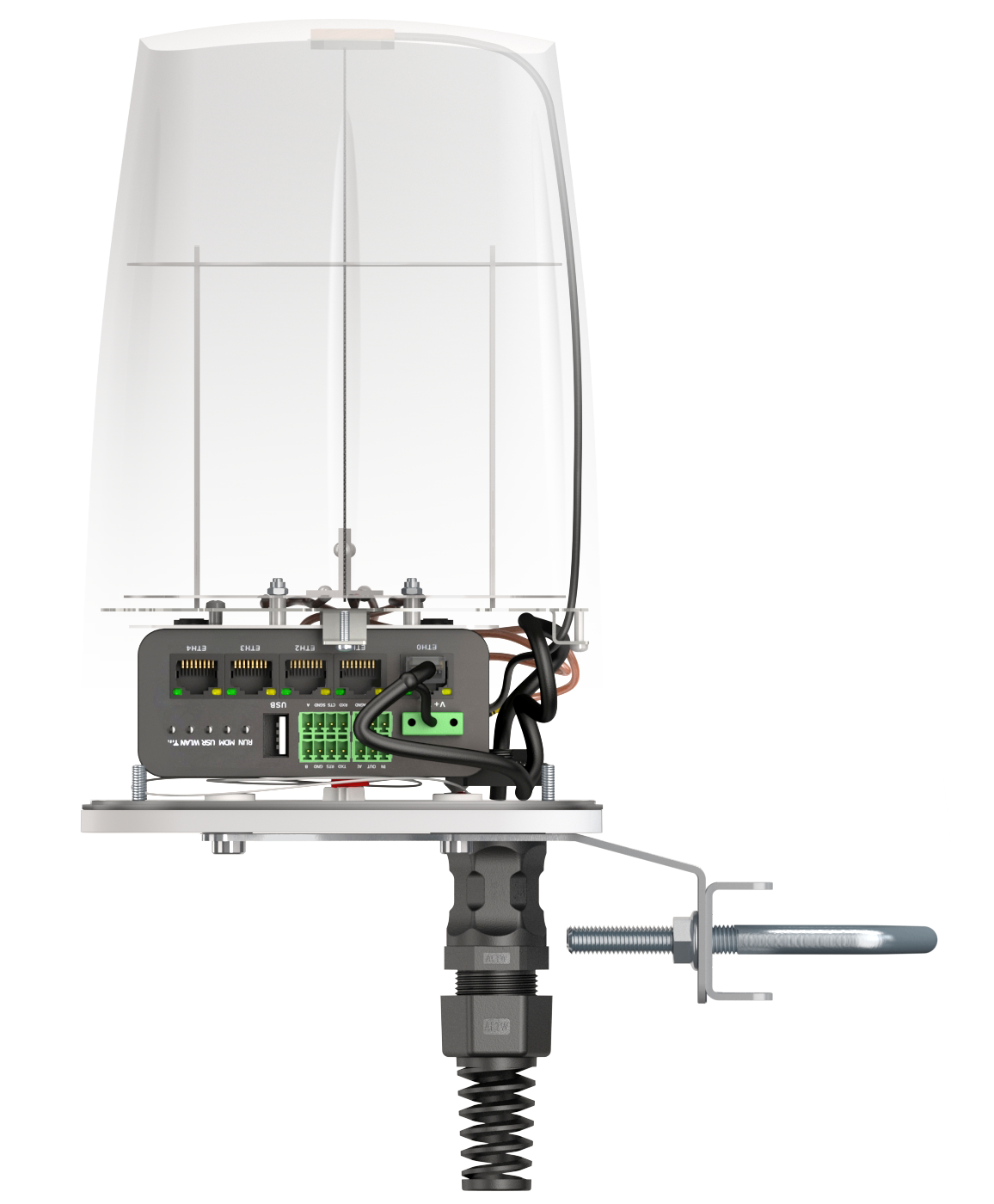

Antenna QuSpot for Robustel R1520

To check PN please select variant below

INTEGRATED MULTI-BAND LTE OMNI ANTENNA + WIFI OMNI ANTENNA + GPS ANTENNA + PLACE TO INSTALL ROBUSTEL R1520 (ALL-IN-ONE)

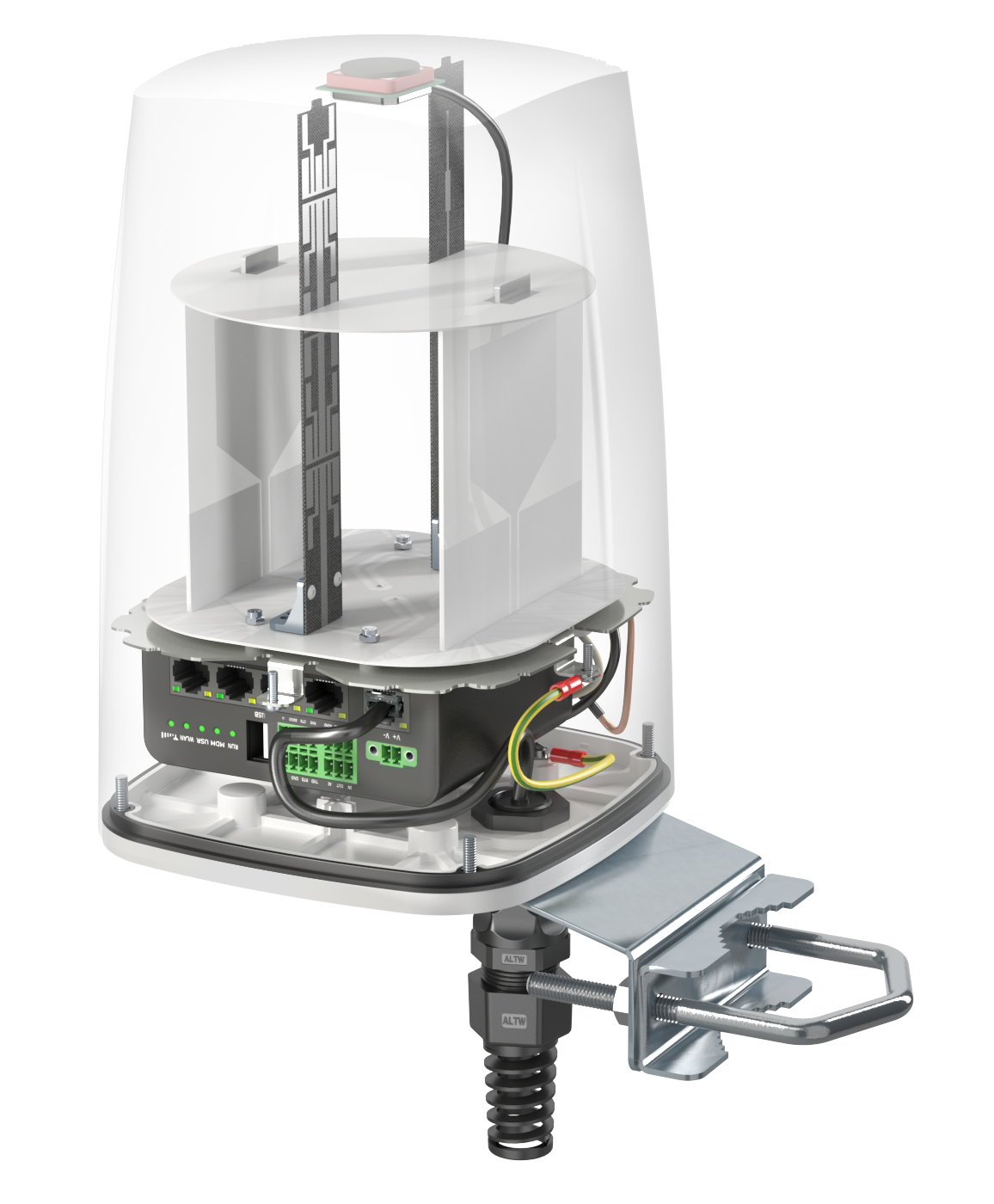

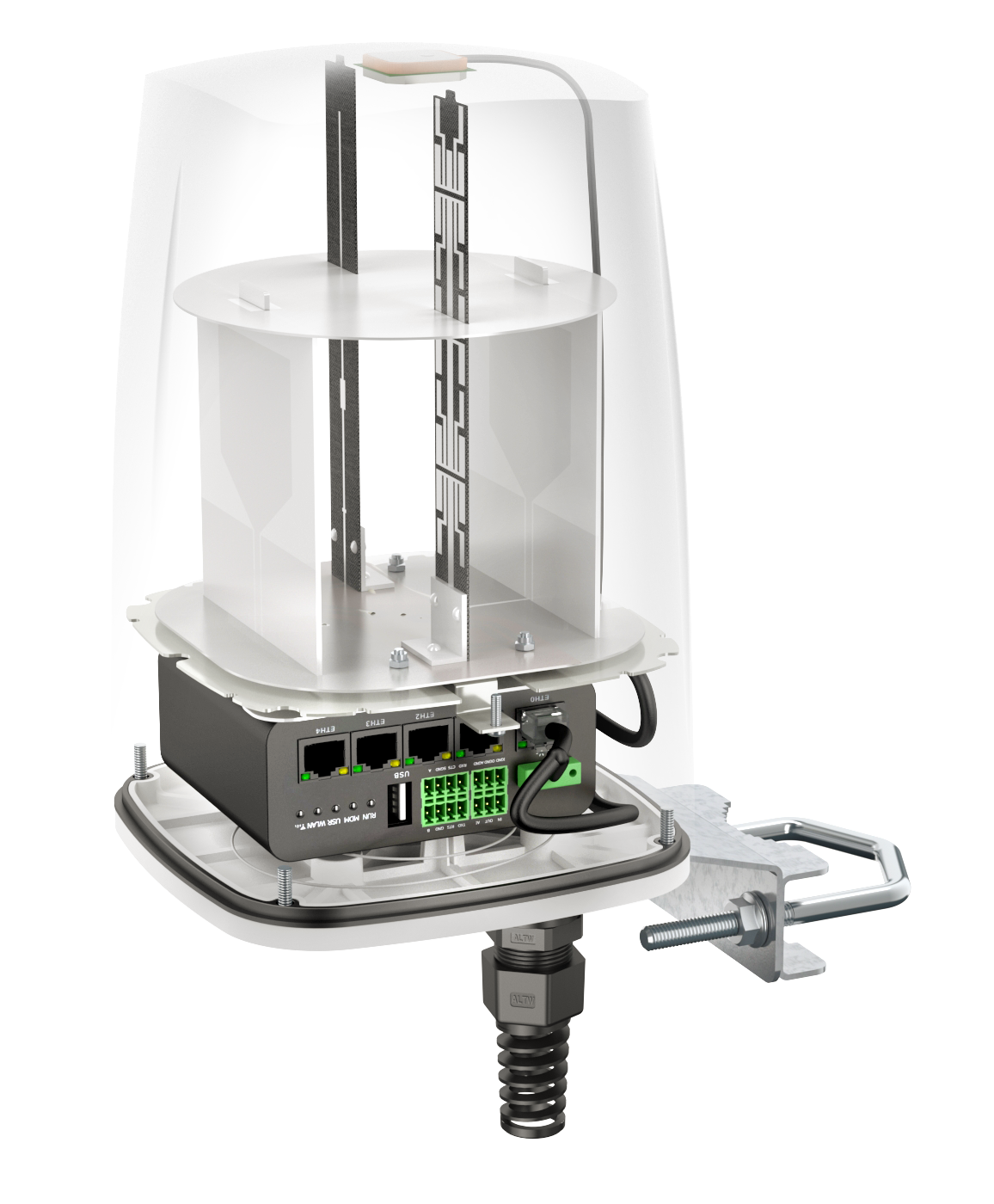

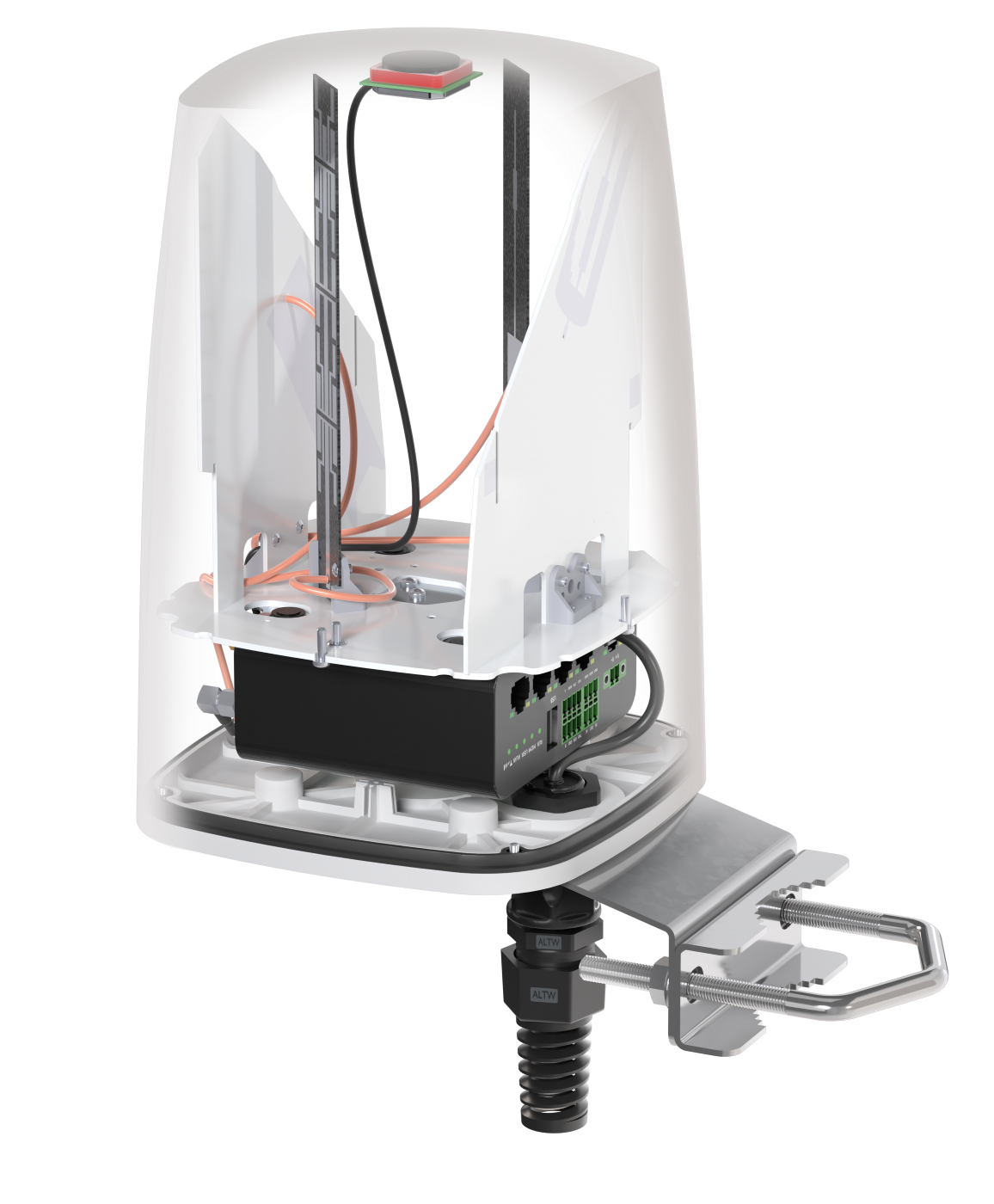

QuSpot omni LTE antenna for Robustel R1520 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi and GPS antenna. If you use R1520 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Variants:

no PoE Splitter

PoE Splitter

Technical specification

Any question?

Why QuSpot for Robustel R1520

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the Robustel R1520

All antennas and Robustel router integrated in one enclosure

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.617 - 0.960 GHz

1.6 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.0 GHz

Max. Gain

0.617 - 0.960 GHz : 2 dBi

1.6 - 3.0 GHz : 4 dBi

3.0 - 5.0 GHz : 4 dBi

5.0 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 111, 252, 254, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n106, n252, n254, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

VSWR for Wi-Fi antenna

Gain for 5G/LTE antenna

Gain for Wi-Fi antenna

5G/LTE From 650MHz to 950MHz

Elevation

Azimuth

5G/LTE From 1710MHz to 2500MHz

Elevation

Azimuth

5G/LTE From 3300MHz to 4000MHz

Elevation

Azimuth

5G/LTE From 4500MHz to 5500MHz

Elevation

Wi-Fi 2.4GHz and 5GHz and 6GHz
