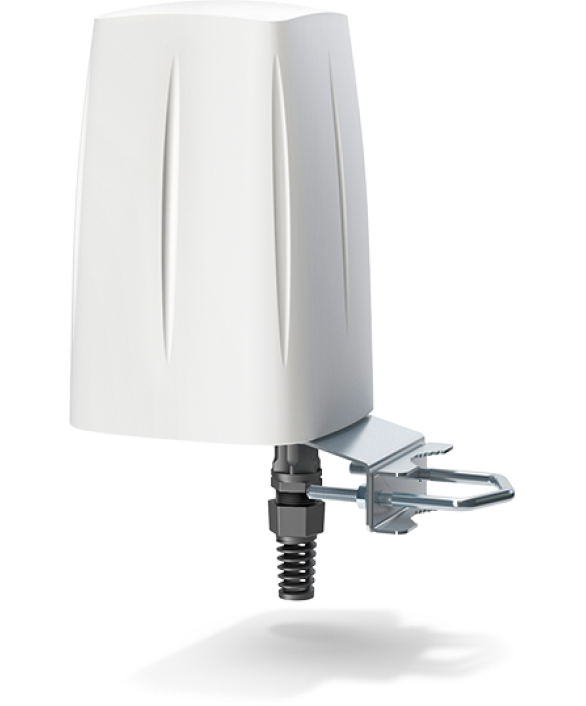

Antenna QuSpot for Teltonika RUTX09

P/n: AX09S

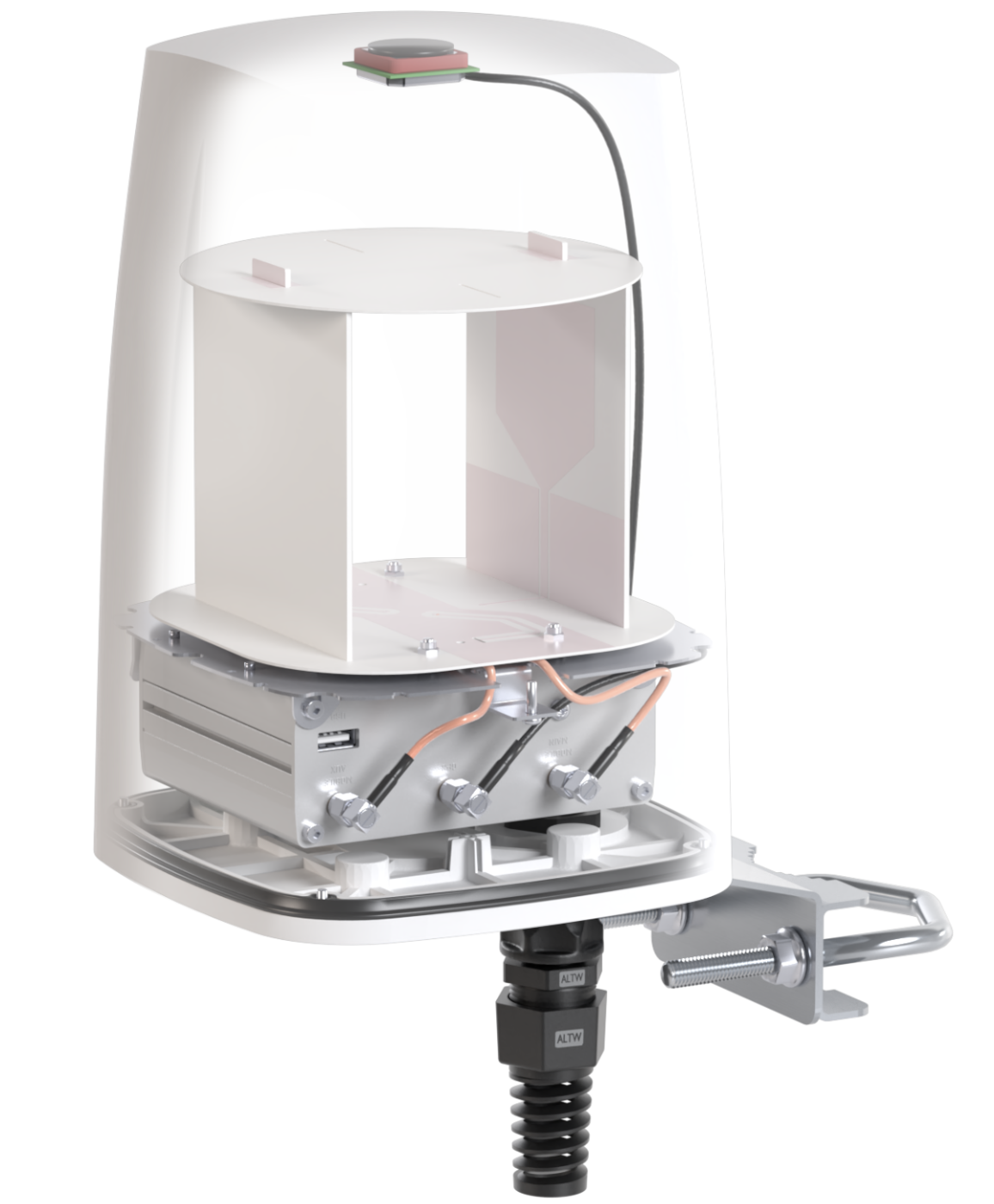

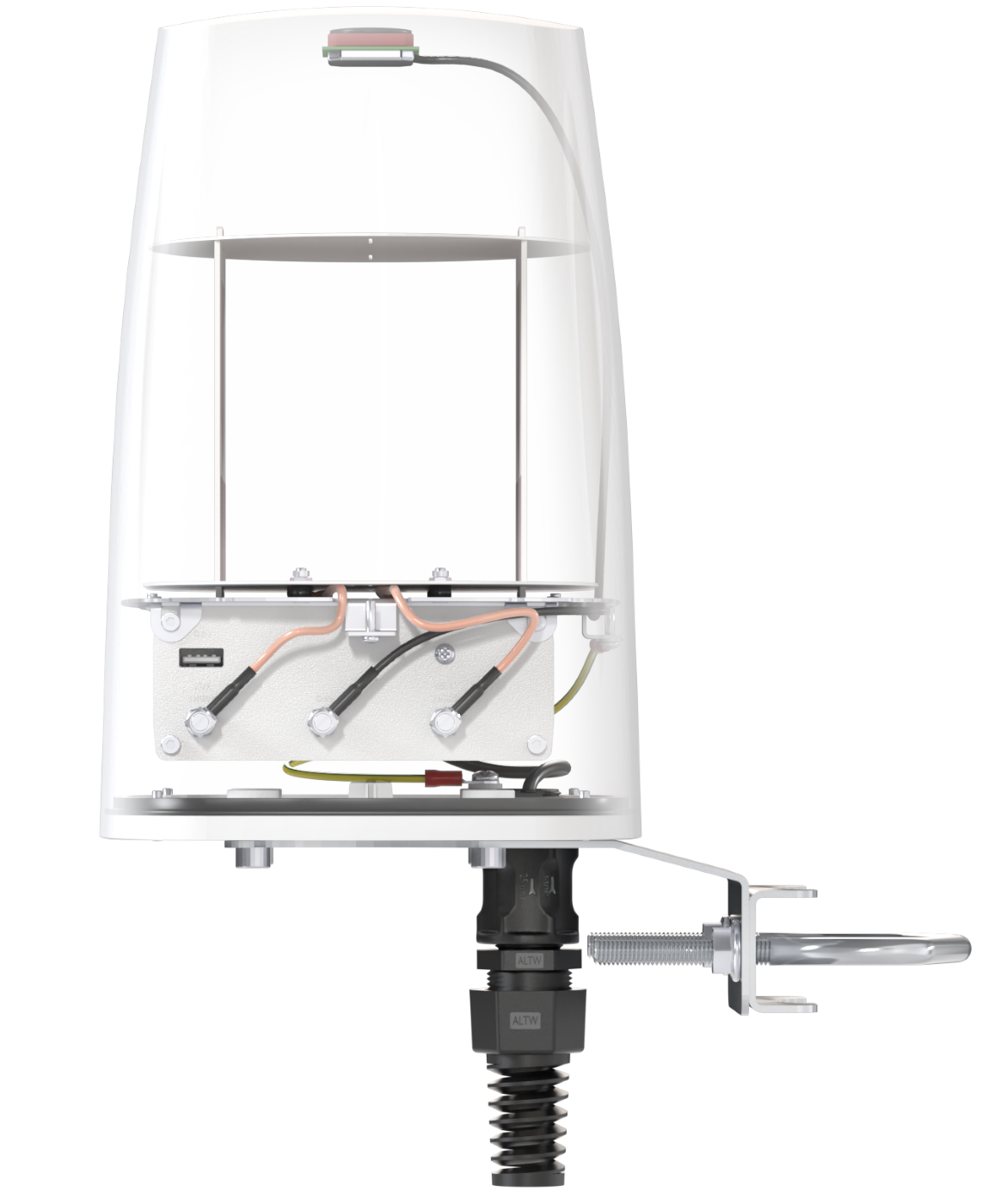

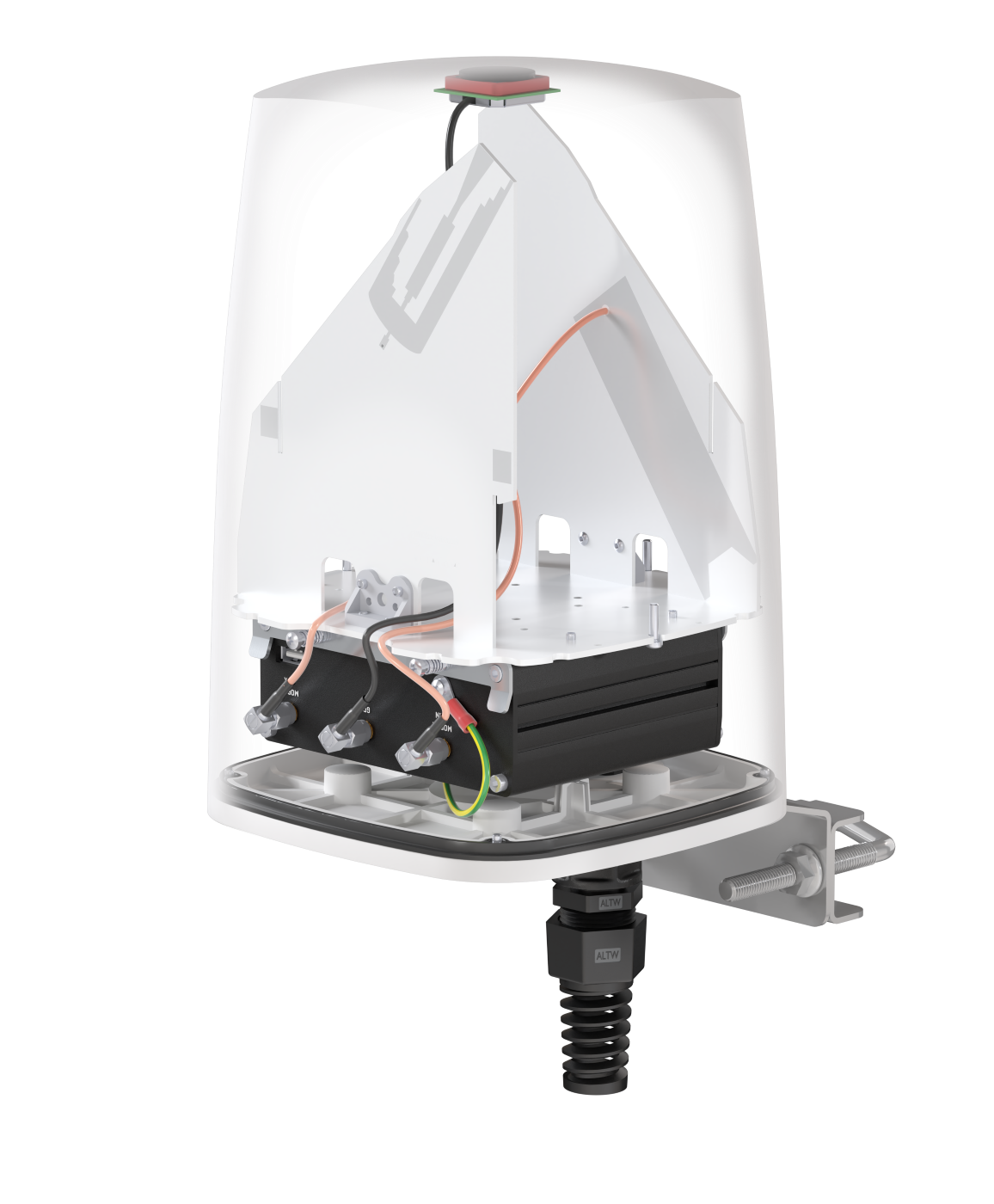

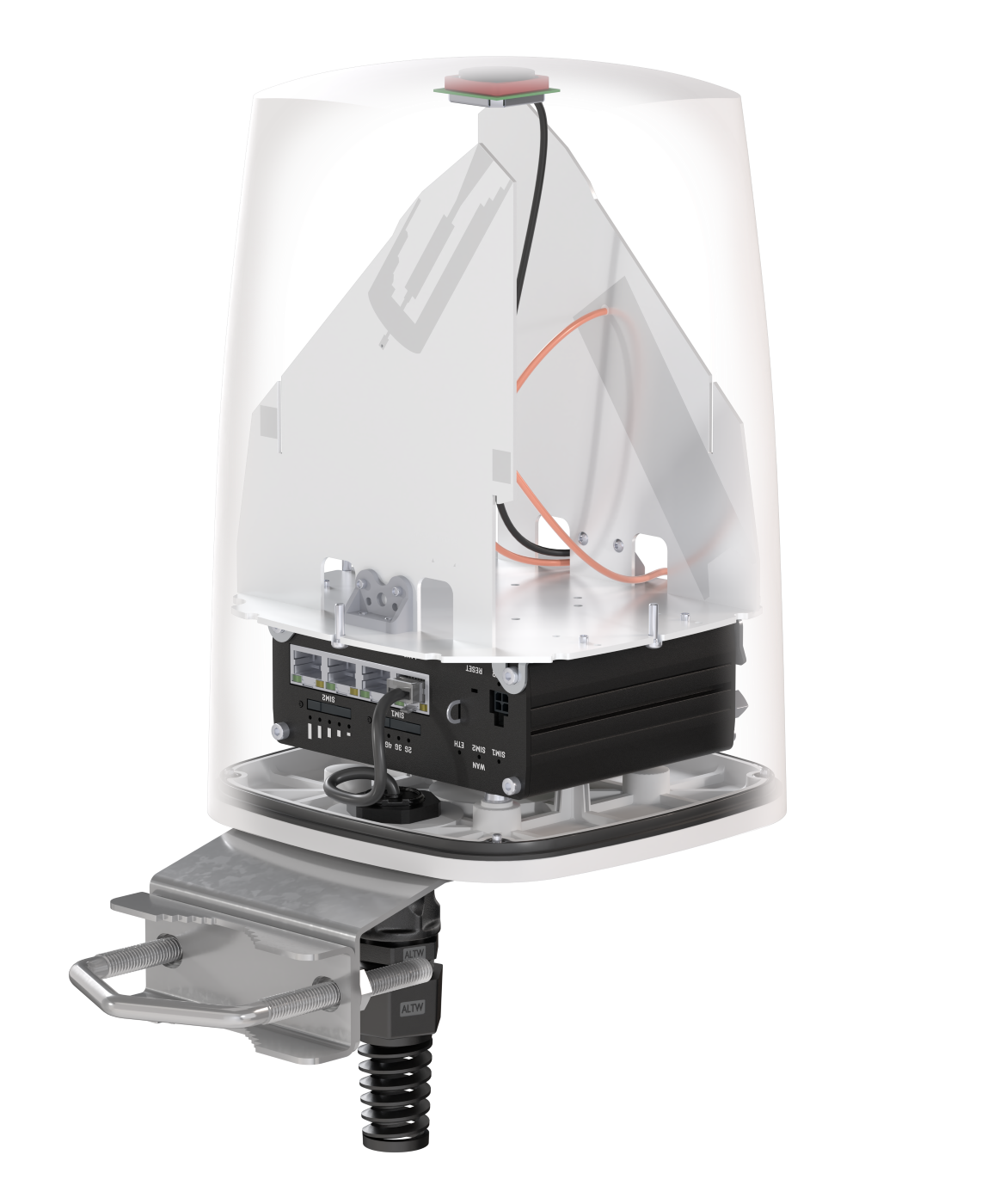

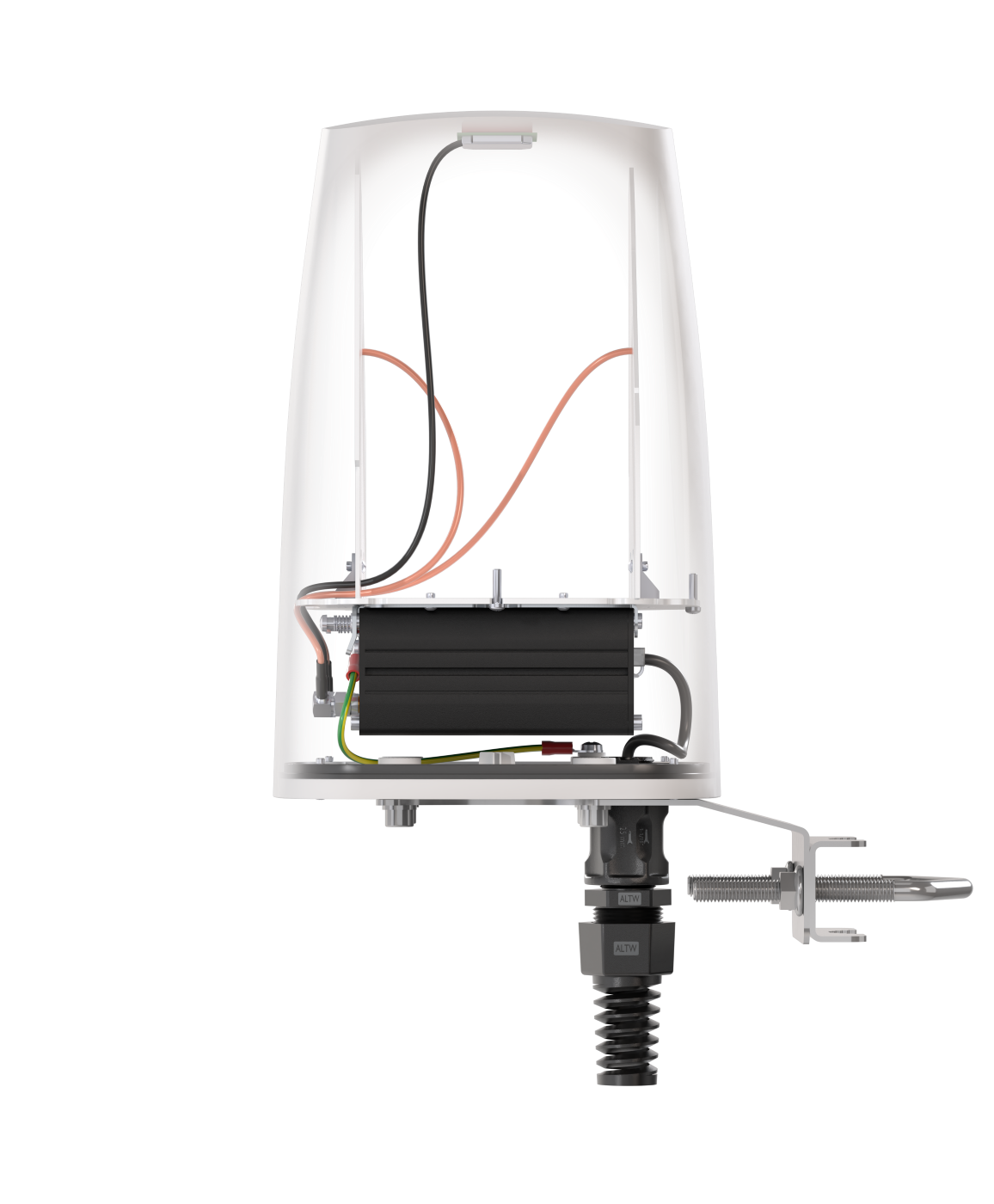

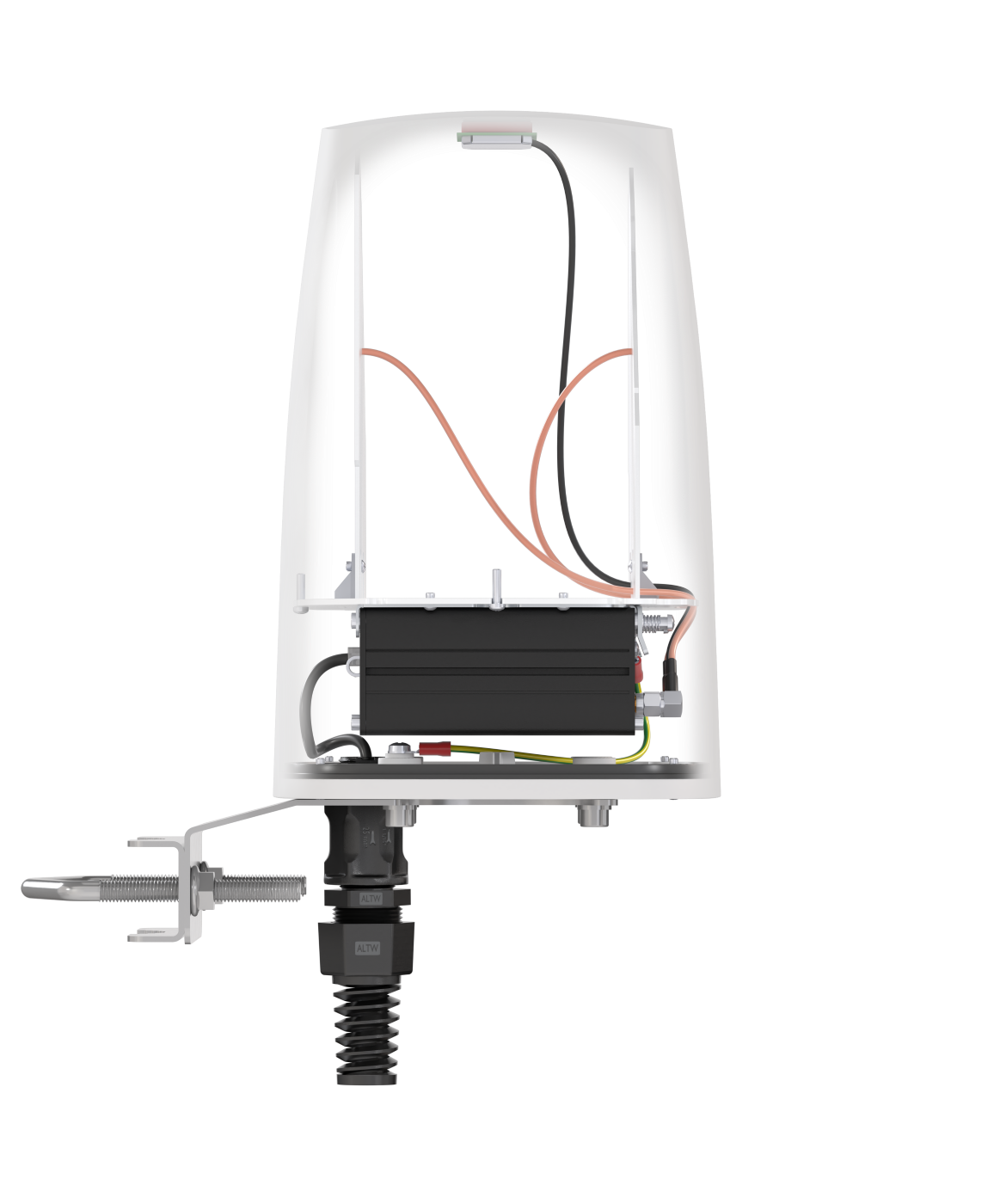

Integrated outdoor multi band LTE omni antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)

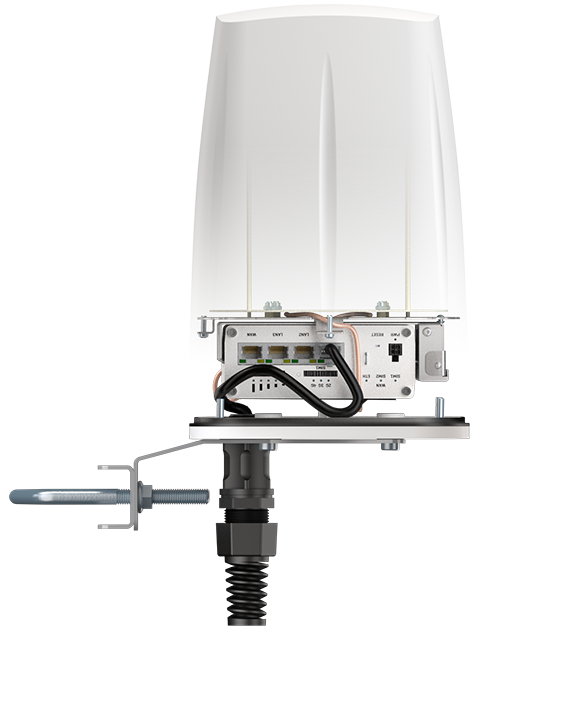

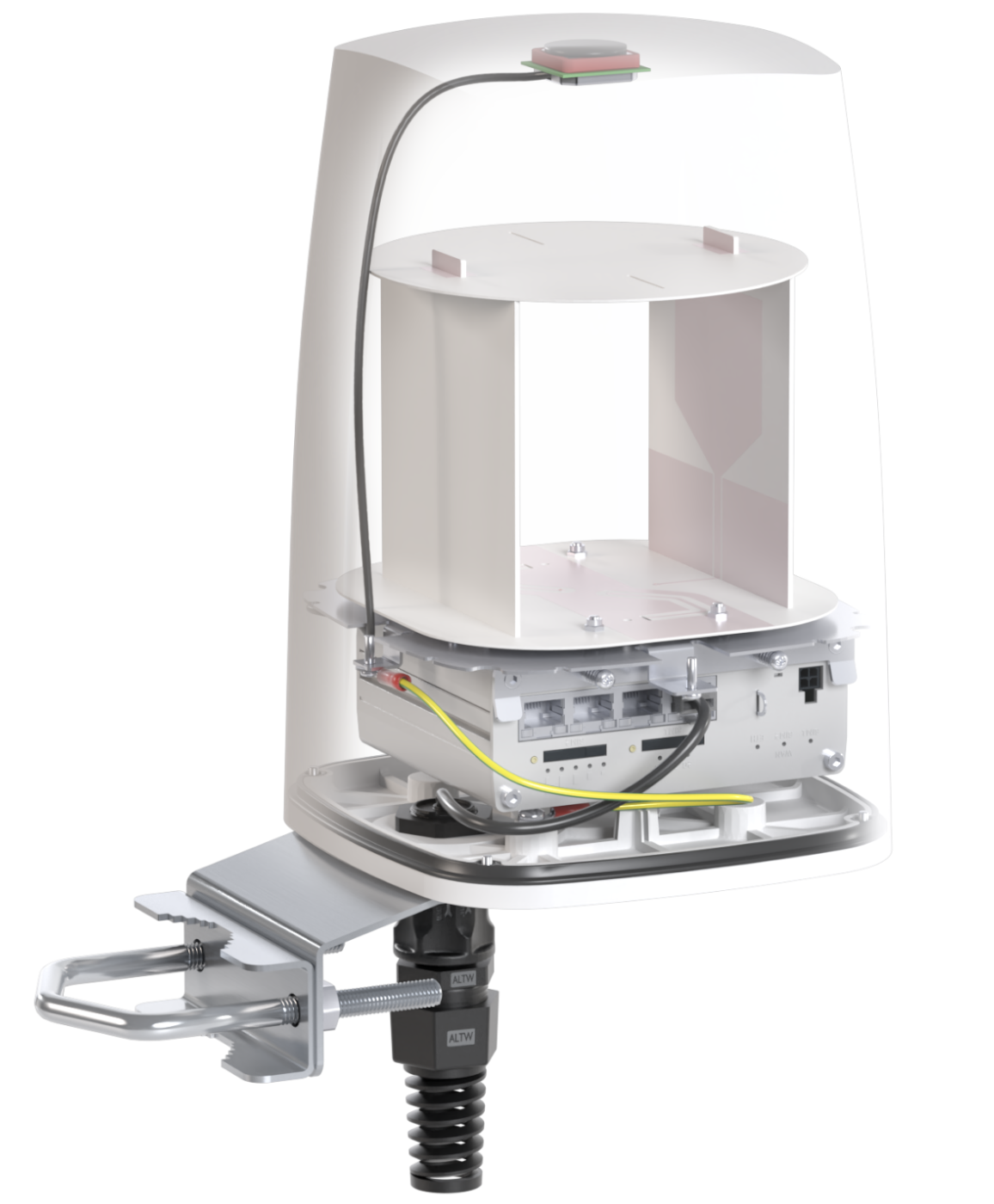

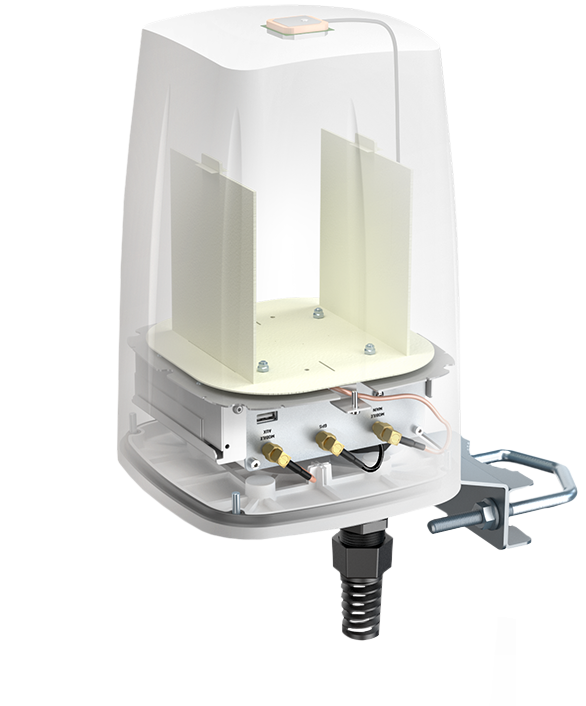

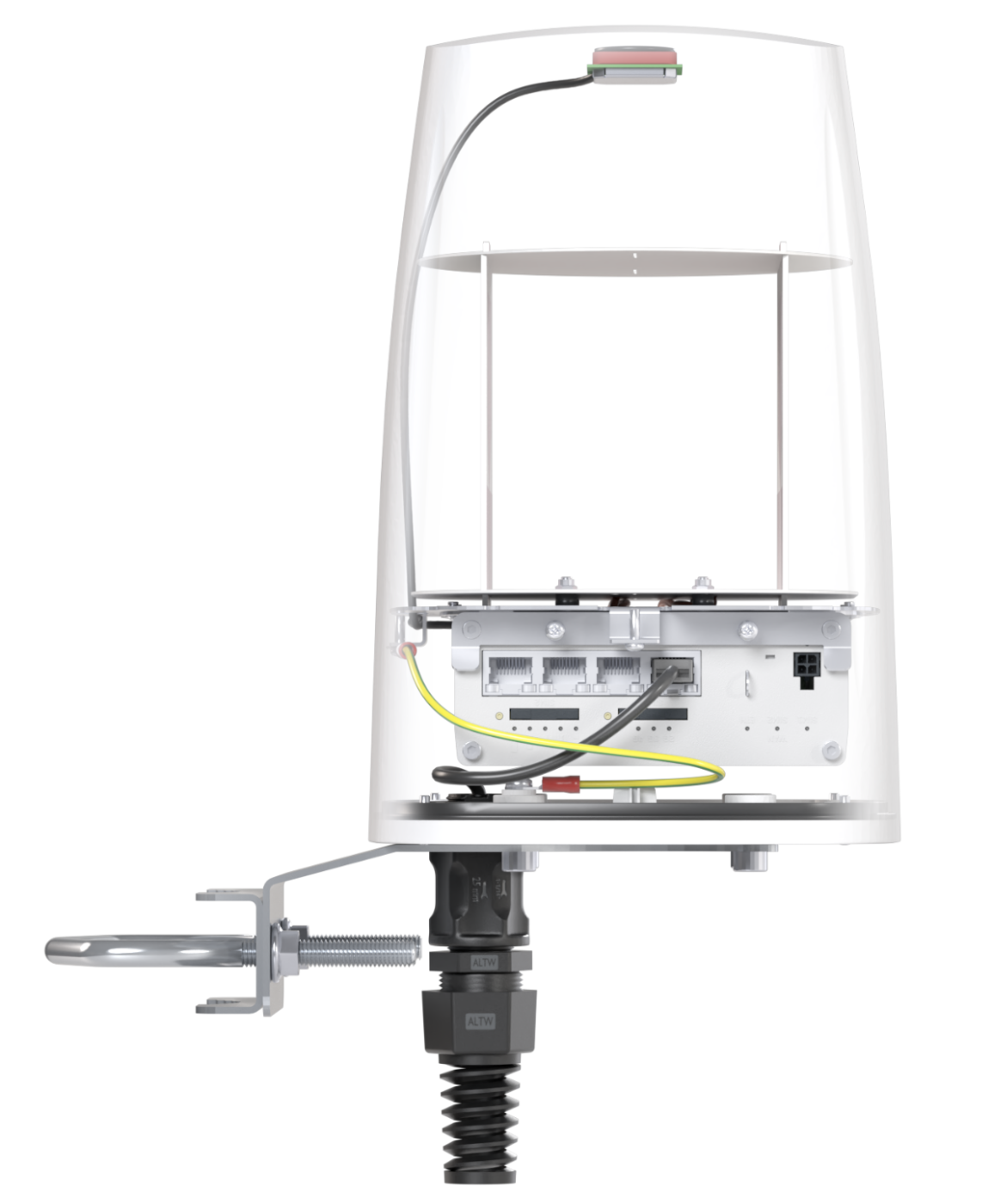

QuSpot omni LTE antenna for Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded GPS antenna. If you use RUTX09 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuSpot for Teltonika RUTX09

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE support

Made in Europe

QuSpot for Teltonika RUTX09

SPECIFICATION

PRODUCT DETAILS

LTE antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for Teltonika RUTX09

Gain for LTE antenna

Gain for LTE antenna of QuSpot for Teltonika RUTX09
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuSpot for Teltonika RUTX09QuSpot for Teltonika RUTX09
QuSpot for Teltonika RUTX09QuSpot for Teltonika RUTX09

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for RUTX09

Parts of QuSpot for Teltonika RUTX09

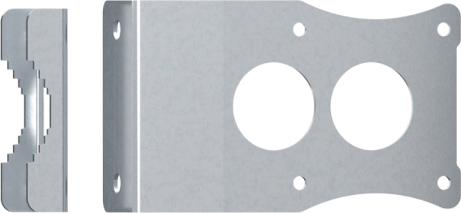

1x Mounting for Teltonika RUTX09
Parts of QuSpot for Teltonika RUTX09
1x 8mm wrench
Parts of QuSpot for Teltonika RUTX09
x4 3,1 x 12
Parts of QuSpot for Teltonika RUTX09
4x M6 x 10
Parts of QuSpot for Teltonika RUTX09
4x
Parts of QuSpot for Teltonika RUTX09
1x
Parts of QuSpot for Teltonika RUTX09
2x M8
Parts of QuSpot for Teltonika RUTX09
1x
Parts of QuSpot for Teltonika RUTX09
1x QuRJ45

Download

Datasheet QuSpot for Teltonika RUTX09
Download
3D MODEL
Download
RUTX09 QUICK START GUIDE
Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA
Use case QuSpot for Teltonika RUTX09
Use case QuSpot for Teltonika RUTX09
Use case QuSpot for Teltonika RUTX09
