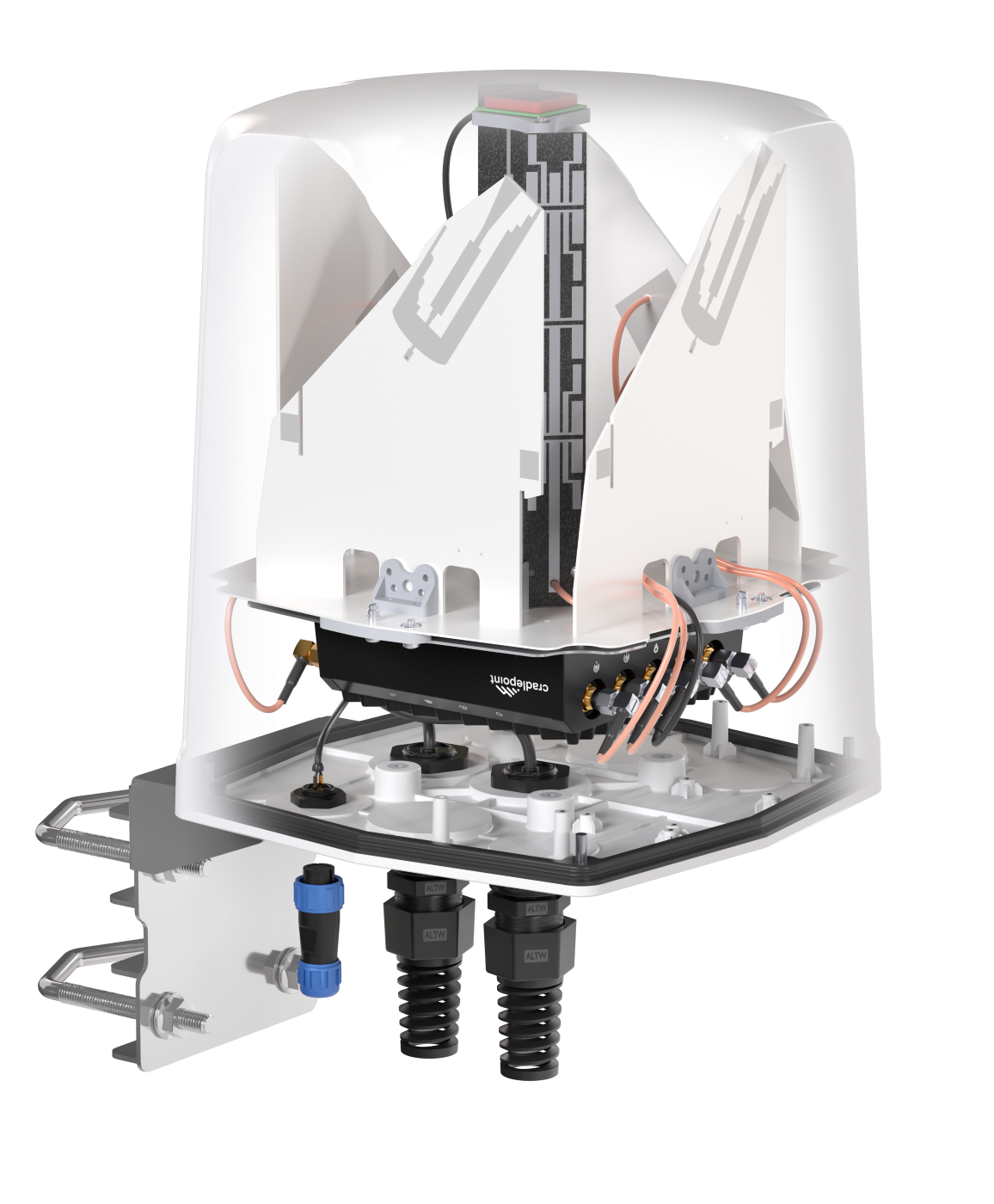

Antenna QuWave for Ericsson R980 DC

P/n: -

INTEGRATED MULTI-BAND 5G OMNI ANTENNA + WI-FI 6E OMNI ANTENNA + GPS ANTENNA + PLACE TO INSTALL ERICSSON R980 (ALL-IN-ONE)

QuWave for Ericsson R980 DC is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded omni 5G, omni Wi-Fi 6E and GPS antenna. The device has two RJ45 connectors and a socket for power supply from a DC installation. If you use R980 with QuWave antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Wi-Fi 6E support!

Technical specification

Any question?

Contact us

Why QuWave for Ericsson R980 DC

Learn more about your profit

OUTDOOR ANTENNA WORKS IN ANY WEATHER CONDITIONS, IP68

ANTENNA PERFECTLY MATCHED WITH THE ERICSSON R980

ALL ANTENNAS AND ERICSSON ROUTER INTEGRATED IN ONE ENCLOSURE

Galvanized steel, wall or pole mounting bracket

Made in Europe

QuWave for Ericsson R980 DC

SPECIFICATION

PRODUCT DETAILS

5G / LTE ANTENNA SPECIFICATION

WI-FI ANTENNA SPECIFICATION

MECHANICAL SPECIFICATION

FREQUENCY BANDS

Frequency

0.617 - 0.960 GHz

1.6 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.0 GHz

Max. Gain

0.617 - 0.960 GHz : 2 dBi

1.6 - 3.0 GHz : 4 dBi

3.0 - 5.0 GHz : 4 dBi

5.0 - 6.0 GHz : 2 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 111, 252, 254, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n106, n252, n254, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

5G/LTE VSWR

5G/LTE VSWR of QuWave for Ericsson R980 DC

5G/LTE Gain

5G/LTE Gain of QuWave for Ericsson R980 DC

WI-FI VSWR

WI-FI VSWR of QuWave for Ericsson R980 DC

WI-FI Gain

WI-FI Gain of QuWave for Ericsson R980 DC
5G/LTE From 650MHz to 950MHz
Elevation
Azimuth
5G/LTE From 1710MHz to 2500MHz
Elevation
Azimuth
5G/LTE From 3300MHz to 4000MHz
Elevation
Azimuth
5G/LTE From 4500MHz to 5500MHz
Elevation
Azimuth
Wi-Fi From 2.4 GHz to 6.5 GHz
Elevation
Azimuth
