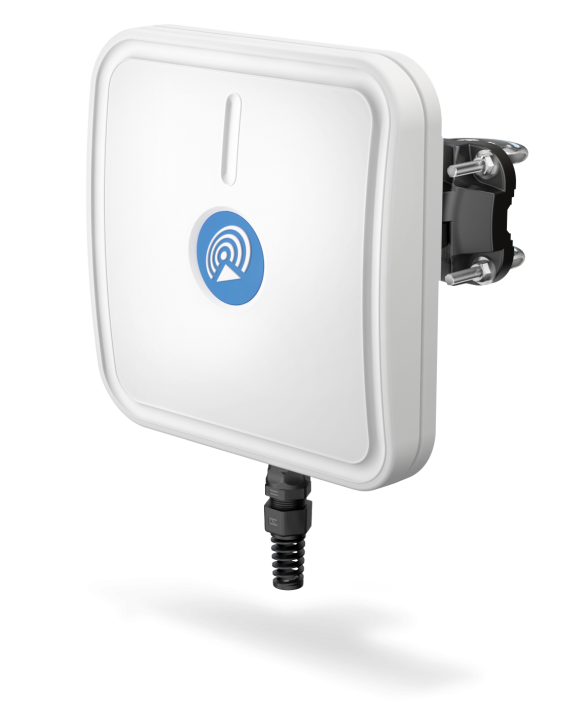

Antenna QuMax Omni for Cradlepoint IBR600C

P/n: ACP600MO

INTEGRATED OUTDOOR MULTI BAND HIGH POWER LTE OMNI ANTENNA + WI-FI OMNI ANTENNA + PLACE TO INSTALL CRADLEPOINT IBR600C (ALL-IN-ONE)

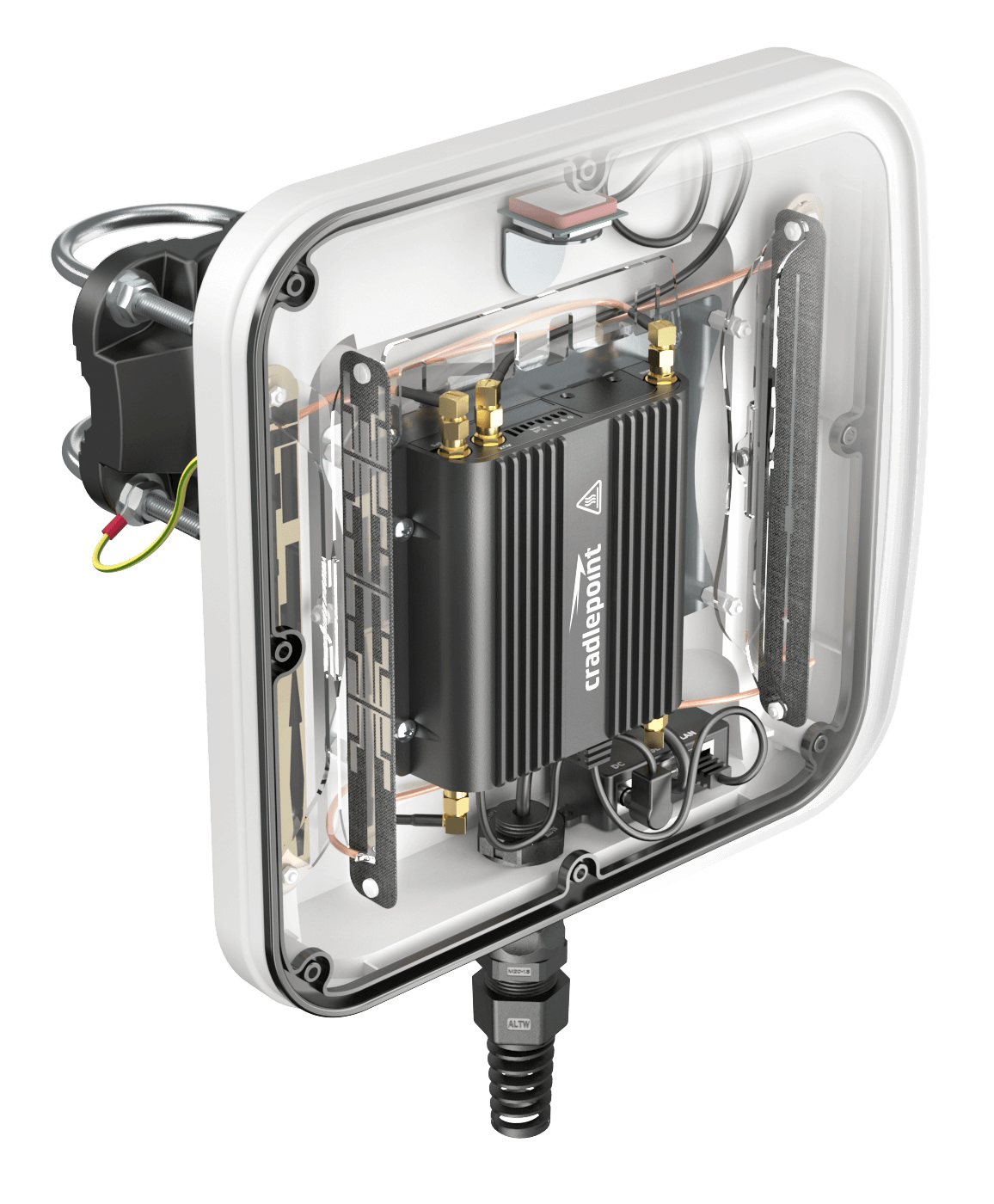

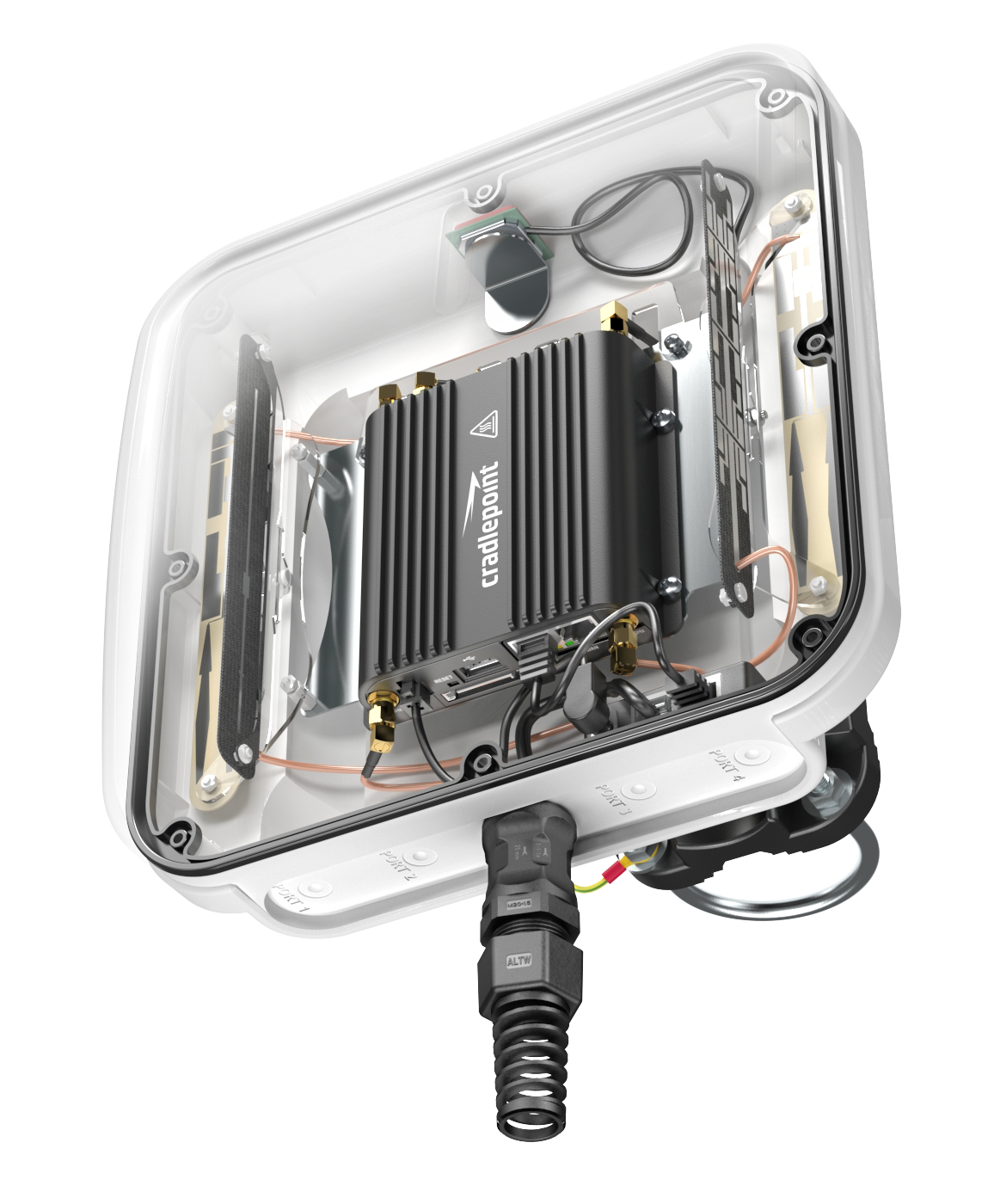

QuMax Omni dual LTE antenna (2x SMA connector) for Cradlepoint IBR600C router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dual-band 2.4 & 5 GHz omni antenna (RP-SMA connector). If you use Cradlepoint router with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Why QuMax Omni for Cradlepoint IBR600C

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with Cradlepoint IBR600C

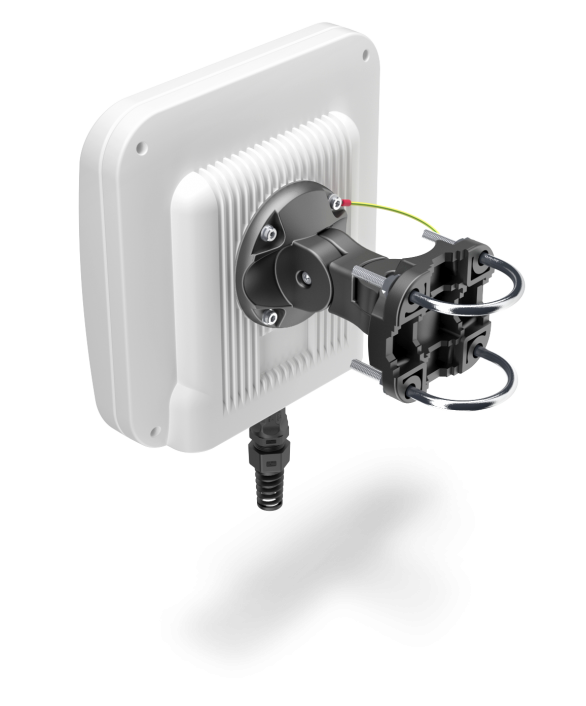

Mounting system with two planes, 60 degrees regulation

Made in Europe

QuMax Omni for Cradlepoint IBR600C

SPECIFICATION

PRODUCT DETAILS

LTE SPECIFICATION

WI-FI SPECIFICATION

MECHANICAL SPECIFICATION

MOUNTING KIT

COMPATIBLE ROUTERS

FREQUENCY

0.694 - 0.960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

GAIN

2 dBi

2 dBi

3 dBi

SUPPORTED LTE/5G BANDS

1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 65, 66, 67, 68, 69, 85, 103, n80, n81, n82, n83, n84, n86, n89, n95, n98, n100, n101, n256

VSWR

<1.50, max <2.50

BEAMWIDTH

360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuMax Omni for Cradlepoint IBR600C

VSWR for Wi-Fi antenna

VSWR for Wi-Fi antenna of QuMax Omni for Cradlepoint IBR600C

Gain for LTE antenna

Gain for LTE antenna of QuMax Omni for Cradlepoint IBR600C

Gain for Wi-Fi antenna

Gain for Wi-Fi antenna of QuMax Omni for Cradlepoint IBR600C
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.5GHz to 2.7GHz
Elevation
Azimuth
Wi-Fi 2.4GHz and 5GHz
Elevation
Azimuth

ANY QUESTIONS?

contact us

DIMENSIONS

PRODUCT DETAILS
QuMax Omni for Cradlepoint IBR600CQuMax Omni for Cradlepoint IBR600C
QuMax Omni for Cradlepoint IBR600CQuMax Omni for Cradlepoint IBR600C
QuMax Omni for Cradlepoint IBR600CQuMax Omni for Cradlepoint IBR600C

Download

Datasheet QuMax Omni for Cradlepoint IBR600C
Download
