Antenna QuSpot for Milesight UR41

P/n: AMUR41S

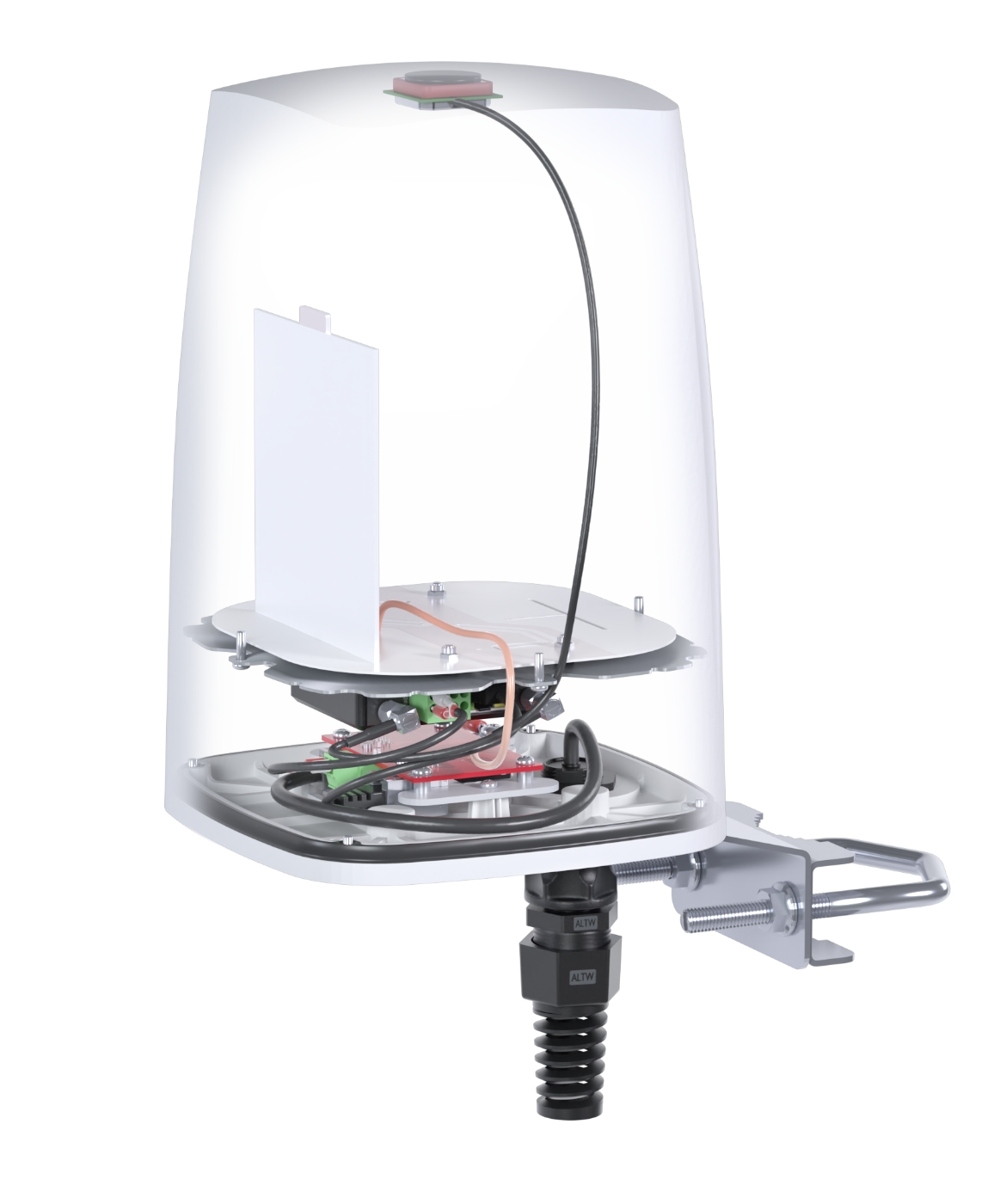

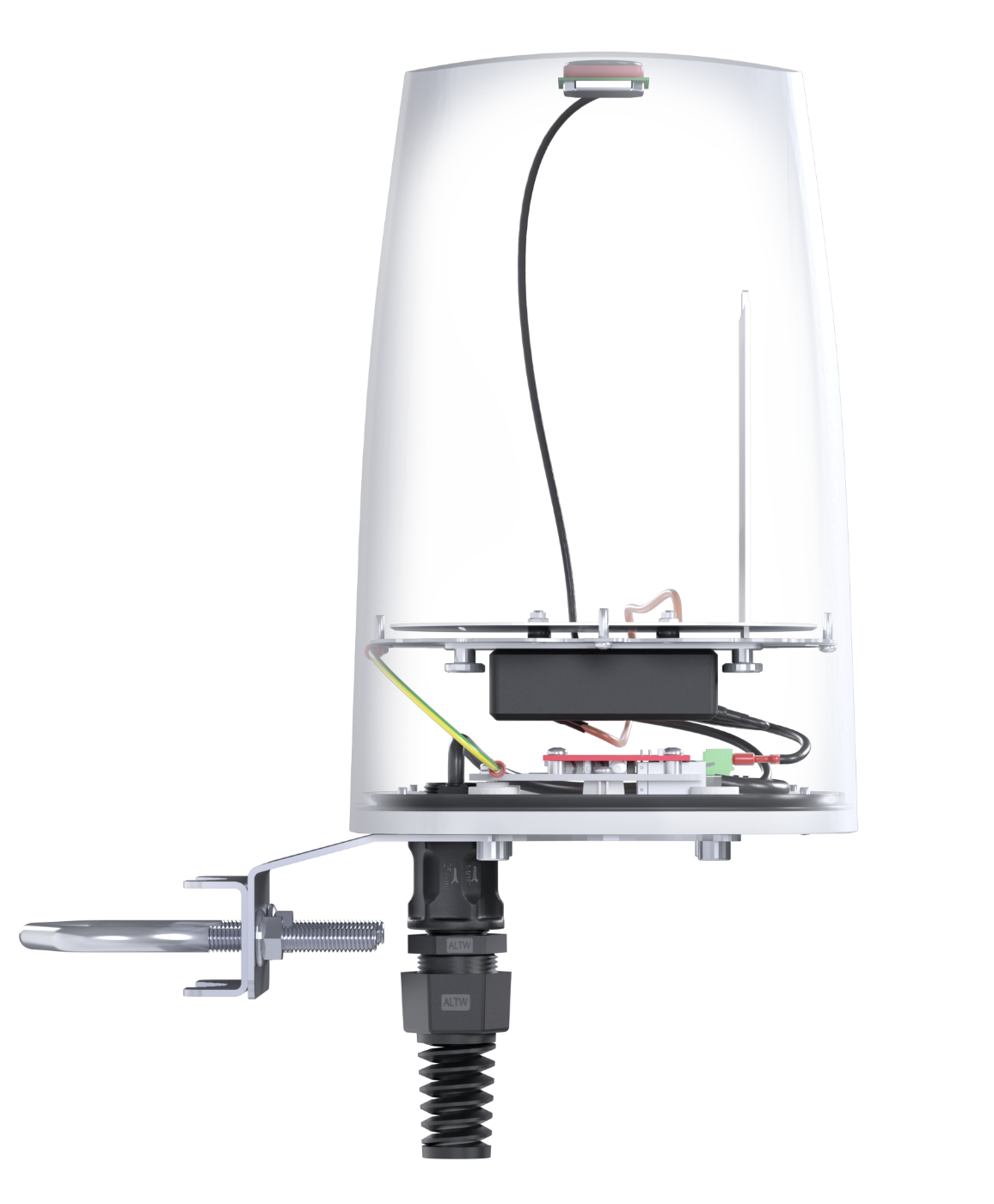

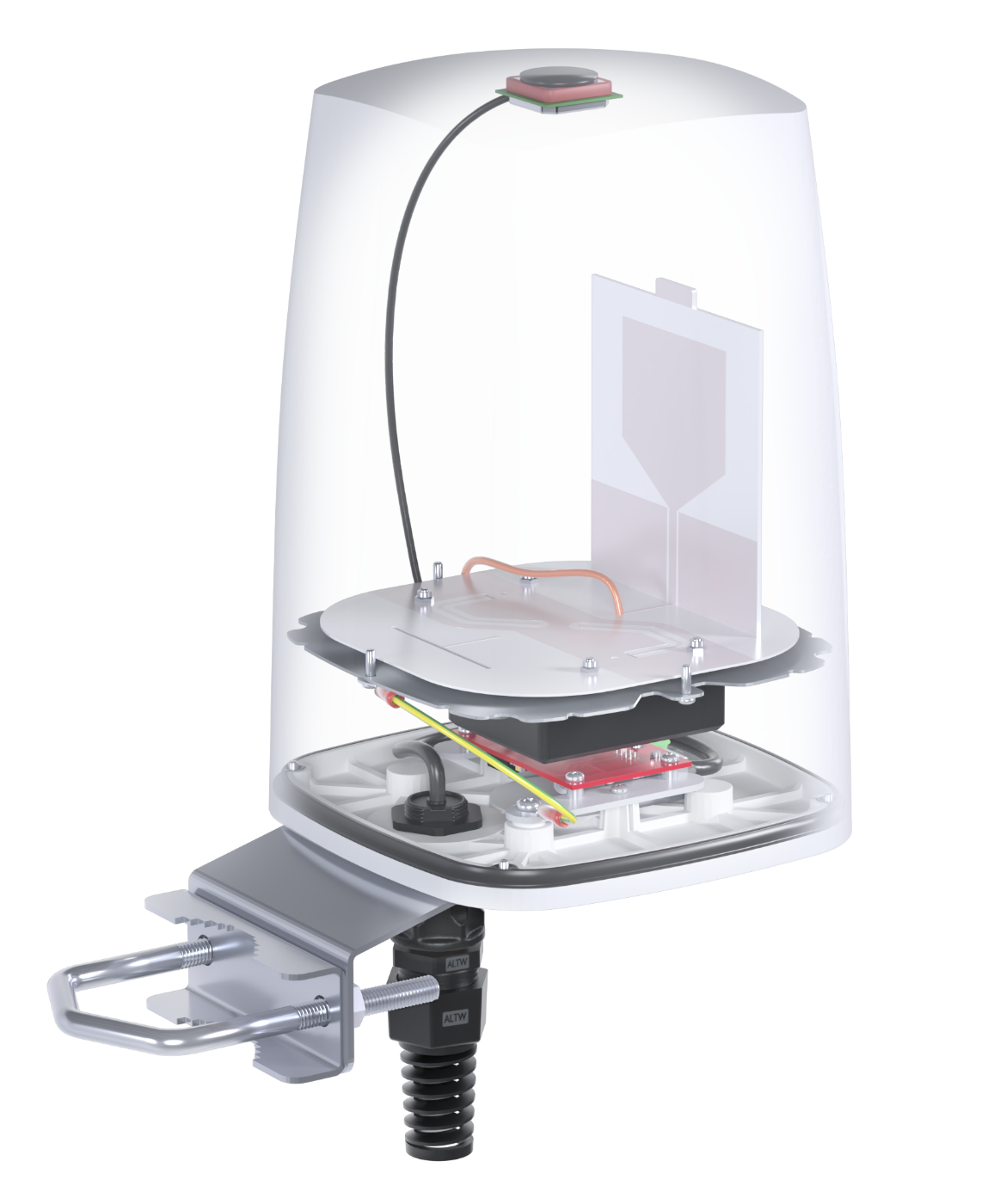

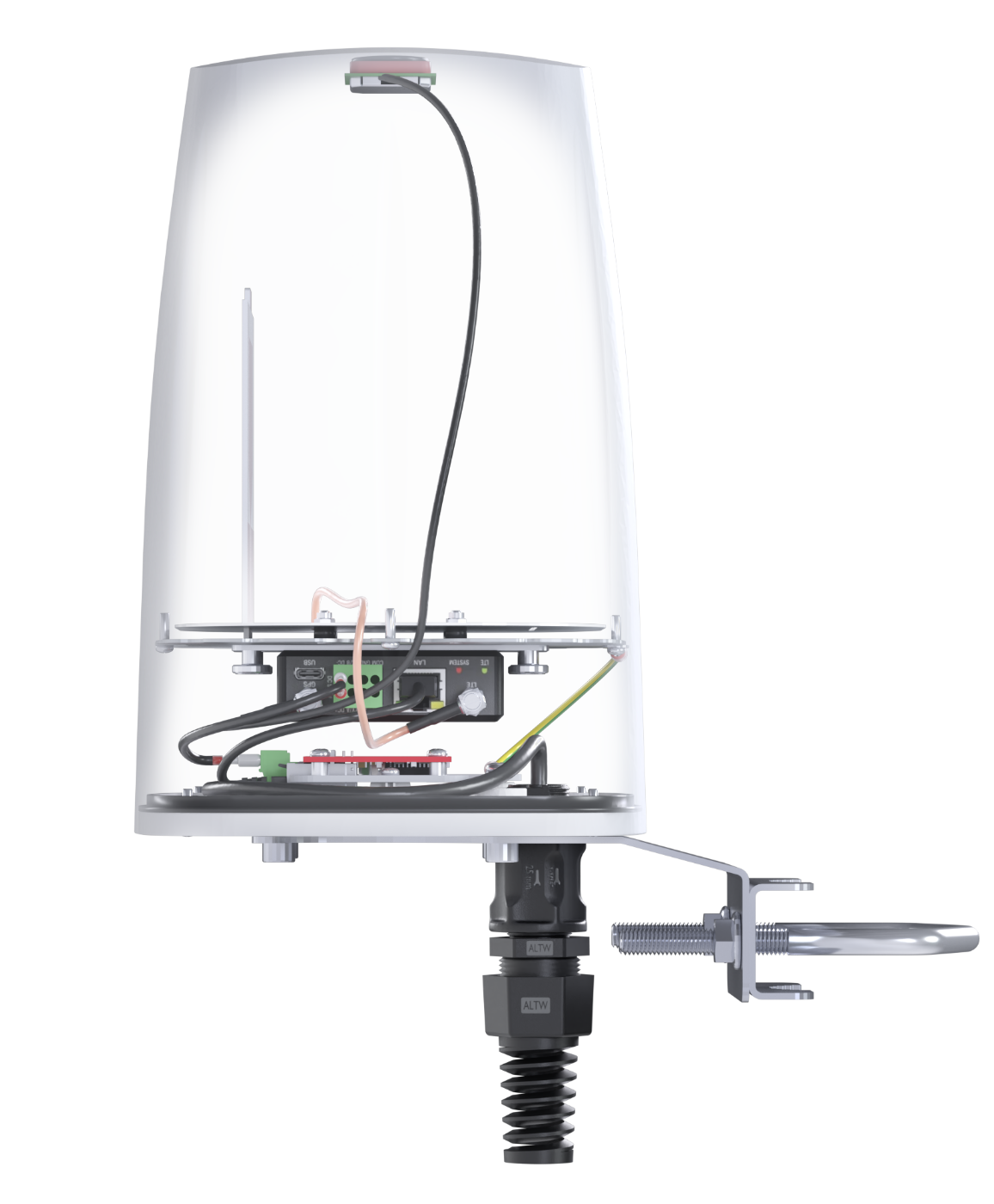

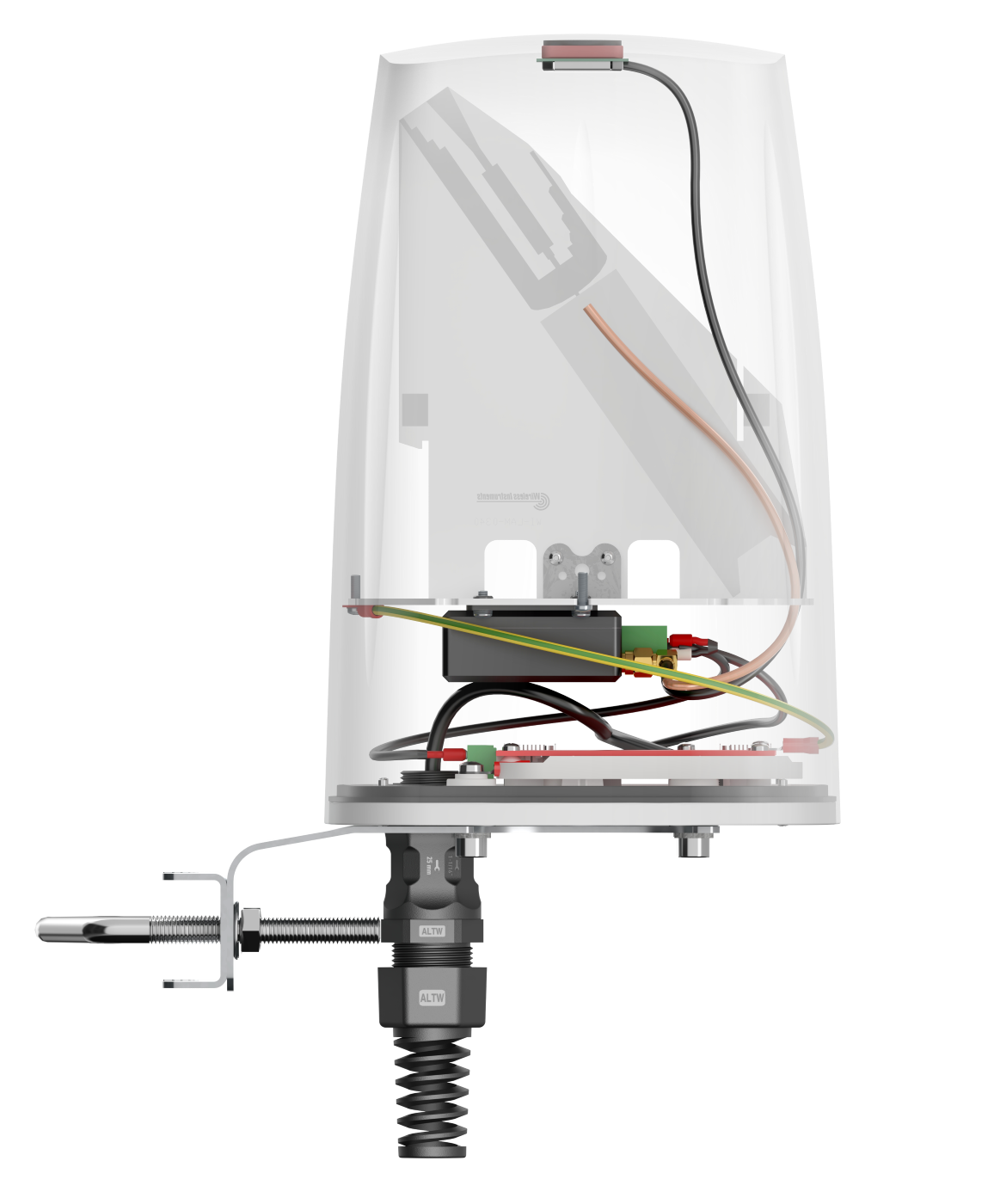

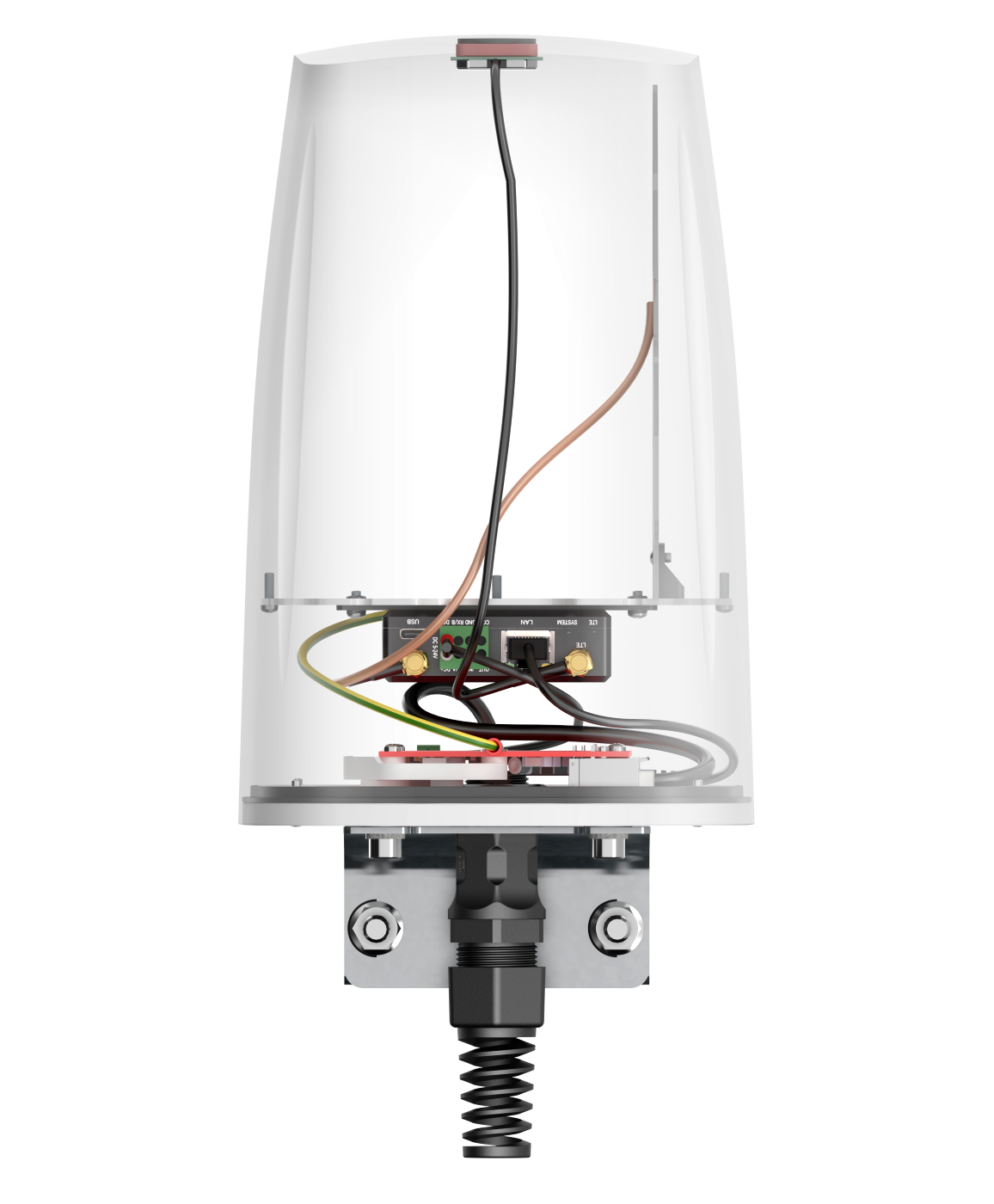

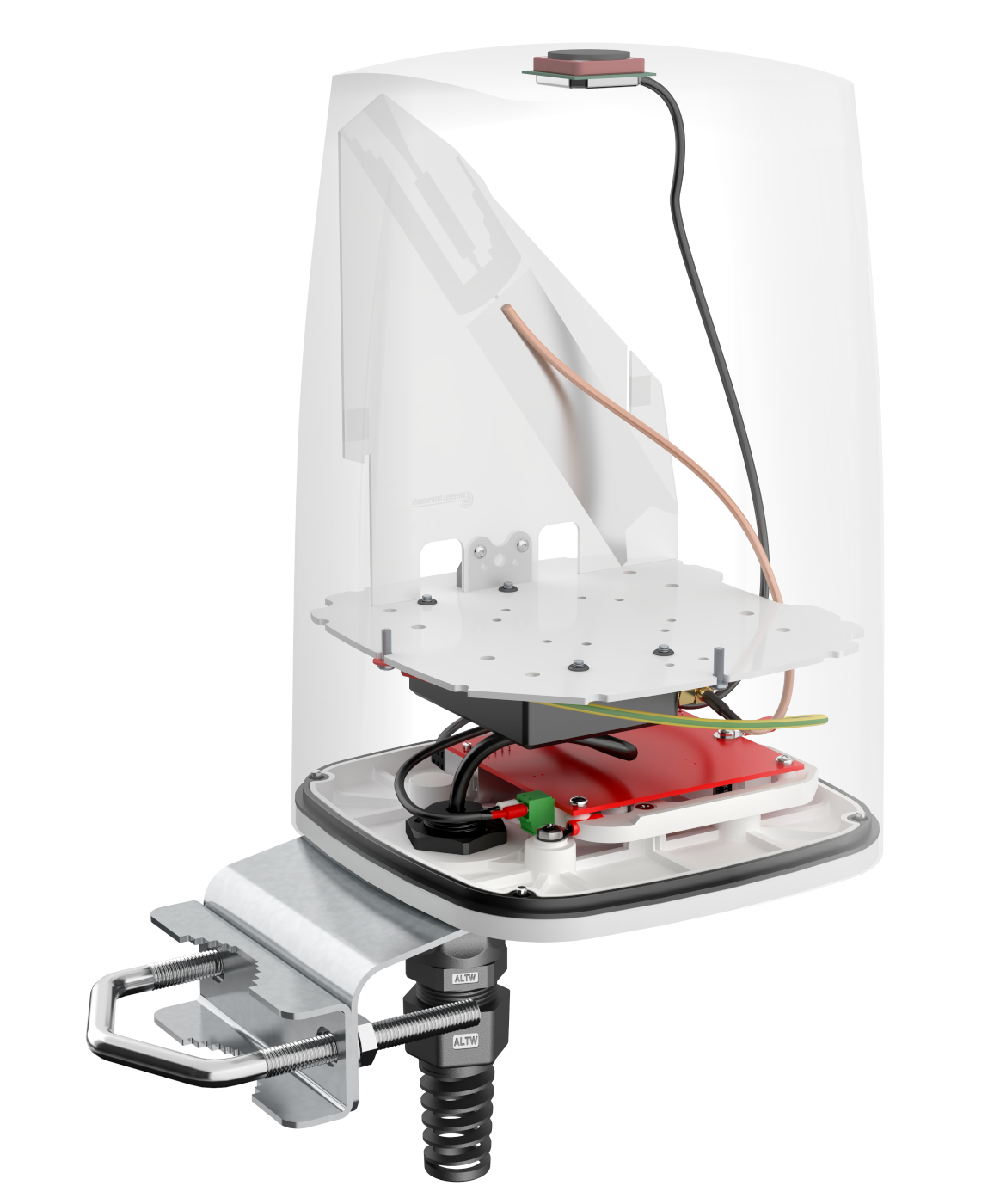

Integrated multi-band LTE omni antenna + GPS antenna + Passive PoE Splitter + place to install Milesight UR41 (All-in-one)

QuSpot omni LTE antenna for Milesight UR41 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded GPS antenna. If you use UR41 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

The set contains a Passive PoE splitter, allowing you to split data and power from a single Ethernet cable and maintain gigabit transfer speeds while protecting the LAN port from damage caused by overvoltage, short circuit or improper connection.

Why QuSpot for Milesight UR41

Learn more about your profit

Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router

Passive PoE splitter

Made in Europe

QuSpot for Milesight UR41

SPECIFICATION

PRODUCT DETAILS

LTE antenna specification

Mechanical specification

Frequency bands

COMPATIBLE ROUTERS

Frequency

694 - 960 MHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

Gain

694 - 960 MHz : 2 dBi

1.7 - 2.2 GHz : 2 dBi

2.2 - 2.7 GHz : 4 dBi

Supported LTE/5G bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95

VSWR

<1.60, max <2.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for LTE antenna

VSWR for LTE antenna of QuSpot for Milesight UR41

Gain for LTE antenna

Gain for LTE antenna of QuSpot for Milesight UR41
LTE from 700MHz to 900MHz
Elevation
Azimuth
LTE from 1.71GHz to 2.17GHz
Elevation
Azimuth
LTE from 2.3GHz to 2.7GHz
Elevation
Azimuth
