1. What is an omnidirectional antenna?

Type of antenna which receives or transmits signals in all directions along one plane with equal strength. Thank to that you can recive signal from whenever you are in particular area. Omnidirectioanl antenna radiation pattern:

IPXY is an Ingress Protection Rating, which defines protection levels of certain product. X from 0-6 defines security level from penetration of solids. Y from 0-9 defines security level from water.

3. Why placing router and antenna in one enclosure is better?

The biggest benefit of router and antenna being next to each other is the reduction of cable used to connect the elements. Reducing the cable length reduces its loss, which has high impact on signal quality.

Porównaj

Antenna QuSpot for Milesight UR32

P/n: AMUR32S

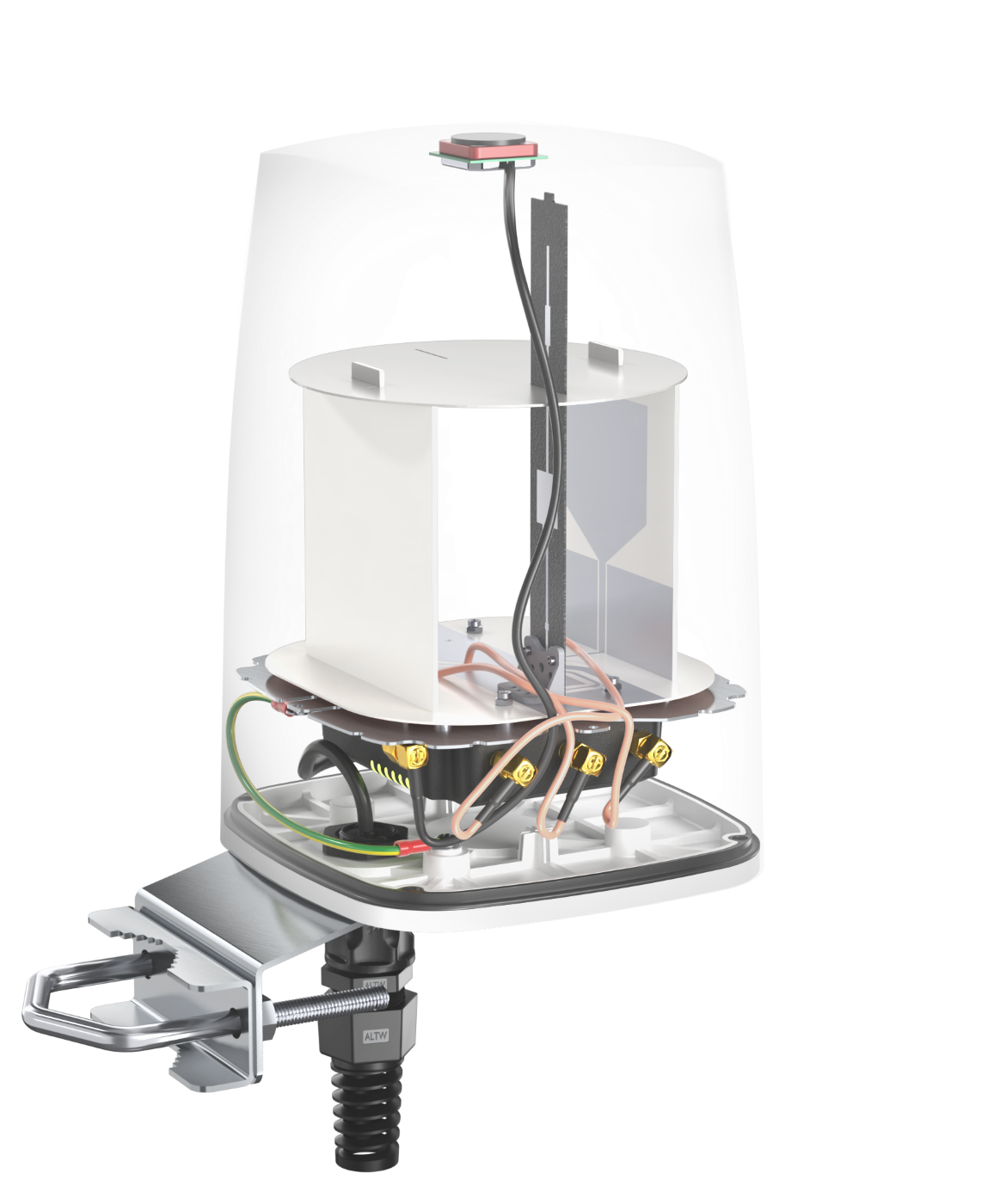

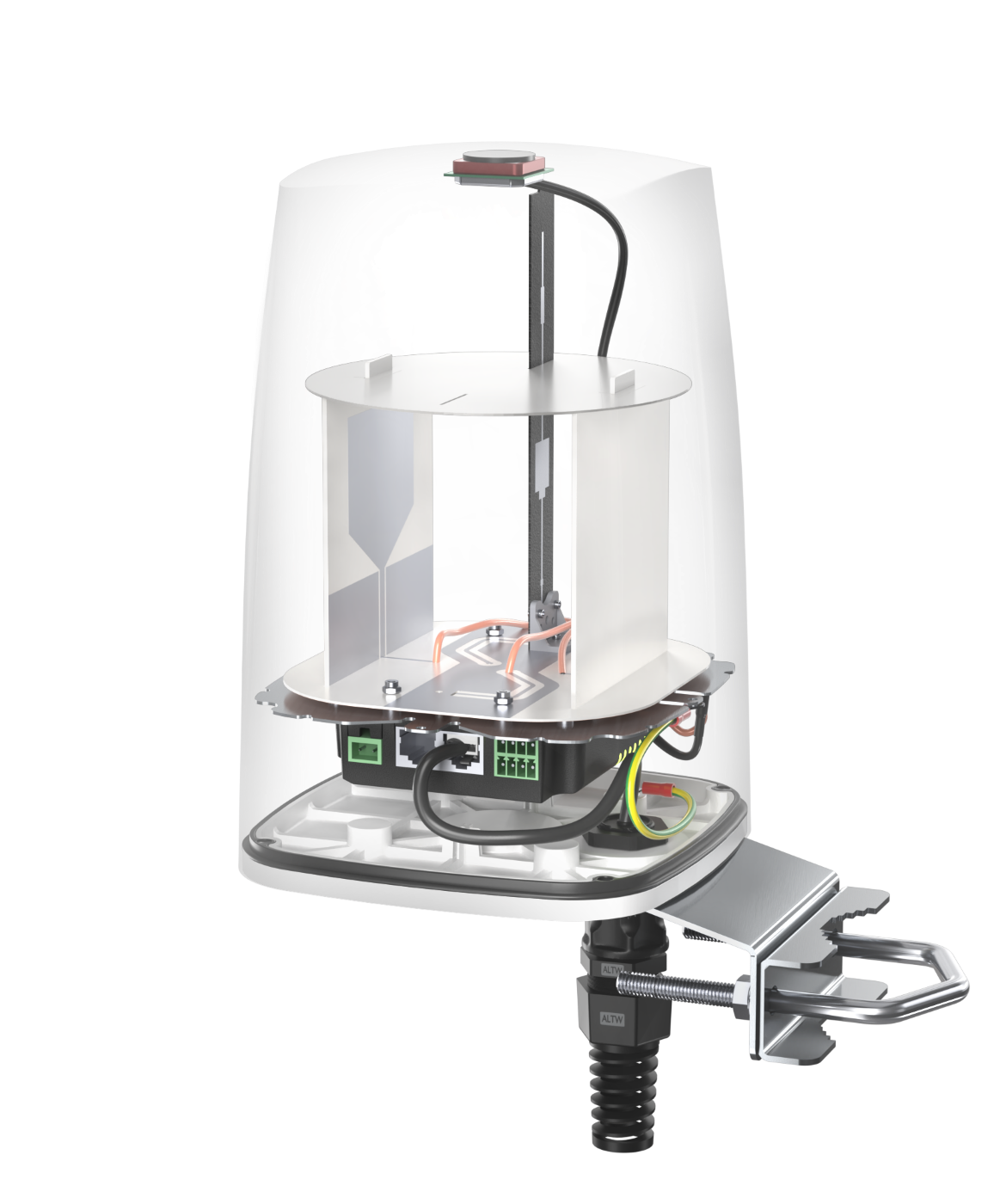

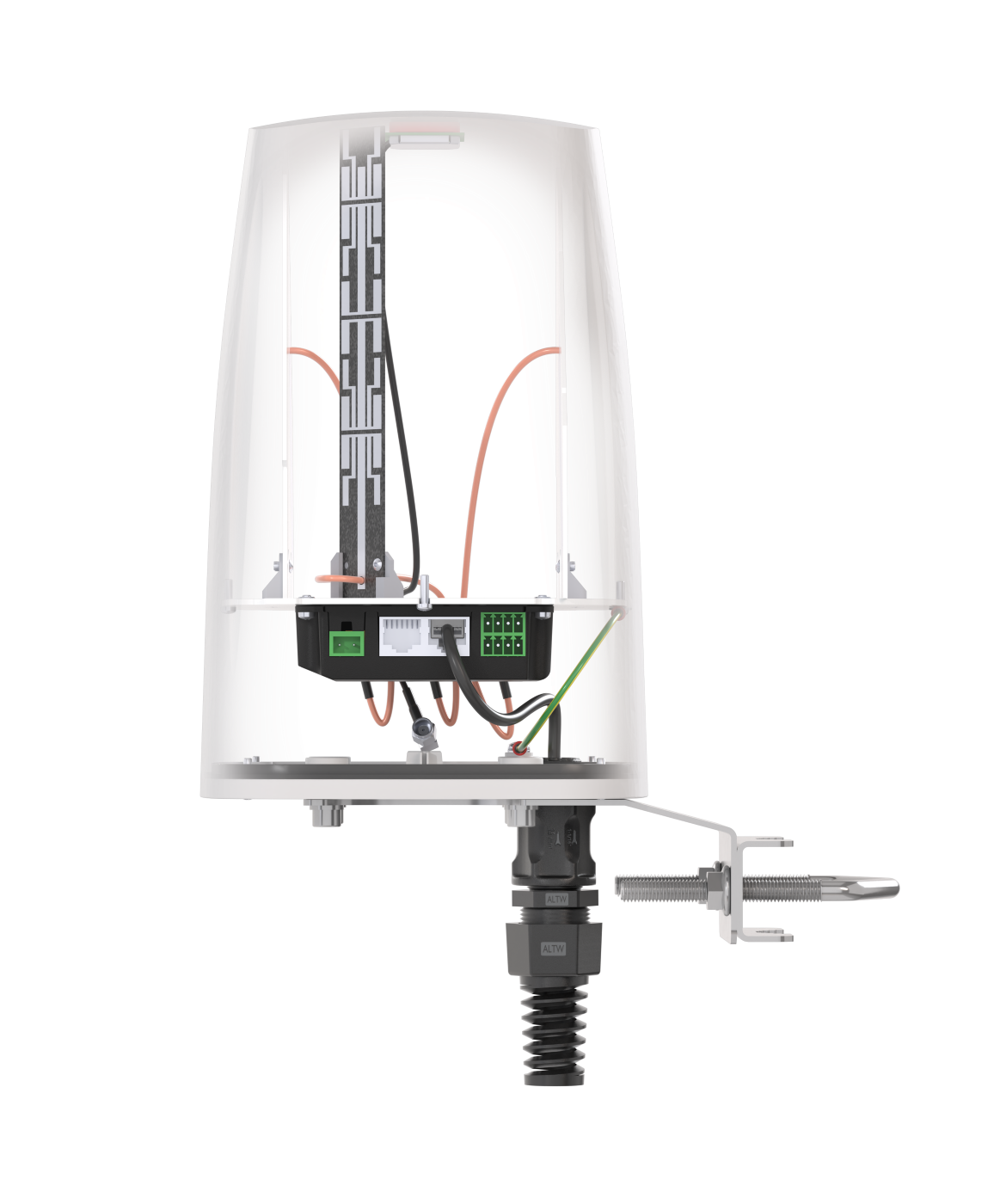

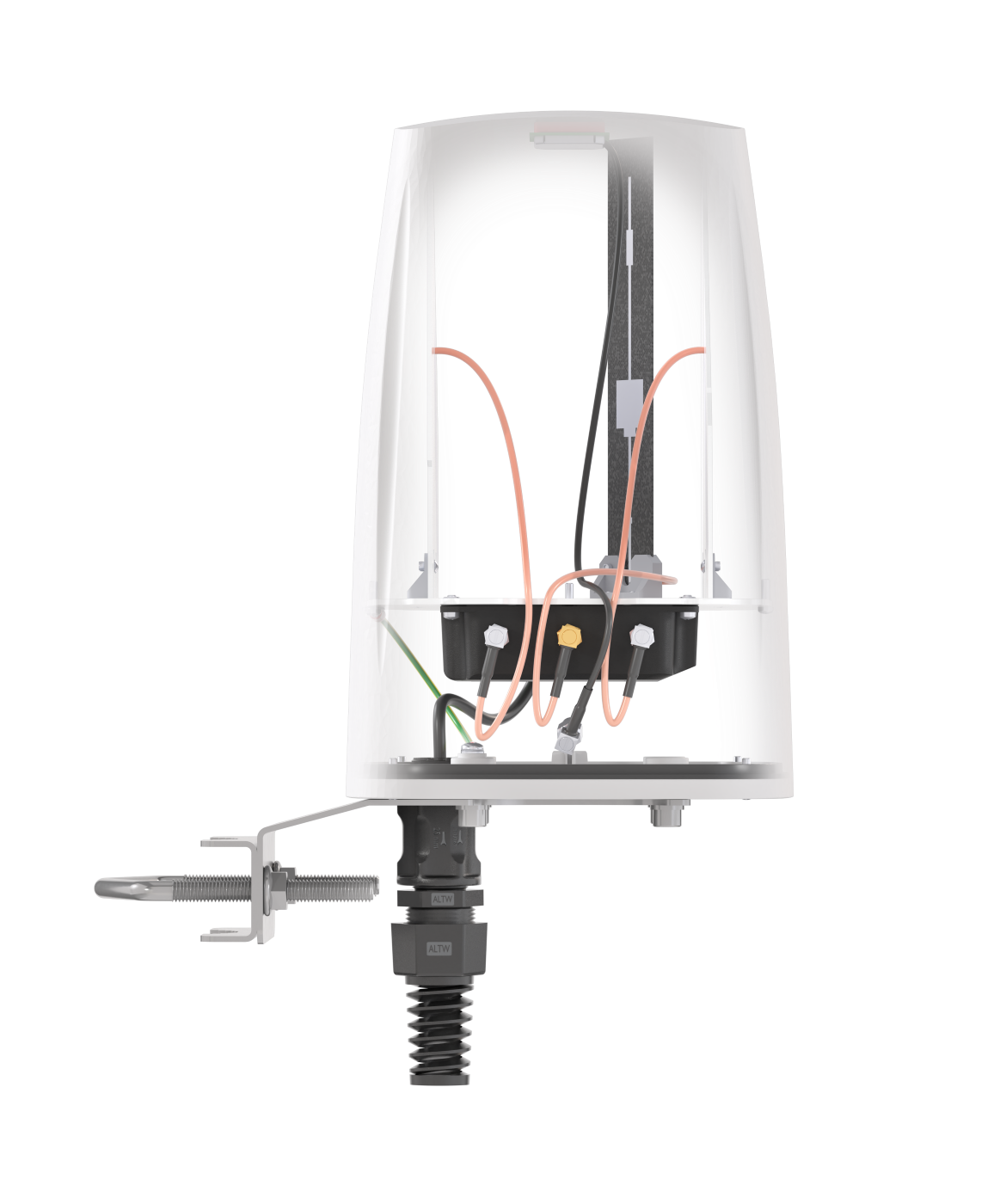

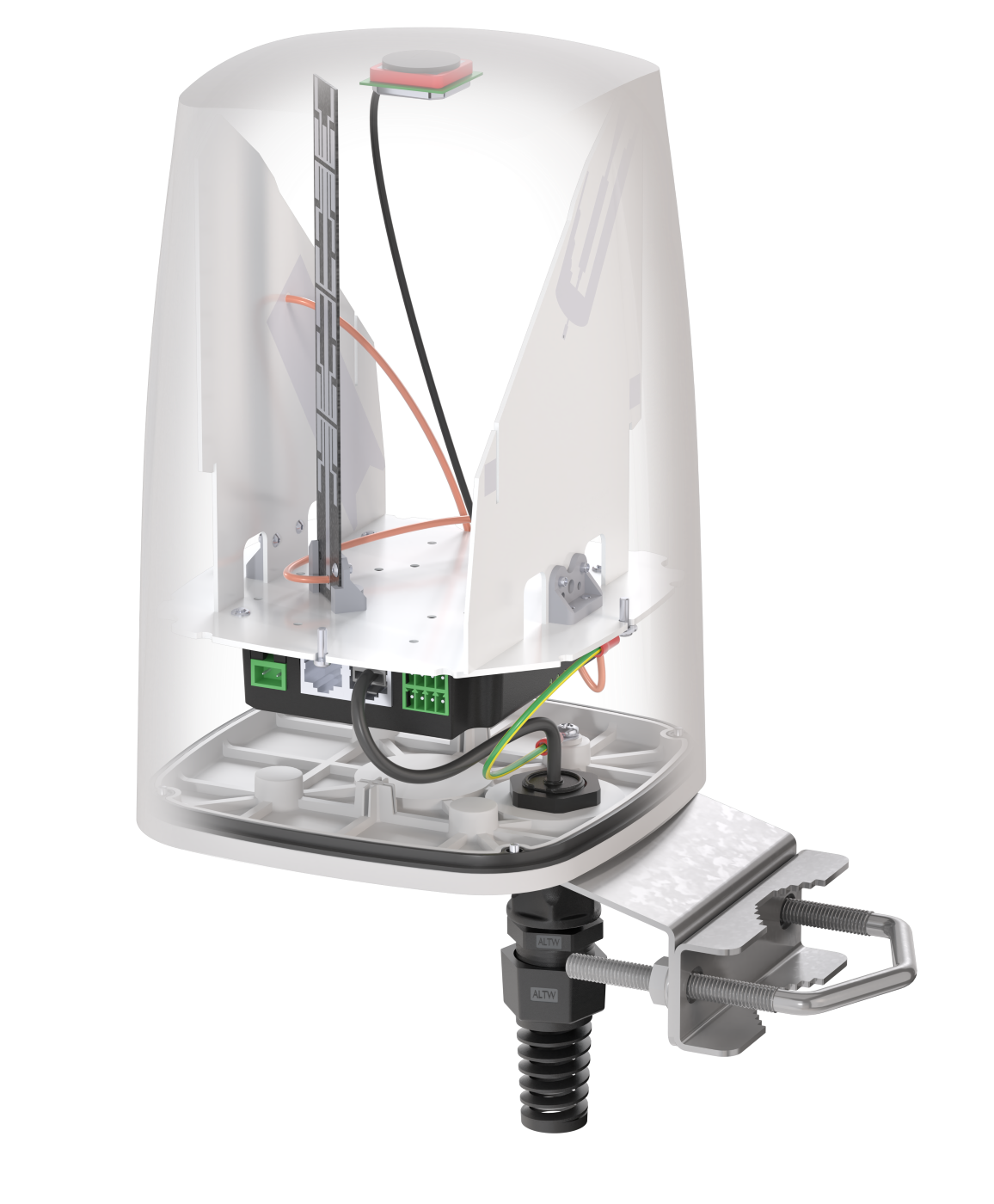

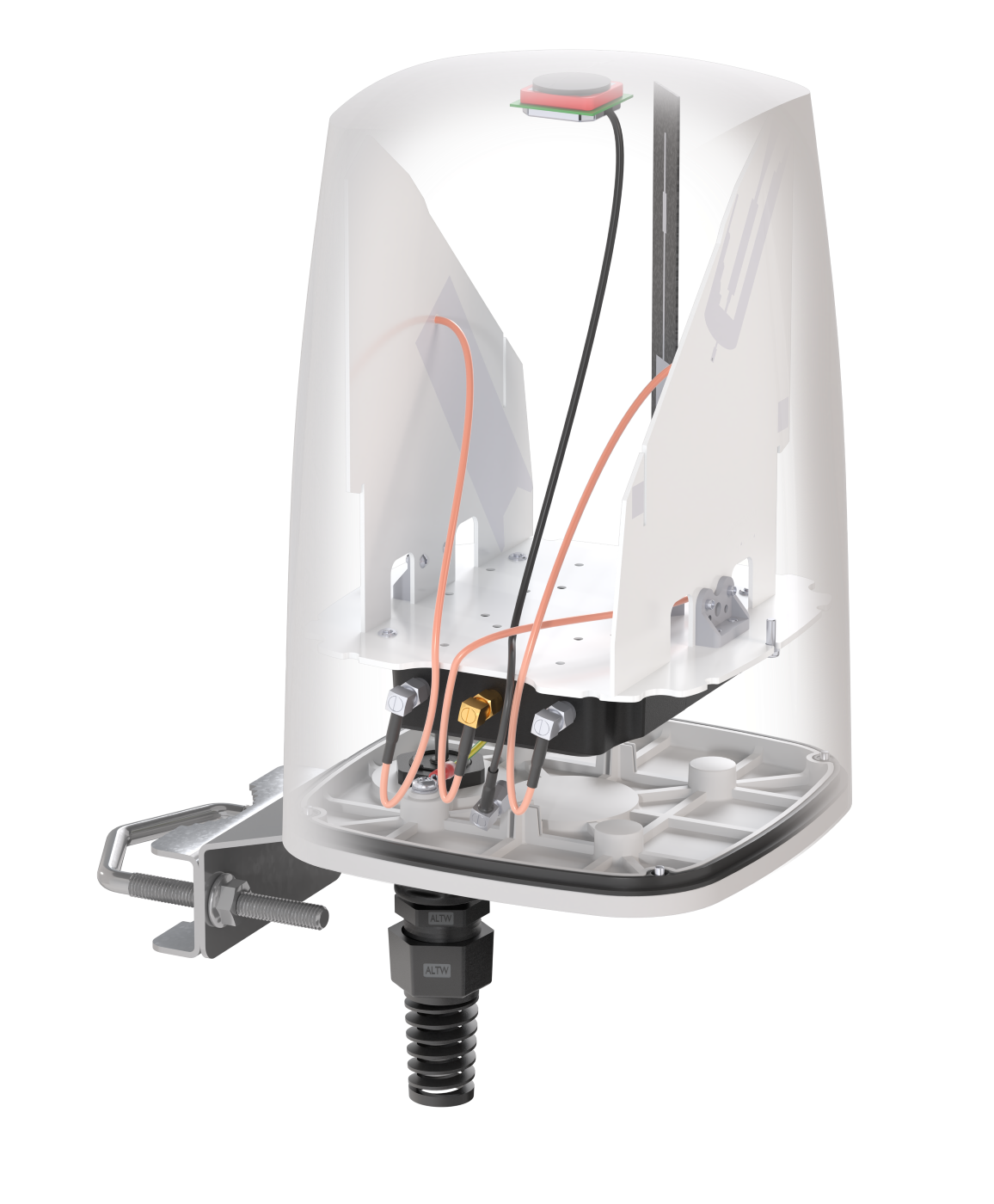

Integrated multi-band 5G/LTE omni antenna + WiFi omni antenna + GPS antenna + place to install Milesight UR32 (All-in-one)

QuSpot omni 5G/LTE antenna for Milesight UR32 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna. If you use UR32 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Technical specification

Any question?

Why QuSpot for Milesight UR32

Learn more about your profit

Outdoor antenna works in any weather conditions, IP68

Antenna perfectly matched with the router

All antennas and Milesight router integrated in one enclosure

Made in Europe

SPECIFICATION

PRODUCT DETAILS

Frequency

0.6 - 1.4 GHz

1.5 - 3.0 GHz

3.0 - 5.0 GHz

5.0 - 6.35 GHz

Max. Gain

0.6 - 1.4 GHz : 2.6 dBi

1.5 - 3.0 GHz : 4.2 dBi

3.0 - 5.0 GHz : 4.4 dBi

5.0 - 6.35 GHz : 2.1 dBi

Supported LTE bands

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 24, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 54, 65, 66, 67, 68, 69, 70, 71, 85, 103, 106, 107, 111, 252, 253, 254, 255, 256

Supported 5G bands

n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n24, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n54, n65, n66, n67, n68, n70, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n99, n100, n101, n105, n106, n250, n251, n252, n253, n254, n255, n256

VSWR

<2.00, max <3.00

Beamwidth

360°/35° ±5°

Polarization

Vertical

Impedance

50 Ω

PLOTS

PRODUCT DETAILS

VSWR for 5G/LTE antenna

Gain for 5G/LTE antenna

VSWR for Wi-Fi antenna

Gain for Wi-Fi antenna

5G/LTE from 650MHz to 950MHz

Elevation

Azimuth

5G/LTE from 1.71GHz to 2.5GHz

Elevation

Azimuth

5G/LTE from 3.3GHz to 4.0GHz

Elevation

Azimuth

5G/LTE from 4.5GHz to 5.5GHz

Elevation

Azimuth

Wi-Fi 2.4GHz and 5GHz and 6GHz

Elevation

Azimuth

ANY QUESTIONS?

DIMENSIONS

PRODUCT DETAILS

WHAT'S IN THE BOX?

PRODUCT DETAILS

In the box

QuSpot for Milesight UR32

1x 8mm wrench

x4 3,1 x 12

4x M6 x 10

2x M8

1x QuRJ45

Designed For

Milesight

Download

FREQUENTLY ASKED QUESTIONS

Datasheet QuSpot for Milesight UR32

3D MODEL

IP67 Certificate

IP68 Certificate

IK08 Certificate

IP68 Certificate with QuPS2/4 & QuSIM

Download

USE CASES

BEST SPOTS FOR YOUR ANTENNA

Success story sysinfo

12.09.2022

SYSINFO has been providing a wide range of services, hardware and software for over 22 years. The main activity is comprehensive IT service for our clients. One of them is a large chain of liquor stores that must have a stable and reliable VPN connection over the cellular network. The problem was difficult locations far from BTS transmitters and installation of the LTE router inside buildings.

EV chargers

01.02.2013

Upgrade your electric vehicle charger with a QuWireless antenna to provide the most reliable internet connection, trouble-free payments and seamless spot booking.

FREQUENTLY ASKED QUESTIONS

FIND ANSWERS

CAN'T FIND THE ANSWER FOR YOUR QUESTION?

Antenna QuSpot for Milesight UR32

Integrated multi-band 5G/LTE omni antenna + WiFi omni antenna + GPS antenna + place to install Milesight UR32 (All-in-one)

Why QuSpot for Milesight UR32

SPECIFICATION

5G/LTE antenna specification

Wi-Fi antenna specification

Mechanical specification

COMPATIBLE ROUTERS
